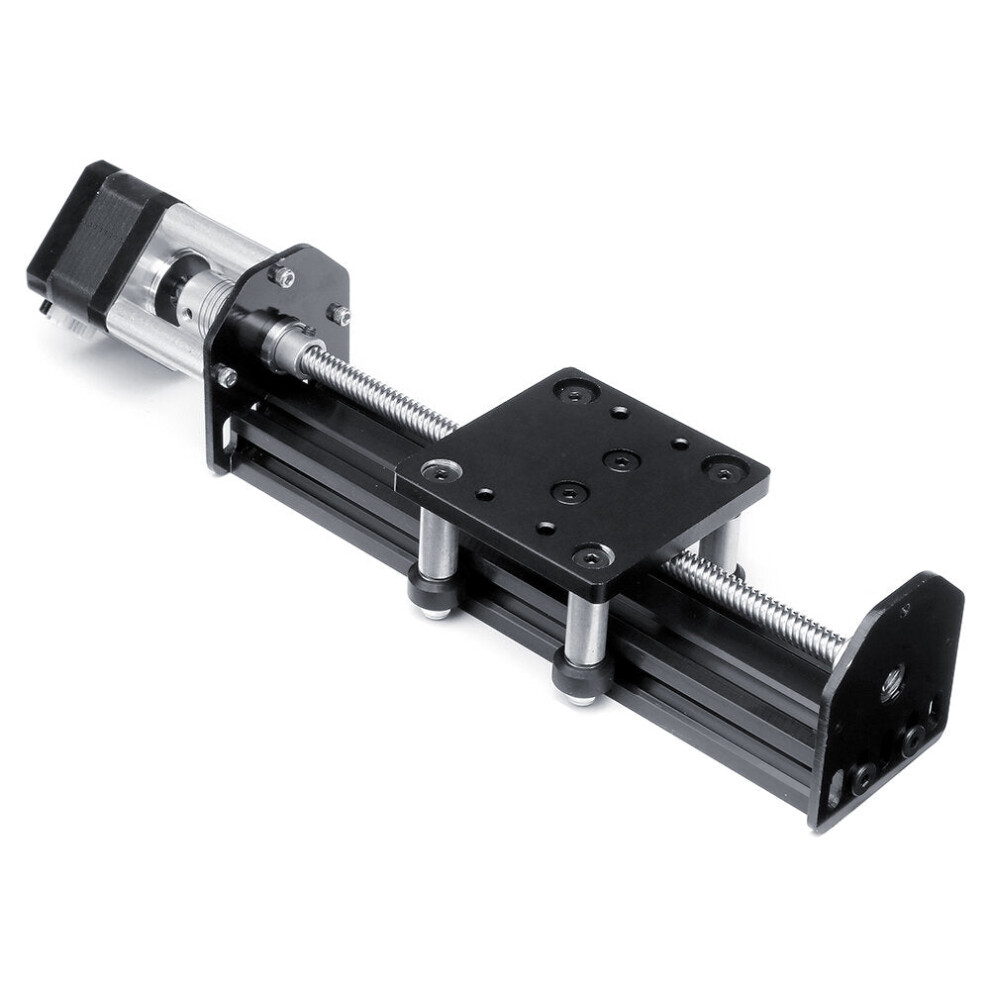

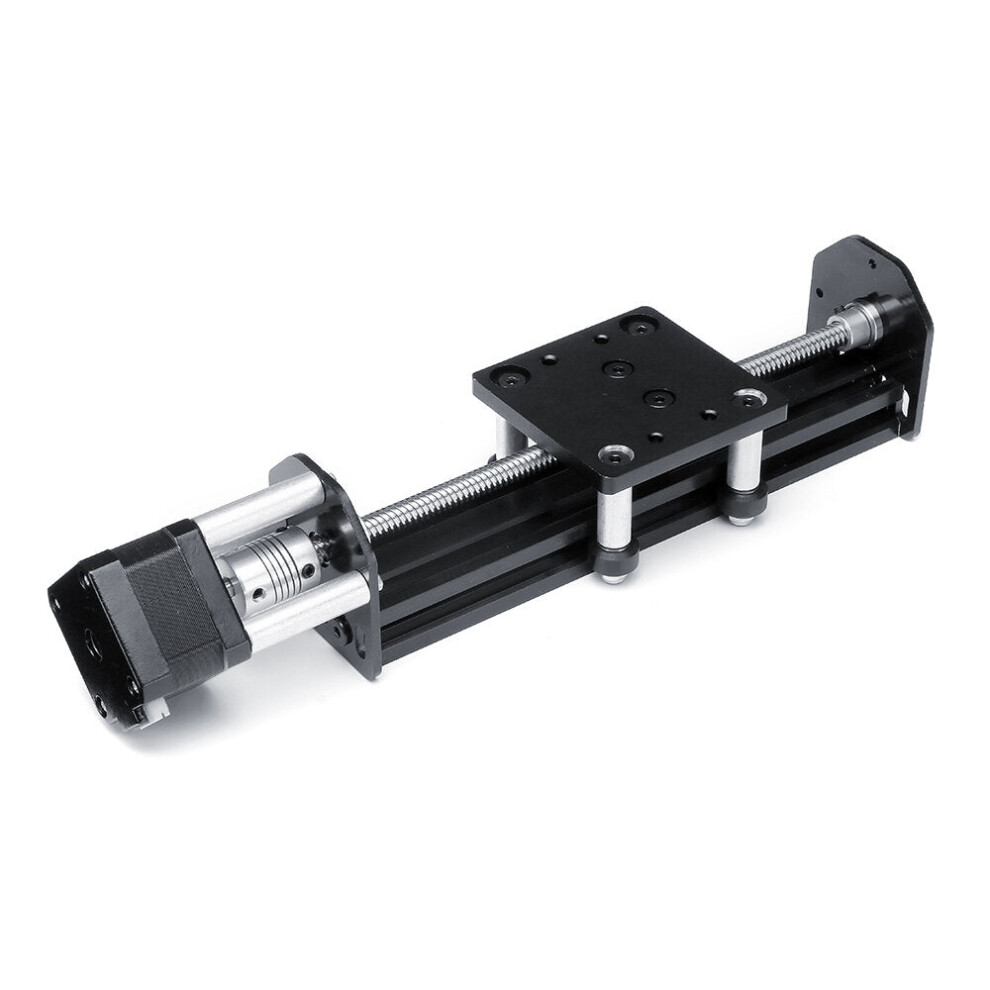

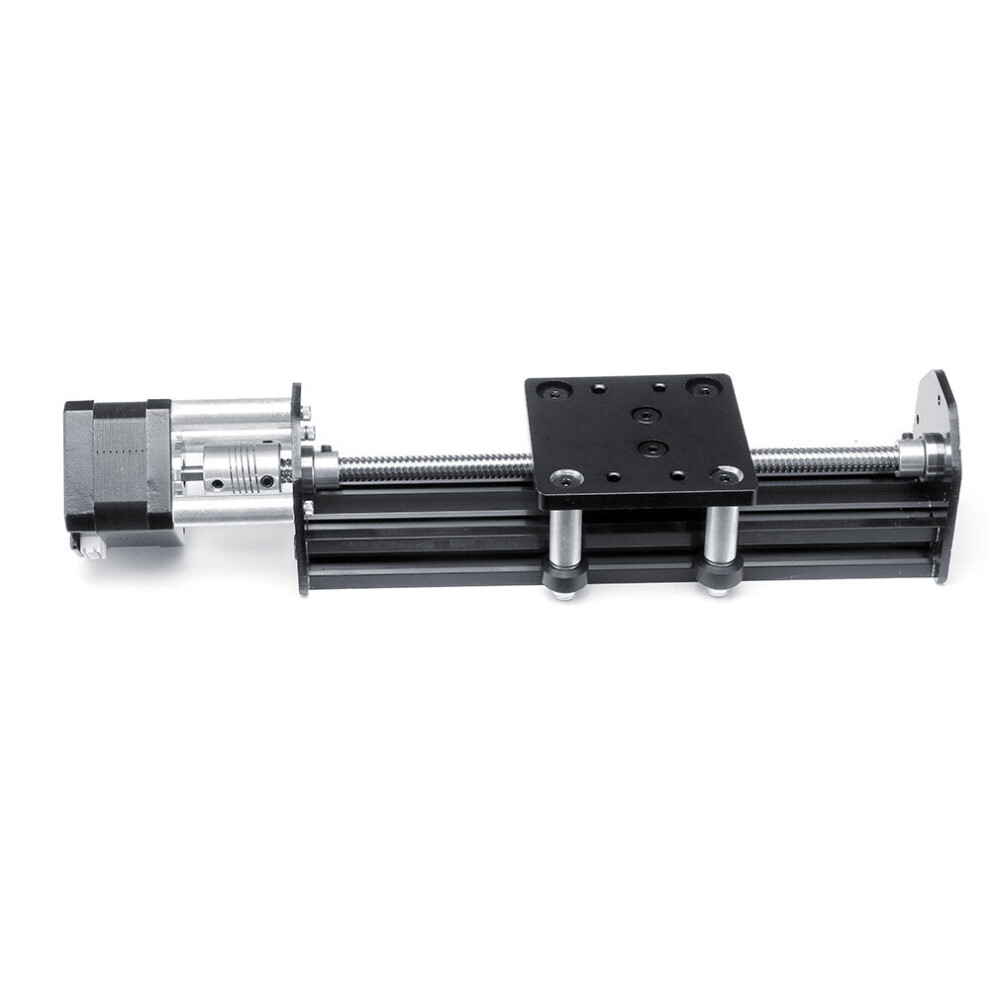

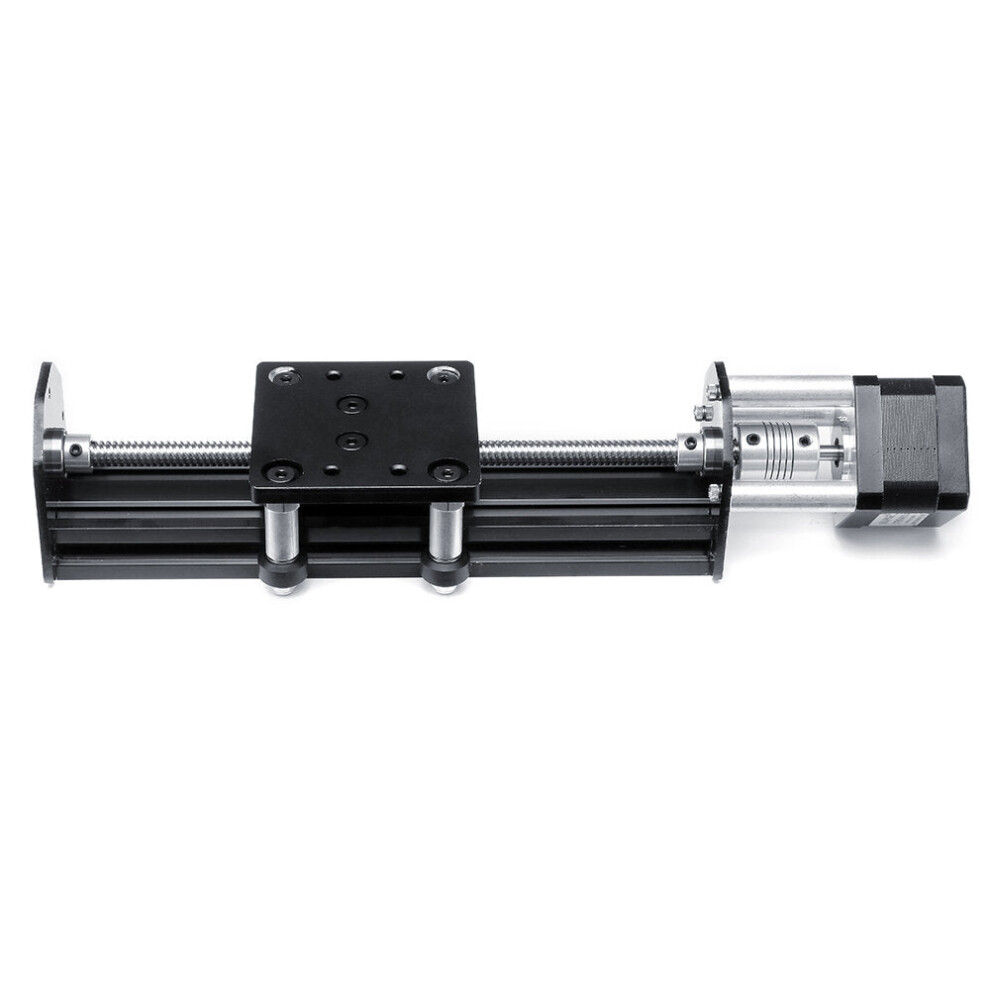

(400mm) Linear Guide Set Openbuilds Mini V Linear Actuator 100-500mm Linear Module with 17HS3401S Stepper Motor

(400mm) Linear Guide Set Openbuilds Mini V Linear Actuator 100-500mm Linear Module with 17HS3401S Stepper Motor Description

Description:
Linear Guide Set Openbuilds Mini V Linear Actuator 100-500mm Linear Module with 17HS3401S Stepper Motor.

Specification:
Width or Diameter of Guide: 2040.
Effective Travel: 100/150/200/250/300/350/400/500mm.
Motor leads: 30cm .
Total lenght= Effective stroke+170MM.
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser
engraving, Automation Equipment, Non-standard Equipment, Placement machine ect.

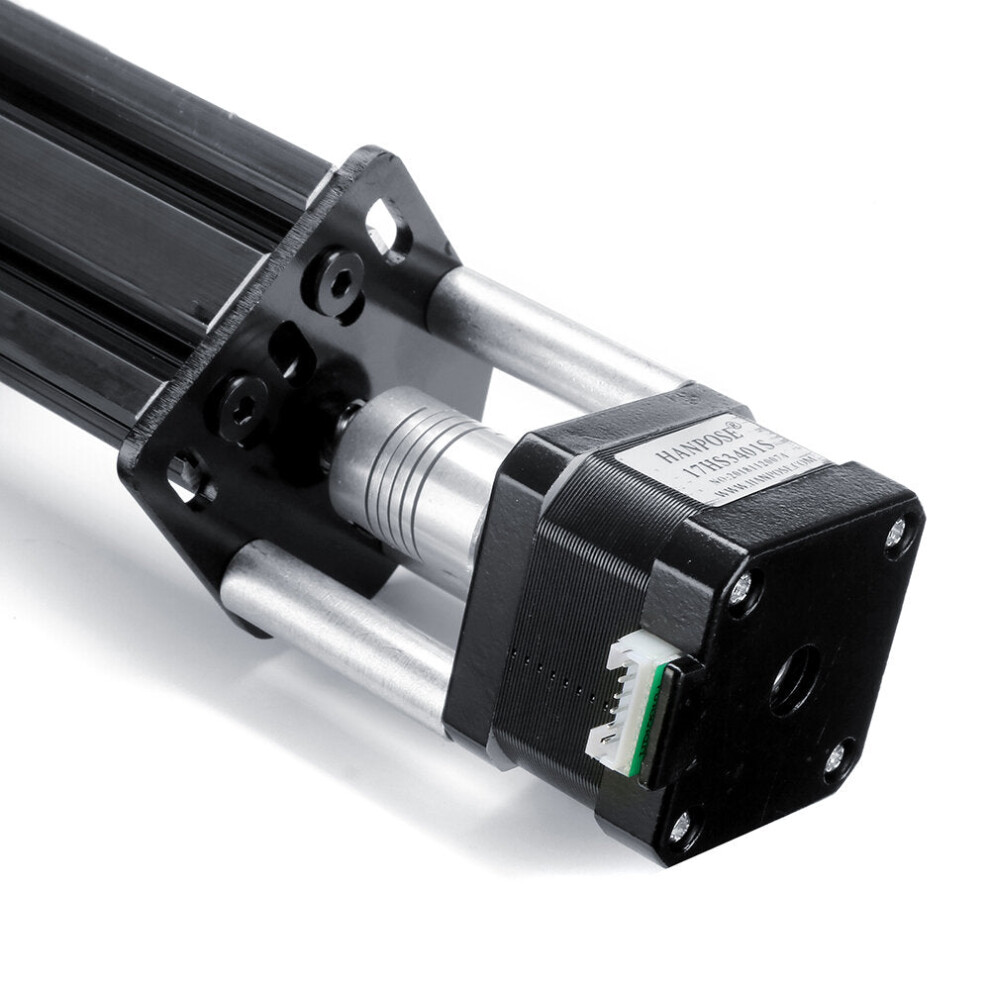

17HS3401-S Motor:
Type: Hybrid.
Phase: 2.
Step Angle: 1.8.
Motor Size: 42 x 34mm.
Shaft: "D" shaft 21 x 5mm.
Outlet way: "4" plug line.
Motor leads: Dupont line(1M).
Adapter drive: Two-phase step drive.
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation.
Equipment, Non-standard Equipment, Placement machine ect.
Precision angle step: 5% (full step, no charge).
Resistance accuracy: 10%.
Precision inductance: 20%.
Temperature rise: 80deg Max (rated current, 2 phase on).
Ambient temperature: ( - 20)-(+ 50).
Insulation resistance: 100M Min, 500VDC.
Insultion Force: 500VAC for a minute.

Package Included:
1 X Linear Actuator Set.
1 X Motor leads(30cm)
