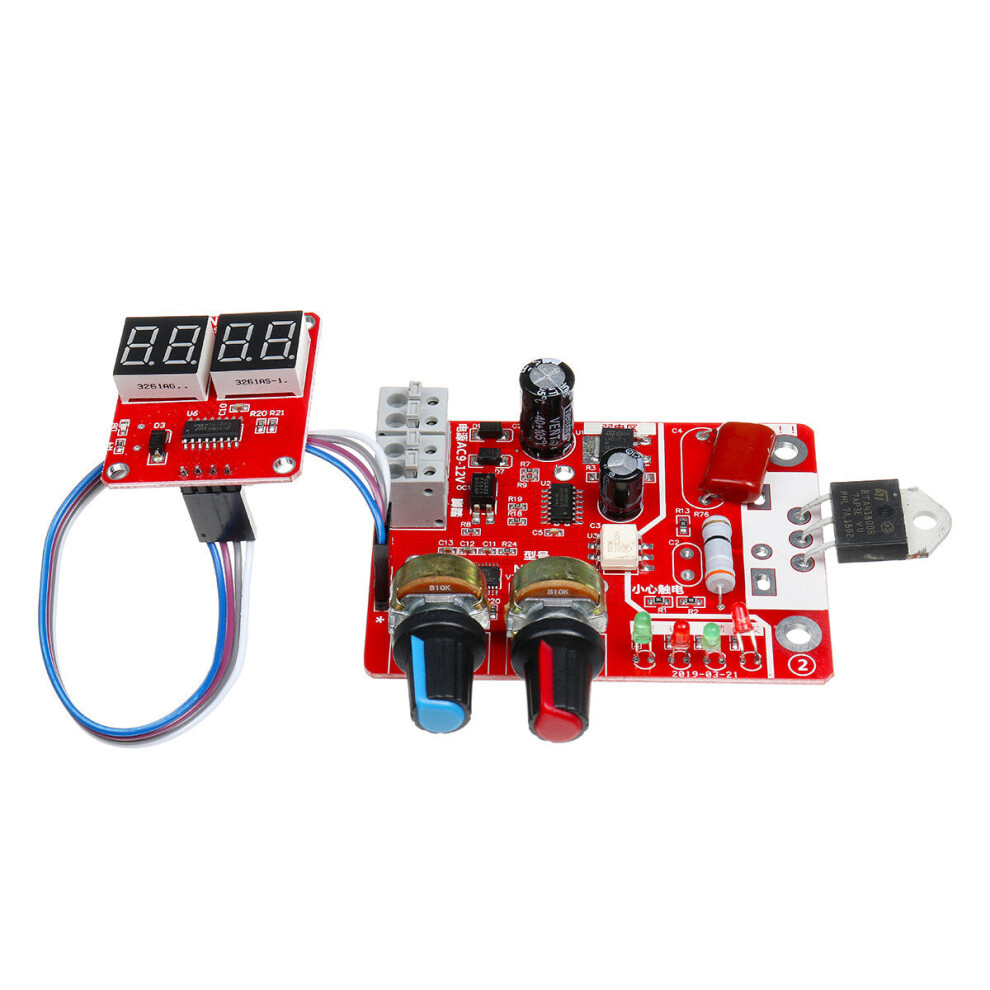

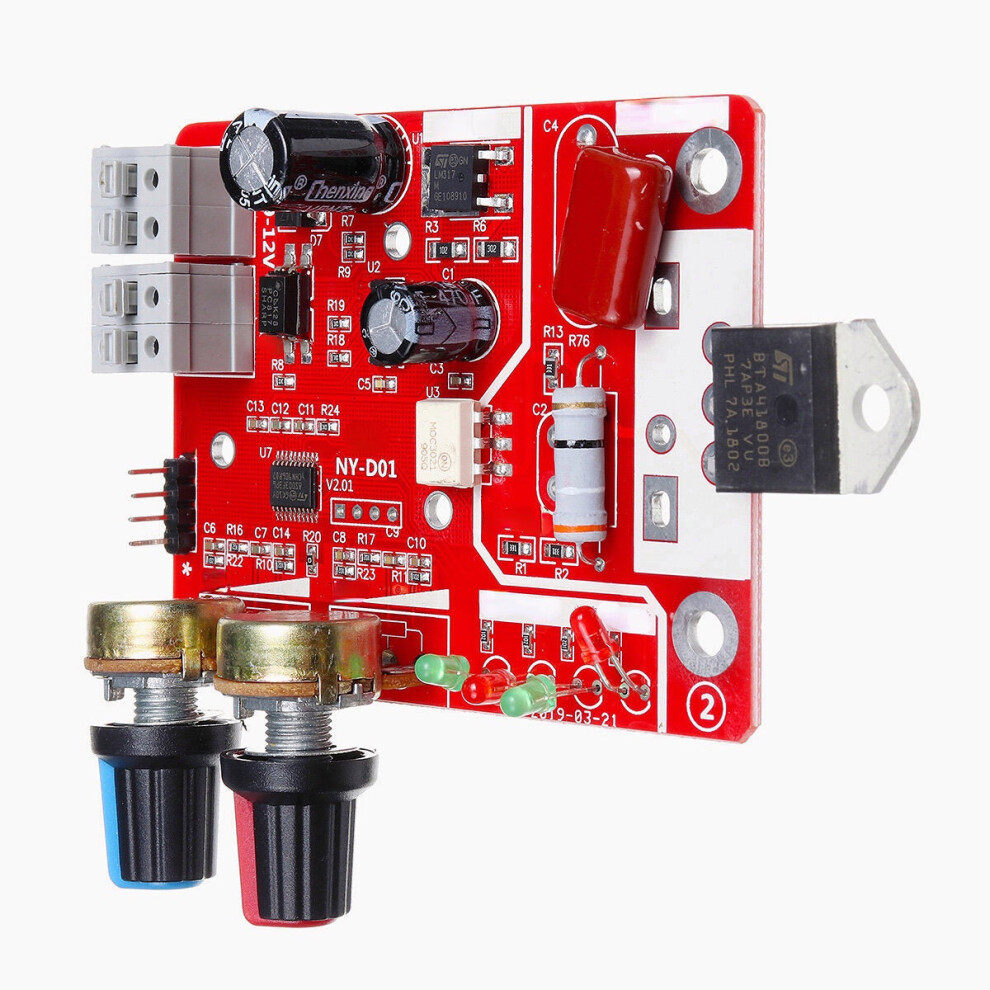

(40A) 40A/100A Digital Display Spot Welding Module Time and Current Controller Panel Timing Ammeter Spot Welders Control Board

(40A) 40A/100A Digital Display Spot Welding Module Time and Current Controller Panel Timing Ammeter Spot Welders Control Board Description

Features:
1: The use of STM8 industrial control center microcontroller.
2: Strong and weak electricity through optocoupler insulation, safe operation.
3: The power cable and foot switch line adopts the bolt the quick connect terminal, more convenient and reliable.

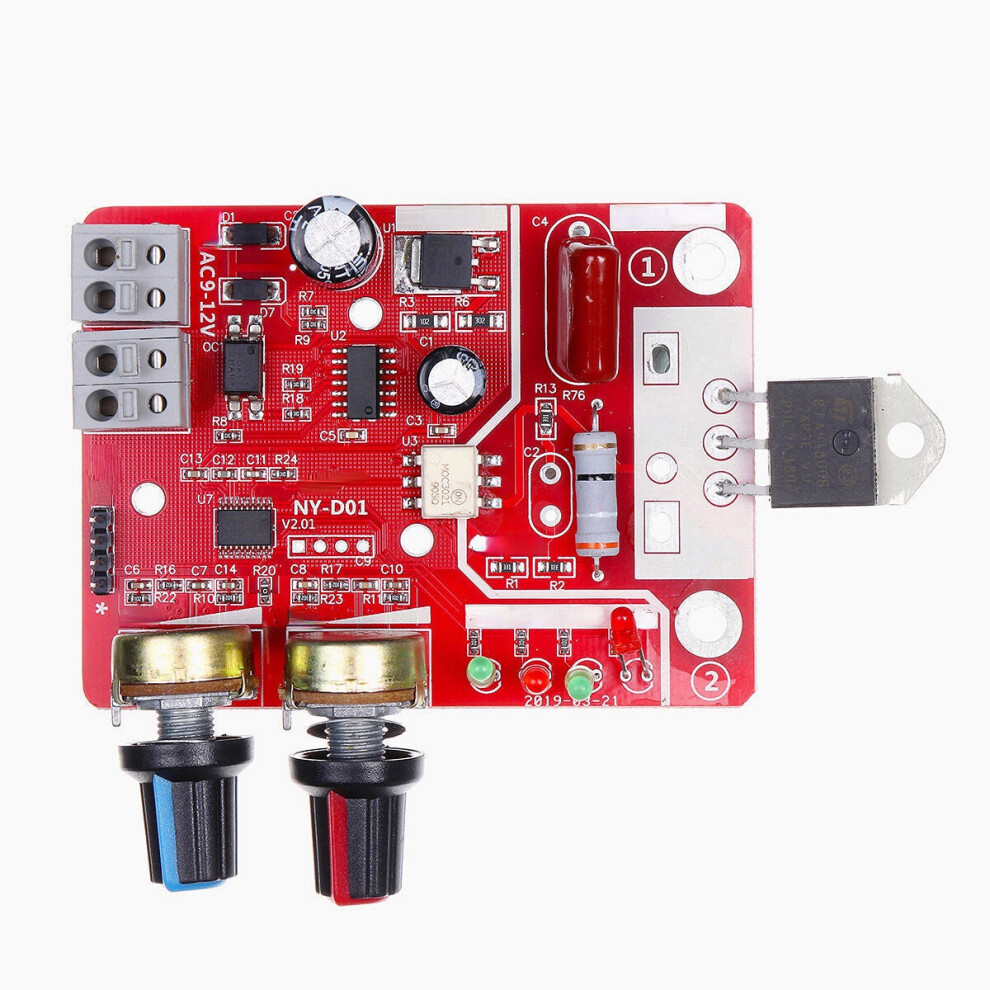

4: Input time, current using high-precision simple potentiometer, to ensure reliable, convenient input.

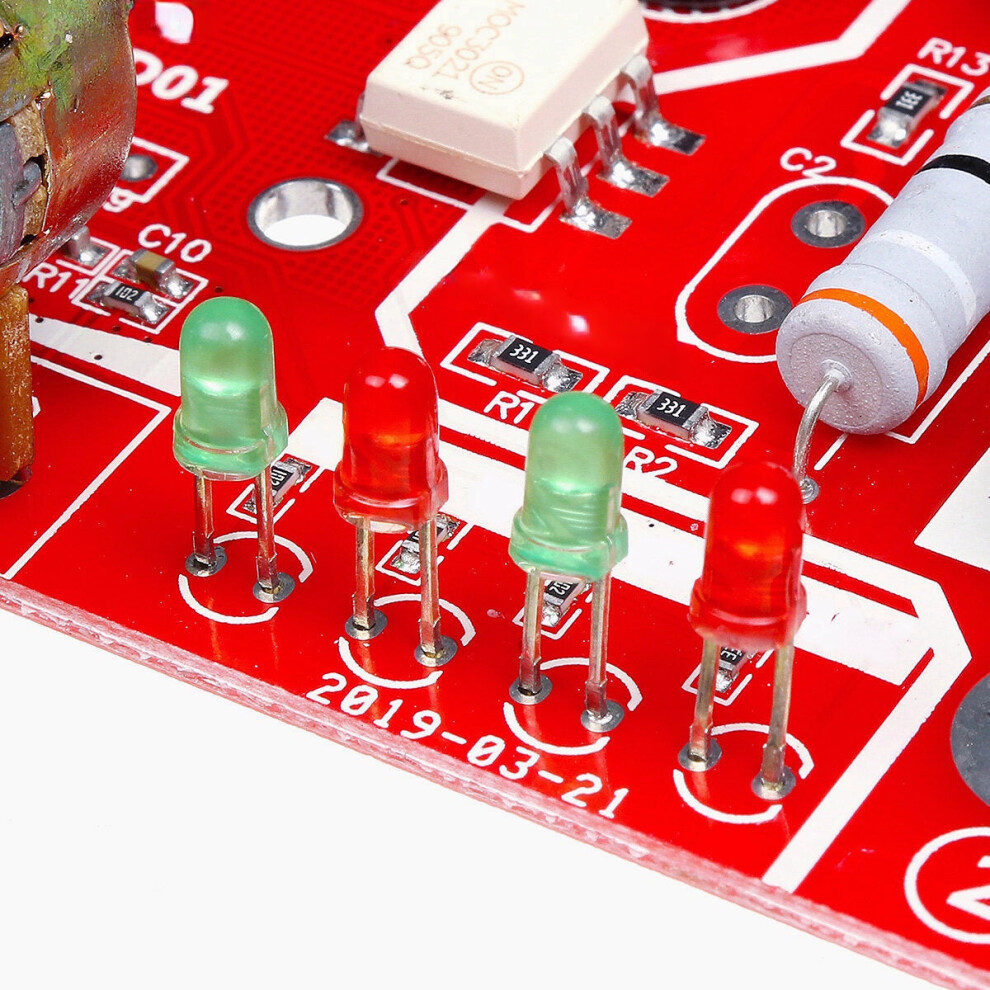

5: On-board power supply, state, foot, trigger indicator, work status clearly visible.
6: The design of reliable zero crossing detection circuit to ensure that the SCR phase shift accuracy.

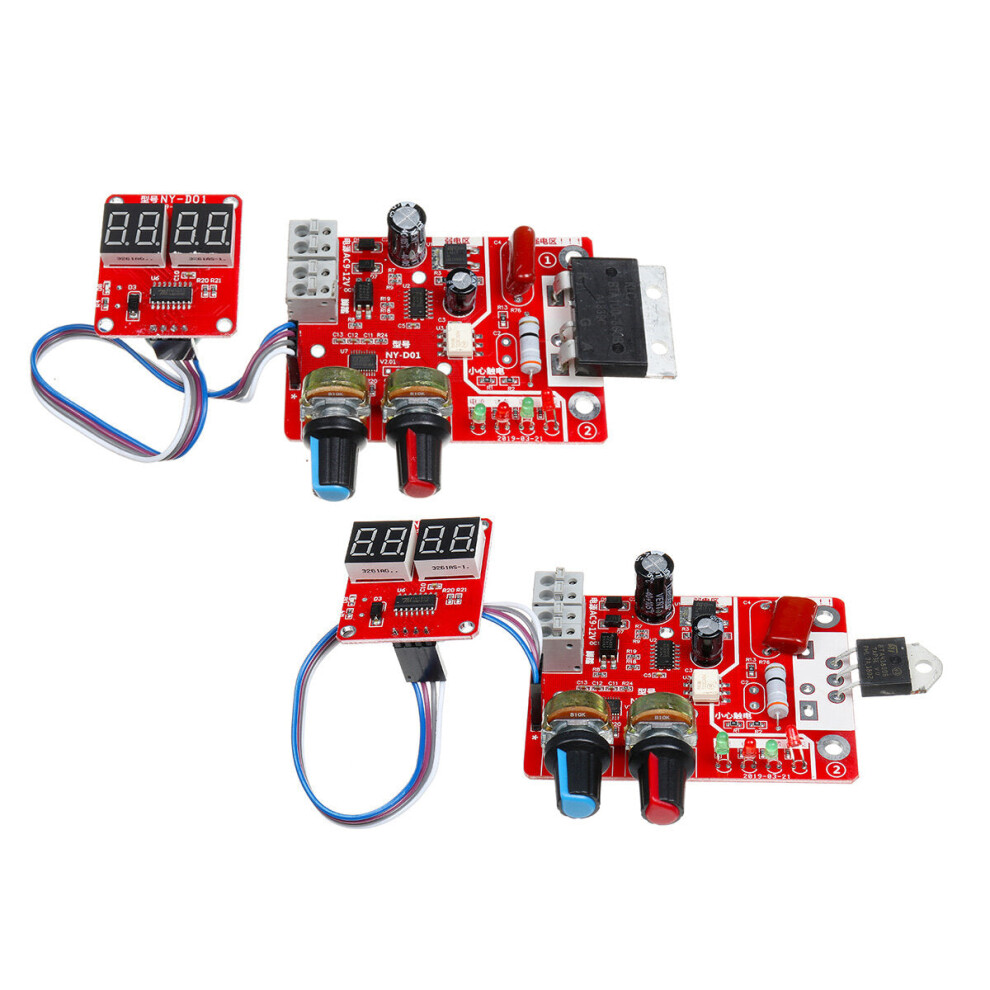

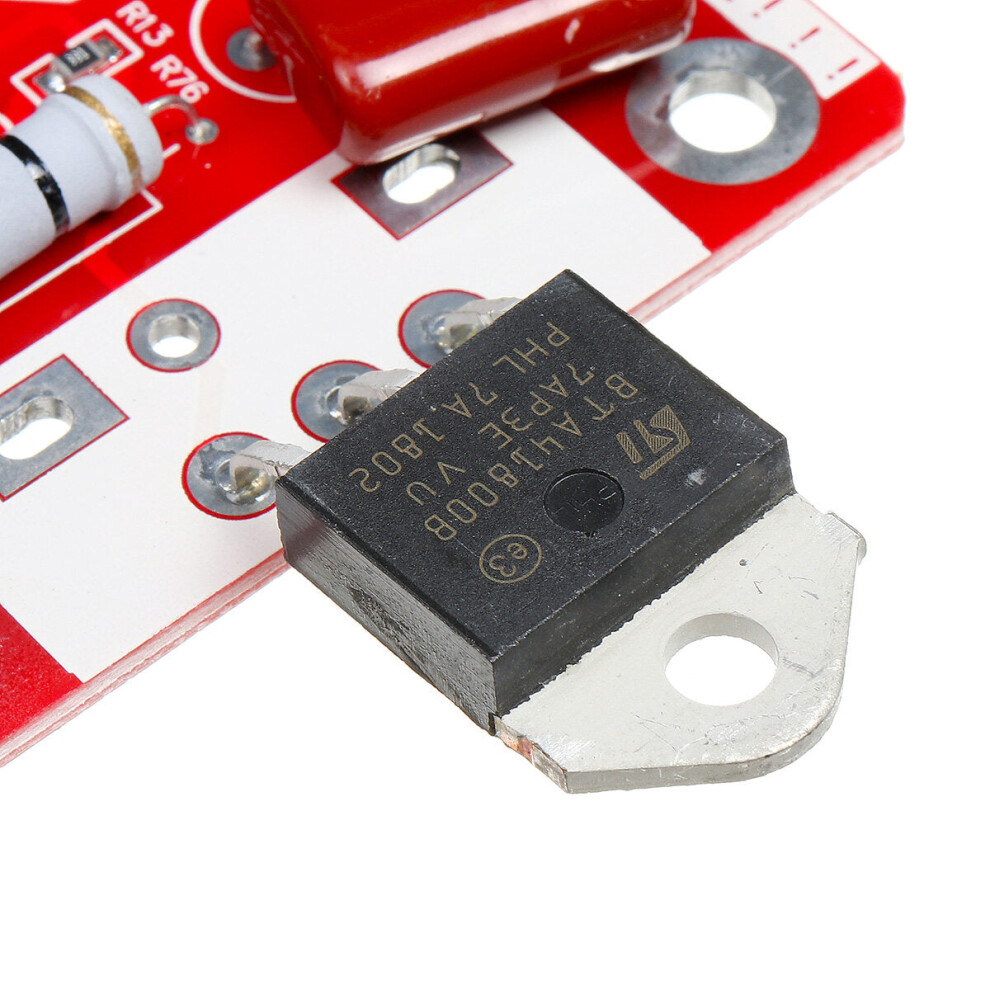

7: The controller is compatible with 40A-100A scr.

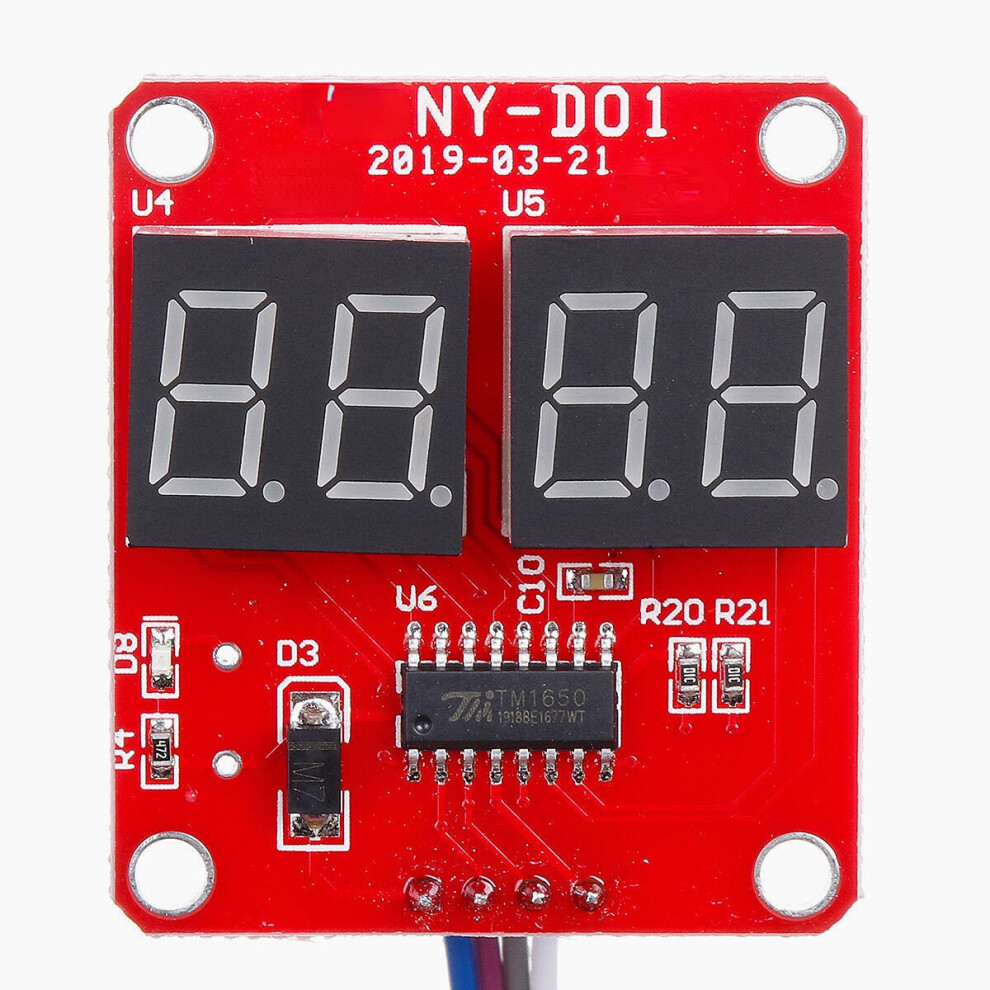

8: Digital control interface, you can display the current time and current settings.
9: Input time of 1-50, cycle unit (1 cycles is 20 ms), current input (30-99%),

Specifications:
Current: 40/100A.
Voltage: AC9-12V.
Input time: 1-50 cycle unit(1 cycles is 20ms).

Note:
Please allow 1-3mm errors due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Included:
1x 40A/100A Digital Display Spot Welding Time and Current Controller Panel
