(40KG) Galvanised Self Righting Plough Anchor

(40KG) Galvanised Self Righting Plough Anchor Description

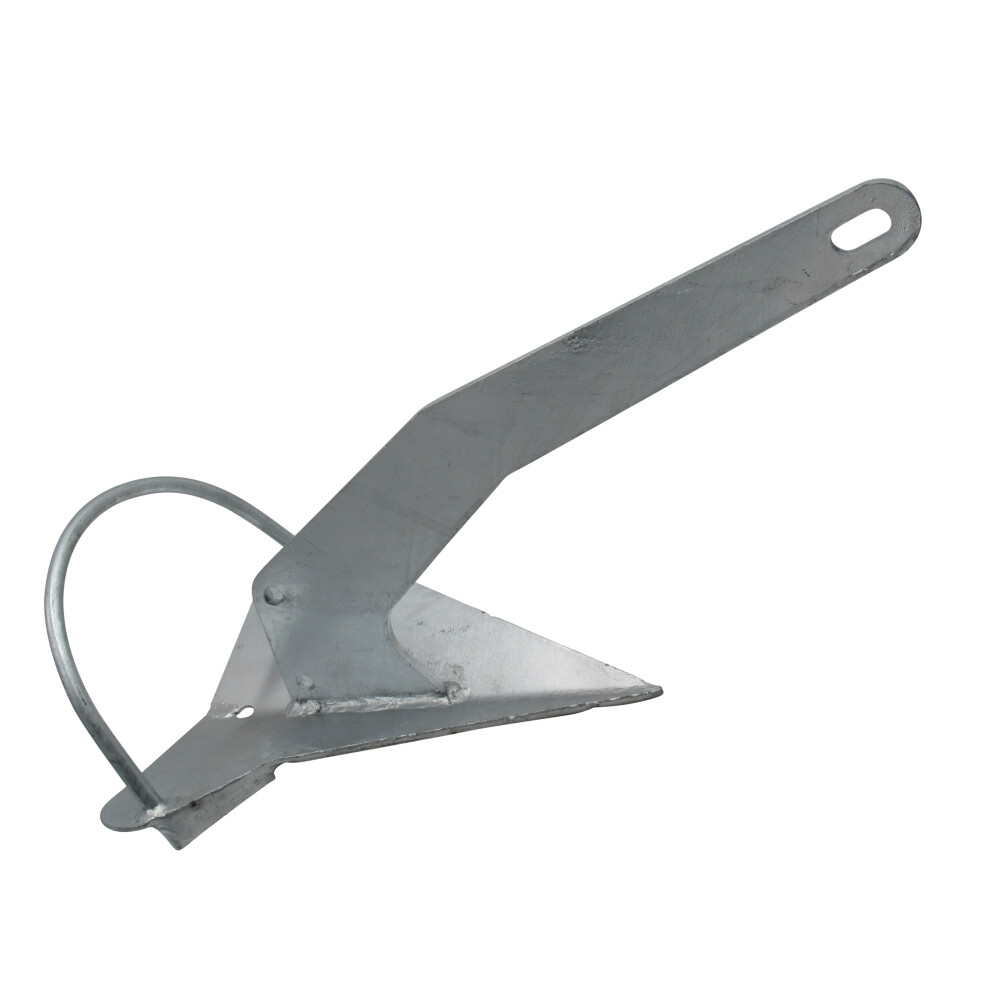

Self Righting Plough Anchor

A high quality anchor is an essential item whilst sailing, and these Fixed Plough Anchors are extremely high quality.

Plough anchors have a single point and are known for their fantastic holding power in grassy conditions as well as in sand, clay and mud. However these anchors feature a unique roll-bar design so that they can self right on the seabed, this ensures that they land at the optimum angle for maximum holding power every time.

Our anchors feature a large fluke area with a chisel tip to help ensure maximum stabililty whilst in the water. They also have tandem anchoring attachment points as well as a buoyed retrieval line point.

These anchors have been built to last thanks to their high tensile steel construction and galvanised finish.

Available from 4KG - 40KG

Dimensions

Size 4KG - Overall Length 547MM, Overall Width 275MM, Overall Height 236MM, Roll Bar Height 133MM, Shank Length 234MM, Shank Thickness 75MM, Fluke Length 154MM

Size 6KG - Overall Length 630MM, Overall Width 315MM, Overall Height 273MM, Roll Bar Height 150MM, Shank Length 270MM, Shank Thickness 80MM, Fluke Length 170MM

Size 10KG - Overall Length 724MM, Overall Width 365MM, Overall Height 307MM, Roll Bar Height 174MM, Shank Length 312MM, Shank Thickness 90MM, Fluke Length 204MM

Size 15KG - Overall Length 830MM, Overall Width 415MM, Overall Height 361MM, Roll Bar Height 205MM, Shank Length 360MM, Shank Thickness 100MM, Fluke Length 235MM

Size 20KG - Overall Length 864MM, Overall Width 435MM, Overall Height 378MM, Roll Bar Height 220MM, Shank Length 373MM, Shank Thickness 110MM, Fluke Length 244MM

Size 25KG - Overall Length 971MM, Overall Width 485MM, Overall Height 417MM, Roll Bar Height 233MM, Shank Length 420MM, Shank Thickness 115MM, Fluke Length 274MM

Size 33KG - Overall Length , Overall Width , Overall Height , Roll Bar Height , Shank Length , Shank Thickness , Fluke Length

Size 40KG - Overall Length , Overall Width , Overall Height , Roll Bar Height , Shank Length , Shank Thickness , Fluke Length
