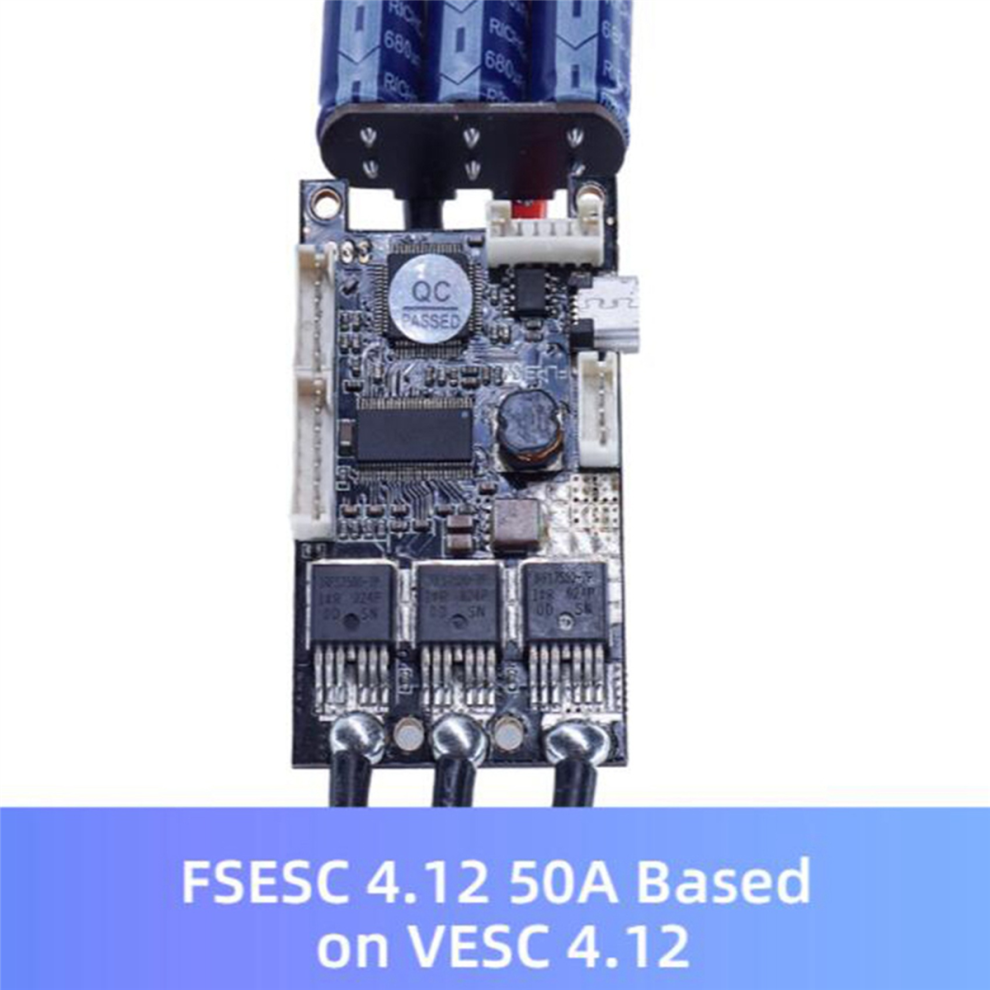

4.12 50A ESC Electric Speed Controller for Skateboard/E-Scooter SK8

4.12 50A ESC Electric Speed Controller for Skateboard/E-Scooter SK8 Description

This ESC is based upon the Open Source Project, and compatible with Software.
This ESC is a highly modifiable electronic speed controller designed for DIY Electric Skateboards conversions in mind.
This ESC allows you to use sensorless motors to achieve smooth start-up from a stop,while traditional RC ESC's may have trouble starting. It also provides strong reliable and electric .

Specs:
Hardware: V4.12
Firmware: V3.40(Keep upgrated with the latest firmware version)

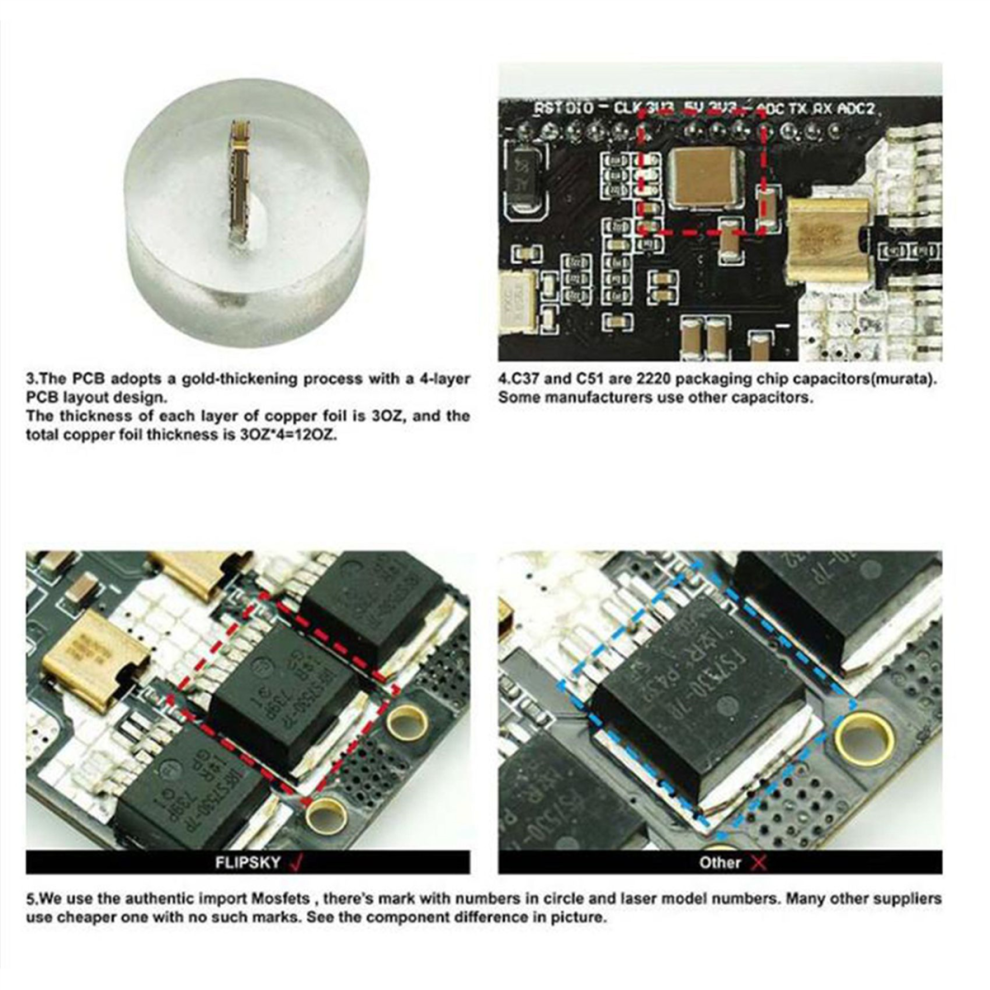

PCB: 4 layers, size: 40 x 60mm
Current: 50A continuous / 240A
Voltage: 8V-60V (Cells: 3-13S LiPo)
Recommended 10S battery
BEC: [email protected]
BEC type: Internal driver support
Timing: Software calibration

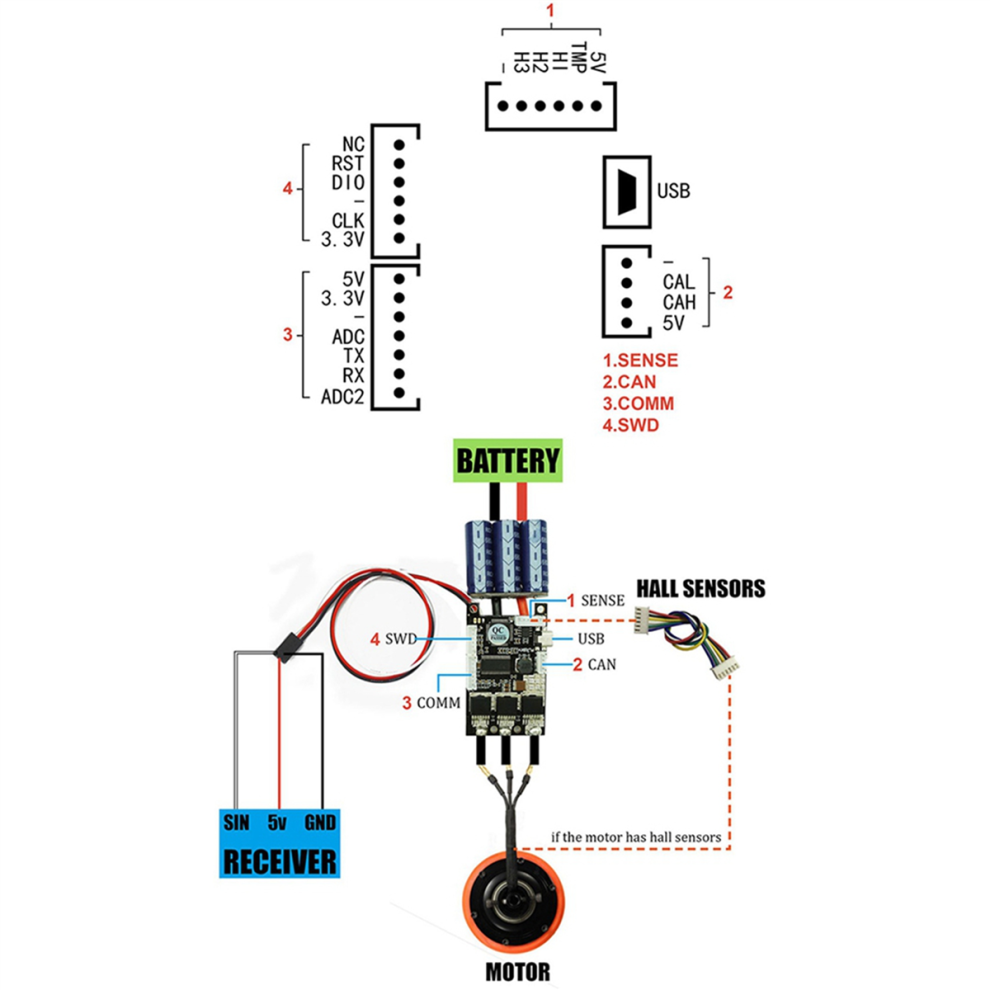

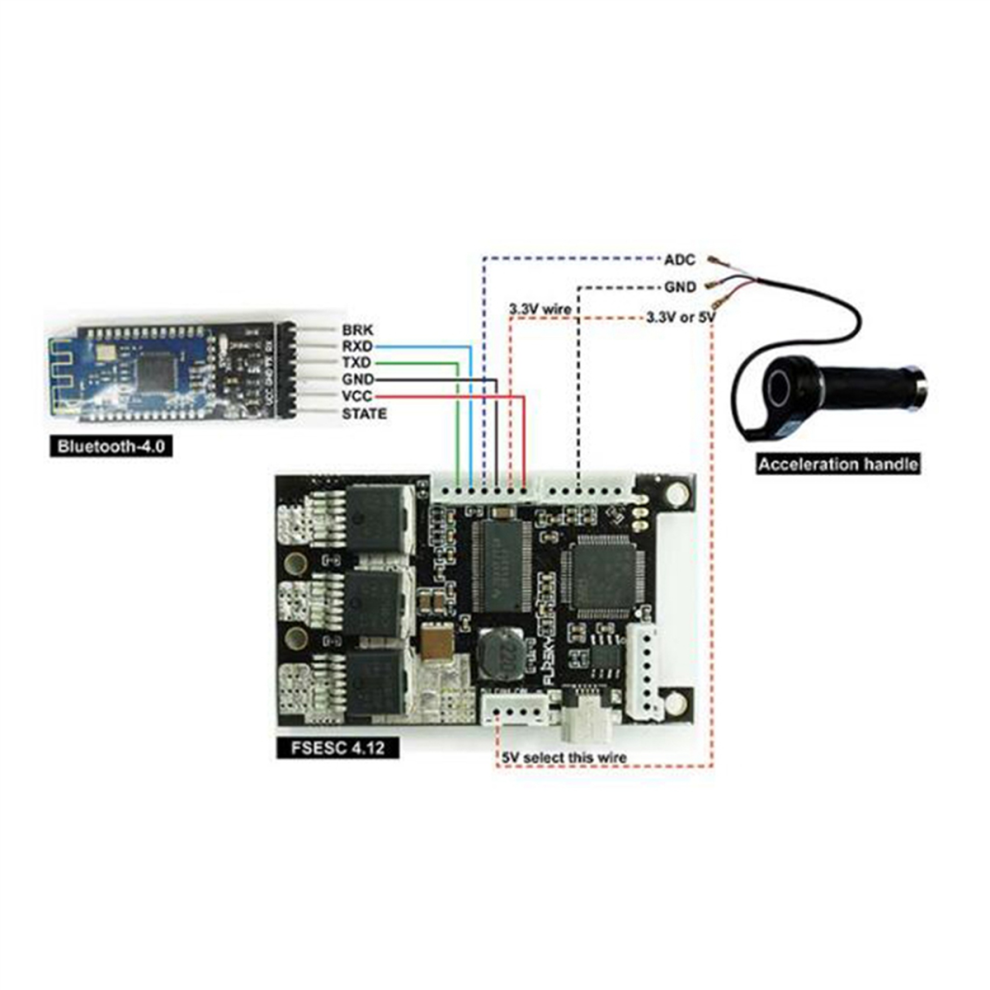

Motor control interface: PPM signal (RC servo), analog, UART, I2C,
USB or CAN-bus.
Cutoff Voltage: Programmable
Frequency: PWM input
Governor: No
Weight: 80g
FSESC4.12 Size: 60x40x20mm
Programming card: No
Reverse: Yes
Motor wire: 12AWG
Power cable: 12AWG
Colour: as shown
Material: composite material

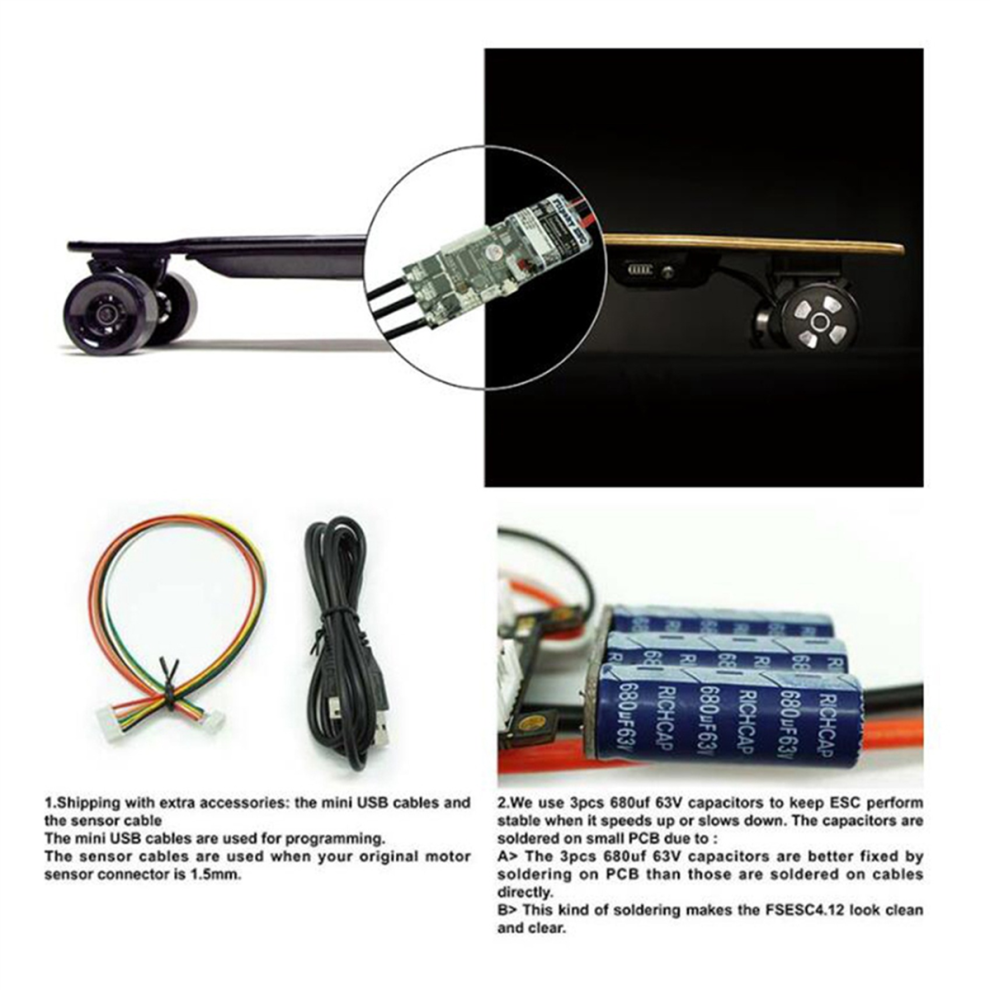

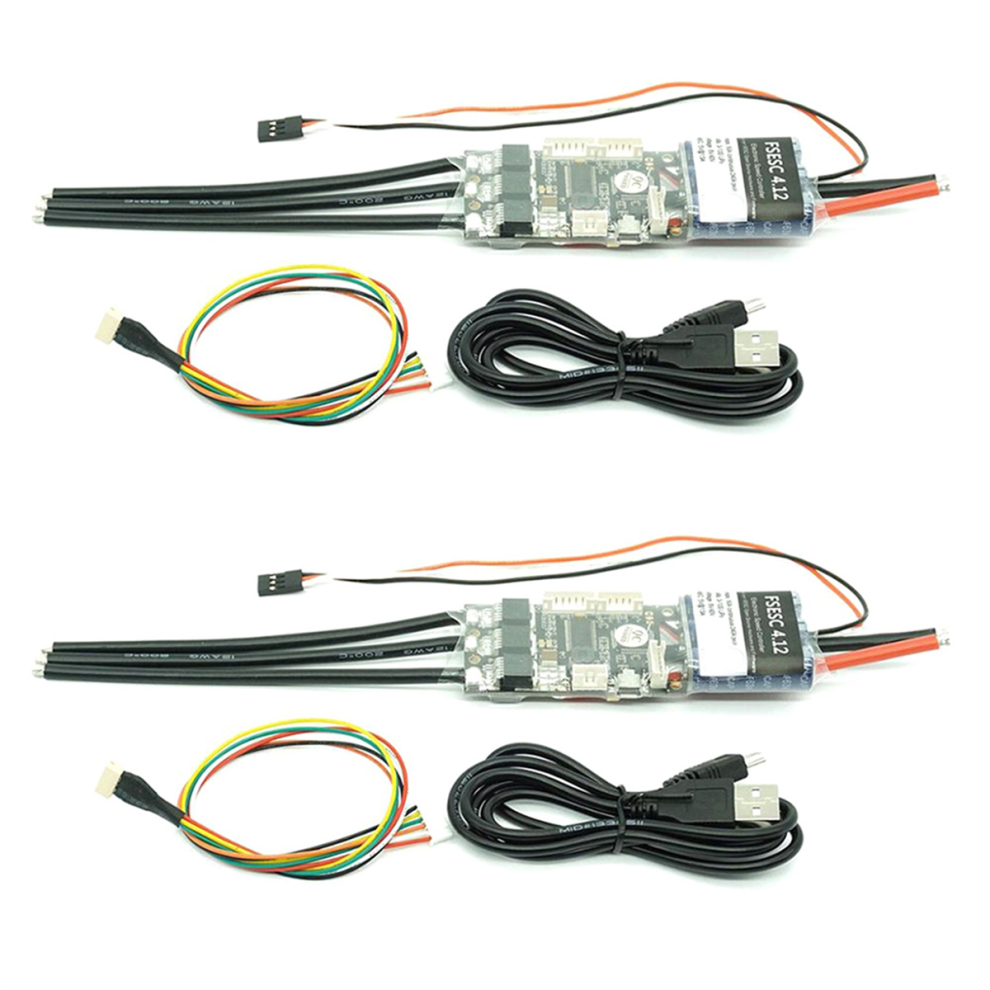

Package Contents:
2 x FSECS4.12 ESC
2 x
2 x sensor
2 x English manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
