433MHz 4-Channel Garage Remote Control with 120mAh Battery, Long-Range Transmitter Kit

433MHz 4-Channel Garage Remote Control with 120mAh Battery, Long-Range Transmitter Kit Description

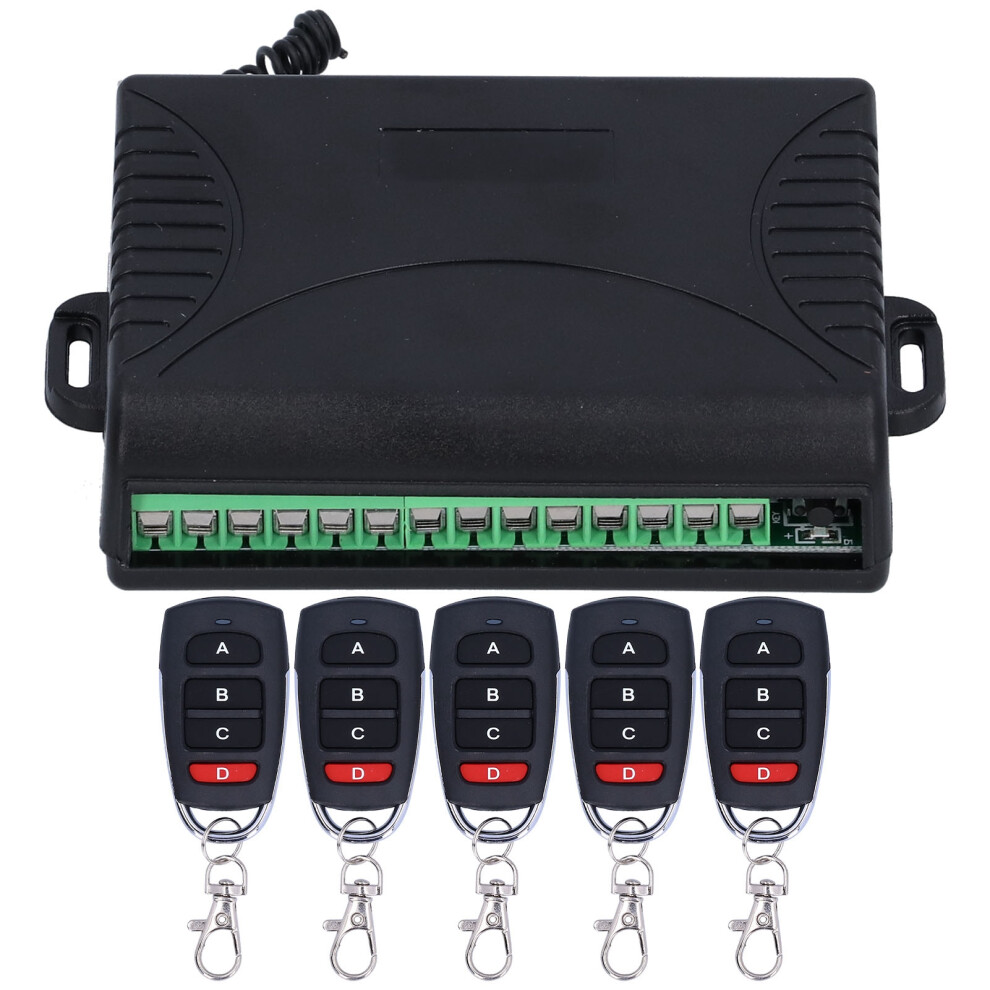

433Mhz 4CH Garage Door Remote Control Entry Opener Wireless Relay Transmitter Receiver Kit
Item Type: Garage Remote Controller
Material: Metal + ABS

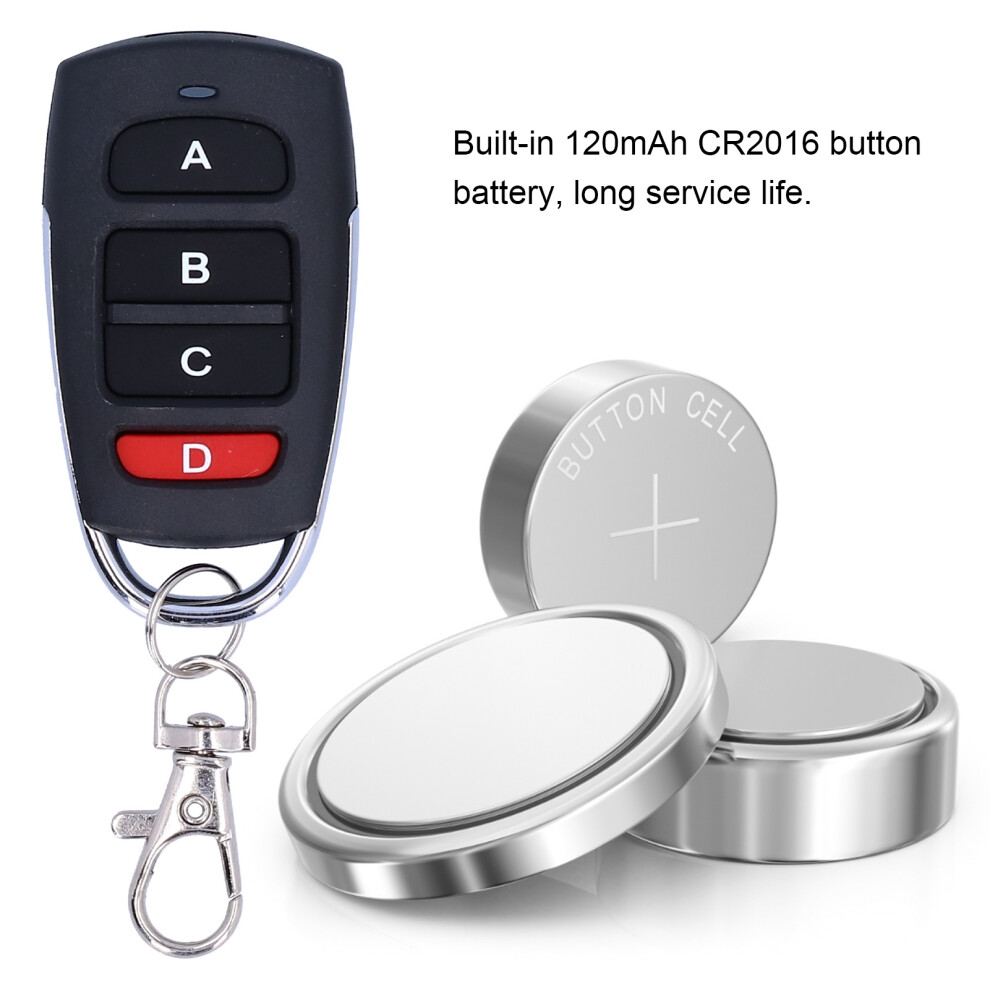

Battery Type: Button Battery (included)

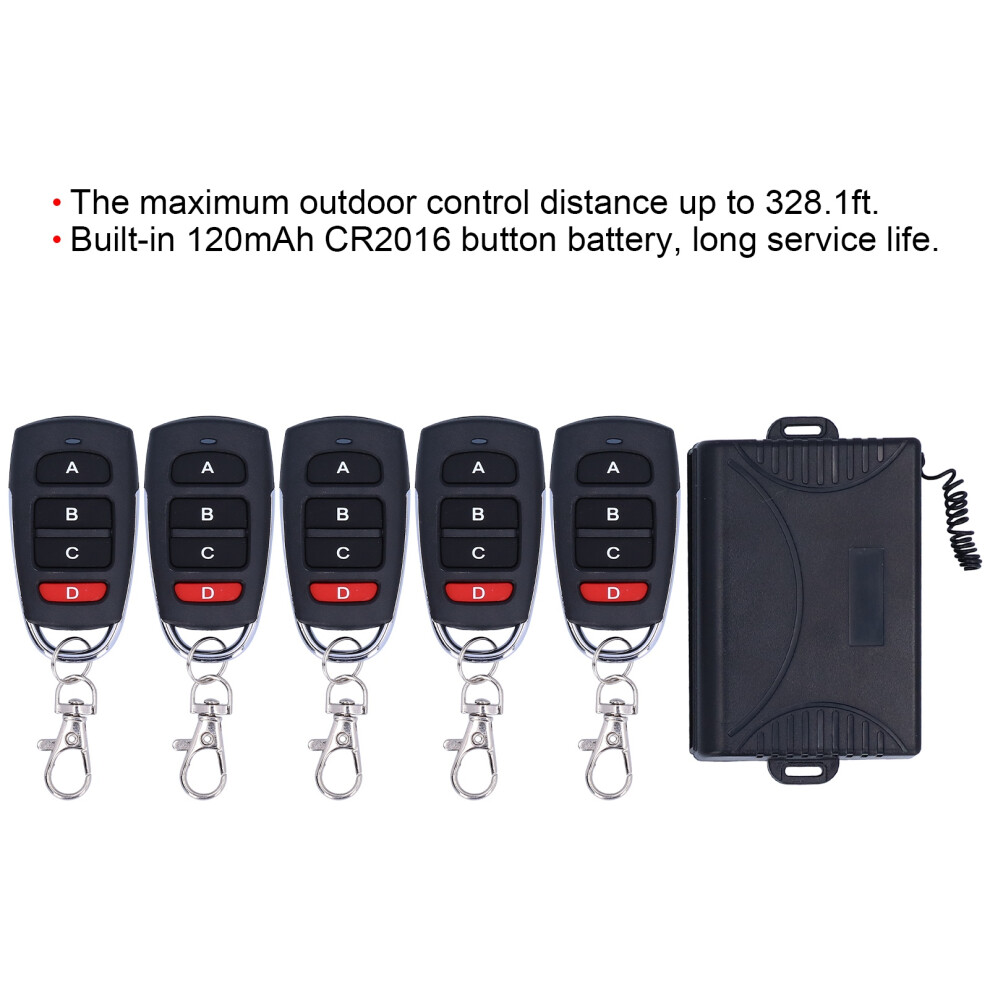

Battery Capacity: 120mAh
Battery Model: CR2016
Remote Controller:
Working Voltage: DC6V
Working Current: 10mA
Working Frequency: 433.92MHz
Transmitting Power: Greater than or equal to 10mW
Transmitting Distance: 30-50m (open to ground).
Frequency Deviation: -0.2MHz-+0.2MHz
Transmission Speed: 50-60KHZ
Modulation Method: ASK
Oscillation Resistance: 330K
Operating Chip: for Ev1527 (remote control learning code)
Working Temperature: -20 to +70
Storage Temperature: -10 to +50

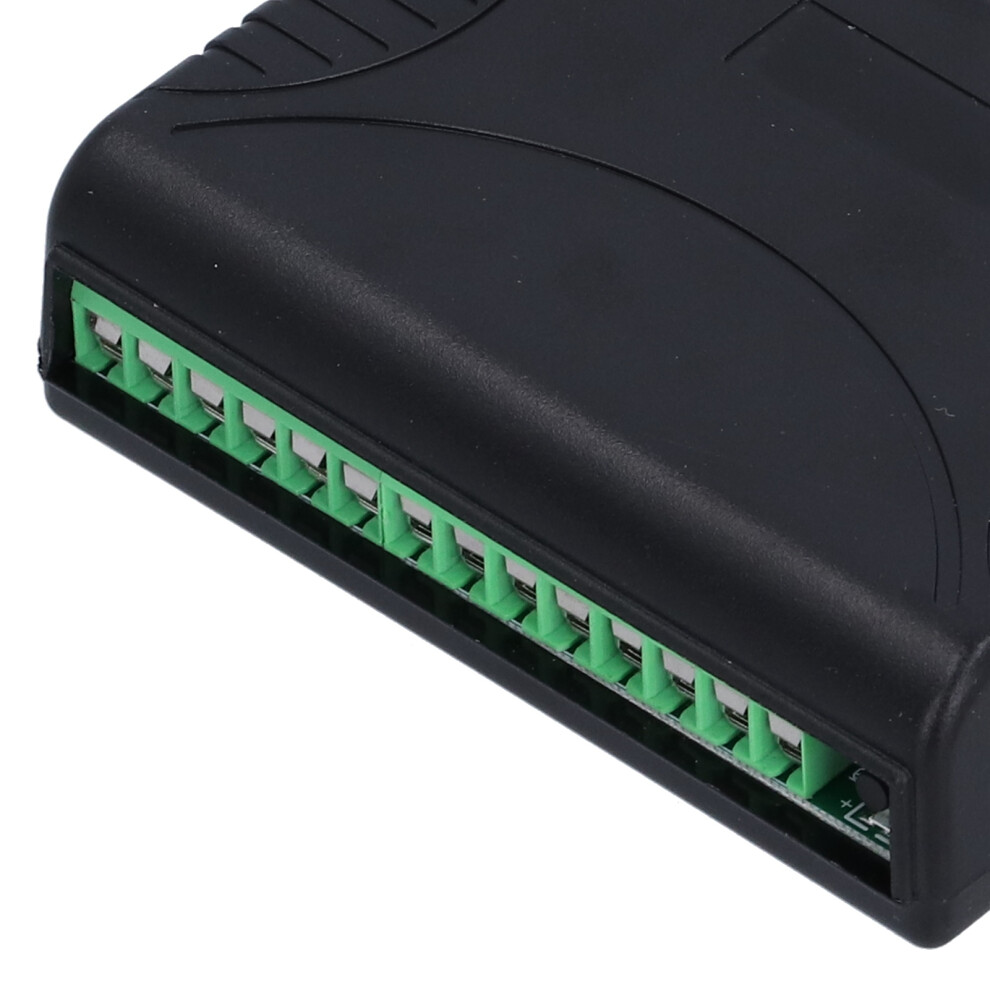

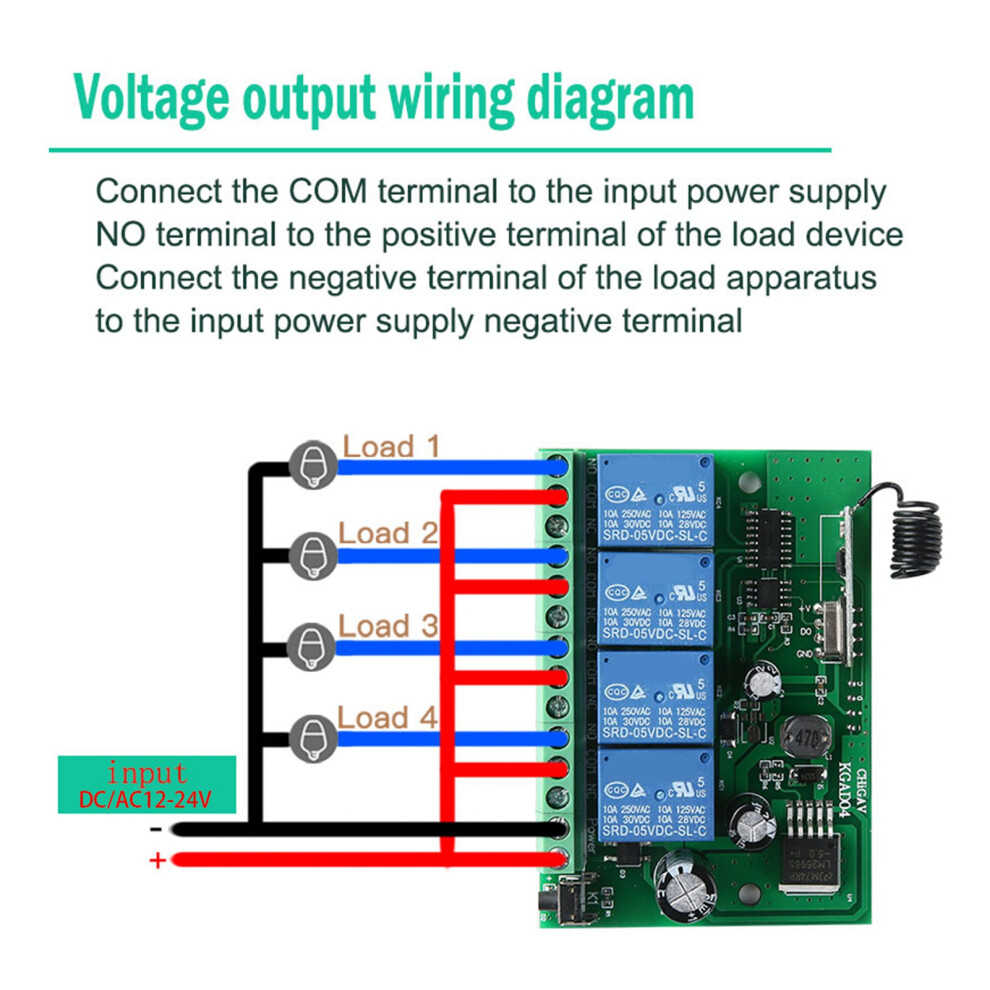

Receiver:
Working Voltage: AC/DC12-24V
Quiescent Current: 8mA
Working Frequency: 433MHz
Load Power: 10A per channel
Receiving Sensitivity: -dbm
Frequency Deviation: -0.2MHz-+0.2MHz
Coding Method: Learning type

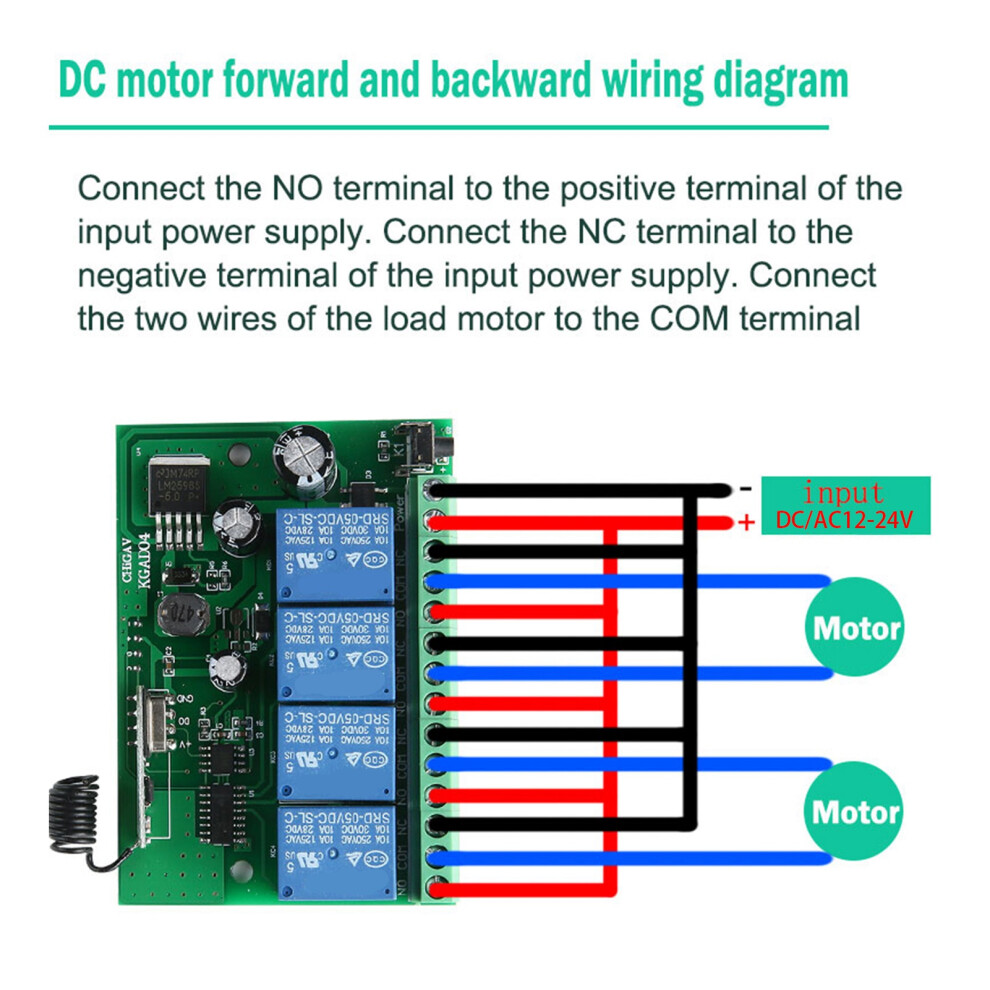

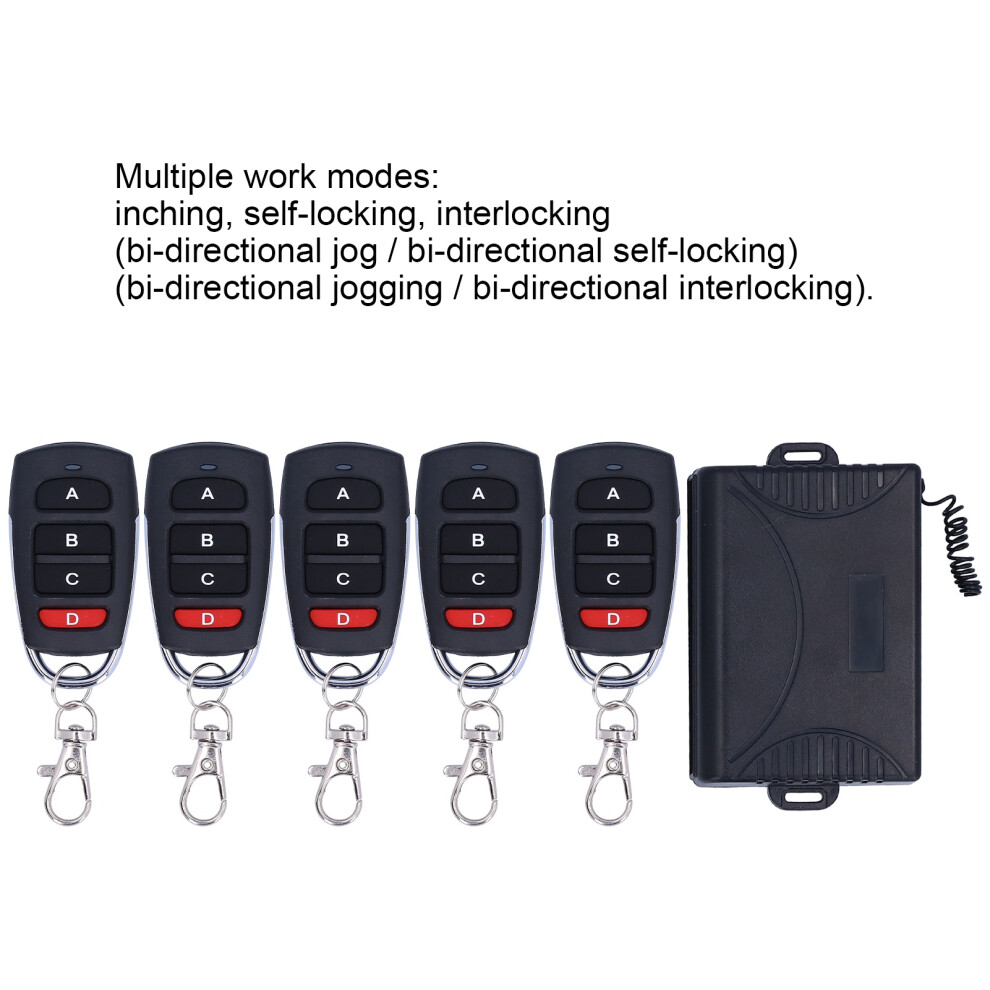

Working Mode: Inching, self-locking, interlocking (bi-directional jog / bi-directional self-locking) (bi-directional jogging / bi-directional interlocking).
Modulation Method: ASK
Remote Control Distance: Approx. 100M/328.1ft (in the wild)
How to set the working model:

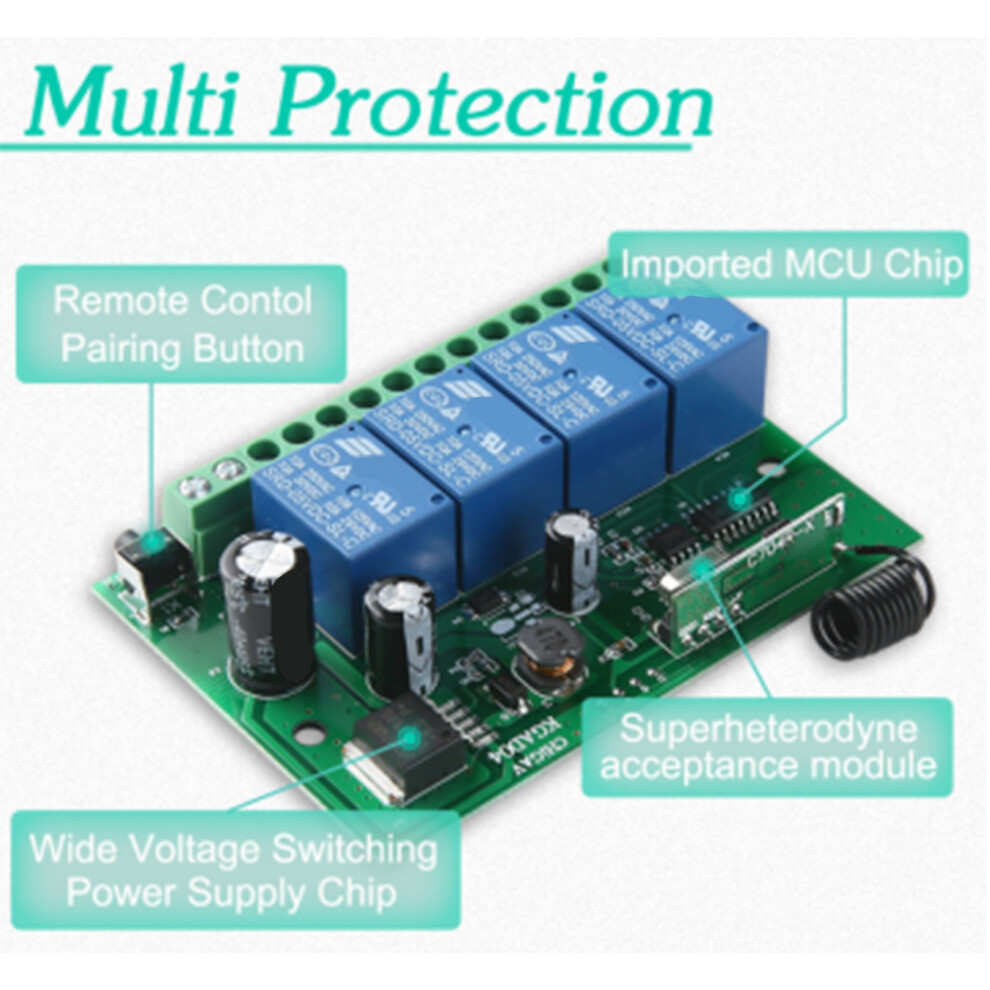

Power on first, press the "paired button" on the switch board once, indicator light on,receiver is waiting for pairing.
* Jog-lock(Momentary): Press "paired button" once
* Self-locking:Press "paired button" twice
* Interlock: Press "paired button" triple times
* 2 gang Jog-lock + 2 gang Self-lock:Press "paired button" 4 times
* 2 gang Jog-lock + 2 gang Interlock:Press "paired button" 5 times
* 2 gang Self-lock + 2 gang Interlock:Press "paired button" 6 times
* 2 gang Interlock + 2 gang Interlock:Press "paired button" 7 times
How to Clean Code:
* Press the Paired Button on the board 8 times, light flash, cleaning code successfully.
