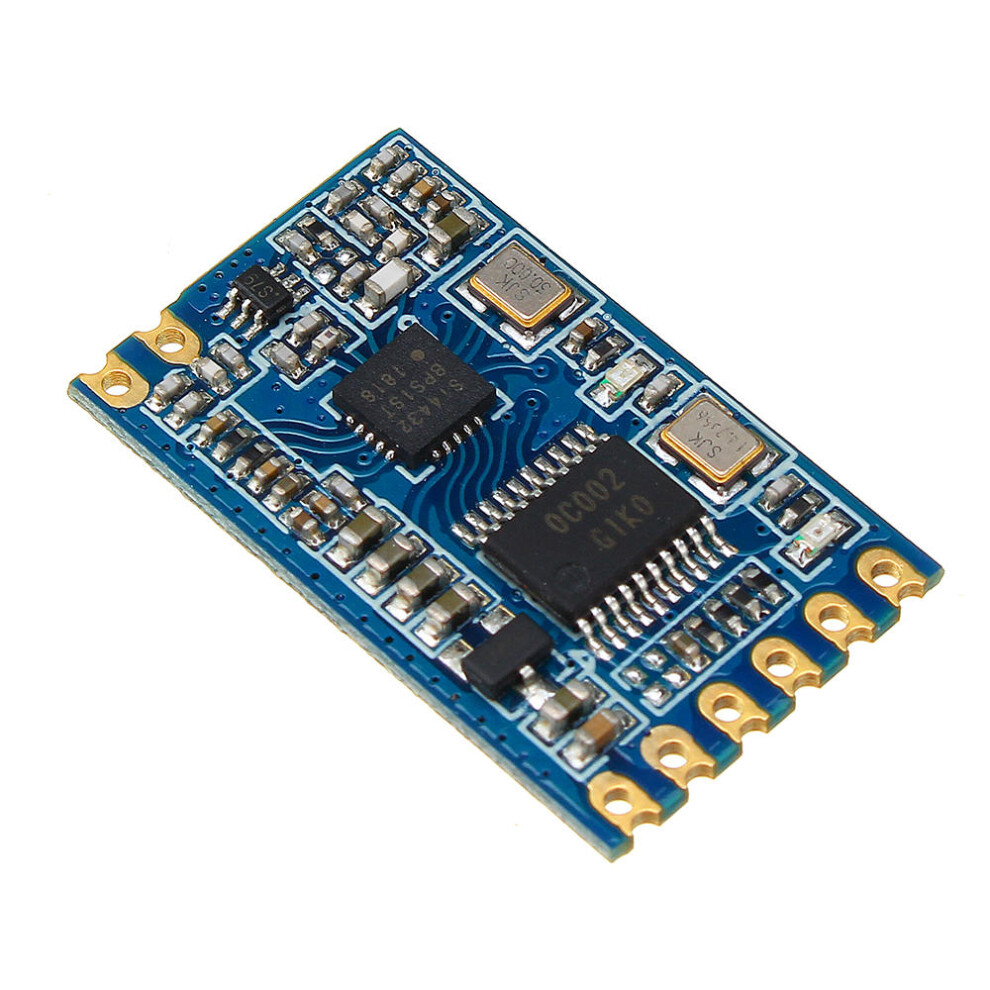

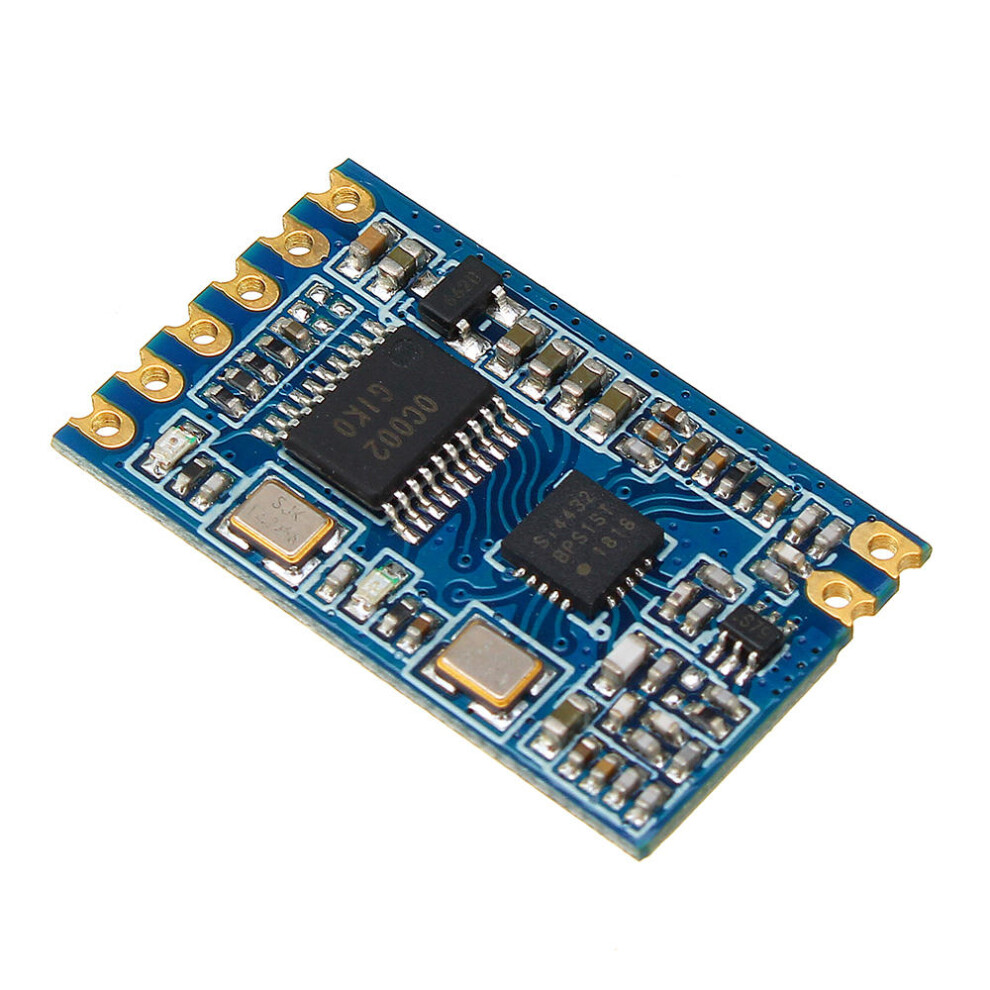

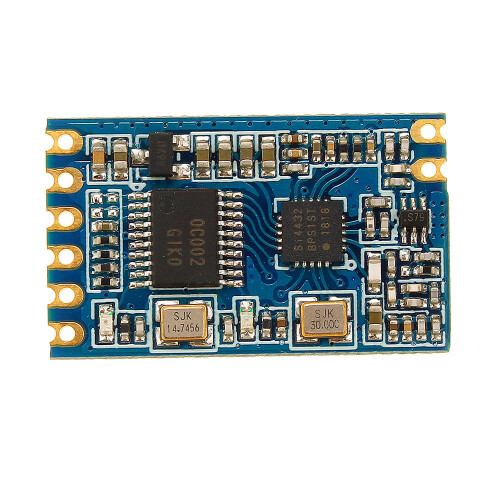

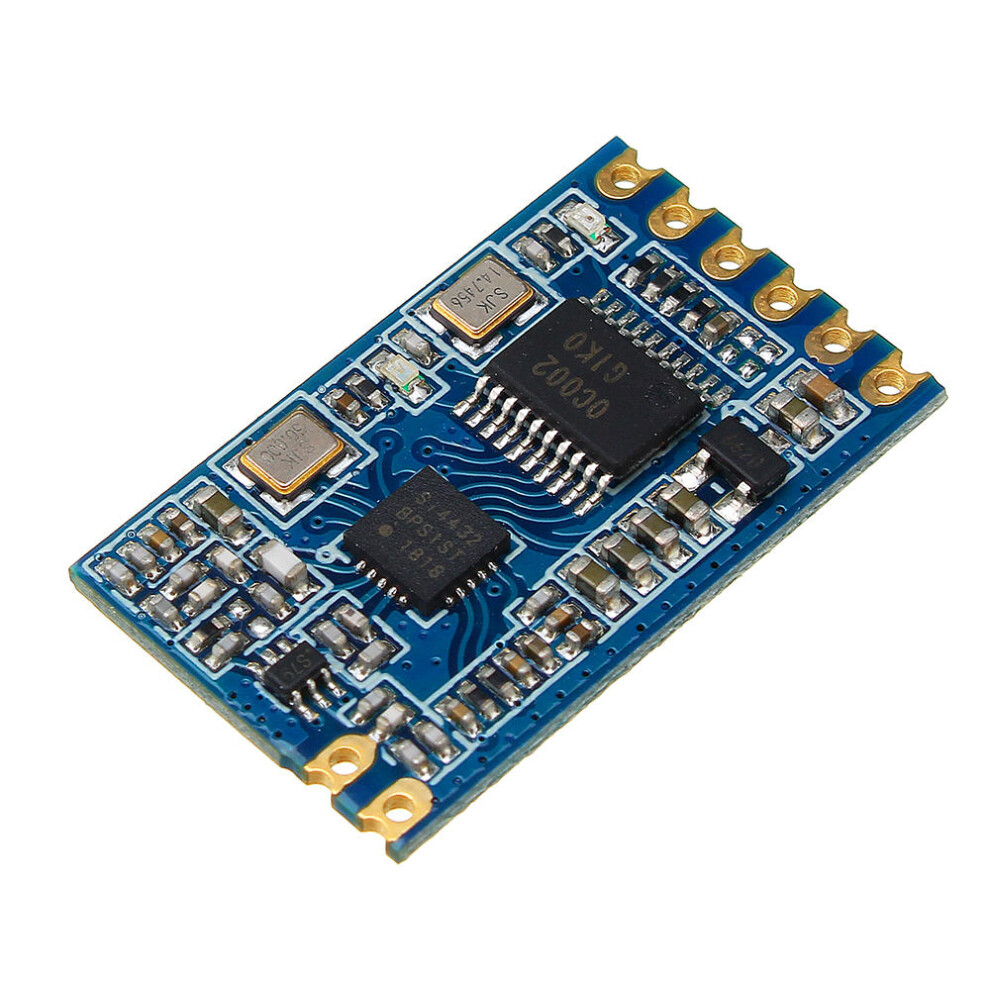

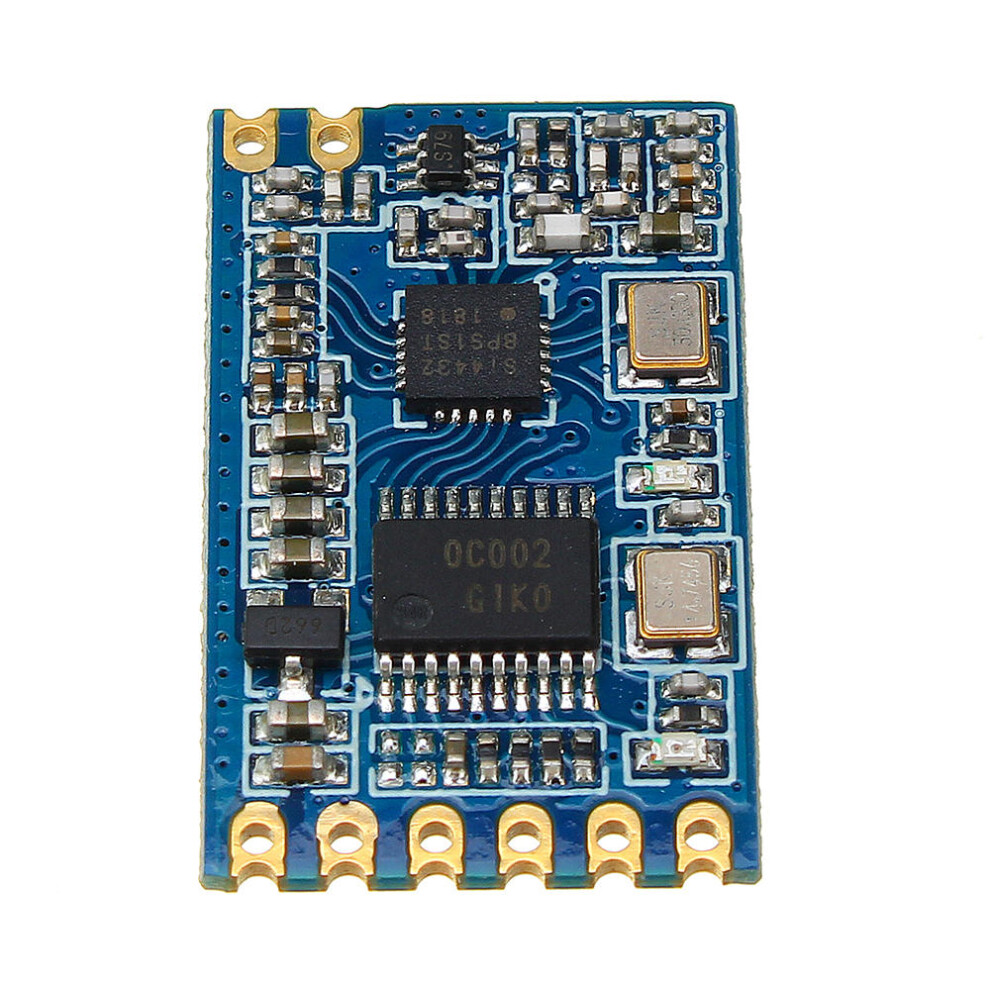

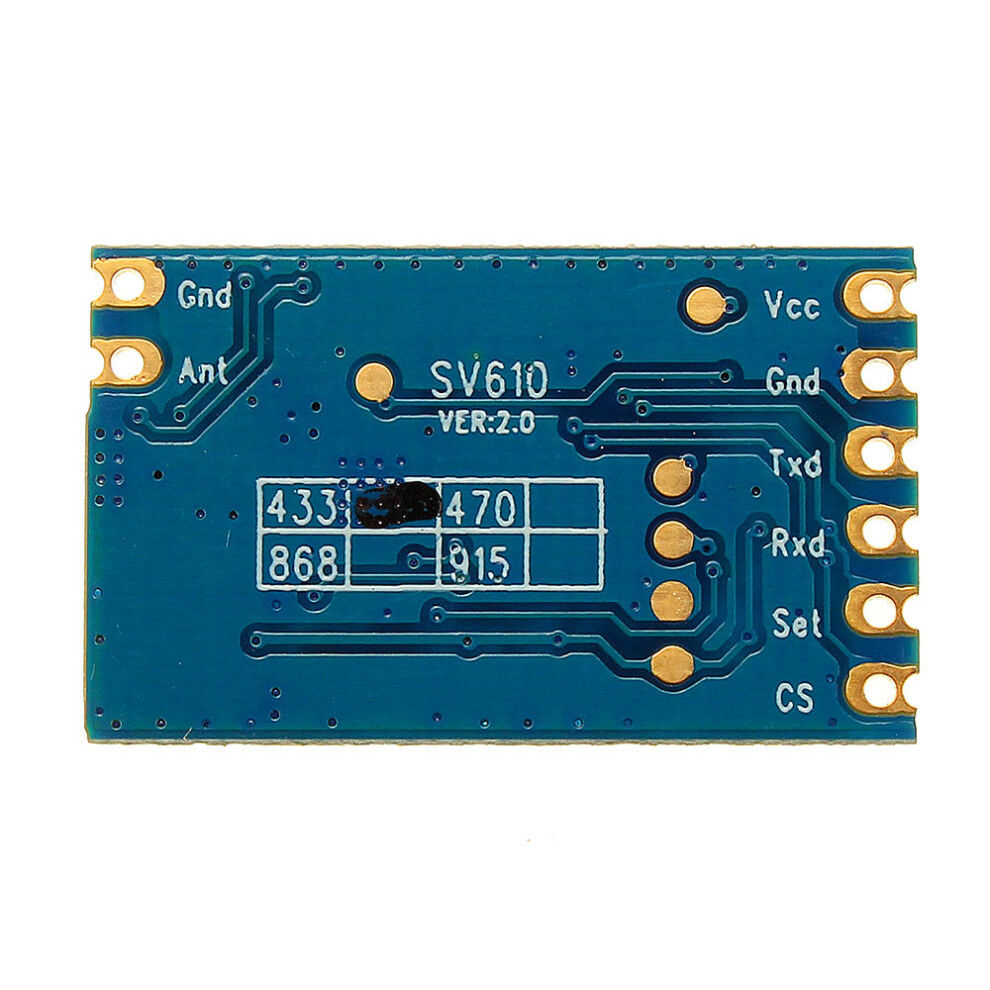

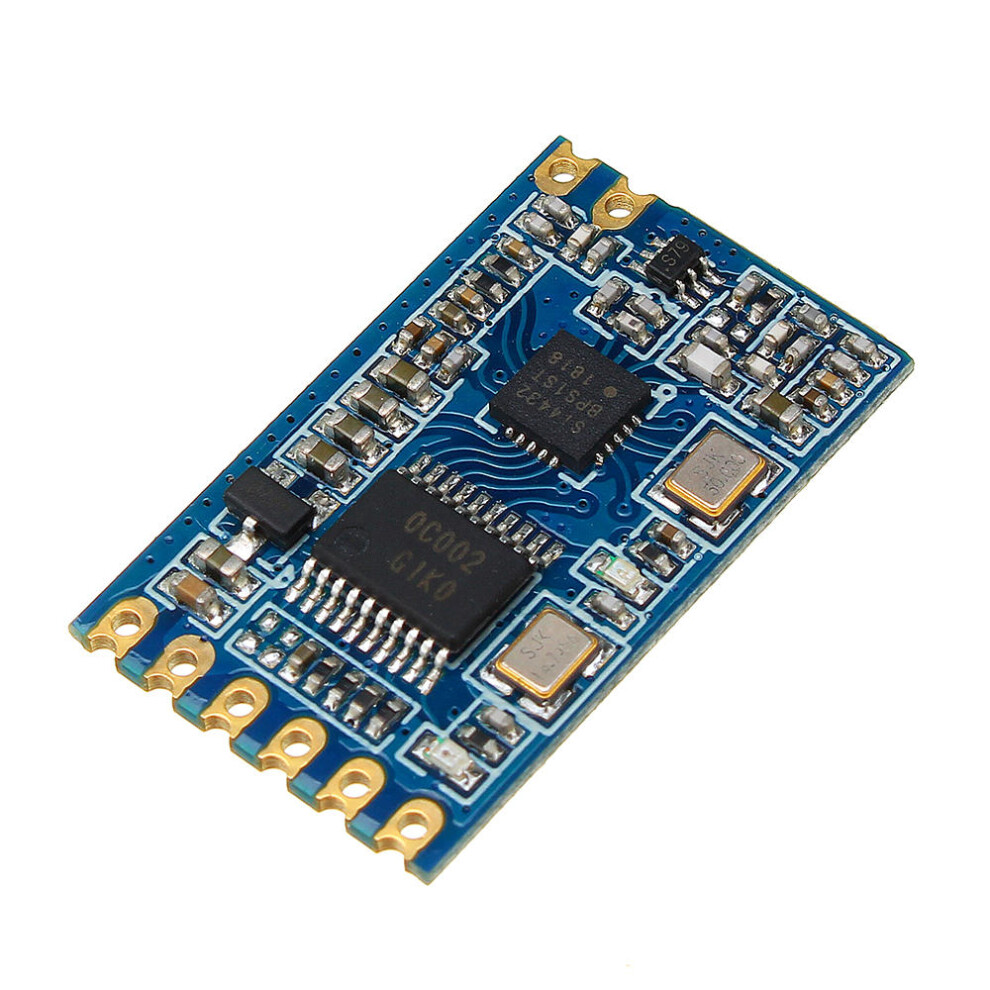

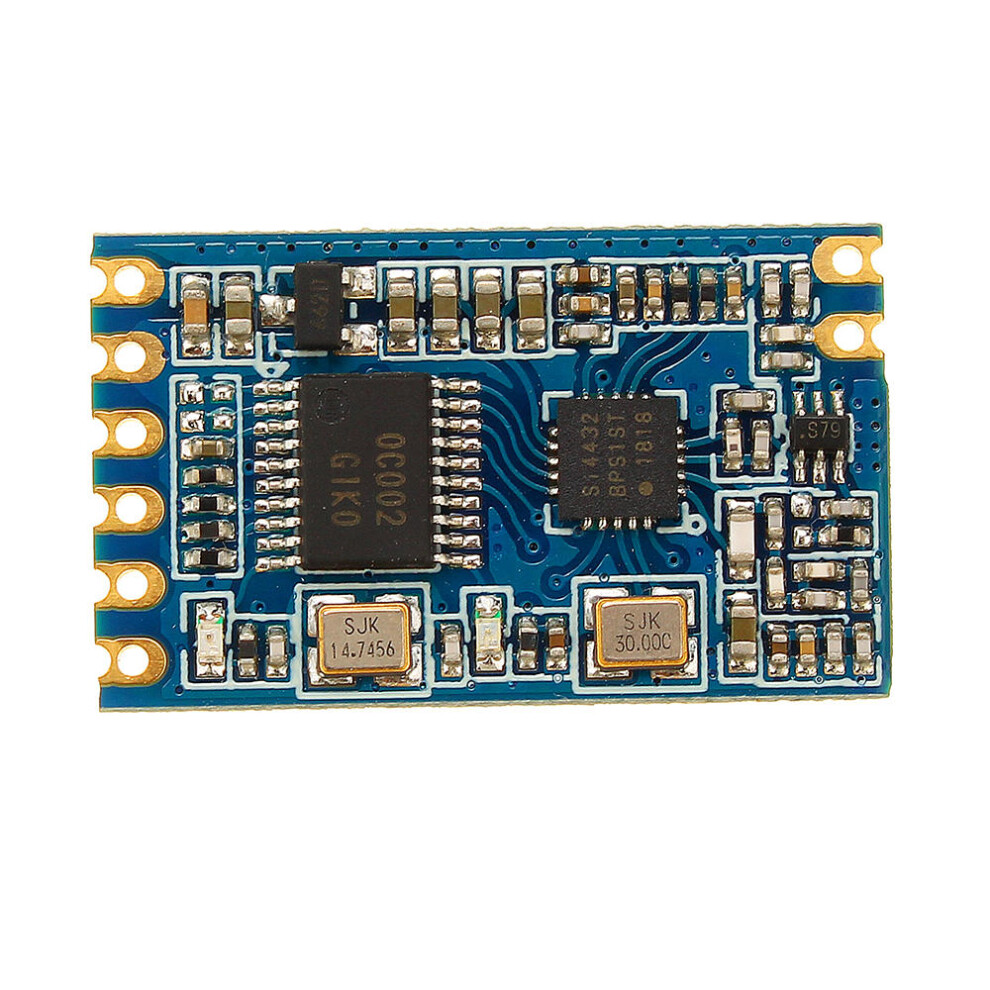

433MHz SV610 100mW TTL Interface 1400m Long Distance Wireless Serial Module

433MHz SV610 100mW TTL Interface 1400m Long Distance Wireless Serial Module Description

Introduction:

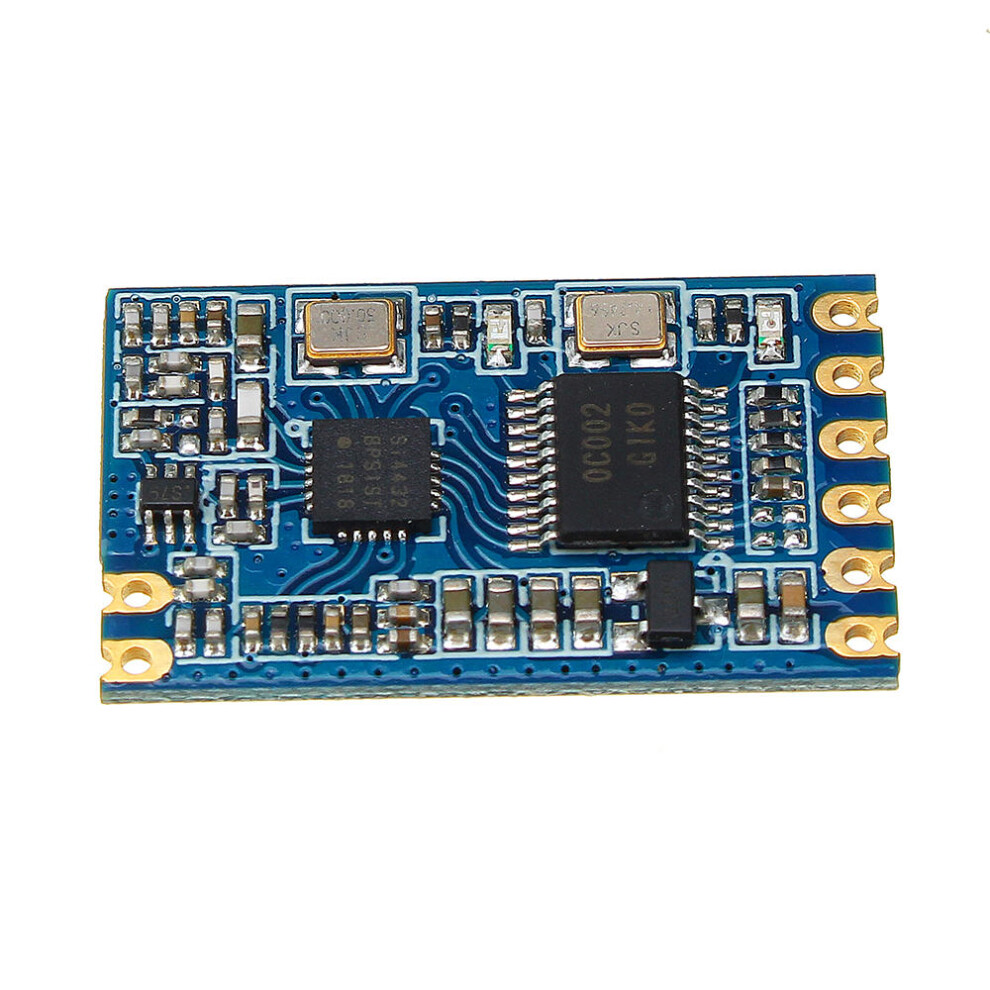

The SV610 module is a highly integrated wireless data transmission module using a high-performance Silicon Lab Si4432 RF chip. Extremely low receive sensitivity, combined with industry-leading 100mW output power, ensures extended range and improved link performance. The module provides multi-band multi-channel and network ID to reduce interference during transmission to improve transmission performance. Users can modify the serial port and RF related parameters through PC software or online. Small size, long-distance transmission, a wide range of operating voltages and even a wide range of convenient programming options make it very versatile.

Feature:
1400 meters transmission distance @2.4K rate.
Working frequency band selection: 433 MHz / 470 / 868 / 915 MHz.
GFSK modulation mode.
Sensitivity up to -121dBm.
Maximum output power: 100mW.
40 channels are optional.
4-byte configurable network ID.
Double-byte configurable node ID.
Multiple data transfer rates are available.
Antenna automatic matching and bidirectional switch control.
Diversified communication parameters of serial communication.
Working voltage: 2.8 ~ 6.0 V.
Operating temperature range: -40 ~ +85 C.
Weight: 1.3 g.

Applications:
Wireless remote telemetry.
Remote meter reading.
security system.
Industrial data collection.
Home automation telemetry.
Wireless data communication.
Building community automation and security.
Access control system.

Package includes:
1 x Module
