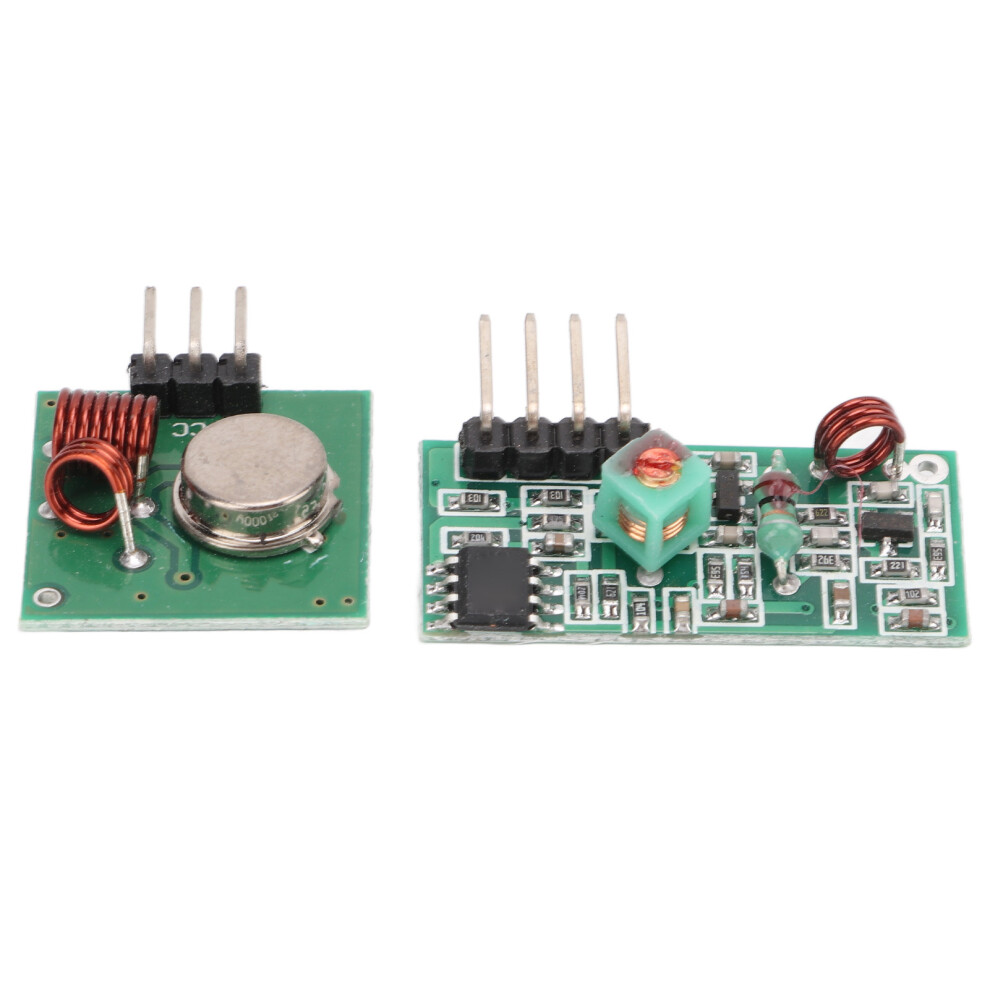

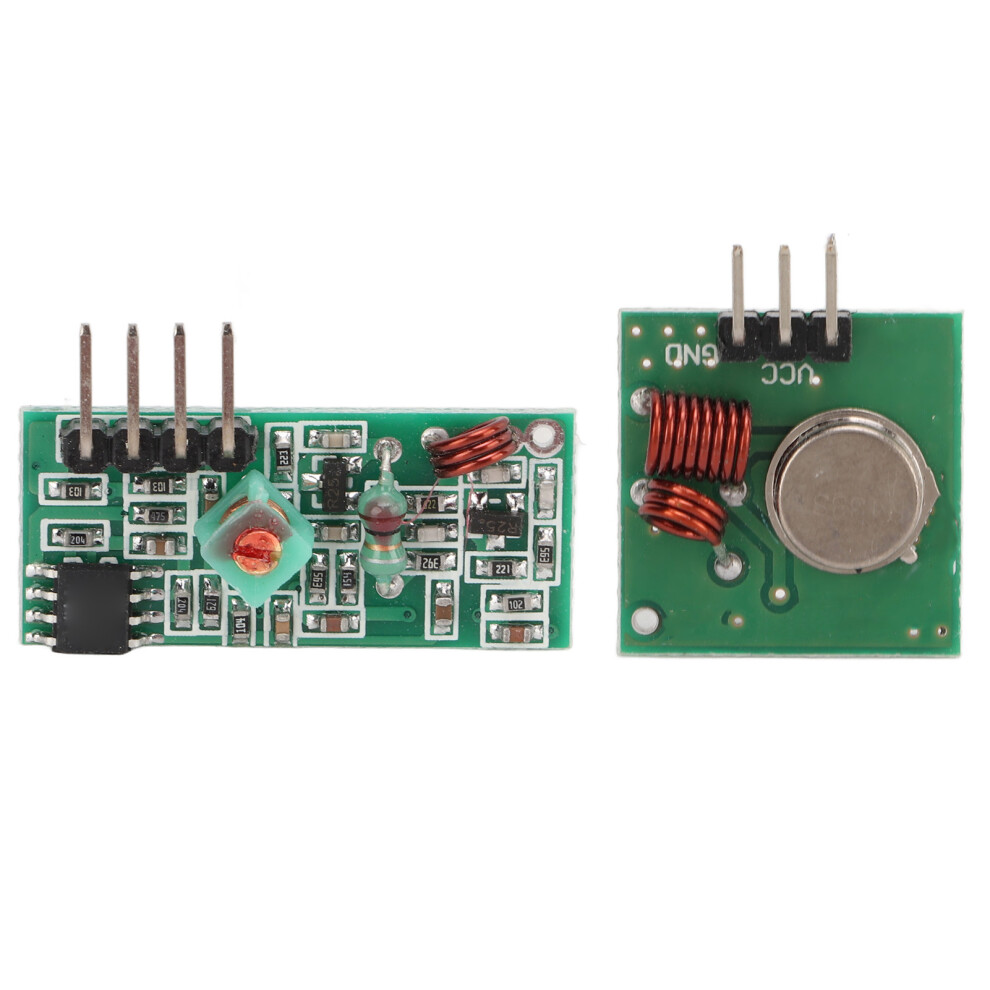

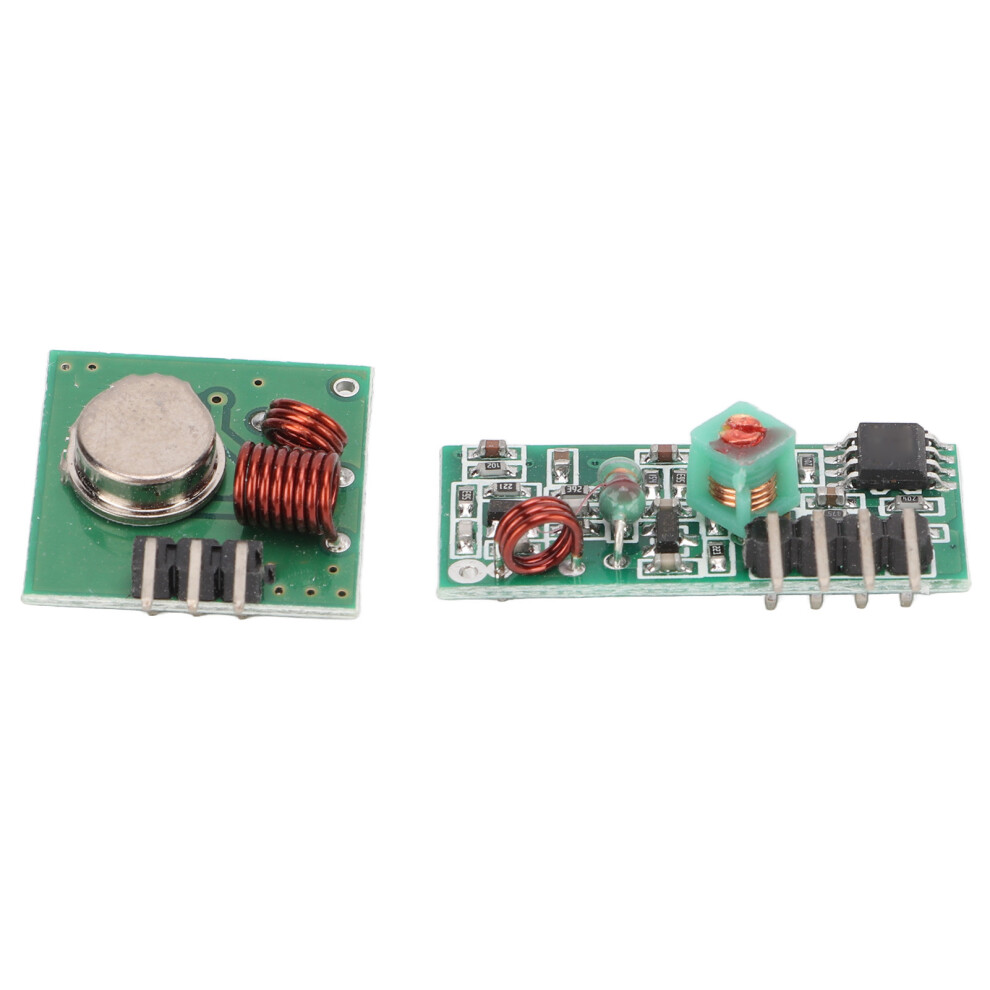

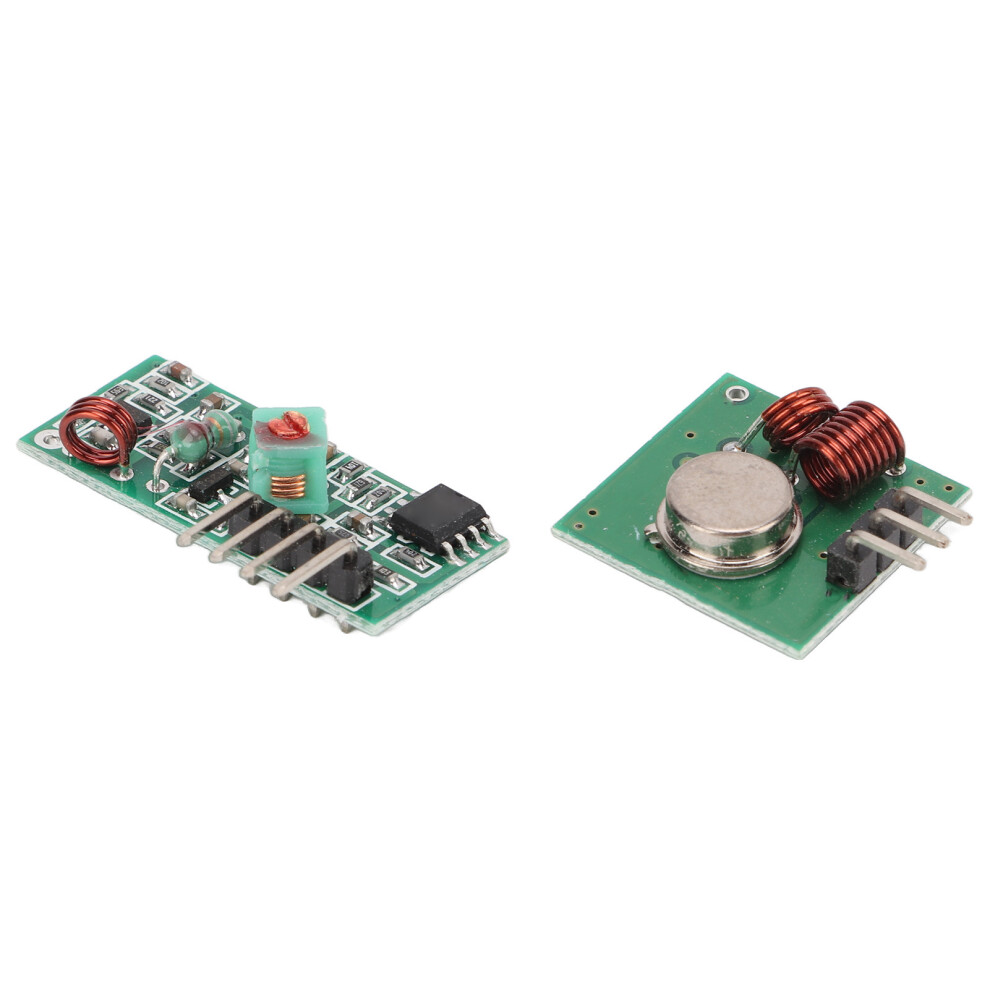

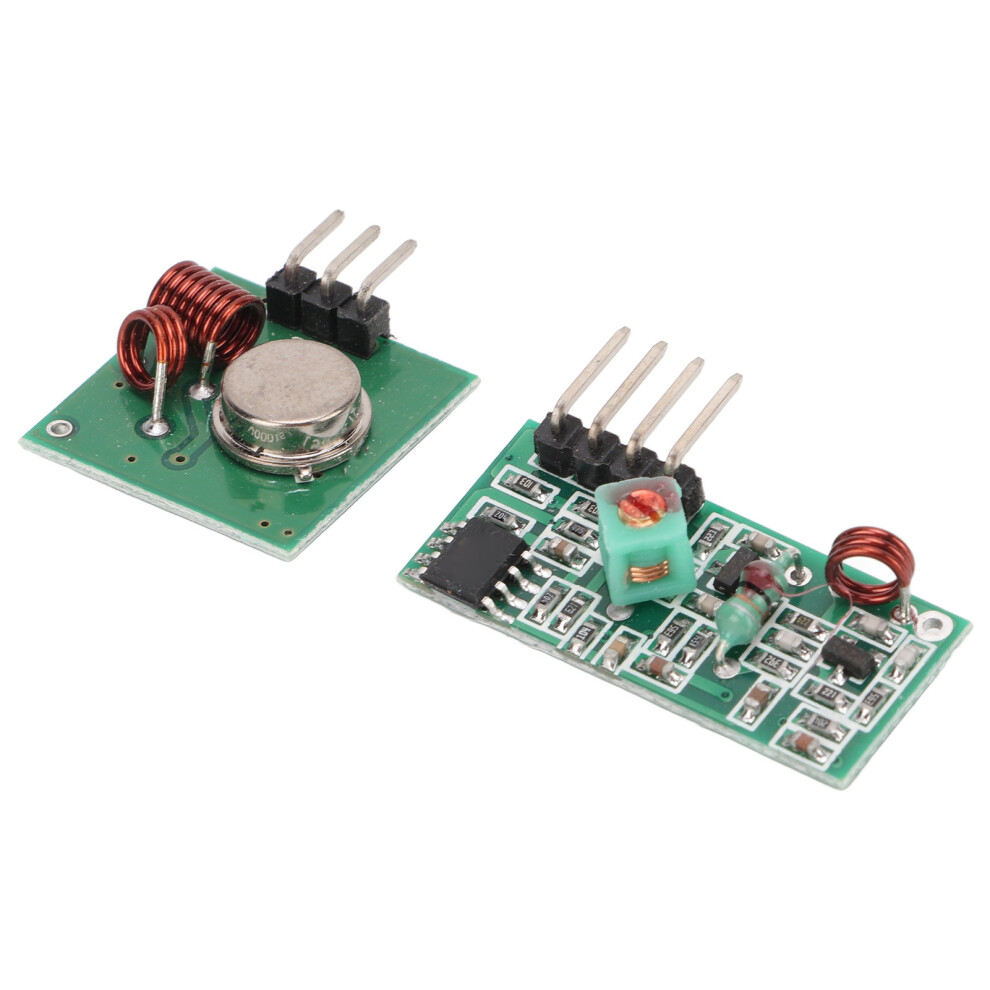

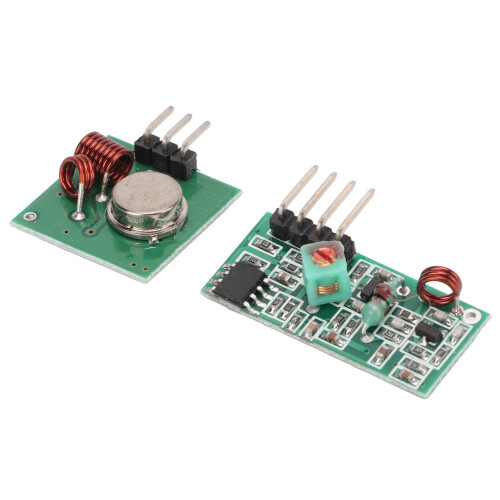

433MHz Transmitter Receiver Kit DC5V RF Module Anti-Theft Remote

433MHz Transmitter Receiver Kit DC5V RF Module Anti-Theft Remote Description

1、Multi Uses: 433MHz transmitter receiver kit can be used in remote control switches, receiver modules, motorcycles, car anti theft products, home anti theft products. 2、Characteristic: The wireless transmitter module allows you to communicate wirelessly with radio frequency (RF) control devices operating on the same frequency. 3、Practical Electronic Parts: If you want to automate your house without pulling cables then this device will help you very well, very practical and reliable electronic parts. 4、Simple Operation: RF transmitter receiver module is easy to use, the range is wide (using antennas on both sides), you can send strings (text) from one point to another. 5、Exquisite Manufacturing: Super regenerative transceiver module is made of PCB board, high performance, strong reliability, making sure safety use.
Item Type: RF 433MHz Transmitter Receiver Kit
Material: PCB
Usage: Remote control switch, receiving module, motorcycle, car anti theft products, home anti theft products
Receiver Module Technical Parameters:
Working Voltage: DC5V
Quiescent Current: 4MA
Receiving Frequency: 433MHZ
Receive Sensitivity: -105DB
Size: Approx. 30x14x7mm / 1.18x0.55x0.28in
External Antenna: 32cm/12.6in Single Core Wire, Wound into a Spiral
Transmitter Module Technical Parameters:
Launching Distance: 20-200m/21.87-218.72yd (Different Voltages Have Different Effects)
Working Voltage: 3.5-12V
Dimensions: Approx. 19x19mm/0.75x0.75in
Works Method: AM
Transfer Rate: 4KB/S
Transmit Power: 10mW
Transmission Frequency: 433MHZ
External Antenna: 25cm/9.84in Ordinary Multi-Core Or Single-Core Wire
Pin From Left To Right: (DATA; VCC; GND)
1 x Receiver Module
1 x Transmitter Module
