433MHz Wireless Remote Switch 12V/24V 2CH Relay Module 2 Buttons

433MHz Wireless Remote Switch 12V/24V 2CH Relay Module 2 Buttons Description

1、Universal remote control switch 433Mhz, 12V/24V relay module, and 2 channel, with high sensitivity, stable performance and small size. 2、High quality wireless control module, and 2-button remote control, are reliable and convenient to use. 3、With strong wireless signals, it can pass through wall, floors and doors well, no worry about the distance. 4、100~200m Launch remote control distance (in an open area). Can use the transmitter (remote control) to turn the receiver on or off from anywhere reliable. 5、Scope of application: remote control power switch, anti-theft alarm, remote control electric door lock, remote control electric shutter door and window, water pump remote control, industrial control products, etc.
Features:
Universal remote control switch 433Mhz, 12V/24V relay module, and 2 channel, with high sensitivity, stable performance and small size.
High quality wireless control module, and 2-button remote control, are reliable and convenient to use.
With strong wireless signals, it can pass through wall, floors and doors well, no worry about the distance.
100~200m Launch remote control distance (in an open area). Can use the transmitter (remote control) to turn the receiver on or off from anywhere reliable.
Scope of application: remote control power switch, anti-theft alarm, remote control electric door lock, remote control electric shutter door and window, water pump remote control, industrial control products, etc.
Specification:
Material:ABS plastic
Color: as picture shown

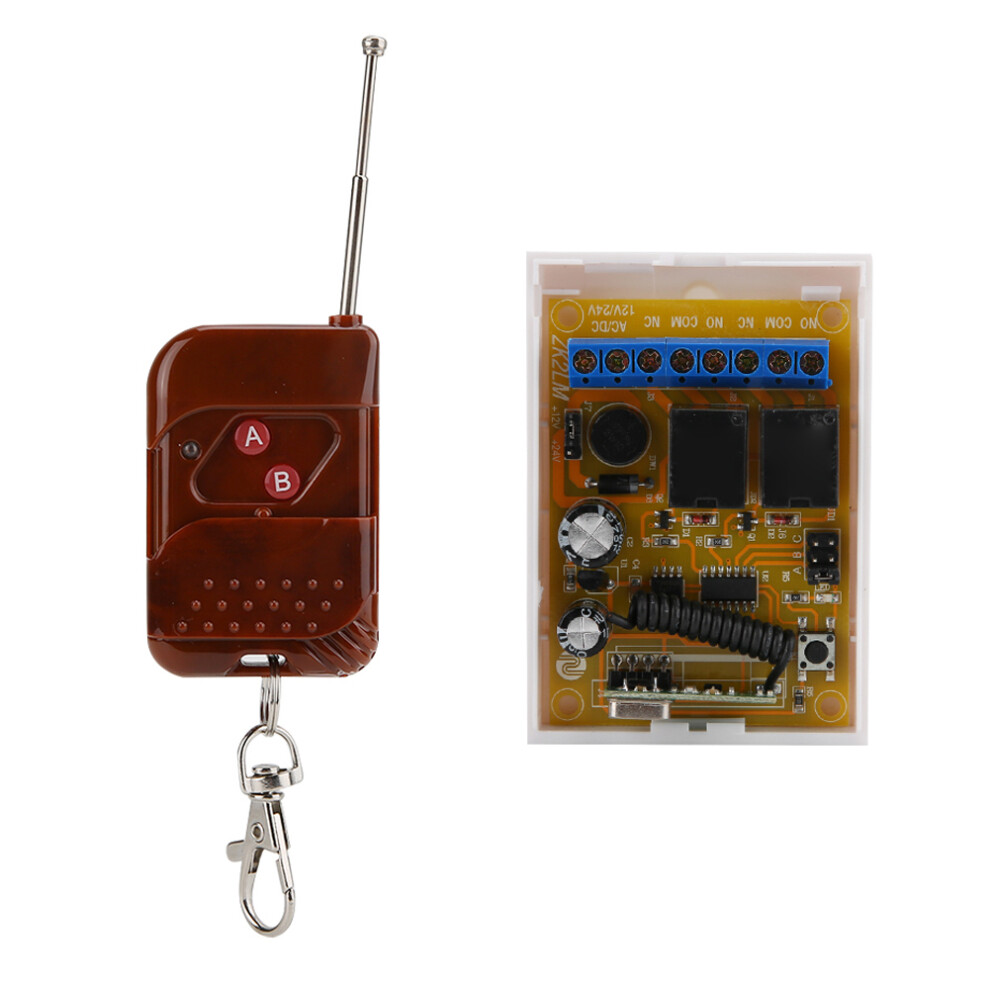

Wireless Switch Module
Working Voltage: 12V, 24V (optional)
Static Working Current: 6mA
Working Temperature: -400 ~ +800
Receive Sensitivity: -114dBm
Working Frequency: 433MHz
Remote Control Distance: 100~200m

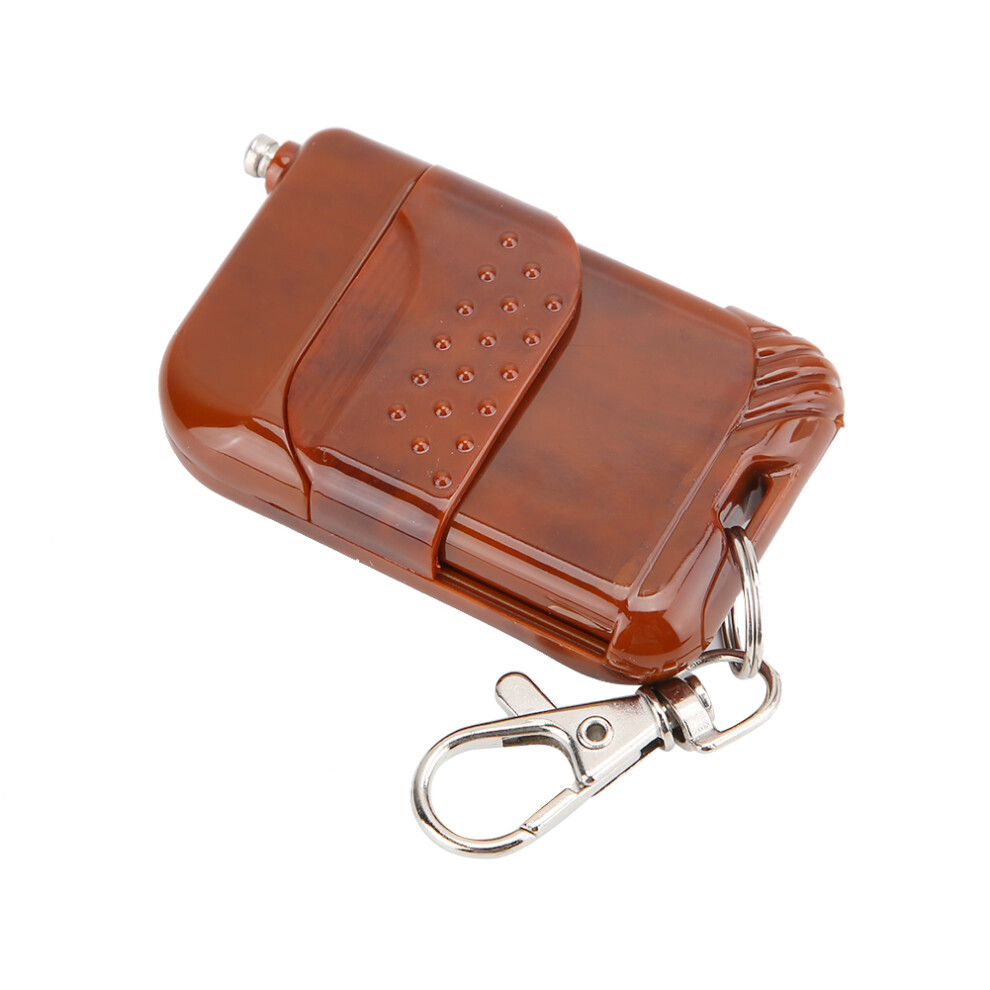

Wireless Remote Control
Working Voltage: DC12V
Working Current: 9~12mA
Operating Frequency: 433MHz
Transmitting Power: 10~15mw
Transmitting Distance: 150m (in an open area)
Frequency Deviation: 0.2MHz
Code Chip: PT2262 (fixed code), EV1527 (learning code)
Oscillation Resistance: 4.7M
Number of Buttons: 2 buttons
Modulation Method: ASK
Quiescent Current: 0uA
Package List:
1 * Remote Control
1 * Module
Note:
Please notice that the list does not contain instructions. Please contact if necessary.
