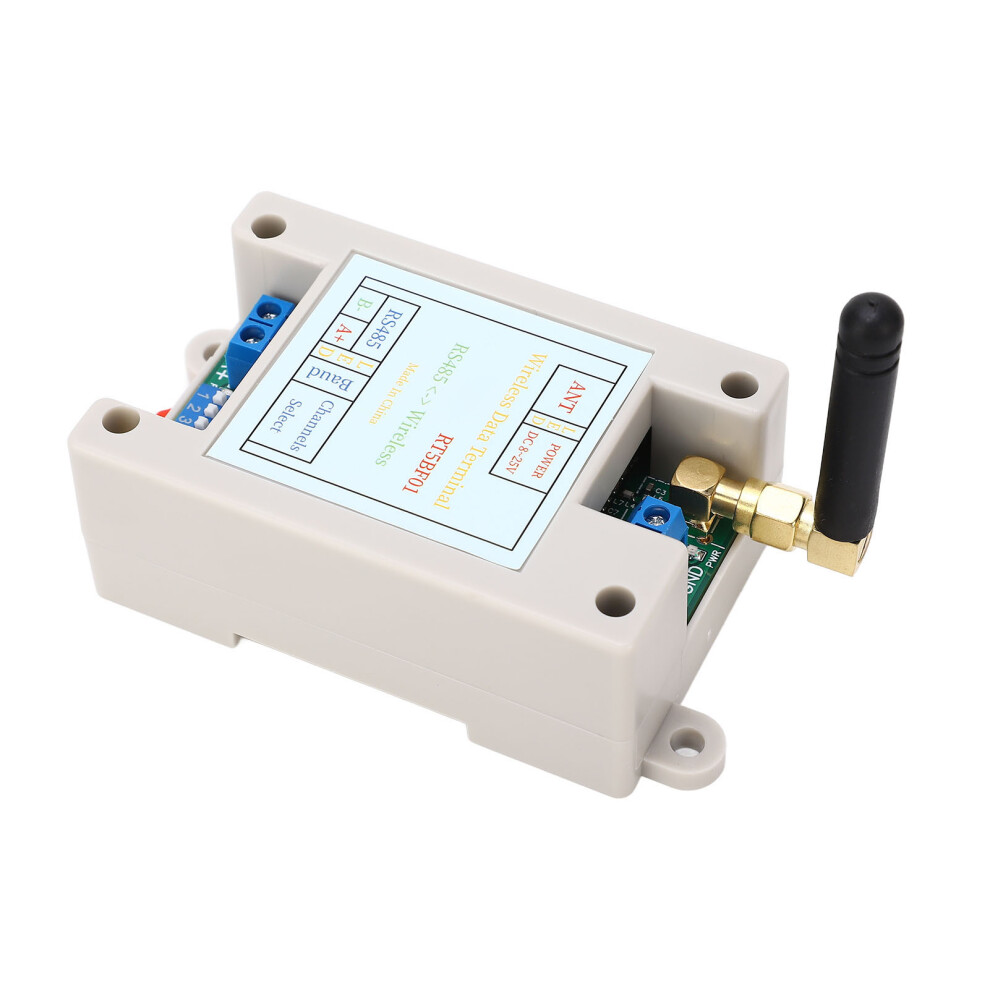

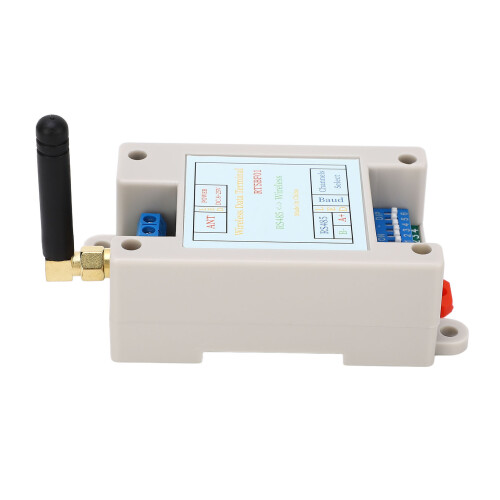

433MHz Wireless Transceiver Module DC8-25V RS485 UART for RTU Smart Home
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£18.13
£27.06
33% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 11th - Tue 14th Jul
Returns: 30 days
180-day payment protection
Most Popular in Network Transceivers
Hot
Description & Details
Summary
- WIRELESS TRANSMISSION: Users can use multiple wireless transmission modules for data transmission without laying too many long signal transmission lines
- EASY TO USE: The module only needs to be powered on and connected to the RS485 equipment to realize data transmission between each other, which is very convenient
- STABLE CONNECTION: You can operate the RS485 device at a remote end to prevent data transmission failure due to signal rust, broken connections, or poor contact
- EASY TO OPERATE: The module only needs to set two parameters, which can be set through the dip switch, simplifying the parameter setting process, very user friendly
- WORKING PRINCIPLE: The data signal received by RS485 can be converted into wireless signal, wireless communication in a certain distance and the other end of the wireless transmission module, the other end of the wireless transmission module to receive wireless signal, and then converted into RS485 signal output
433MHz Wireless Transceiver Module DC8-25V RS485 UART for RTU Smart Home Description
Wireless Transceiver Module 433M DC8‑25V VHF UHF Radio RF UART RS485 for RTU Smart Home
Item Type: Wireless Transceiver Module
Working Current: 18-30MA
Baud Rate: 9600, 19200, 38400, 115200. The default value is 9600, N, 8, and 1
Wireless Operating Frequency: 426MHz~508.5MHz, 16 channels, 5.5MHz channel interval, default 426MHz
Transmitting Power: 20dBm
Receiving Sensitivity: -121 DBM
Wireless Transmission Distance: Approx. 800 ~ 1000meter / 2624.7 ~ 3280.8ft (open space without shelter)
Communication Port: RS485

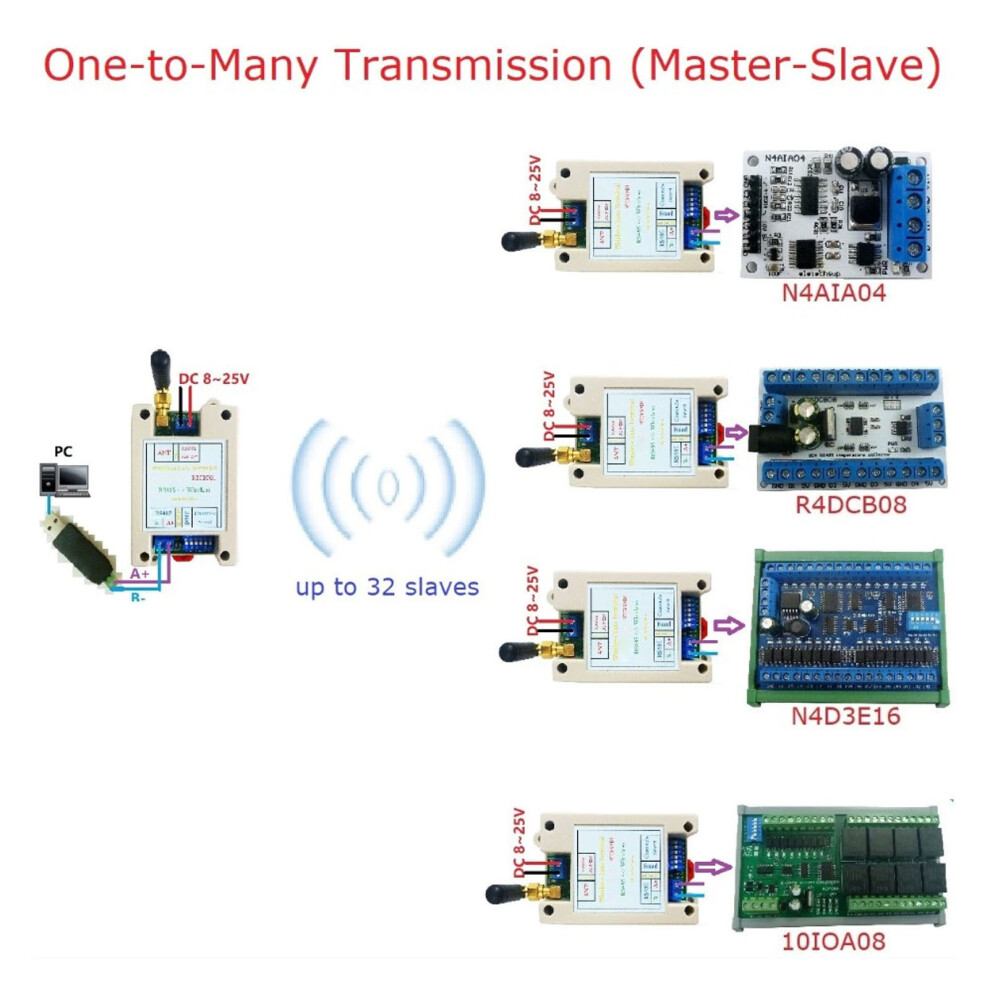

Up to 63 modules can be cascaded by changing the 485 address(more than 16 modules, using an RS485 repeater)
Details
| OPC | PQKS8MT |
|---|---|
| Codes | 7901380547839 (EAN) |
