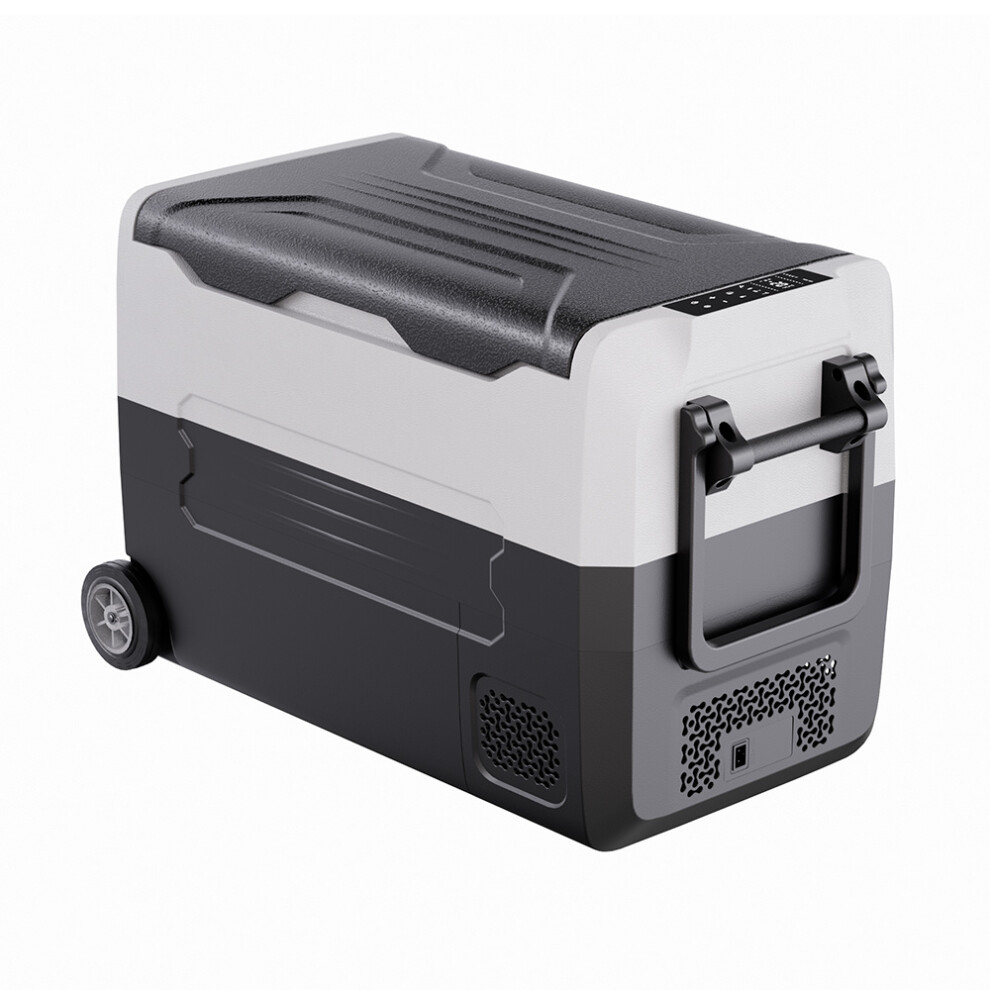

45L Compressor Car Refrigerator with Dual Temp

Description

For self-driving tourists, this portable compressor refrigerator is an essential companion. With a spacious 45L capacity, it offers ample space to keep your drinks and snacks perfectly chilled or frozen. Featuring two temperature settings and dual independent compartments, it caters to diverse storage needs. The adjustable display allows precise temperature control with some simple button presses, with a child lock to ensure safety. Its excellent craftsmanship guarantees a delightful and hassle-free road trip experience.

Specifications

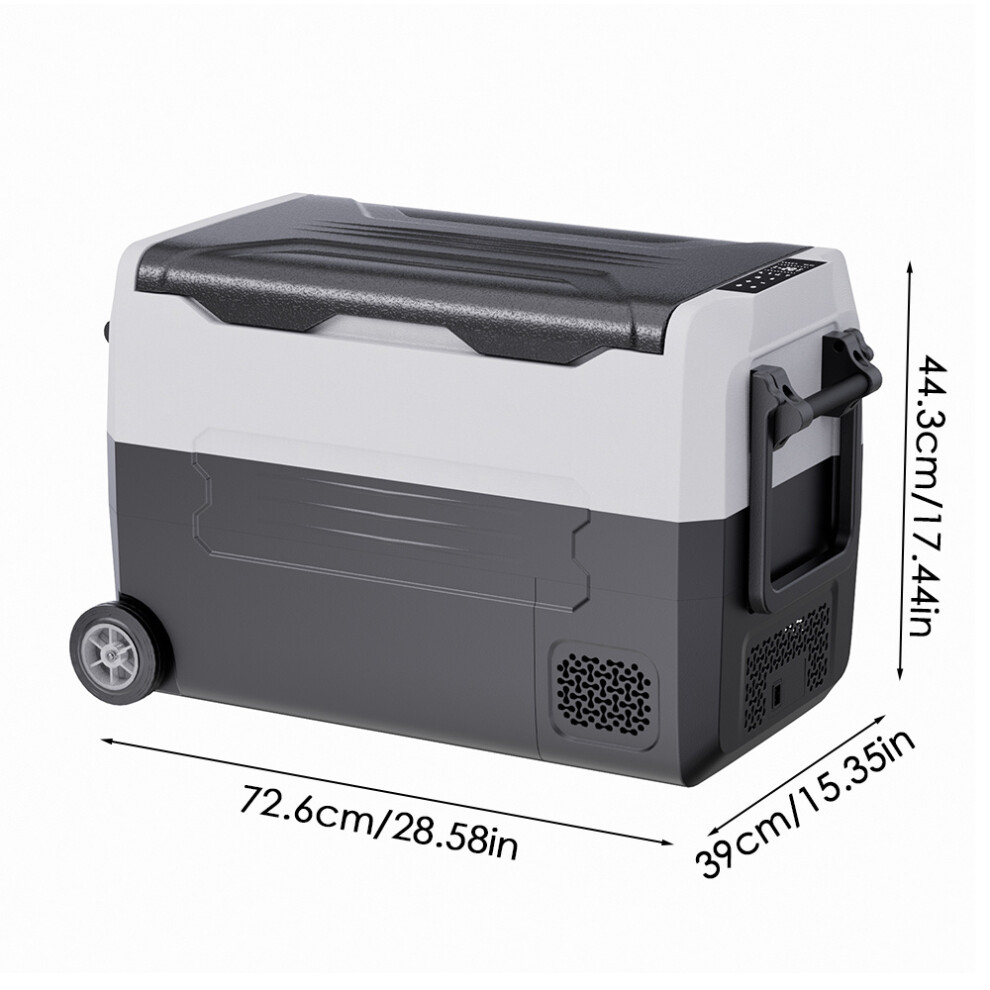

Overall Dimensions: 72.6cm W x 39cm D x 44.3cm H

Colour: White+Black

Capacity: 45L

Material: ABS+PP

Temp Control Range: -20°C ~ +20°C

Power: 45W（±20%）

Voltage: 12V/24V

Noise: ≤45dB

Cooling: Compressor

Package Included

1 x Portable Refrigerator

Package Specifications

Package Dimensions (WxDxH): 710 x 445 x 525cm

Gross Weight: 14.1kg

Safety Cautions

• Do not touch power cords, power sockets, or power strips with wet hands.
• Have a professional install the refrigerator if using it in cars, RVs, or yachts.
• Ensure the power supply lines and fuses are suitable and that the power is connected correctly.
• Do not expose the refrigerator to rain or strong sunlight for extended periods.
• Place the refrigerator in a well-ventilated area to ensure proper heat dissipation. Maintain at least a 100 mm gap between the cooling vents and other objects.
• Use the refrigerator on a flat surface to maintain its efficiency and prolong its service life.

Operation Guide

Start-Up: Connect to DC 12V/24V power. Hold the power button for 3 seconds to start. The display shows the current temperature and mode.

Shut-Down: Hold the power button for 3 seconds to stop while the keyboard is unlocked.

Lock: Hold the up button for 6 seconds. The child lock icon will light up. The keyboard locks automatically after 20 seconds of inactivity.

Unlock: Hold the down button for 6 seconds.

Adjust Temperature: Press the up/down button to change the set temperature (increments of 1℃). Hold the button for quick adjustment. The set value saves automatically after 5 seconds of inactivity.

Switch Modes: Press the set button to toggle between "ECO" and "MAX". Use "MAX" for quick cooling and "ECO" for energy-saving constant temperature.

Low Voltage Protection: Automatically stops the compressor if battery voltage is too low, indicated by the "E1" code. Resumes normal operation when voltage stabilizes.

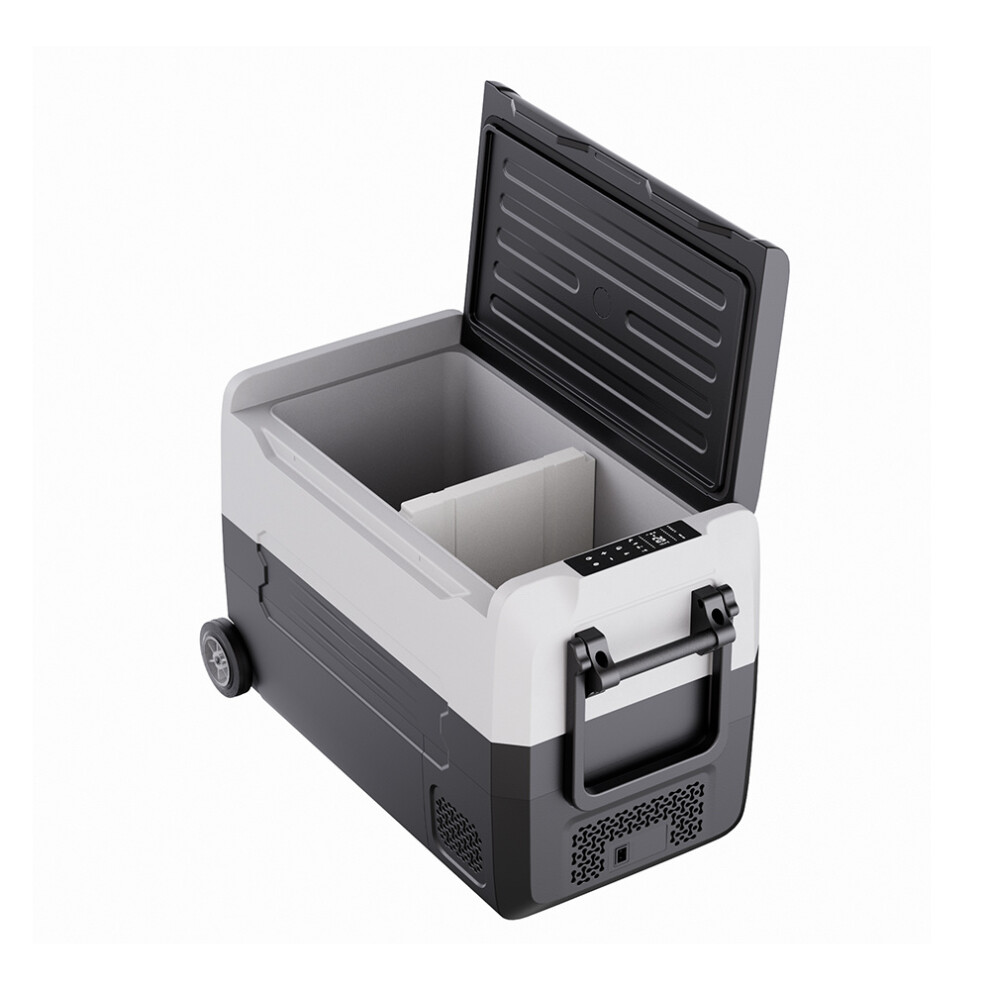

Dual Zone: With the partition, the left side is the freezer and the right side is the fridge. Adjust the freezer temperature separately.

Single Zone: Remove the partition for a single temperature zone, controlled by the set temperature.

Note: For more detailed instructions and Bluetooth function please refer to the user manual.
