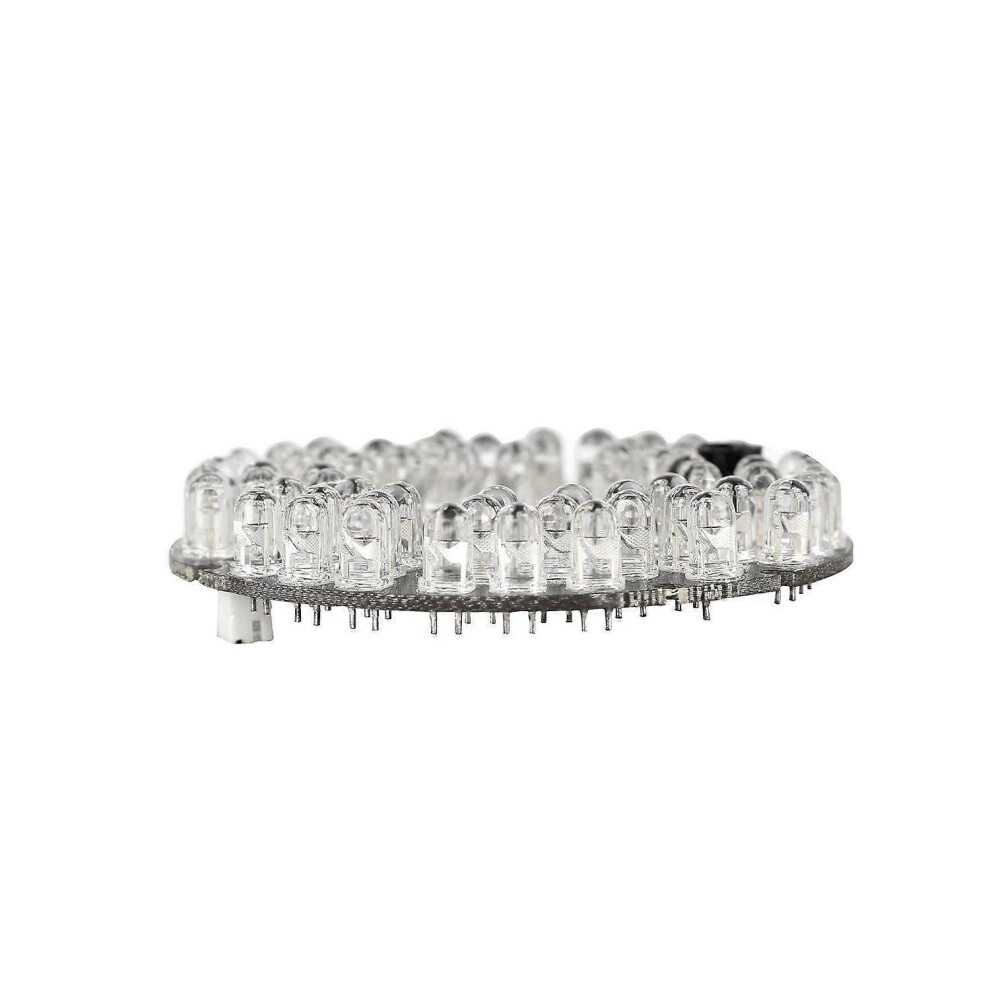

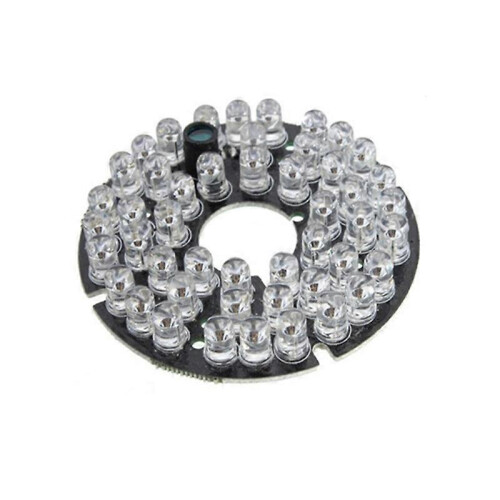

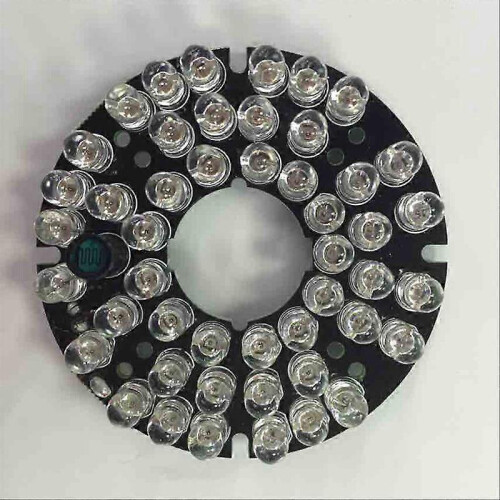

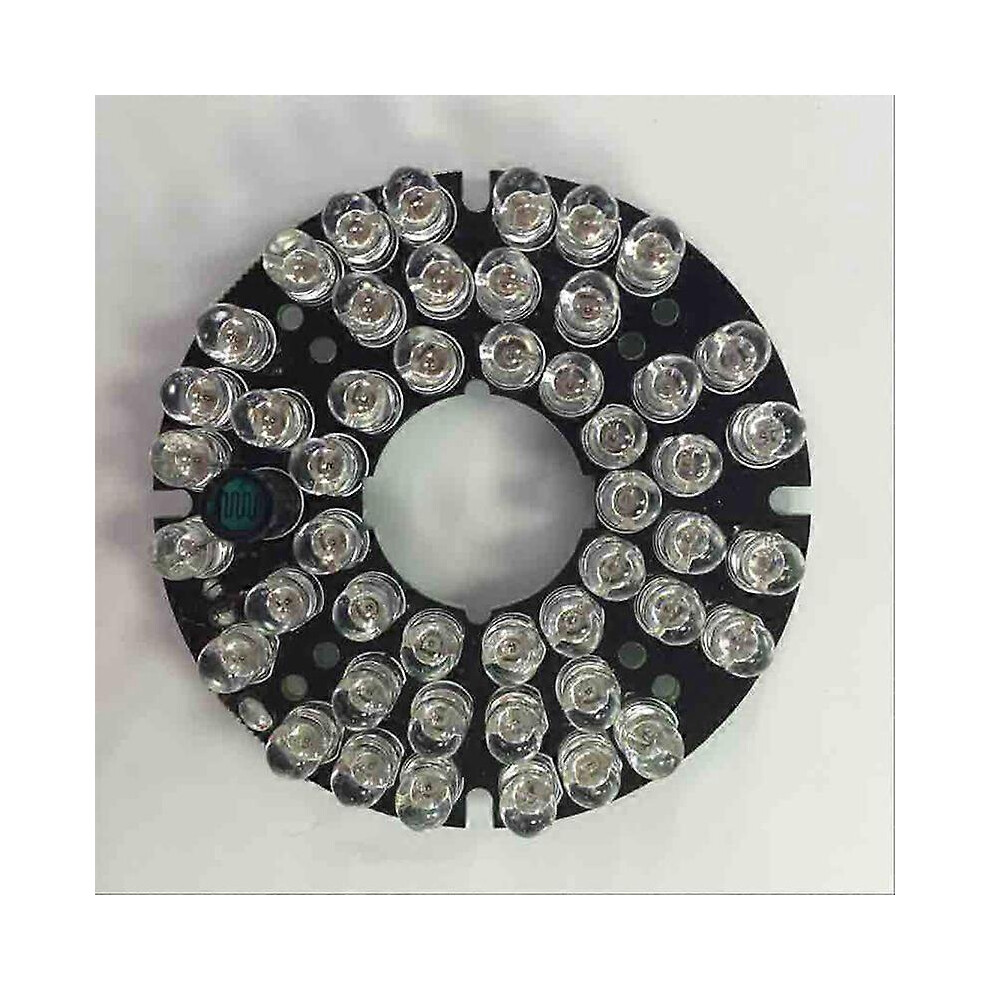

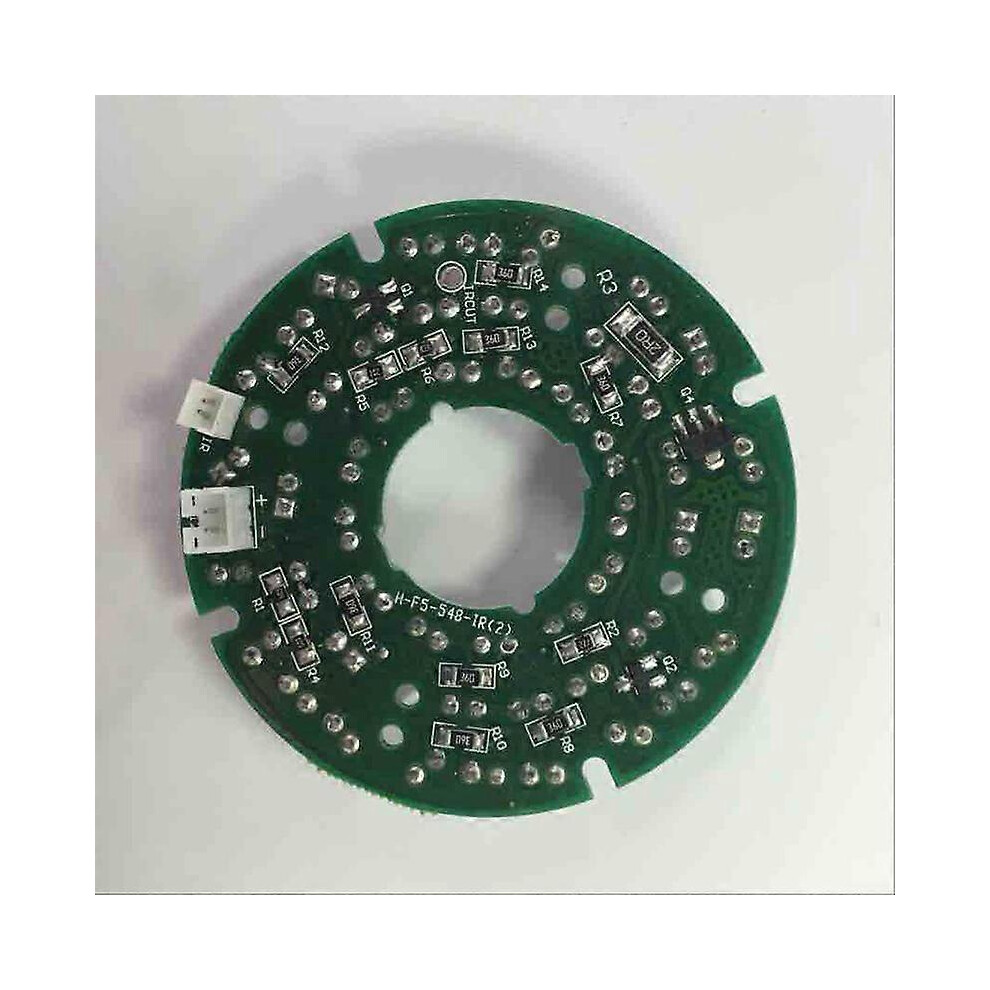

48 LED IR infrared illumination board, 60 degrees, compatible with CCTV home security camera

48 LED IR infrared illumination board, 60 degrees, compatible with CCTV home security camera Description

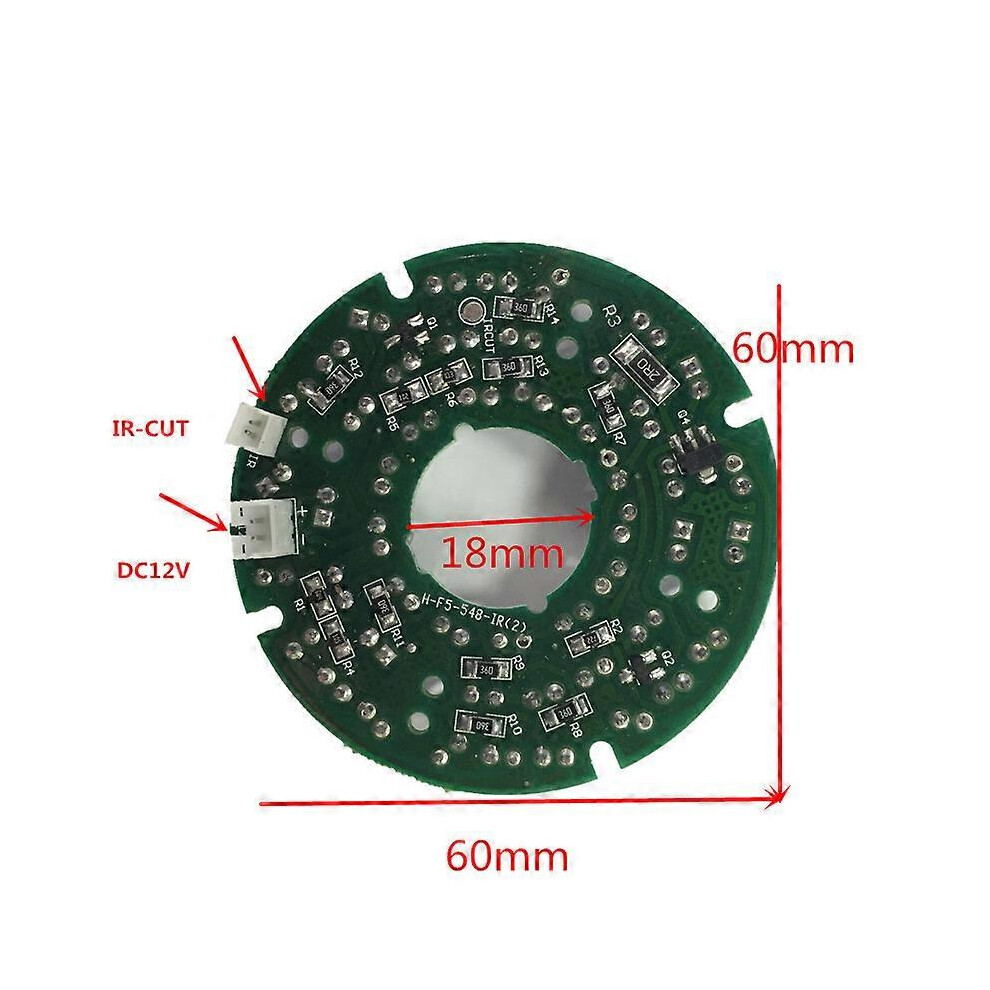

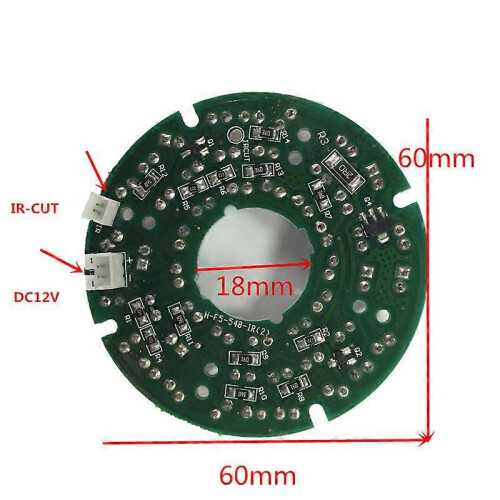

1. This is an IR LED board for CCTV security cameras. 2. High performance with low power consumption. 3. Replaces a CCD camera LED board for your defective or worn IR LED board. 4. Built-in automatic protection circuit against damage to the board from high voltage. 5. A power supply above DC13V can significantly shorten the lifespan of the LEDs. 6. Description 7. Number of LEDs: 48 8. Circuit board diameter: 60 mm 9. Power supply: DC12V / 250mA (typical) 10. Operating temperature: -10C ~ +50C 11. Size of LED lamps/bulbs: 5 mm 12. Wavelength of IR lights: 850 nm 13. Size of LED core (silicon): 10 µm 14. Angle: 60 degrees 15. Special note regarding the beam angle of the IR lights. 16. 90 degrees for 3.6mm / 4mm lenses 17. 60 degrees for 6mm lenses 18. 45 degrees for 8mm lenses 19. Color: black+white 20. Material: PCB 21. Package contents: 1 x IR LED board 22. Only the above package contents are included; other products are not included. 23. Note: Light shooting and different displays may cause the color of the item in the picture to be slightly different from the real color. The measurement error is +/- 1-3cm.
