4G Vector Network Analyzer High Dynamic Range 50khz-4ghz V2 Plus4 Multifunction Analyzer

4G Vector Network Analyzer High Dynamic Range 50khz-4ghz V2 Plus4 Multifunction Analyzer Description

Features: 1.4ghz Second Generation Vector Network Analyzer. V2 Plus4 Is The Hardware Version.
2.4 Inches Display; 4Ghz Frequency Range
3. Scanning Speed Increased By 4 Times (400 Points/Second); Up To 90DB Dynamic Range (1Ghz)
4. Up To 80DB Dynamic Range (3Ghz)
5.1024 Points Scan (-Qt Software) Description.
1.Measurement Frequency Range: 50Khz - 4Ghz
2. System Dynamic Range: 70db (To 3ghz, After Calibration, Without Averaging)
3. System Dynamic Range: 80db (To 3ghz, After Calibration, 5x Averaging)
4. System Dynamic Range: 90db (To 1ghz, After Calibration, 20x Averaging)
5.S11 Noise Floor (After Calibration): -50db (To 1.5ghz); -40db (To 3ghz)
6. Scan Rate: 400 Points/Second (F 140 Mhz), 200 Points/Second (F Less than 140 Mhz)
7. Number Of Scanning Points: Adjustable, Maximum 1024 Points (Maximum 201 Points On The Device Screen)
8.Power Supply: Usb
9. Rf Port: Sma (Not Rp-Sma!)

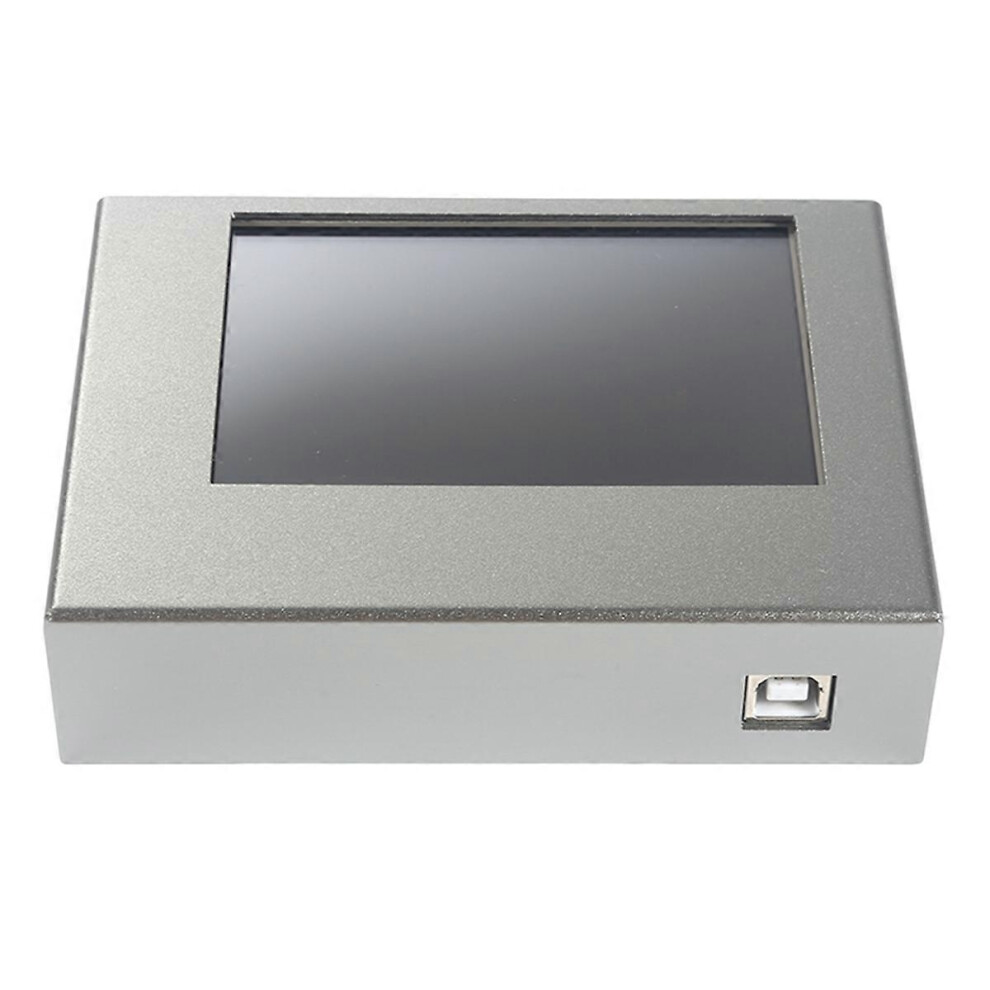

10.Usb Interface: Usb Type-B
11.Display Screen: 4-Inch Tft (480 X 320)
12.Battery: With 3200mah Lithium Battery
13.Port 2 Return Loss: 15db (To 3ghz), 20db (To 1.5ghz)
14.Display : 4, Mark: 4, Setting Save: 7
15. Computer Software Compatible: Linux, (7 Or Above), Os
Material: ABS

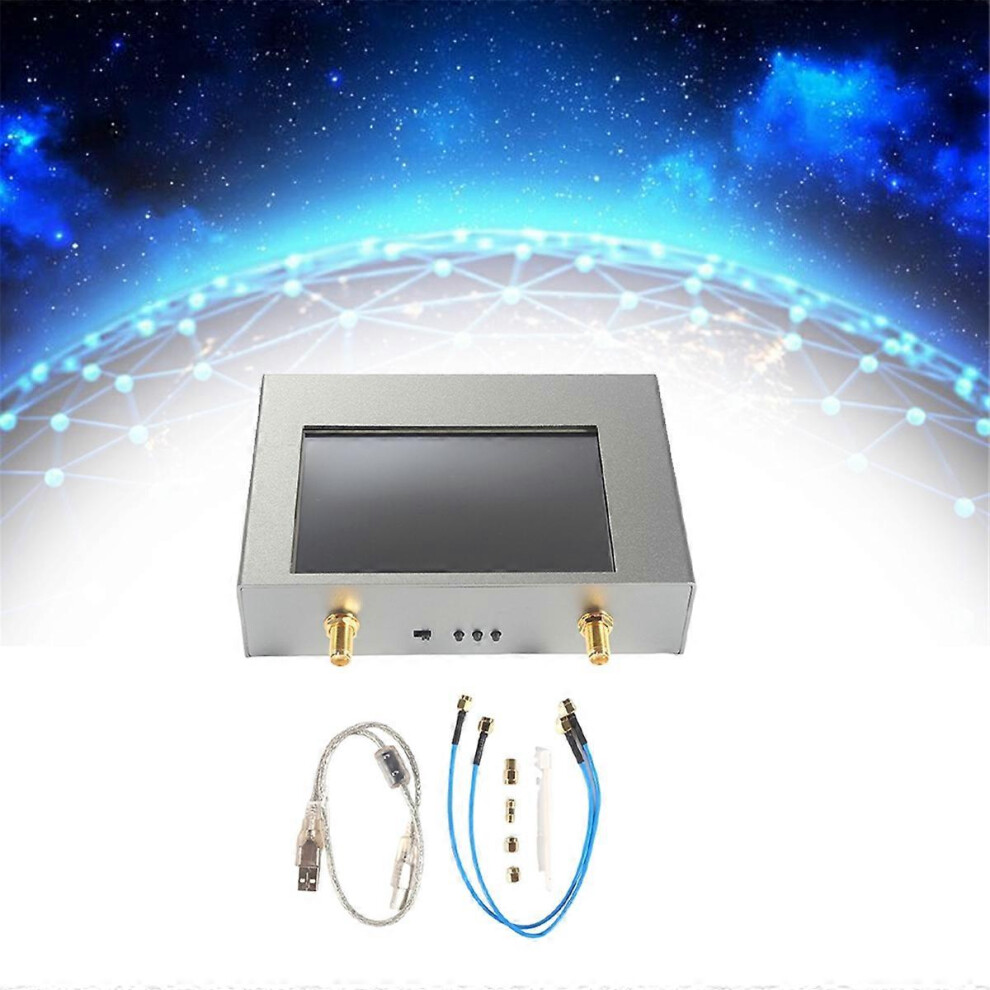

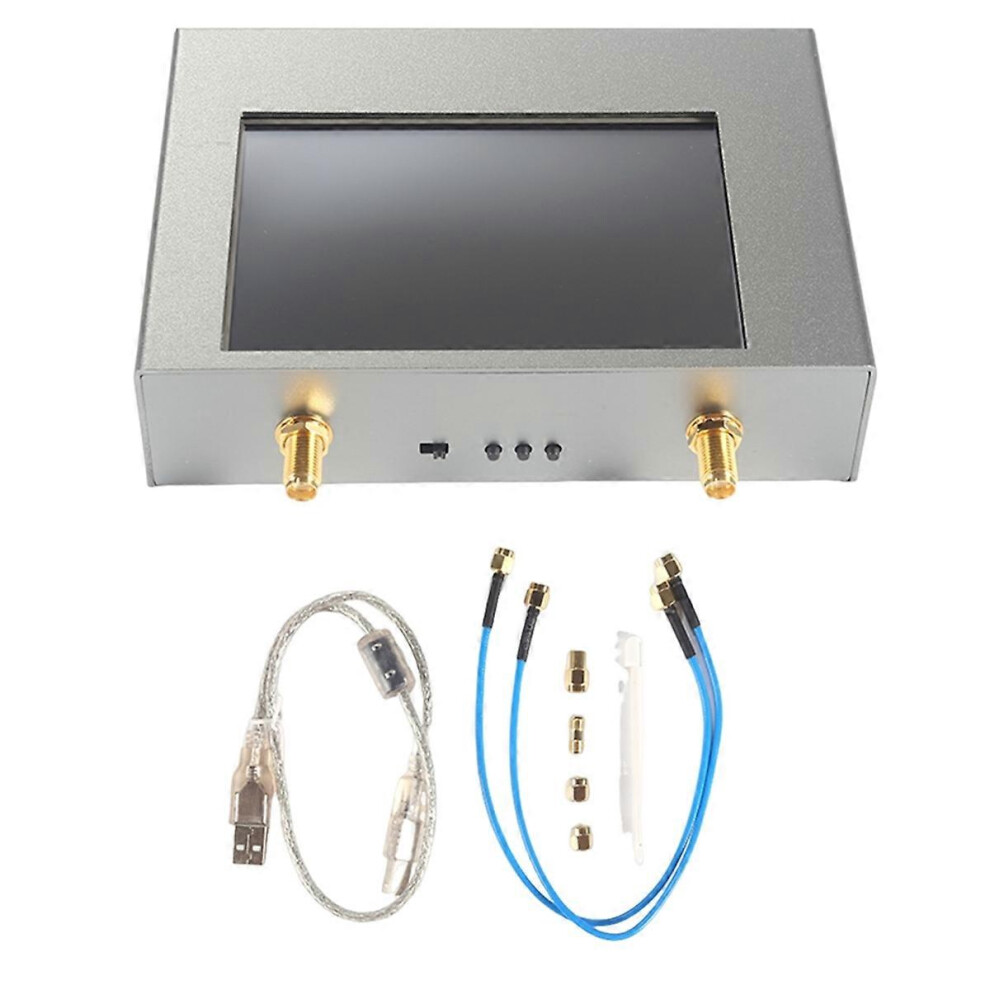

Color Package Contents:
1 x VNA Host
2 x 30cm SS405 RF Cable
1 x Solt Calibration Piece
1 x USB Cable
1 x Touch Screen Pen
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
