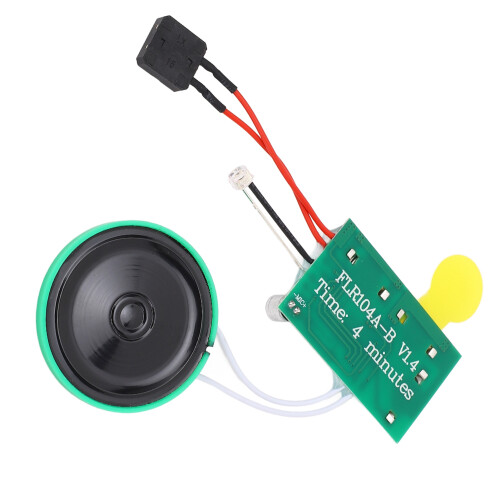

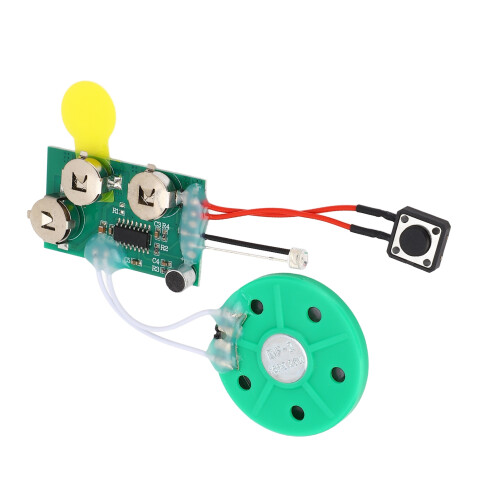

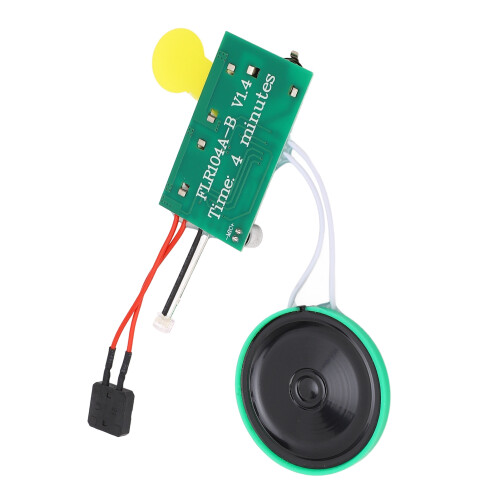

4mins DIY Recordable Greeting Card Module Light Sense Voice Sound Record Chip (Loop Play)

4mins DIY Recordable Greeting Card Module Light Sense Voice Sound Record Chip (Loop Play) Description

4mins DIY Recordable Greeting Card Module Light Sense Voice Sound Record Chip (Loop Play)
Features:
1. Customizable to record music or whatever you want to say for up to 4 minutes.
2. Function: light sense to trigger button and play music.
3. 3 button cell power supply, 16Ω 0.25W environmental speaker, the sound is large enough.
4. This module has been welded with microphone, key, speaker and battery, etc., and can be used after receiving the product, which is very convenient.
5. Great for Xmas cards, gift boxes, jewelry boxes, crafts, children's toys etc.
Specification:
Recording time: 4 minutes
Working voltage: 3 button batteries 3.0V-4.5V (Batteries are included)
You can repeat the recording, each recording will replace the last recording
Board size (L*W*H): 46 * 27 * 10mm/1.8 * 1.1 * 0.4in
Speaker Diameter: Approx. 40mm/1.6in
Speaker Thickness: Approx. 5mm/0.2in
Key Cable Length: Approx. 5cm/2in
Optional Play Mode: Single Play, Loop Play
Package List:
1 * Greeting Card Module
Recording and Playback Operating:
1. Press the record button, hear the "DI" sound and release the record button, then speak at the distance of 5-10 cm from the microphone to start recording.
2. Press the record button again, and hear the drop sound release button to indicate that the recording is complete.
3. Then press the play button again to play the currently recorded sound. Press the play button again during playback to stop the sound.
Note:
The key with red wire is recording key, and the key with black wire is playing key.
