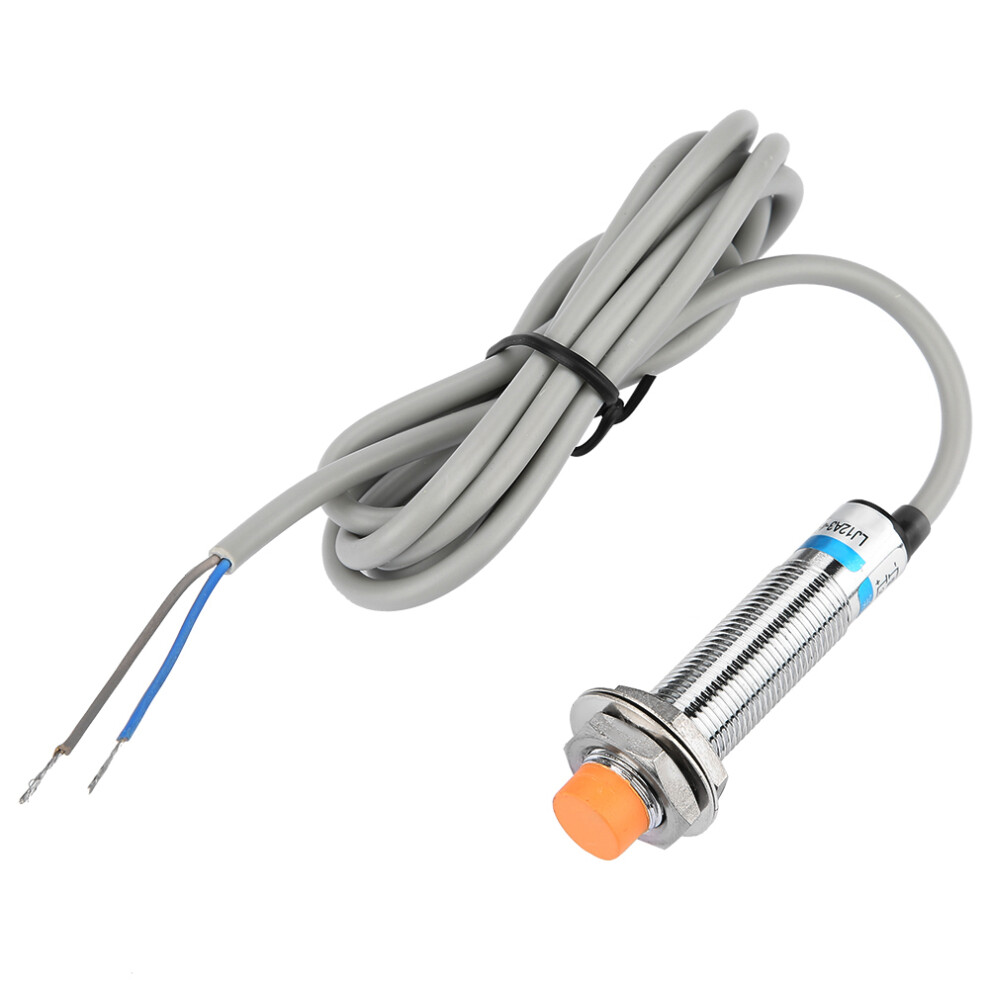

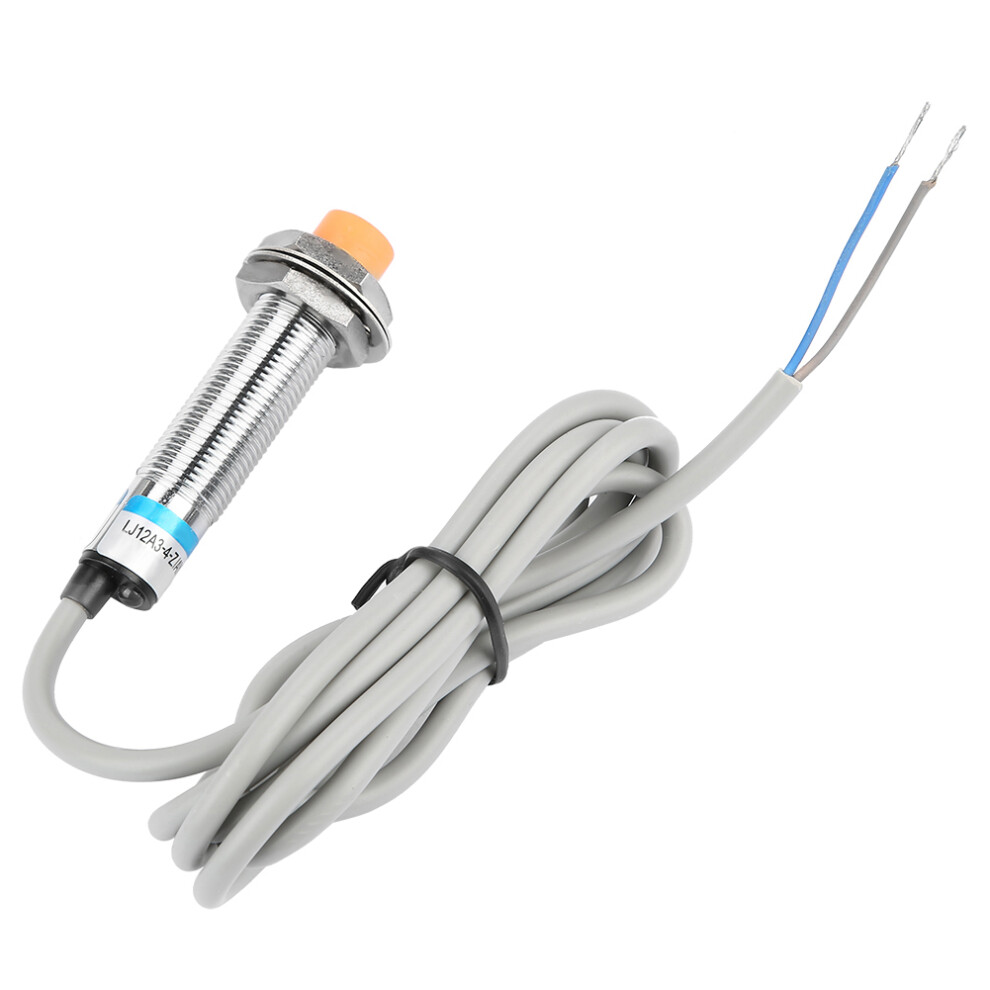

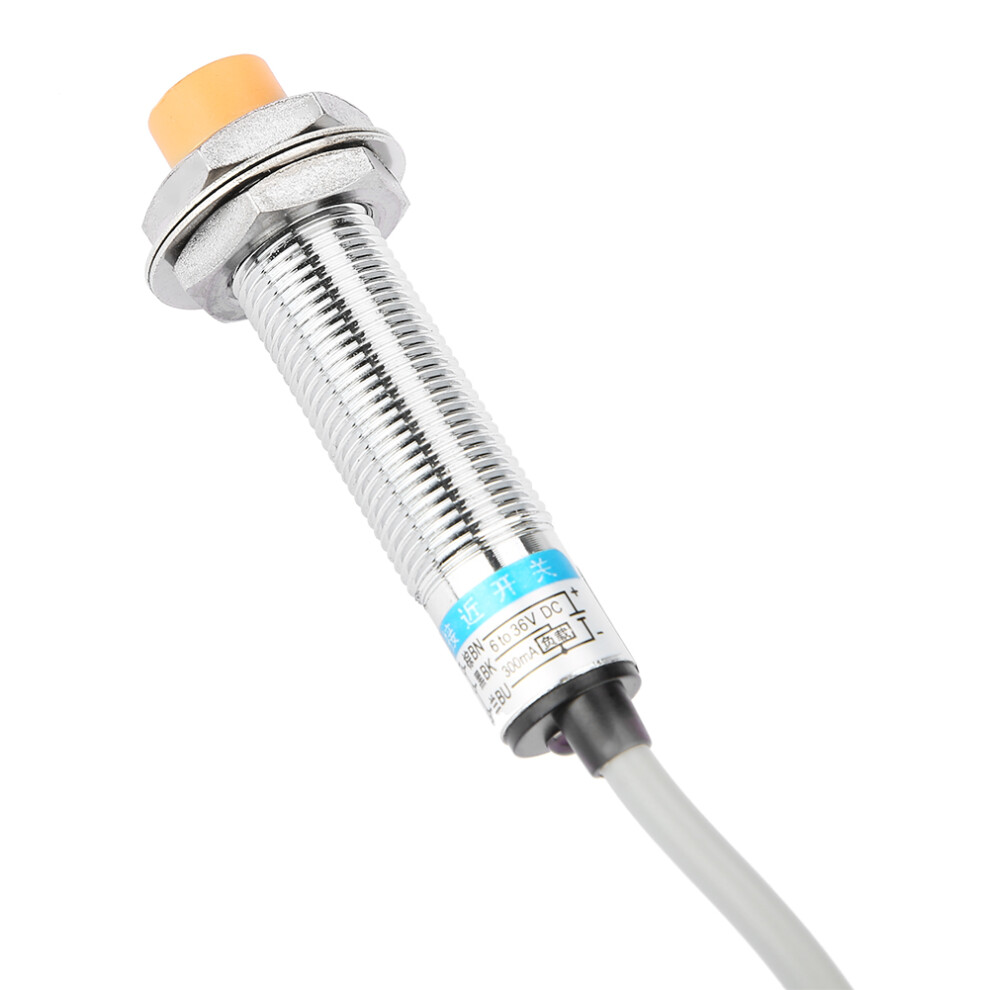

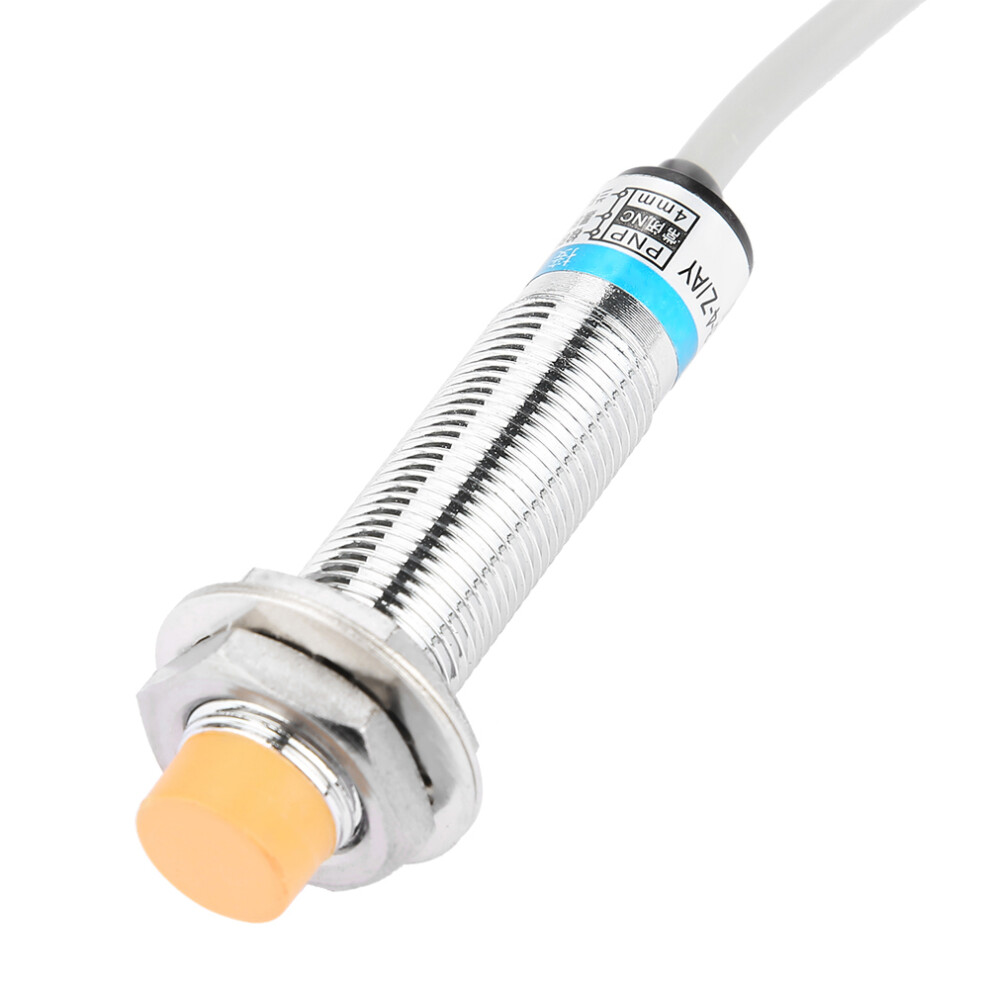

4mm Distance Measuring Proximity Sensor Switch (LJ12A3-4-J/DZ)

4mm Distance Measuring Proximity Sensor Switch (LJ12A3-4-J/DZ) Description

1、Proximity switch is a position sensor with switch output that can be connected with microcomputer 2、It also can drive directly from, electromagnetic relays, counters and contactor to achieve automatic control purposes 3、It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching. 4、When proximity switch is close to some target object, it will send out control signal. 5、It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial etc.
Features:
Proximity switch is a position sensor with switch output that can be connected with microcomputer
It also can drive directly from, electromagnetic relays, counters and contactor to achieve automatic control purposes
It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching.
When proximity switch is close to some target object, it will send out control signal.
It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial etc.
Specification:
Product name: Proximity Sensor Switch
Shell material : metal
Weight: Approx.47g/1.7oz
Model(Optional)
Diameter
Distance
Power supply
Out way
LJ12A3-4-Z/AX
M12
4MM
DC6-36V
3 wire NPN NC
LJ12A3-4-Z/BY
M12
4MM
DC6-36V
3 wire NPN NO
LJ12A3-4-Z/AY
M12
4MM
DC6-36V
3 wire NPN NC
LJ12A3-4-Z/EX
M12
4MM
DC6-36V
2 wire NO
LJ12A3-4-Z/DX
M12
4MM
DC6-36V
2 wire NC
LJ12A3-4-J/EZ
M12
4MM
AC90-250V
2 wire NO
LJ12A3-4-J/DZ
M12
4MM
AC90-250V
2 wire NC
Package list:
1 x Proximity Sensor Switch
