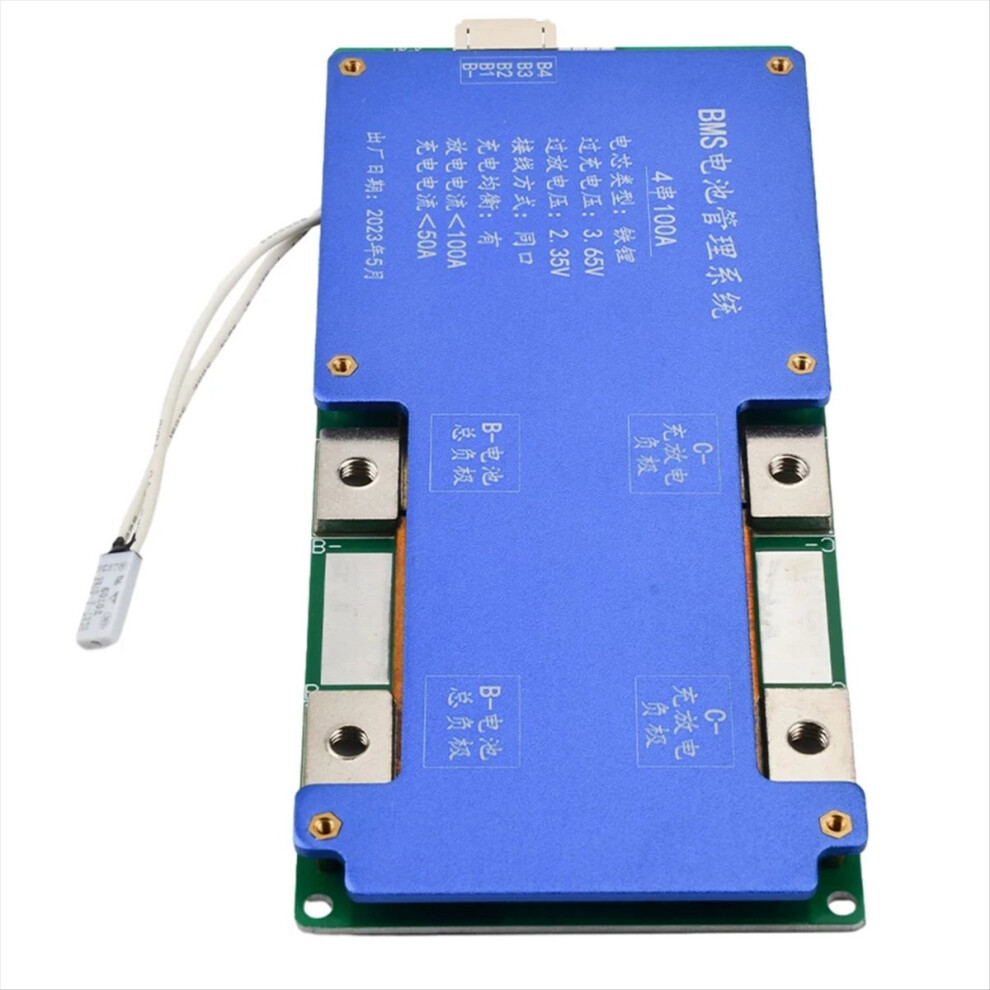

4S 100A Lifepo4 Battery Charging Protection Module Active Equalizer Board Management System Power

4S 100A Lifepo4 Battery Charging Protection Module Active Equalizer Board Management System Power Description

1. Overcharge protection
2. Balanced protection
3. Overdischarge protection
4. Overcurrent protection
5. Short circuit protection,Electrostatic protection

Weak current switch
Voltage: DC14.6V
Discharge current: 100A
Charging current (same port): 50A
Main circuit conduction internal resistance: 5MQ
Discharge overcurrent protection: 600+10A
Product size: 145 x 65 x 11+1MM
Overcharge protection:
Detection voltage: 3.65+0.025V
Detection delay: 1000+500MS
Release voltage: 3.5+0.05V
Overdischarge protection:
Detection voltage: 2.35+0.1V
Detection delay: 1000+500MS
Release voltage: 2.7+0.1V
Equilibrium parameters:
Detection voltage: 3.5+0.025V
Equalizing current: 70+5MA
Overcurrent protection:
Detection voltage: 50+15MV
Current protection: 600+100A
Short circuit protection:
Trigger condition: external short circuit
Detection delay: 350US
Release condition: disconnect the load
Temperature control protection
Charging high temperature protection detection temperature: 75 C
Discharge high-temperature protection detection temperature: 75 C
Release condition: 65 C
Self consumption:
Working power consumption: 40UA
Sleep over discharge power consumption: 10UA
Working temperature range: -20~+80C
Color: Blue
Material: Electronic Component

Package Contents:
1 * Battery protection board
1 set * accessories

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
