4S 5.5A Active Balance Board Capacitor Ternary Iron Lithium Battery Voltage Difference Equalizer Capacity Recovery

4S 5.5A Active Balance Board Capacitor Ternary Iron Lithium Battery Voltage Difference Equalizer Capacity Recovery Description

1. Support active balancing of 4 series lithium battery packs, with a balancing current of up to 5.5A.
2. Adopting capacitive energy transfer technology, balanced, efficient, and fast.
3. High 5mV whole group balancing improves the overall performance of the battery.
4. Undervoltage sleep protection design, with standby power consumption below 0.1 milliamps.
5. Suitable for lithium batteries, with a wide operating temperature range and strong stability. Applicable batteries:ternary lithium, lithium iron phosphate, lithium titanate. Static self consumption (balance switch off):less than equal 30uA

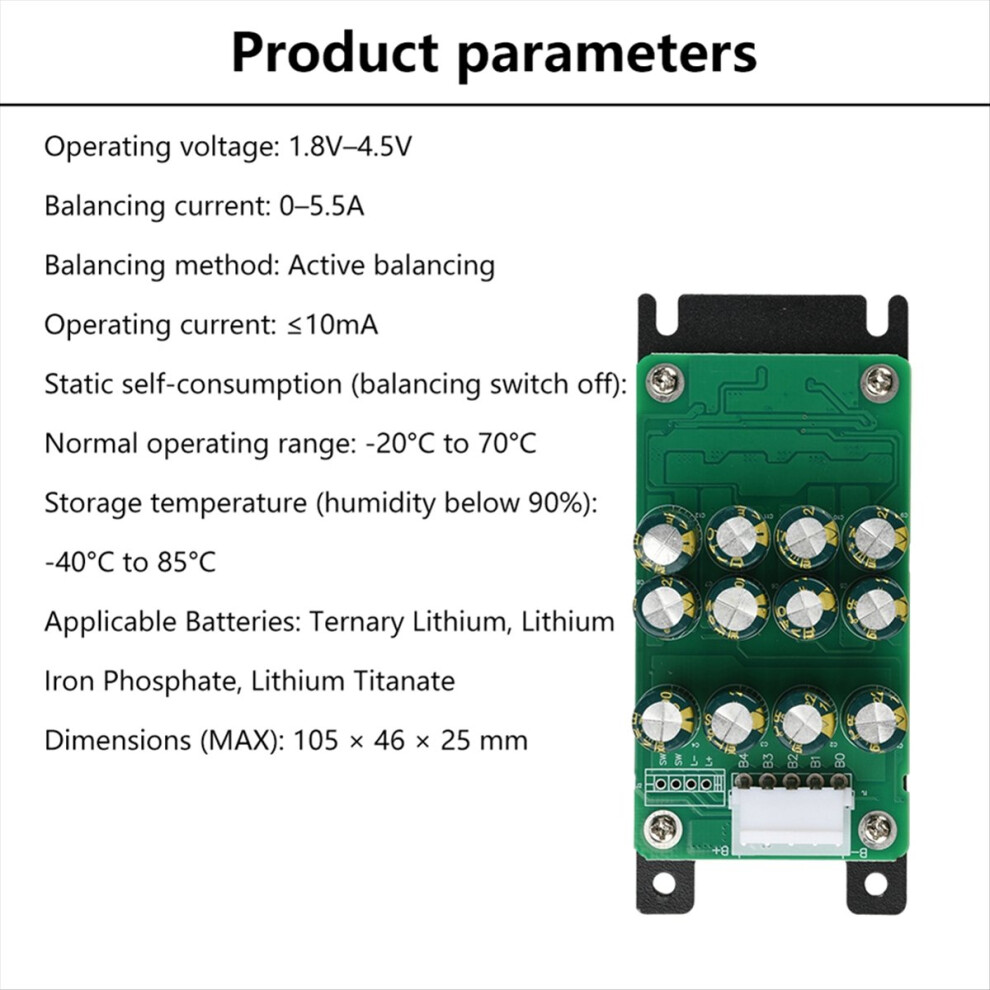

Working voltage:1.8V-4.5V
Balanced current:0-5.5A
Equilibrium method: Active equilibrium
Working current:less than equal 10mA
Normal working range: -20-70
Storage temperature (humidity below 90%): -40-85
Size (MAX):105x46x25mm

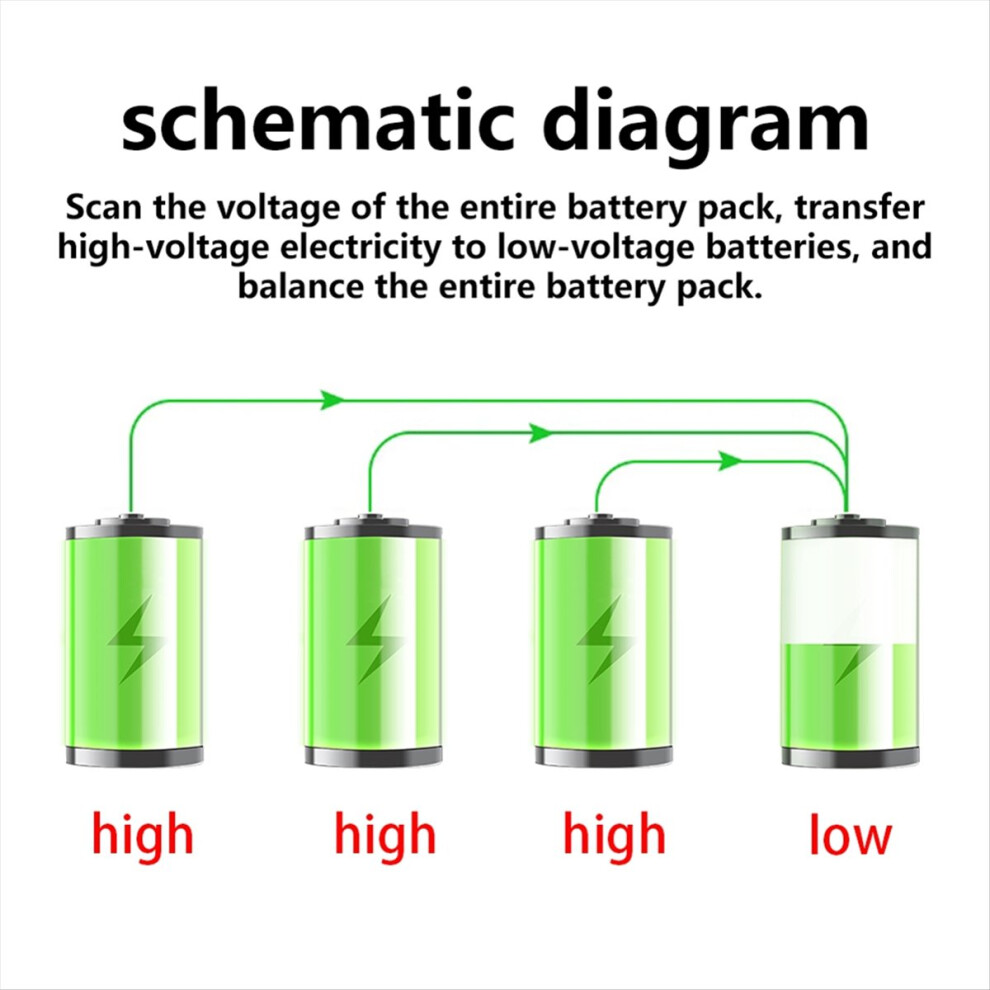

Capacitive working principle: The capacitor flies to transfer the charge, and the balancing board is connected to the battery to the balancing work. It adopts the new ultra-low internal resistance MOS, and the balancing current is 0-5.5A. The more the battery is balanced, the smaller the current be!
The adjacent voltage difference is above 0.1V (current around 0.5-0.7A) and the adjacent voltage difference is above 0.2V (reaching the maximum equilibrium current of 1.2A). The smaller the voltage difference, the smaller the equilibrium current.
Suitable for active balancing of 4-series lithium battery packs, using capacitive working principle to achieve energy transfer type balancing, more rapid, effective and efficient energy transfer, high- 5MV global balancing, not adjacent balancing, with undervoltage sleep protection. When the voltage is below 3.0V, it automatically stop entering the sleep state, and the standby power consumption is less than 0.1mAh.
Color:As Shown
Material:Electronic Component

Package Contents:
1 * Li-ion battery equalizing board
1 * 5P connecting cable

Only the above package content, other products are not included.
