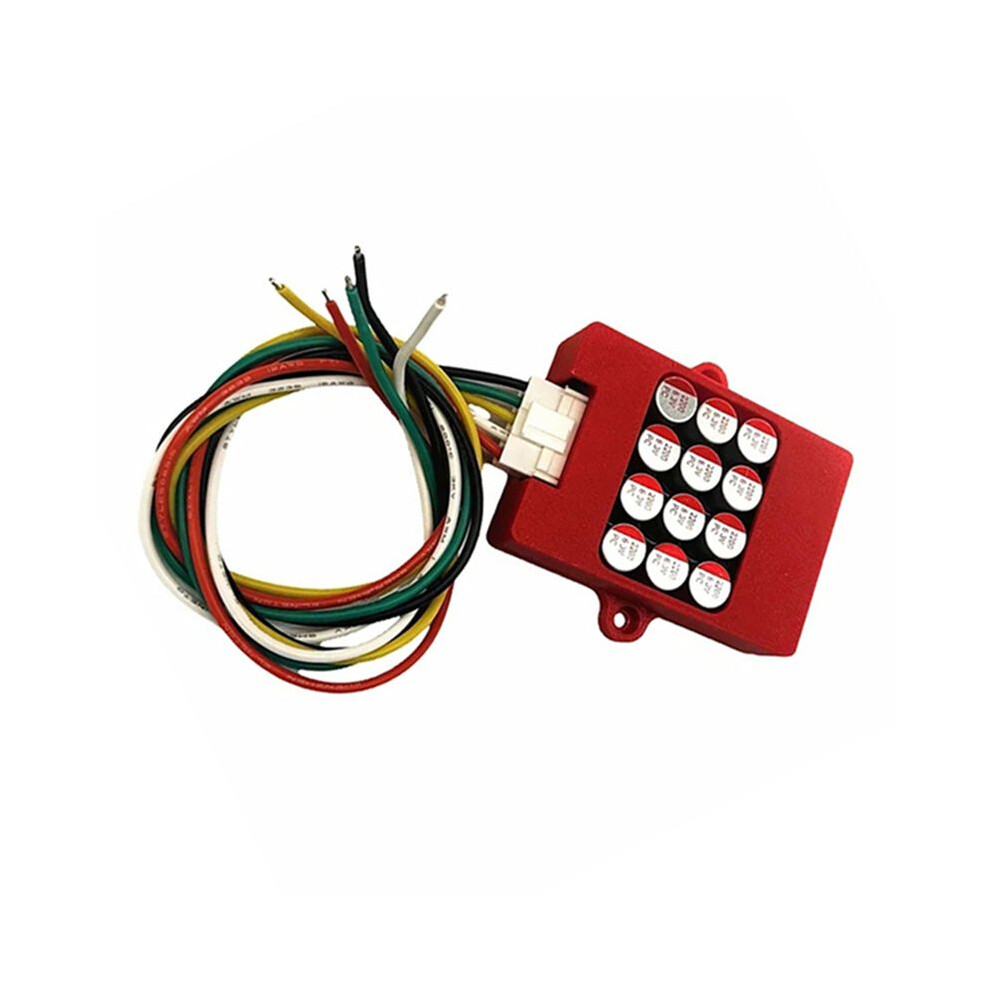

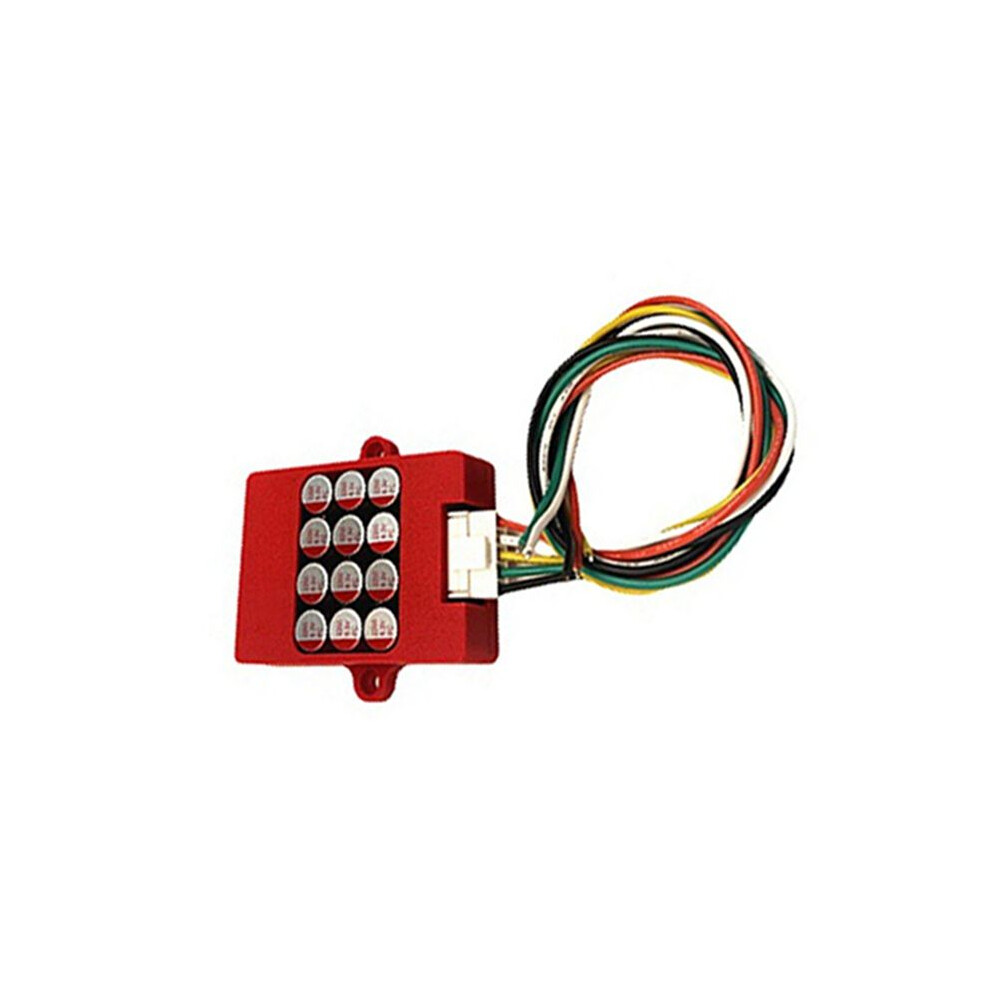

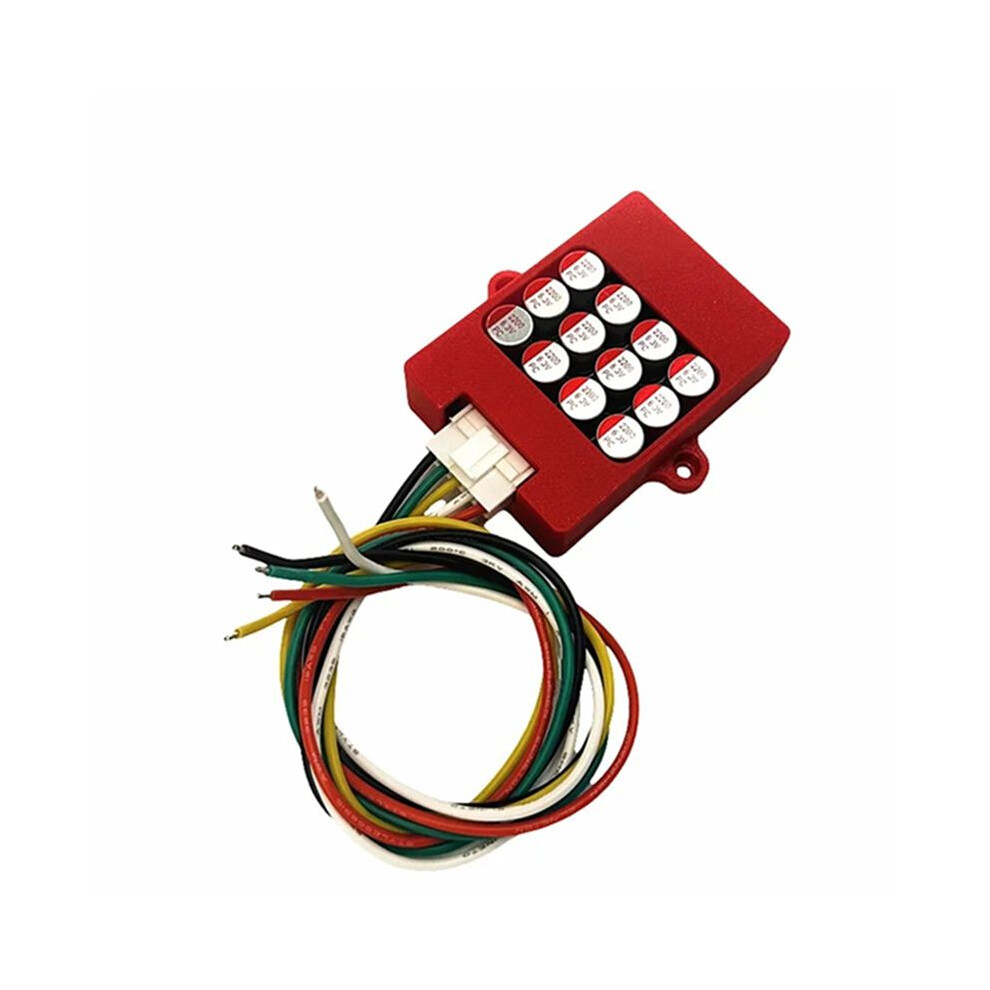

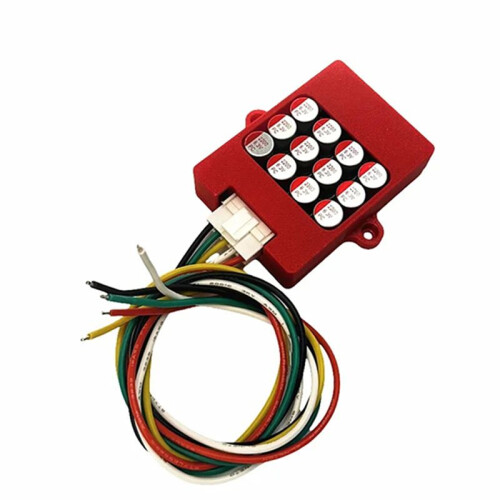

4S 5A Active Balancer 3-4S for Lipo/Lifepo4 Battery Cell Balancer Group 5A with Case Lithium Titanate Battery Equalizer

4S 5A Active Balancer 3-4S for Lipo/Lifepo4 Battery Cell Balancer Group 5A with Case Lithium Titanate Battery Equalizer Description

Working voltage: 2.7V-4.5V
Suitable for ternary lithium, lithium iron phosphate, lithium titanate.
Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The new ultra-low internal resistance MOS, 2OZ copper thickness PCB
Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep , sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
only 3-4S version only can used for Lipo/Lifepo4.
Color: Red
Material: plastic

Package Contents:
1 x 4S 5A Balancer

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
