4S Lithium Battery Active Balance Energy Transfer Board Equalizer Inductive 1.2A

4S Lithium Battery Active Balance Energy Transfer Board Equalizer Inductive 1.2A Description

Widely used
Easy to use
Compact appearance
High energy transfer equalization
High current 1.2A

Parameter:Inductive energy transfer active equalization board
Balanced version :High energy transfer equalization, exclusive equalization IC, high current 1.2A energy transfer battery voltage balancer, significantly balancing battery voltage and improving the overall efficiency of the battery pack.
Working voltage range: 2.0V-4.5V, universal for ternary/lithium iron batteries.
Equalizing current:
Adjacent voltage difference above 0.1V (current around 0.5-0.7A);
Adjacent voltage difference above 0.2V (reaching maximum balanced current of 1.2A);
The smaller the voltage difference, the smaller the equilibrium current.

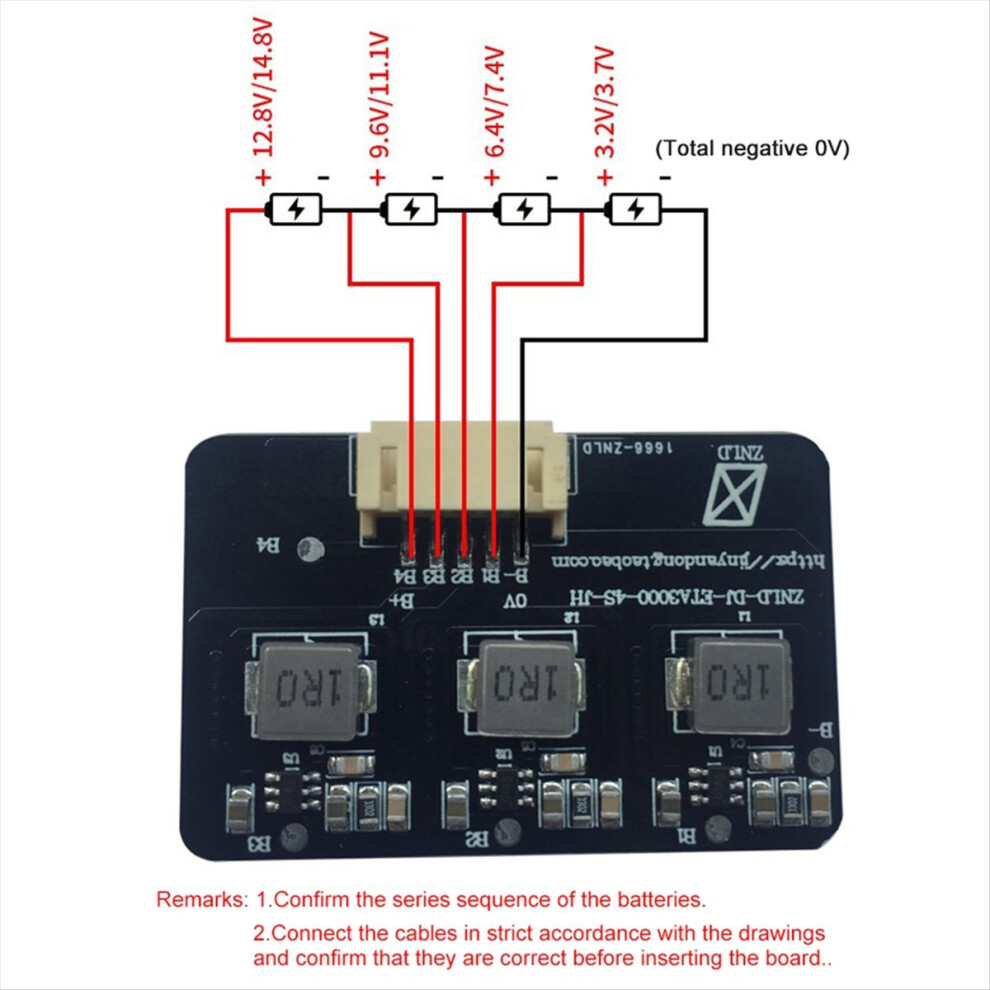

Wiring definition:
B -, total negative electrode of the battery pack (negative electrode of the first battery) B1, positive electrode of the first battery
B2, the positive electrode of the second battery, B3, and the positive electrode of the third battery, and so on.
Colour:As Shown
Material:PC+Plastic

Package Contents:

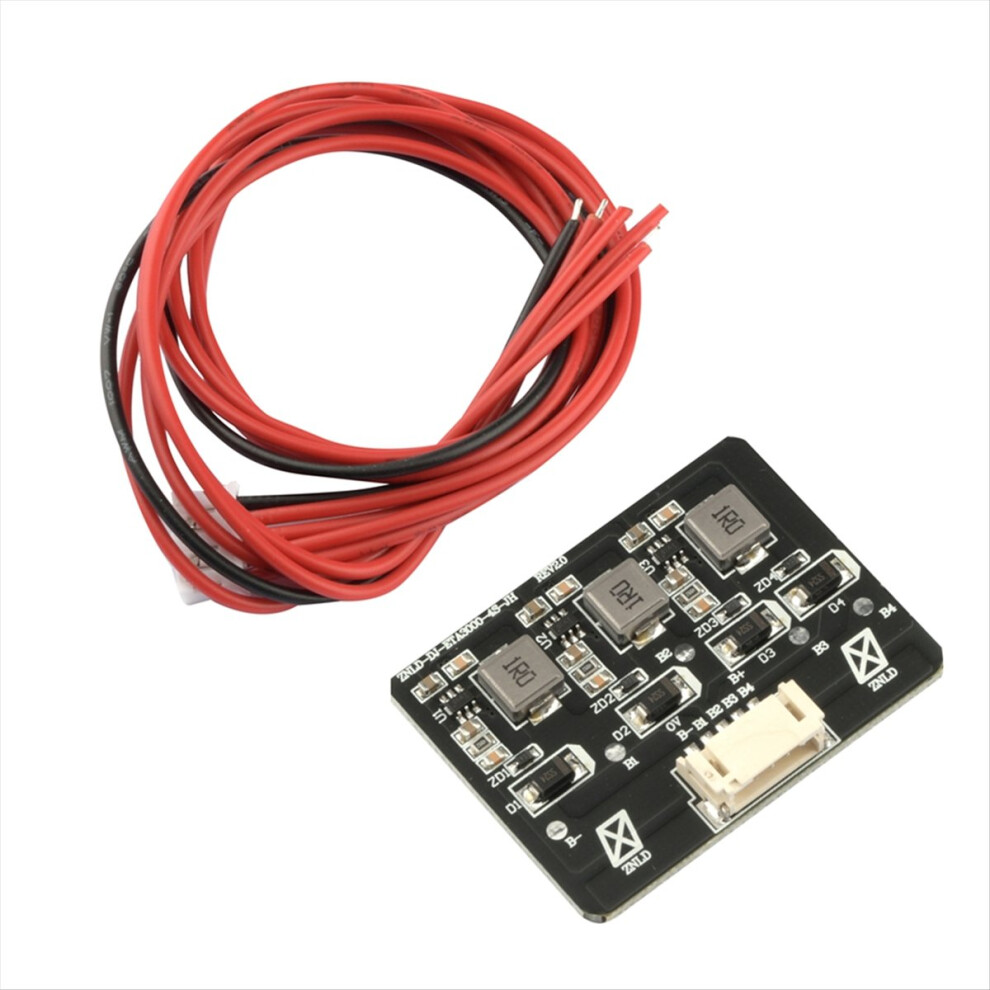

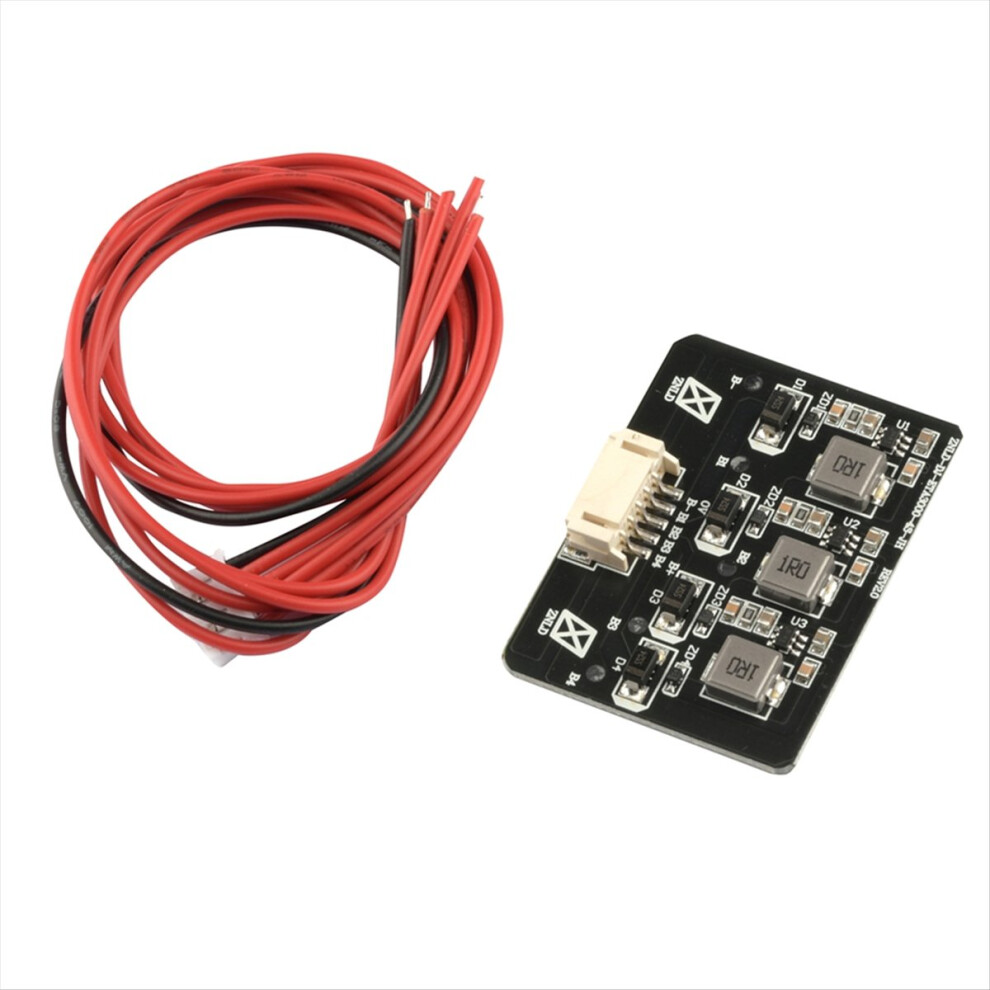

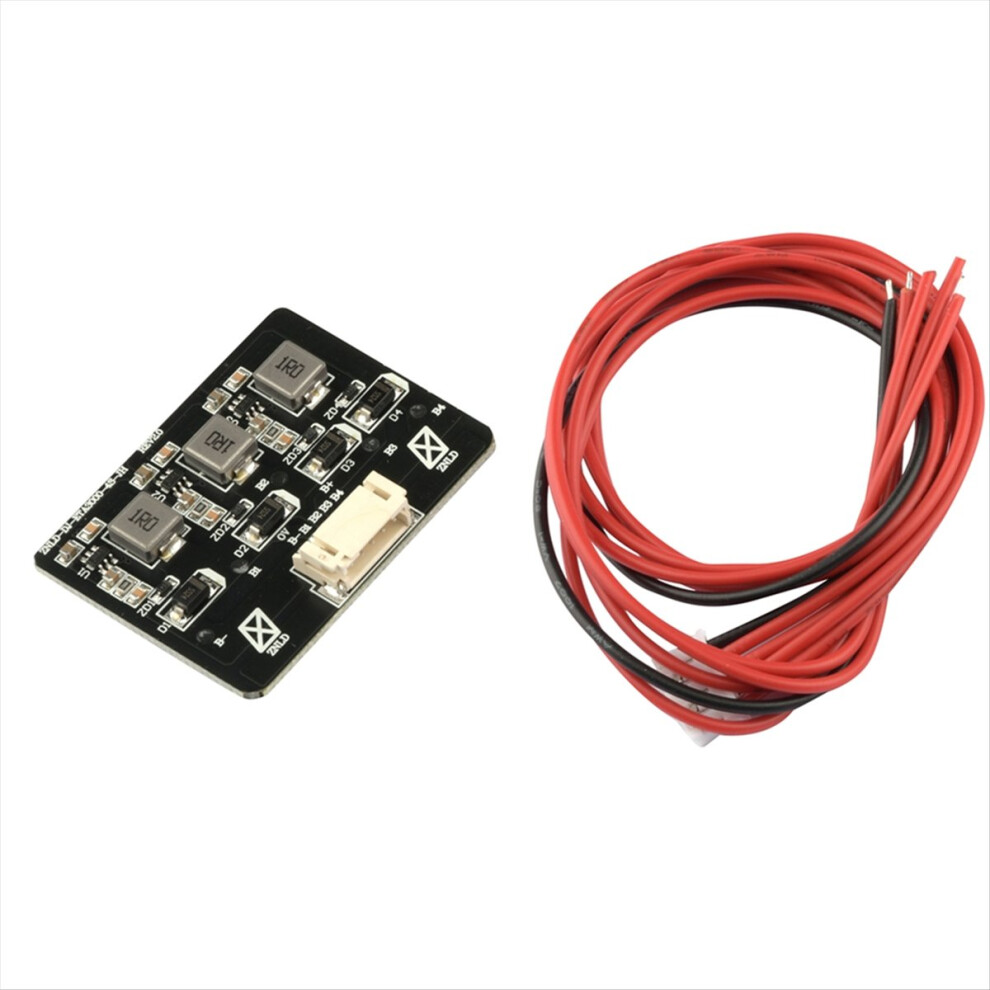

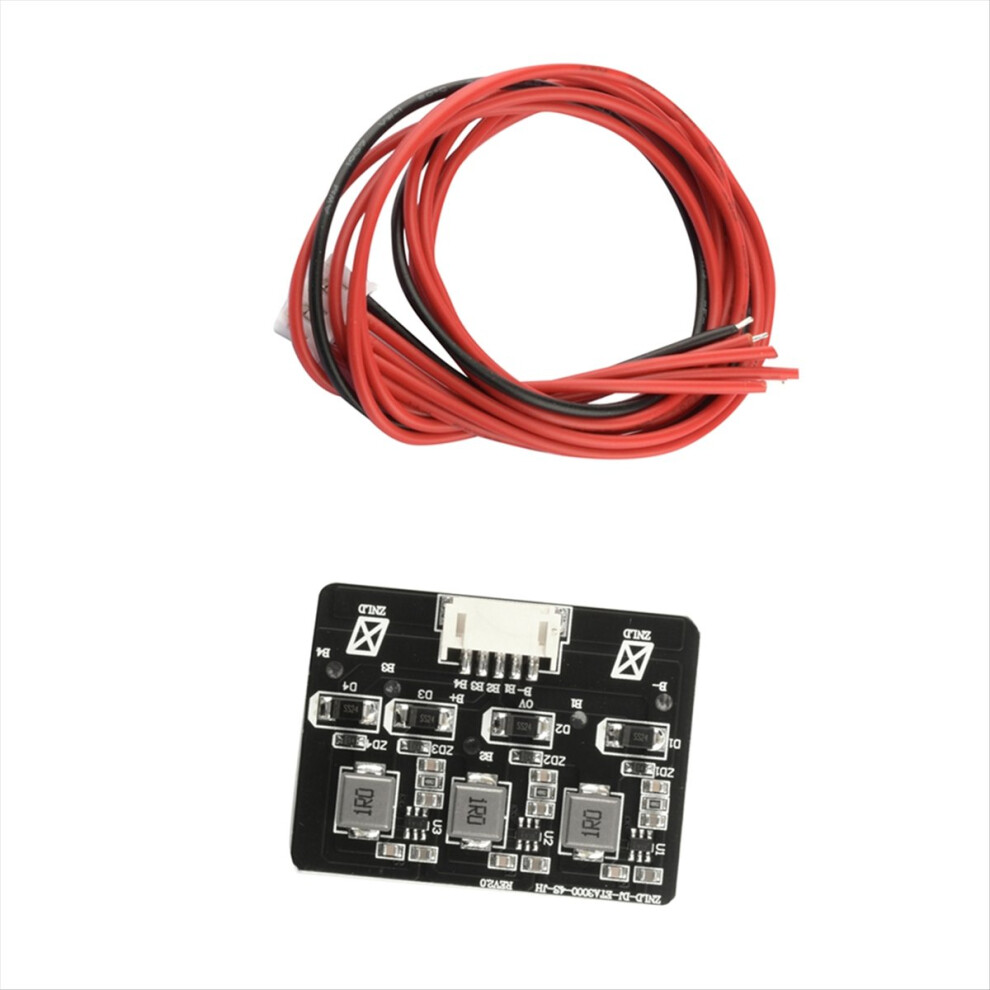

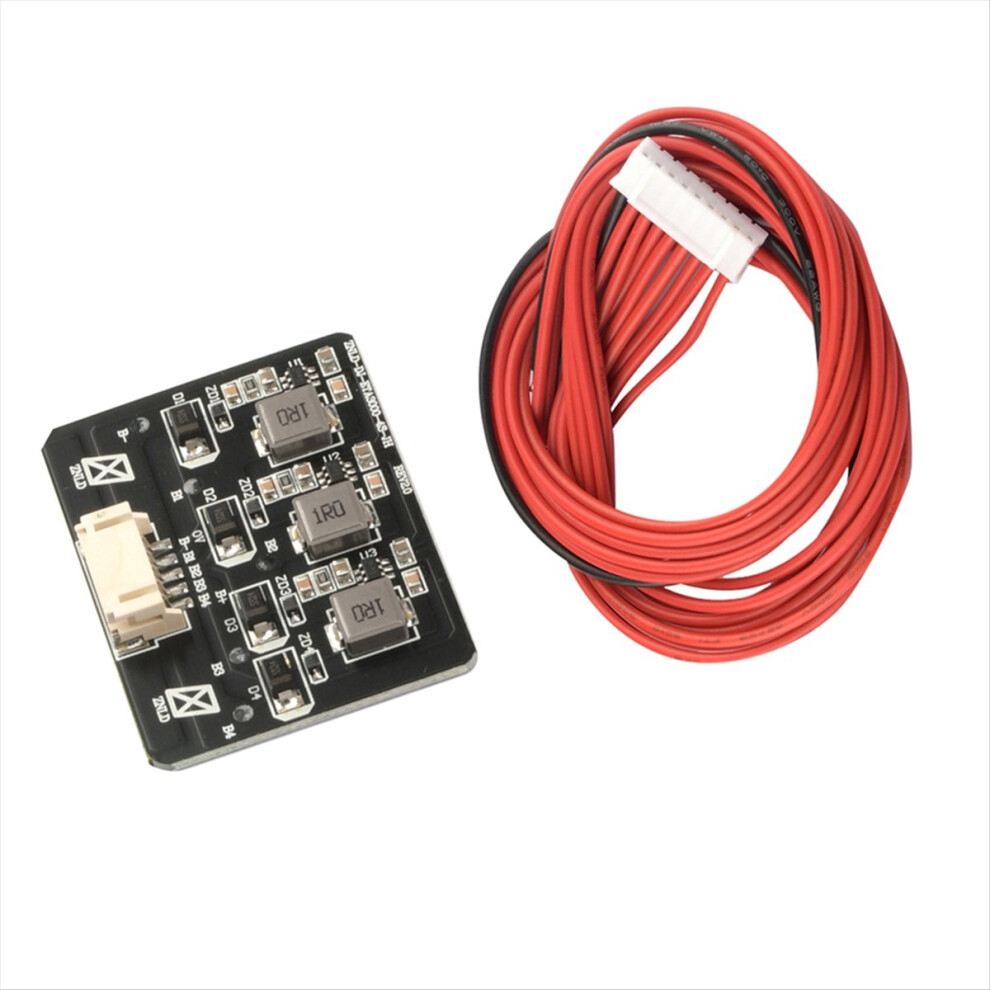

1 x Equalizer board module

Only the above package content, other products are not included.
