4x Depth Detection Water Level Sensors for Arduino Development Boards

4x Depth Detection Water Level Sensors for Arduino Development Boards Description

Features:

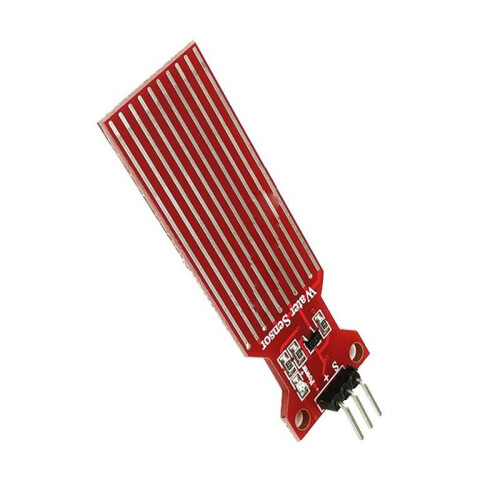

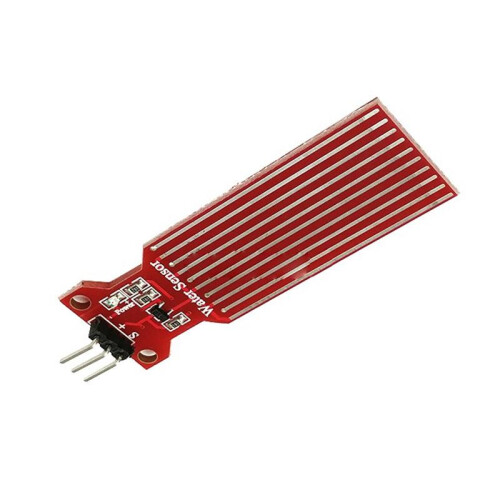

The Water Level Sensor is an easy-to-use,cost-effective sensor for water level/droplet identification and detection

It is through a series of exposed parallel wire traces to measure the size of the water droplets/water volume to determine the water level

Easily converts water volume to an analog signal

The output analog value can be read directly by the Arduino development board,the water level alarm effect

Specification:

Product name:water level sensor

Operating voltage:DC3-5V

Operating current:less than 20mA

Sensor Type:Analog

Detection area:40mm*16mm

Production process:FR4 double-sided tin spraying

Operating Temperature:10??-30

Operating humidity:10%-90% non-condensing

Product weight:3.5g

Product size:62*20*8mm

Package includes:

4PCS*Water level sensor

Note:

Only include the above package products

Specifications are manually tested and are for reference only

Please allow 0-1cm error due to manual measurement

Please make sure you don't mind before bidding

Due to the difference between different monitors

Pictures may not reflect the actual color of the item.Thank
