4X Multi Coin Acceptor for Mechanism Vending Machi

4X Multi Coin Acceptor for Mechanism Vending Machi Description

Suitable for a variety of coins
CPU process control,and accurate scoring
Special /normal stall,coins smoother
Pulse output available widths
Prevent phishing and other means of cheating,cheat alarm

Suitable of water vending machine,snack vending machine or game machine.
Identify accuracy rate:95%
Applying coins:
Diameter:Ф15mm-Ф29mm
Thickness:1.8mm-3.0mm
Applicable to All kind of coins and foreign currencies.
Atmospheric pressure:80Kpa-106Kpa
Operating voltage:DC12V10%
Working current:50mA
Moment maximum current:350mA(less than 0.5S)
Humidity: equal 95%
Storing temperature:-20C-+85C
Operating temperature:-15C-+60C
Recognition speed: equal 0.6sec
Recognition:99.5%
Instructions:
1.Pressing the setting key(8),and then you see the letter E,(choosing)several currency system),after that you can the accurate key or broaden key to increase or decrease the numerical value.After setting up,please the setting key to confirm.
2.Appearing the letter H(the quantity of sampling for currency value).
3.Appearing the letter P(the numerical valuef for signal output of currency value).
4.Appearing the letter F(the of currency value).
5.By parity of reasoning,setting is finished with your chosen currency.When the letter E is shown,plase turn off the power and it reopen again.
Color:Silver+Black
material:plastic

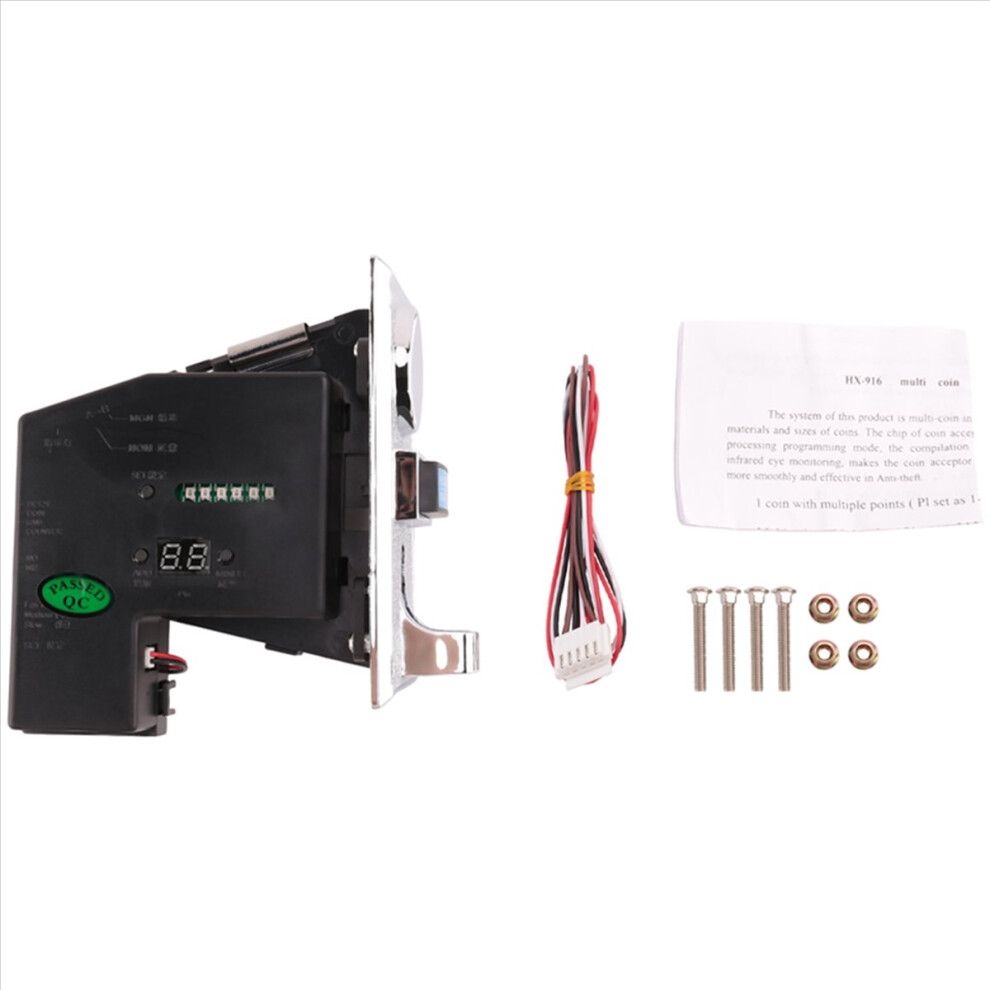

Package Contents:
4 x Coin Acceptor

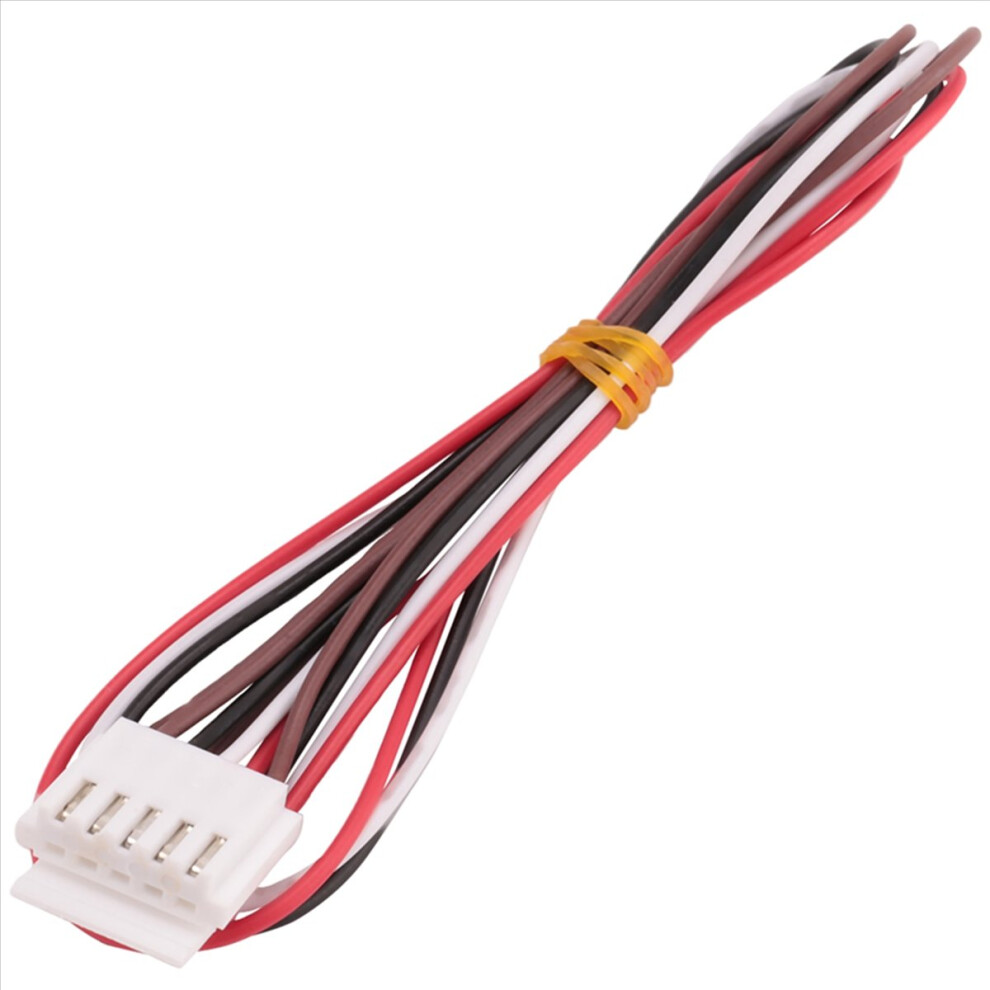

4 x Wiring

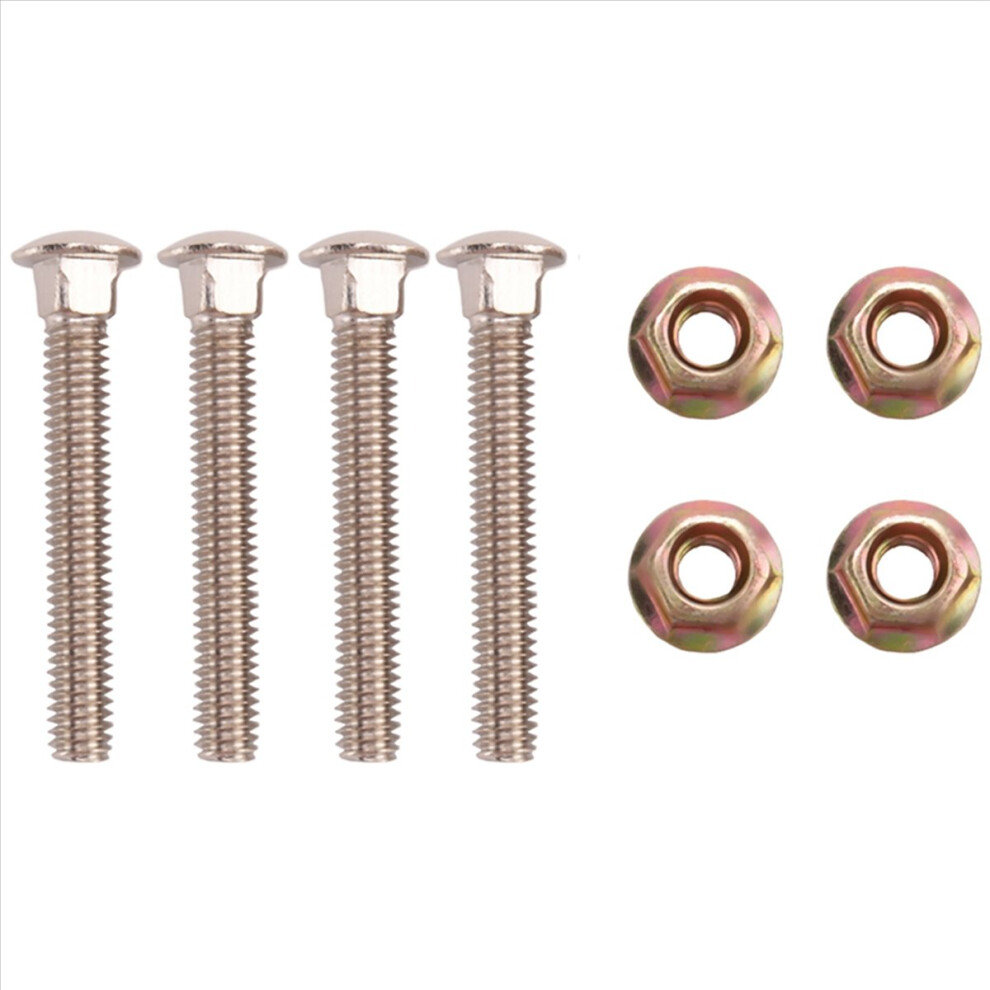

16 x Screws

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
