4X NC Emergency Stop NO Red Green Momentary Push B

4X NC Emergency Stop NO Red Green Momentary Push B Description

Product Name : Push Button Switch Station;Material : Plastic, Metal;Action Type : Red Emergency Stop Button: Latching Black and White Push Button: Momentary
Contact Type : Red Emergency Stop Button: 1 NC Black Push Button: 1NO White Push Button: 1NO;Ith : 10A;Ui : 600V
AC-15 : 240V 3A;Uimp : 6kV;Terminal Number : 6

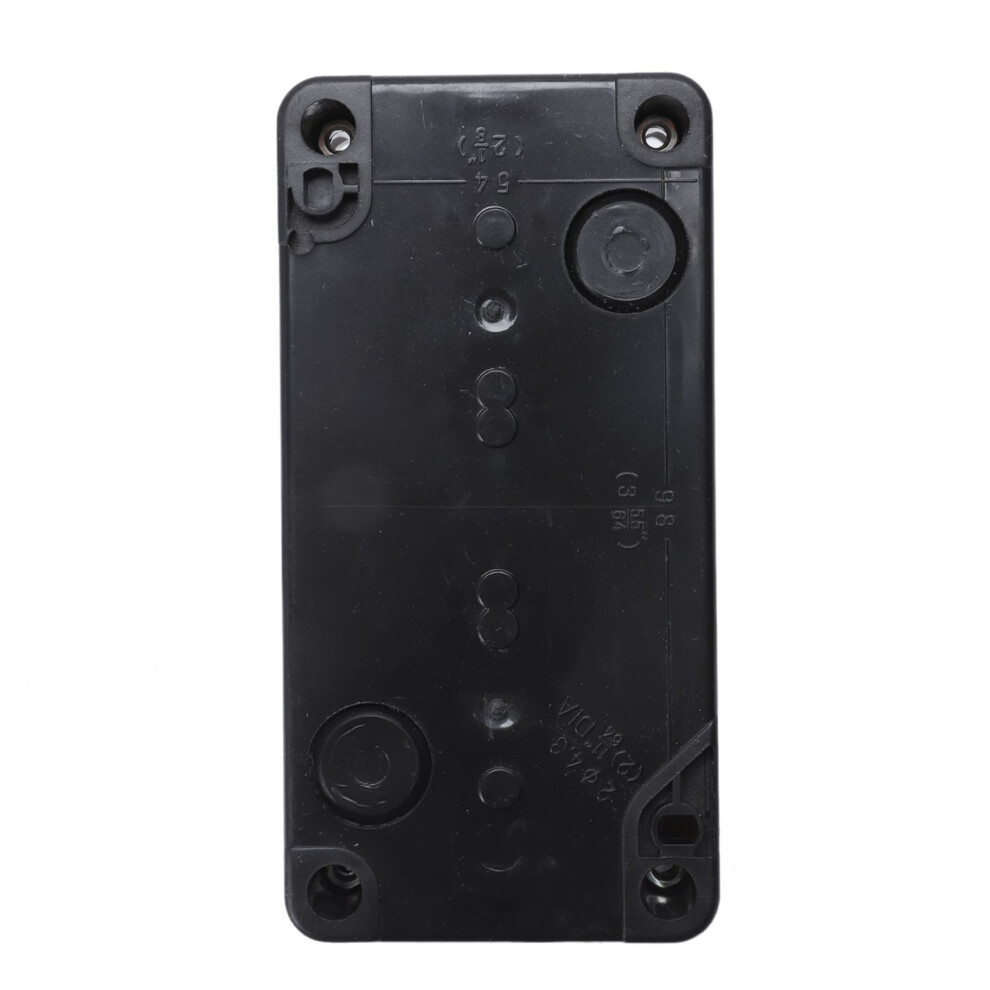

Mounting Hole Diameter : 8mm / 5/16 inch;Hole Distance(center to center) : 118 x 51mm / 4.6 inch x 2 inch(L x W);Total Size (.) : 132 x 65 x 75m / 5.2 inch x 2.6 inch x 3 inch (L x W x T)
Button Color : Red, Green;Weight : 908g;

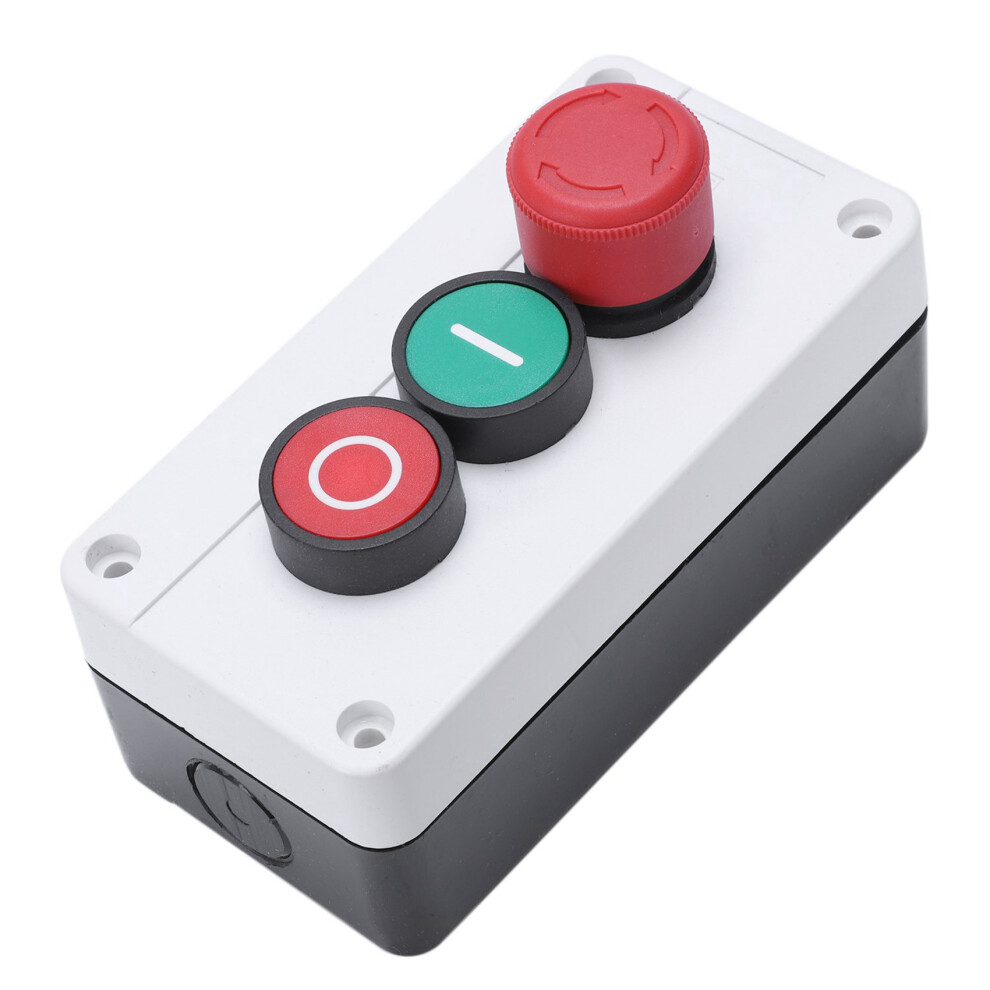

The push button switch station consists of three separate switches, one is a 1 NC emergency stop red push button switch, one is a 1 NO momentary red push button switch and one is a 1 NO momentary green flat push button switch.
Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.

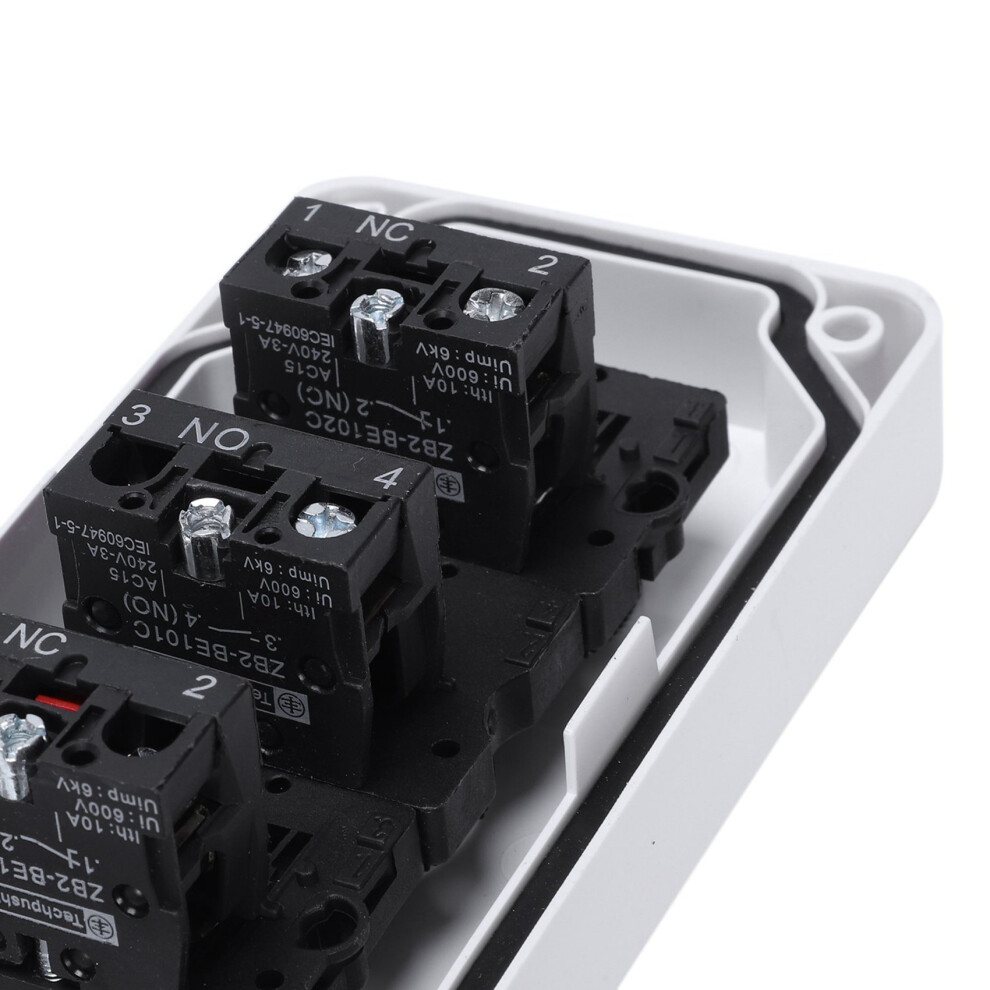

Comes with quick connect terminals to allow for fast connections.

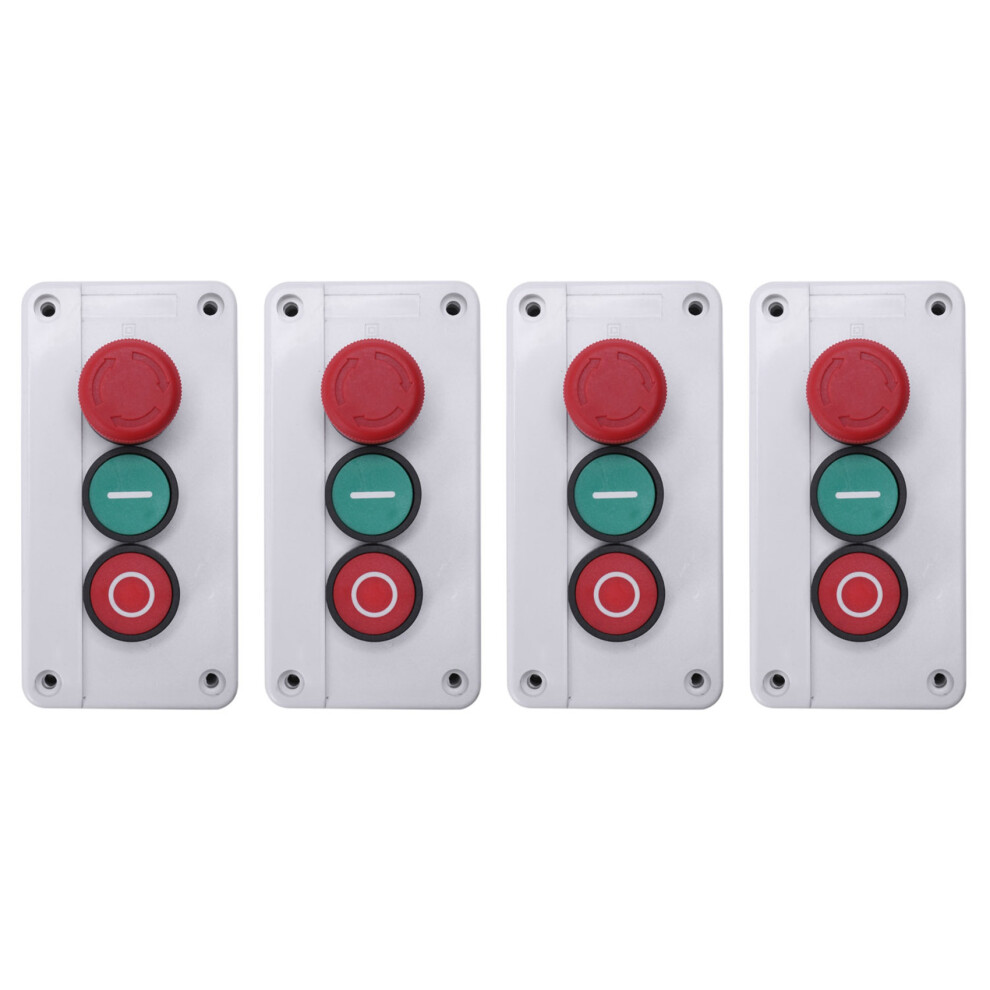

Package Content : 4 x Push Button Switch Station

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
