4x2 HDMI Matrix Full HD Input Output Multi Room Distribution Splitter/Switch Box

Simply put, the '4 in 2 out HDMI Matrix Box' allows up to 4 HDMI devices to be independently switched to one or two HDMI enabled display devices (HDTV or projector). The two outputs can show the same or different source at the same time. It is small enough to be located in an AV shelf with all your other HD enabled equipment.

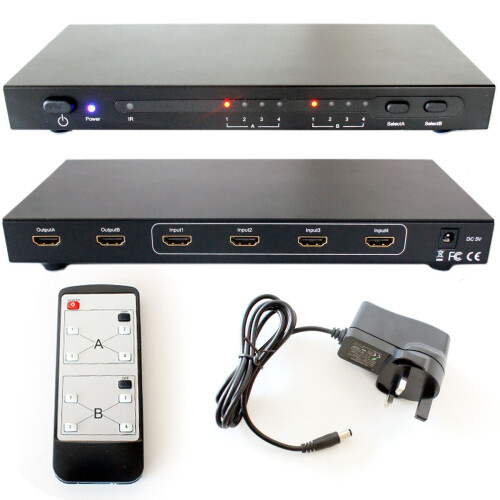

What's included?

1 x Compact HDMI Matrix (4 in, 2 out)

1 x Power cable (5V 2A). Input 100-240V - can be used in other countries with a suitable plug adapter

1 x Remote Control

How to use it?

To maintain signal integrity, the Matrix is recommended for use with 720P, 1080i or 1080P devices. Set-up is easy too;

1. Connect the input HD devices to the Matrix (PS3, Blu-ray Player, etc). Connect the HDMI enabled display devices (HDTV or projector).

2. It is recommended for the initial set up that you turn on your display, the Matrix and then the sources.

3. Select the configuration you require, for example you may require 'Input 1' outputting to 'Output A' and 'Input 3' outputting to 'Output B'.

Features & Technical Specification;

1. Manual Selection - The input can be manually selected by using the âsource selection buttonsâ on the front of the splitter box.

3. The Matrix is supplied with a remote control which allows full control of all the functions.

4. HDMI Version 1.3B - Supports deep colour and all audio formats; Uncompressed - LPCM, Compressed - DTS Digital, Dolby Digital, DTS-HD, Dolby True HD

5. HDCP Compliant

Resolution Supported: 1920x1080P (50 & 60 Hz)
HDCP Complaint - 1.0/1.1
Video Amplifier Bandwidth:2.25Gbps/225Mhz
Dimensions of Matrix - 110mm (D) x 25mm (H) x 260 (W)

3D - This product is compatible with 1080P resolution in 3D. However, it is not recommended for use with HDMI cables longer than 3 metres when 3D is going to be run through them. For longer runs, a HDMI over CAT5/CAT6 extender is required.

What are the benefits?

A true Matrix can display any of the inputs devices (Blu-Ray player, PS3 etc) on any screen, at any time making it extremely versatile. A switch or splitter could never achieve this outcome.

1. Reduces cable clutter

2. You only need to buy 1 type of HD device instead of having to buy multiple devices for each room.

3. Less equipment is on show.

4. Cables up to 15 metres can be used with each port. If you require longer lengths of cable, we also supply HDMI CAT5 extender devices.

5. Simple plug and play operation

Additional information and FAQâs

The Matrix equalises and amplifies to ensure no loss of signal transmission when using long cables (up to 15 metres). The HDMI connectors used are type A. Type A is the most commonly used connector and is used in Sky HD Boxes, PS3âs and most HD ready plasma and LCD televisions.

Standards - CE, FCC, UL and ROHS Compliant
