5-Port POE Extender Cat5e/6/6e 1000Mbps

5-Port POE Extender Cat5e/6/6e 1000Mbps Description

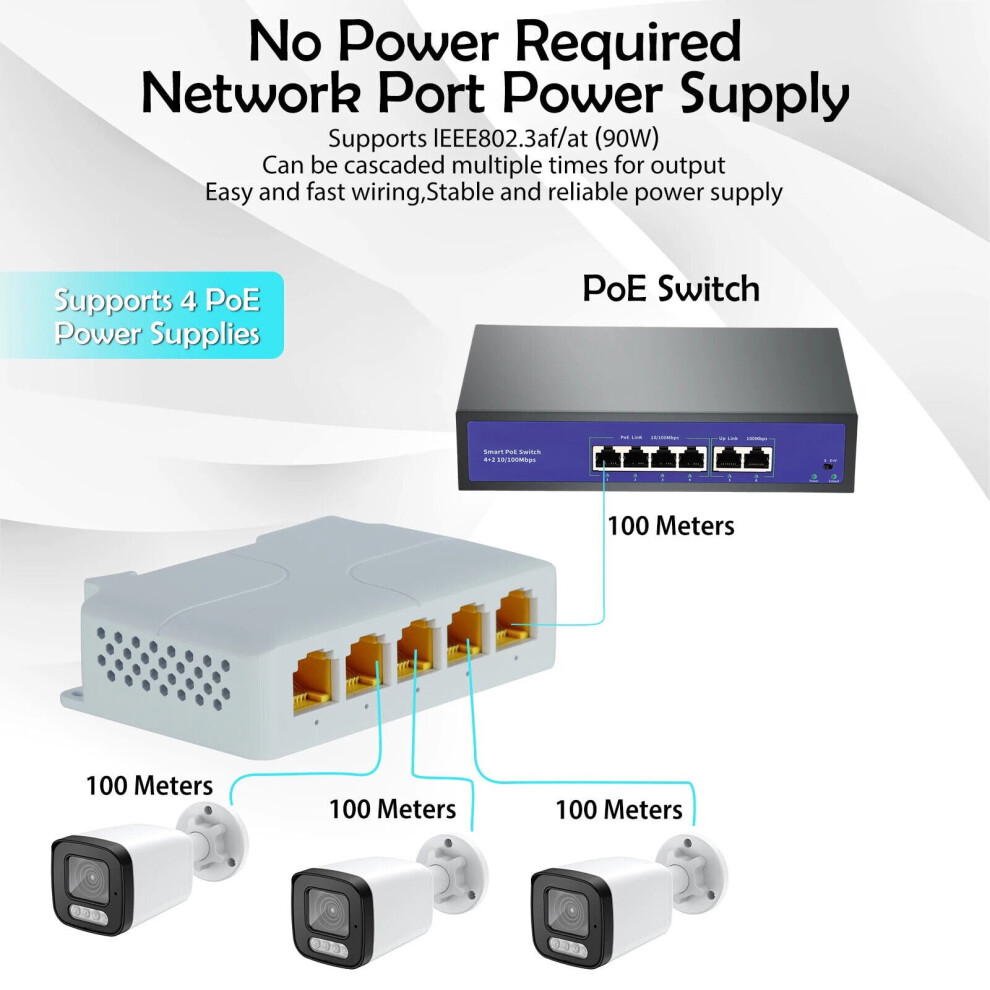

Features: 1. POE Extender: 1 POE Input Interface And 4 POE Output Interface 2. Network POE Extender Extends Additional 100m(330ft) Distance, Support 3 Levels Cascade Up to 400m(1300 ft) Distance. 3. Supports 1000mbps Data Rates, Comply With IEEE802.3At And IEEE802.3Af Standard. Provides 802.3Af Power Levels When Powered By Any 802.3At Source. 4. Simple And Fast Wiring, Stable And Reliable Power Supply Plug And Play, No Configuration Required Powered Via The POE Input, Plug And Play. Automatically Detects And Protects POE Equipments From Being Damaged By Incorrect Installation. 5. It' S Able To Forward Ethernet And POE Power For Terminal Equipment Via Cat5e, Cat6, Cat6e, UTP Cable. 6. Used With AP, IP Camera, IP Telephone And The Other Network Equipment In The Situation Of The Lack Of Power Line Or Far Away From The Power Outlets. Installed At Hotels, Schools, Buildings, Villages, Etc. 7. VLAN Mode: Out Ports 2 - 5 Support VLAN Isolation, Lessen Network Traffic, And Increase Network Security. Specifications: Name: 1000mbps 5 Port POE Extender Condition: Brand New Transmission Rate: 1000mbps Material: PC Color: Shown As Picture Network Standard: IEEE802.3, IEEE802.3U, IEEE802.3X POE Port Input Power: Port 1 Input Maximum 90w POE Port Output Power: Port 2 Output Maximum 60w, Port 3-5 Maximum 30w POE Power Receiving Input Transmission Core: 1/2+, 3/6-, 4/5+, 7/8- POE Power Output Transmission Core: 1/2+, 3/6- POE Power Supply Transmission Distance: 100 Meters MAC Address Table: 2k Packet Buffer Memory: 48 Byte Switching Capacity: 1.0Gbps Regulation Compliance: Fcc Part 15b, Rohs Directive 2011/65/Eu, Low Voltage Directive 2014/35/Eu, Emc Directive 2004/108/Ec Working Temperature: -10C To 55C Working Humidity: 10%~90%, No Condensation Package List: 1* 1000mbps 5 Port POE Extender
