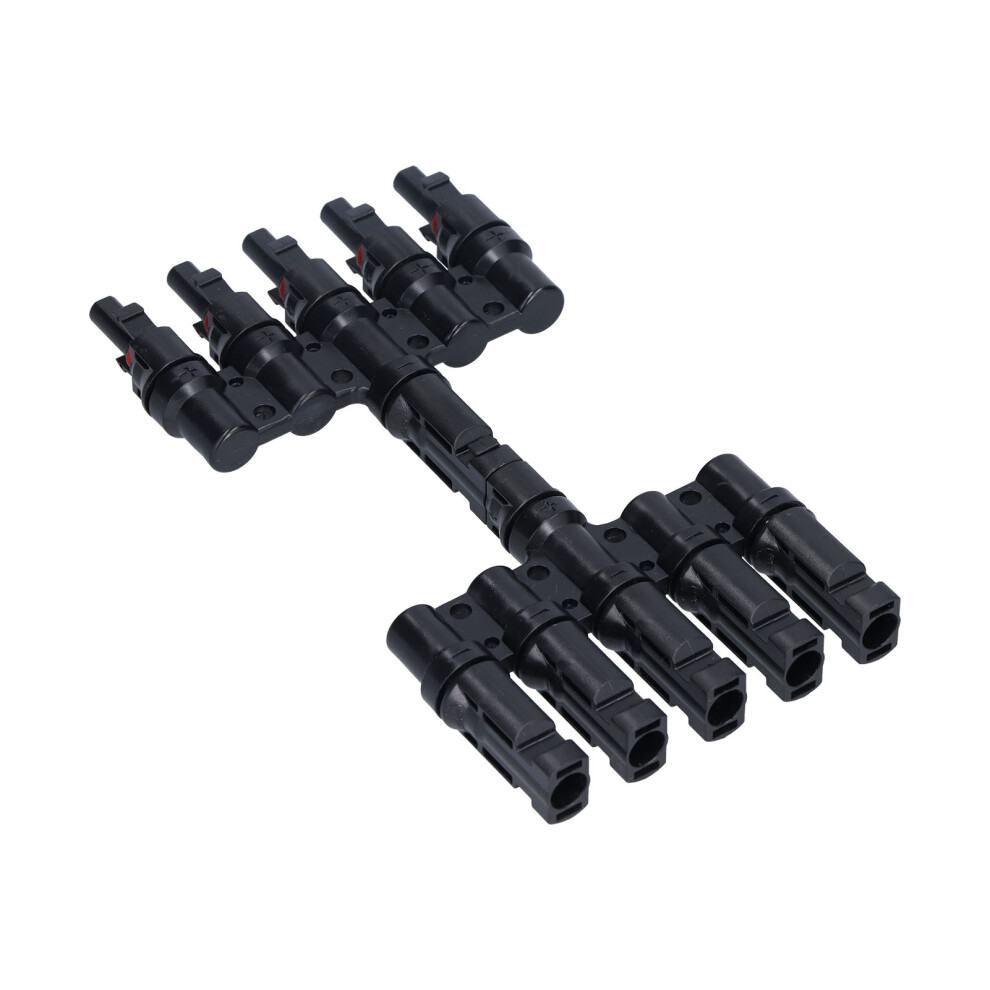

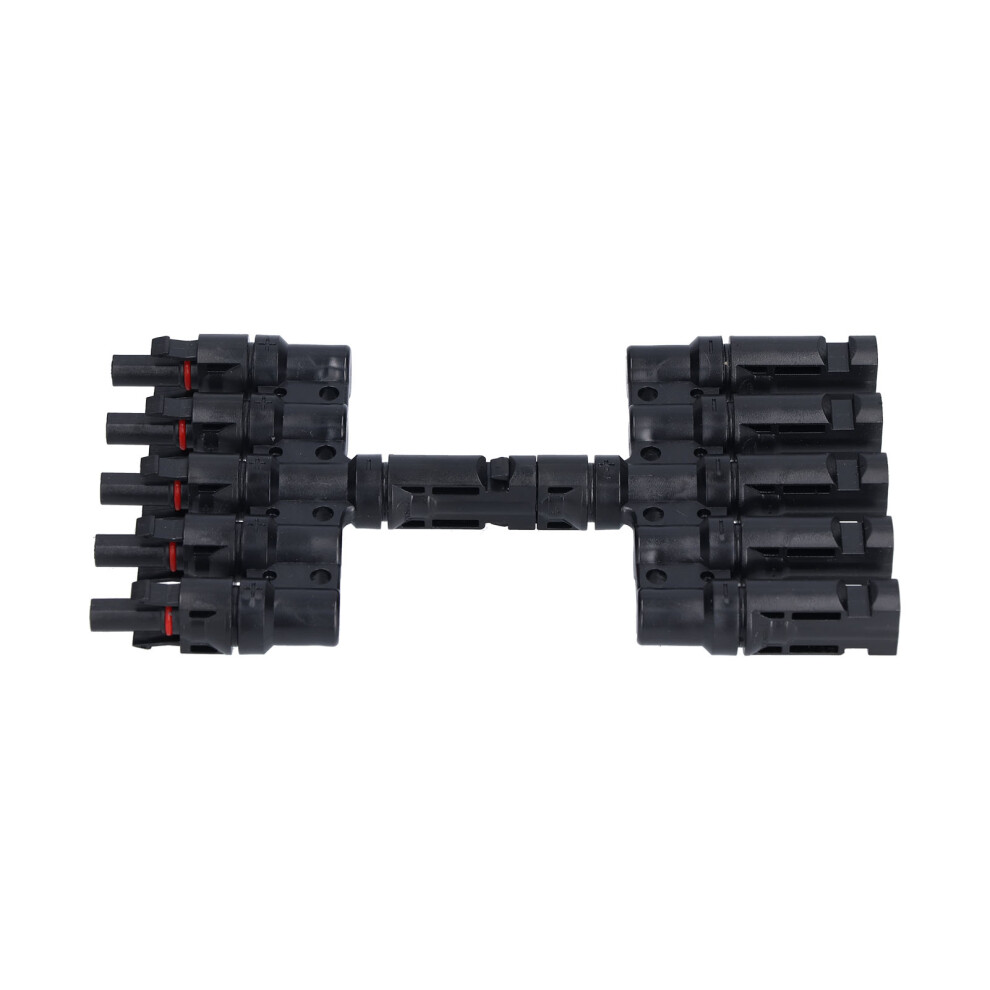

5-Way Solar Panel Cable Branch Connector IP67 Waterproof, 20A/30A
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 23rd - Sat 25th Jul
Returns: 30 days
180-day payment protection
Most Popular in Solar Connectors
Summary
- [Connect Multiple Solar Panel] The solar connector is compatible and can be used to connect multiple solar panels in parallel.
- [Easy To Use] The cable branch connector is easy to use, pressing both sides of the lock block with your fingers, and plugs can be easily inserted and pulled out without using other tools.
- [Waterproof] This branch connector is IP67 waterproof, can be used in extreme weathers and conditions, so you can use it with confidence.
- [Durable Material] This branch connector is made of plastic and copper material, which is durable and can be used for a long time.
- [Stable And Safe] This branch connector is integrally locked, stable and safe, and durable in outdoor environments.
5-Way Solar Panel Cable Branch Connector IP67 Waterproof, 20A/30A Description
1 to 5 Branch Connector 5 Way Solar Panel Cable Branch Connector IP67 Waterproof Male Female Connector
Item Type: Branch Connector
Material: Plastic, copper
Working Current: 20A (4mm²), 30A (6mm²)
Withstand Voltage: DC1000V
Contact Resistance: <=0.5mΩ
Insulation Resistance: 500MΩ
Applicable Single Core Cable Section: 1.5mm²~6mm²
Cable Outer Diameter Range: Φ5mm~Φ 7mm
Ambient Temperature: -40 ~+ 105
Protection Level: IP67
Security Level: Ⅱ
Insertion Force: 50N Pull Out Force: 50N
Insulation Material: PPO, black
Flame Retardant Rating: UL94-VO
Terminal Connection Method: Crimping
Application: Solar connection
Weight: Approx. 220g / 7.8oz
Details
| OPC | PSTS7N2 |
|---|---|
| Codes | 3531391268665 (EAN) |
