5 Zone Bluetooth System 10x Ceiling Speaker Background Music Shop Restaurant Description

Quality Bluetooth Amplifier (110W), 10x White Ceiling Speakers Kit

Perfect for bars, restaurants, clubs, cafÃs, pubs, hotels & at home.

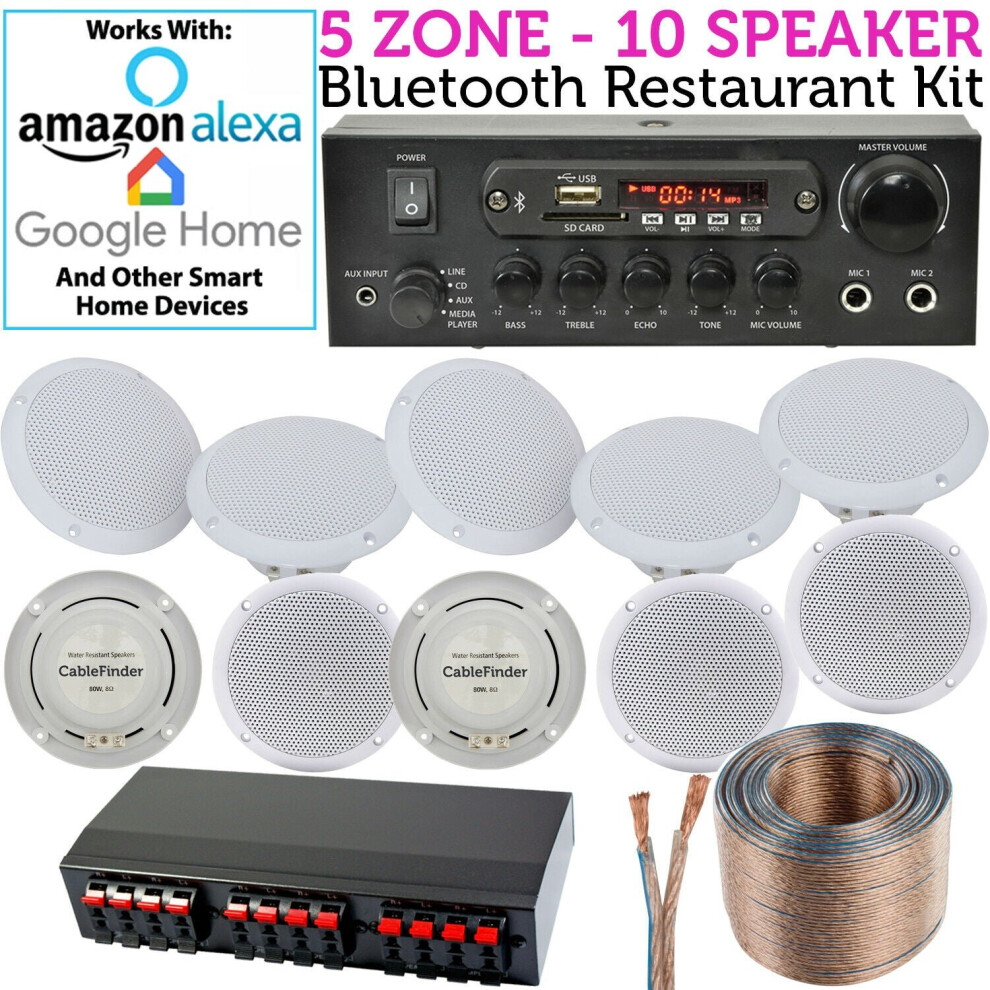

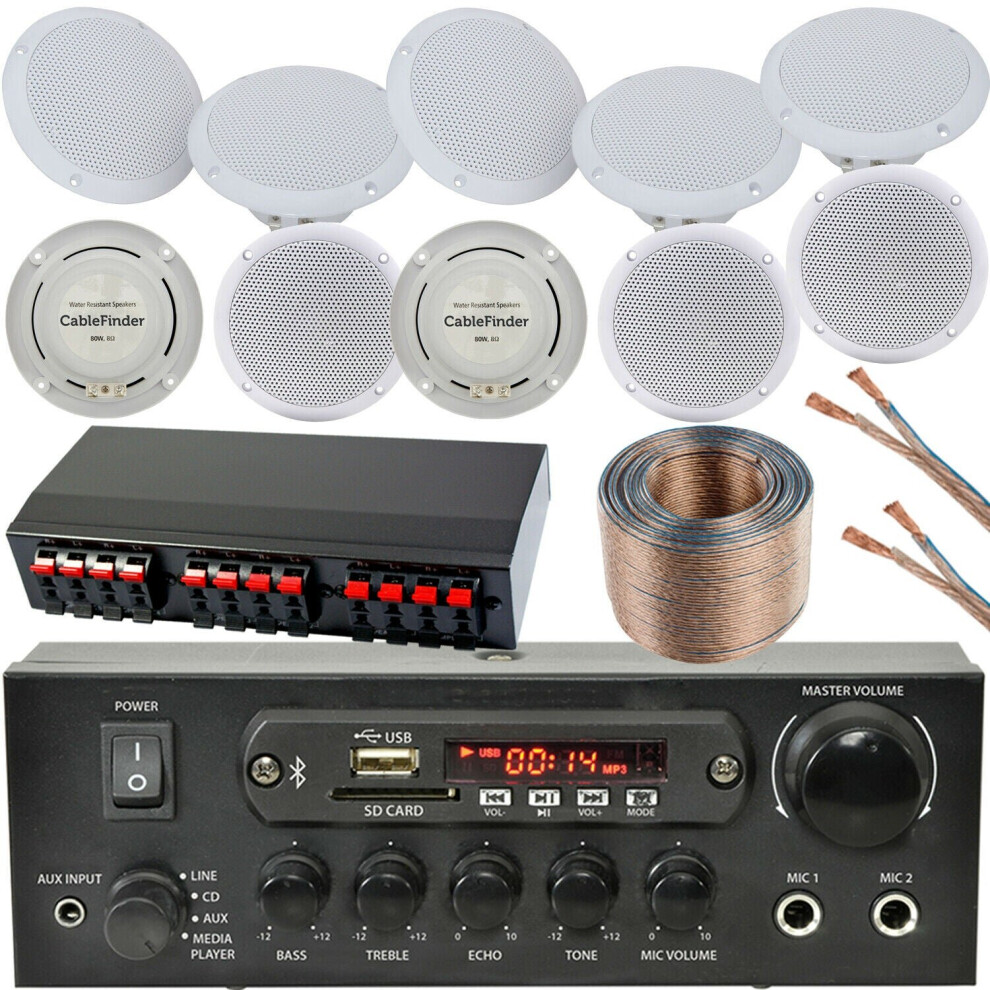

Whatâs Included?

1x 110W Bluetooth HiFi Amplifier
10x (5 Pairs) 80W White Ceiling Speakers â" Moisture Resistant (Perfect for Kitchens & Bathrooms)
1x 5 Port Speaker Splitter (this provides 5 zones and maintains a true stereo signal)
100m reel of 1.5mm² quality speaker cable (CCA)
1x UK mains power cable
1x Instruction manual

What does it do?

This kit allows you to play music through all 10 speakers whilst maintaining a true stereo signal. The supplied speaker switch/splitter lets you split your installation into Zones. Allowing you to turn off certain rooms at the push of a button from the amplifier. Please see below for more information on each product in this kit. Please feel free to contact us if you have any questions.

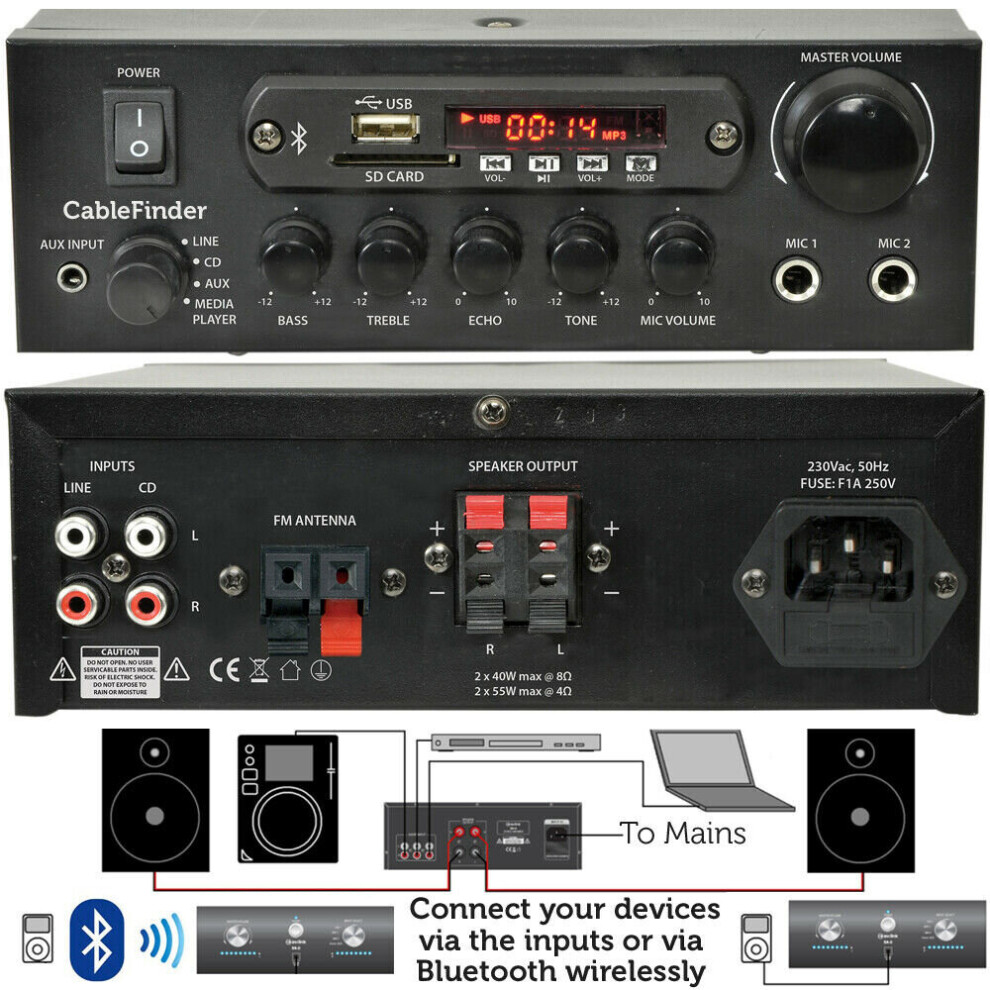

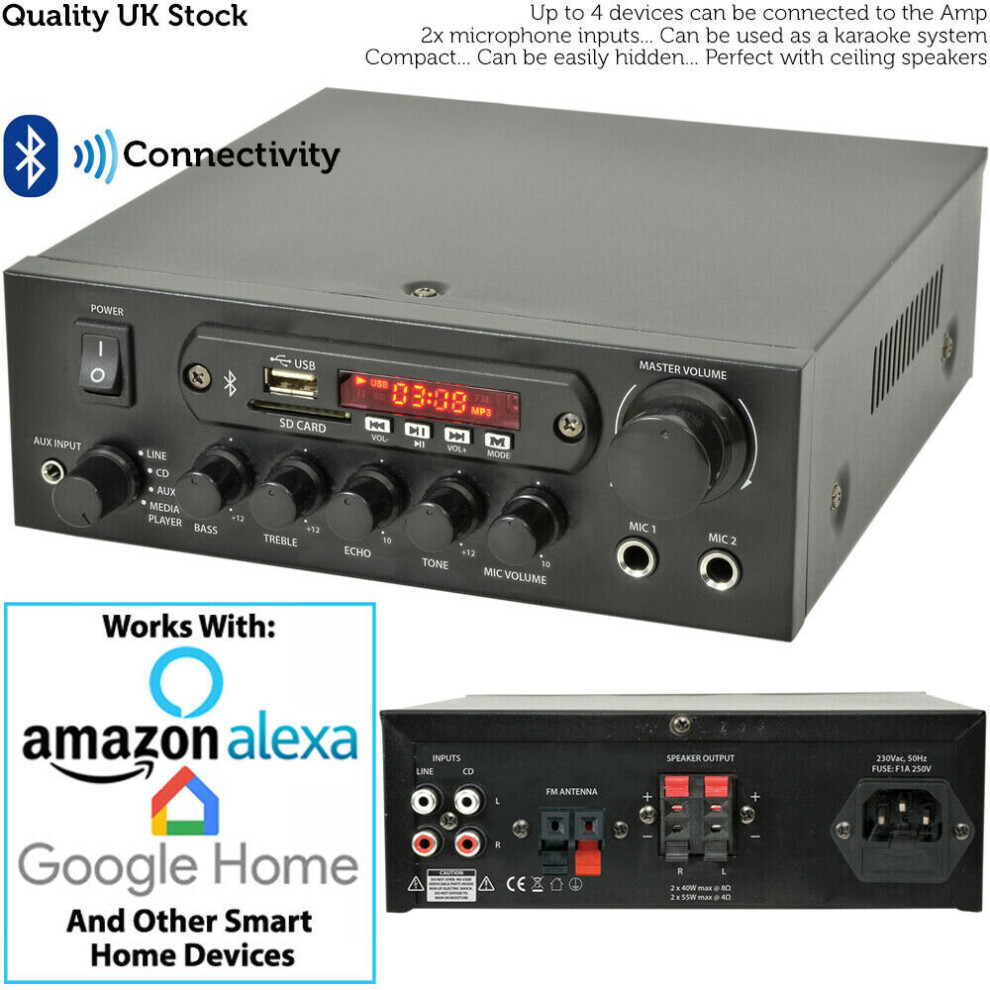

Overview Amplifier:

Ideal when installed in a bar, restaurant or pub environment, this kit allows you to play music through the 10x 80W wall speakers. Perfect for background music during service or for transforming a dining area into a dance floor when the tables have been cleared away (providing the space isnât too large).

This amplifier has a built-in Bluetooth receiver allowing you to connect any devices you have with Bluetooth (a smart phone with Spotify or a CD Player for example) wired/wirelessly. This is brilliant for keeping the amplifier hidden away in a cupboard. Your device would not need line of sight to play music through the connected speakers. Perfect for at home, in the office or shop and even for use in professional installs.

The Amplifier has several 2 RCA/PHONO inputs allowing you to connect devices that are not compatible via Bluetooth. It also has 2x Microphone inputs on the front of the unit, perfect for a karaoke night.

Equipped with bass, treble, echo, tone, mic volume and master volume controls. This amplifier is very capable for its cost and be used easily by a professional or amateur alike.

Overview Speakers:

A pair of 2-way moisture resistant speakers which are ideal for use in bathrooms, kitchens, living rooms, offices, puns, bars, patios etc. These speakers are 8 Ohm, if you have a 4-8 Ohm stereo amplifier, you can run 2 pairs (4 speakers) in parallel with each other and the resistance will still be within the limits of the amplifier (4 ohms). If you require 4 of these, we sell them as a kit, please search our shop or get in touch for more details.

Construction â" The cones are constructed from Mylar and Polypropylene with a cloth edge, so as to be unaffected by humidity and moisture, while still providing a lightweight, rigid speaker that provides excellent sound reproduction. They are also moister resistant meaning they can be installed anywhere in your home or at work, even in a bathroom/kitchen.

Fitting â" The speakers are fitted into a 114m cut-out with 65mm of clearance behind. The speakers are very easy to install and are supplied with all the fixings you require.

1 Input to 5 Output Stereo Speaker Splitter Box

How it works - By connecting an amplifier to the splitter box you can distribute the sound up to 5 sets of stereo speakers (10 speakers in total). You can switch individual sets of stereo speakers on and off and you can use headphones via the 6.35mm output on the front of the splitter box.

General - This box has a metal outer case, rubber feet on the bottom and because the build quality is excellent, it is robust and durable. The dimensions are 260mm x 120mm x 54mm

Technical Specification:

Amp

Features:
6 selectable line inputs
1x â" Bluetooth receiver (wireless)
2x â" 2 RCA/Phono (red & white) inputs
1x â" 3.5mm AUX jack
1x â" USB media input
1x â" SD Card media input

2x 6.35mm Microphone inputs - Allows you to use as a loud hailer / public speaking / singing System
1x FM Antenna Connections
2x â" spring terminal / speaker cable (red & black) outputs
Built-in FM receiver
Sleek and compact design
Durable metal body with breathable air vents built in.
UK mains power cable supplied

Spec:

Power Supply â" 230V AC, 50Hz
Power output max per channel at 4 Ohms - 55W (per side)
Power output per channel at 4 Ohms - 35W (per side)
Power output Max per channel at 8 Ohms - 40W (per side)
Power output RMS per channel at 8 Ohms - 25W (per side)
Dimensions â" 200mm x 65mm x 200mm (WxHxD)
Weight â" 1700g

Speakers

Features

13cm / 5"
5cm (2") Tweet with Mylar Cone
Woofer with Polypropylene cone
6mm Spade terminal connectors
Built-In Crossover
All Fixings supplied.

Technical Specification

2-Way Speakers
Max Power â" 80w
Power RMS â" 40w
Frequency Response â" 80Hz-18kHz
Impedance â" 8 ohms
Moisture resistant
Dual Cone Speaker

Dimensions

130mm diameter, for fitting to a 114mm cut-out / Depth â" 65mm

5 Port Speaker Splitter

Resistors â" Internal 100ohm resistors ensure the amplifier always sees a load, even with all switches turned off. However, it is good practice to ensure that at least one pair of stereo speakers are switched on before the amplifier is turned on. A progressive switched resistor network ensures that the resistance generated is always equal to that of the speakers, providing that every speaker being used is of the same resistance. For example, speakers that are made by different manufactures may be different resistances and they should not be used together with this device.

Speaker Cable

Blue line for polarity - easy connectivity (transparent outer insulation).
99 Strands with a 0.14mm diameter per core.
Area per core = 1.5mm² (AWG 16 Approx).
CCA (copper clad aluminium)
Outer diameter per core 3.1mm
Width of 2 cores combined 6.5mm (can be easily stripped apart).

Peace of Mind - Tested to CE and RoHS standards

Further Information â" If you require a slightly different system, donât worry, we sell lots of other kits and products and we can create a kit perfect for you â" including outdoor kits for gardens and external events. Please feel free to get in touch and we will always do our best to help you.
