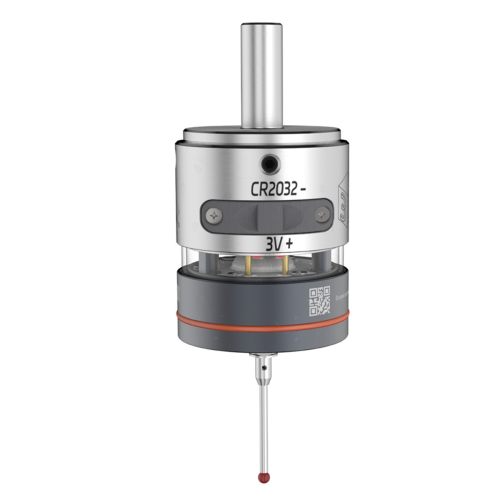

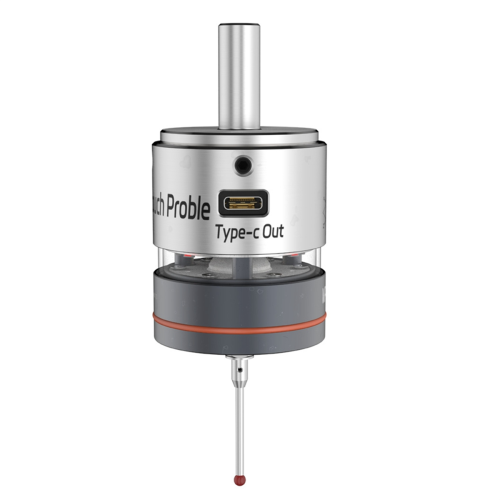

-500 Highprecision 3D Edge Finder 3 Coordinate Tool Setter

-500 Highprecision 3D Edge Finder 3 Coordinate Tool Setter Description

100% New.
Protection level: IP56 (sprayable)
Trigger force: 1N
Indicator light: normally closed: (lights up when triggered)
Signal allowable current:Less than 50ma

Be sure to read the wiring carefully:
Red wire connects to COM- or GND, Black wire connects to the input port.
If the connection is reversed, the probe not send a signal.
The edge finder body is made of stainless steel, and the needle seat is made of 304 stainless steel, which has high strength and more stable measurement.

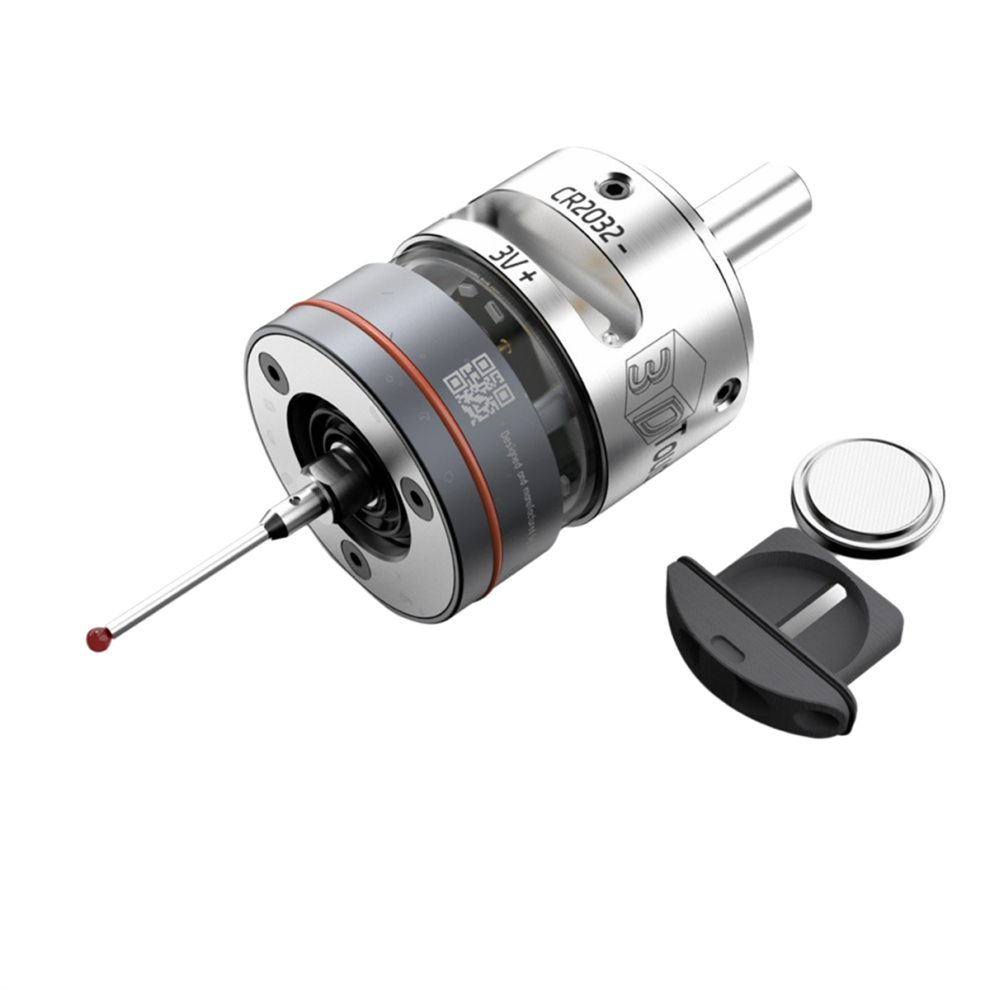

The probe has a built-in battery, which is not rechargeable. It can be measured visually without wiring, or it can be connected to a controller for automatic measurement.
Type:3D Edge Finder
Model:-500
Output mode:N0 (normally open)
Travel XY+-: 15
Travel Z -: 3mm
Colour:As Shown
Material:Metal

Package Contents:
1 x -500 Edge Finder
1 x M3 probe ball head 3mm

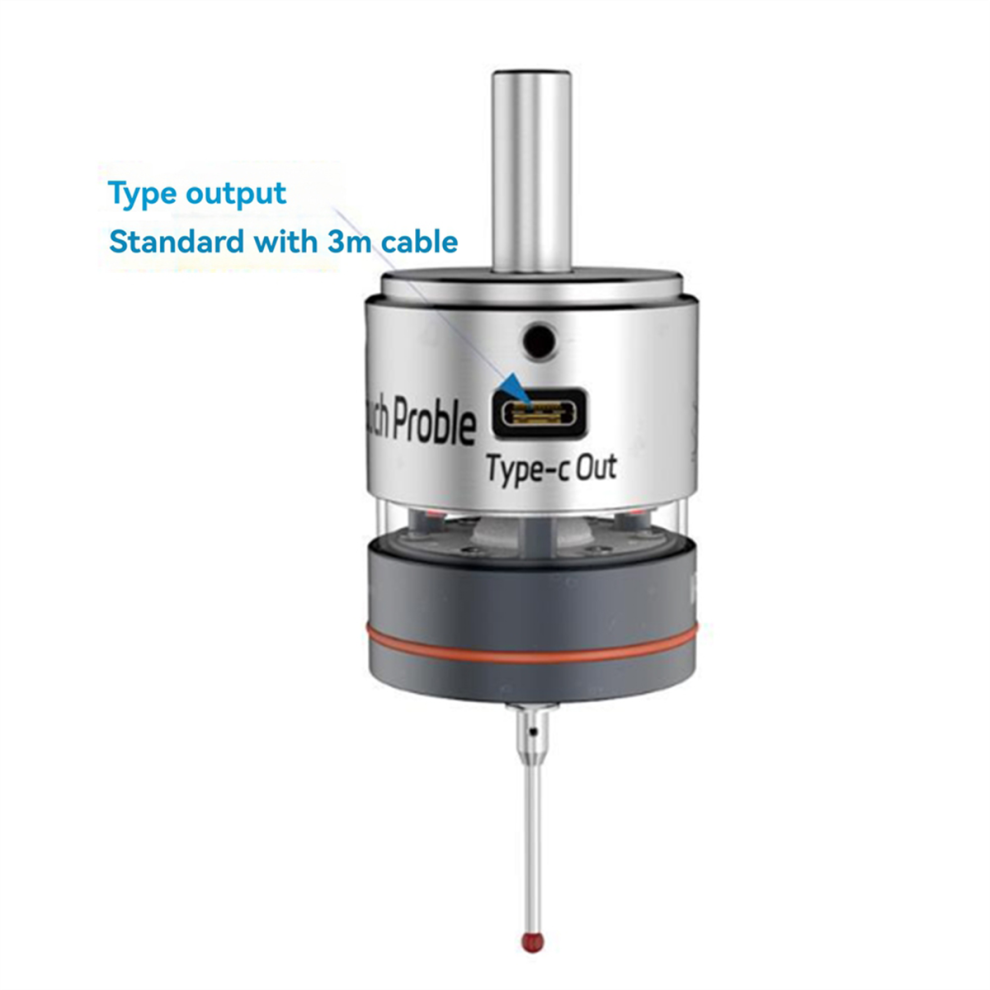

1 x 3 meter Type C Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
