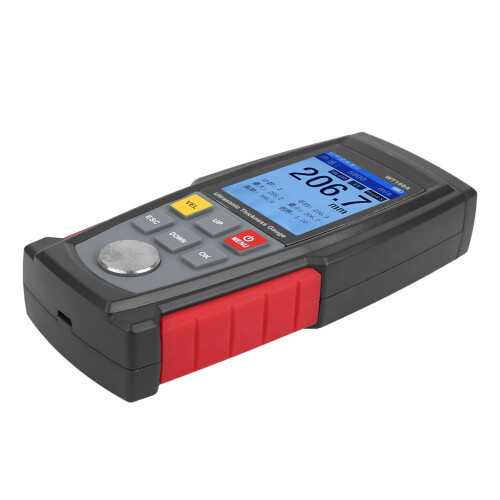

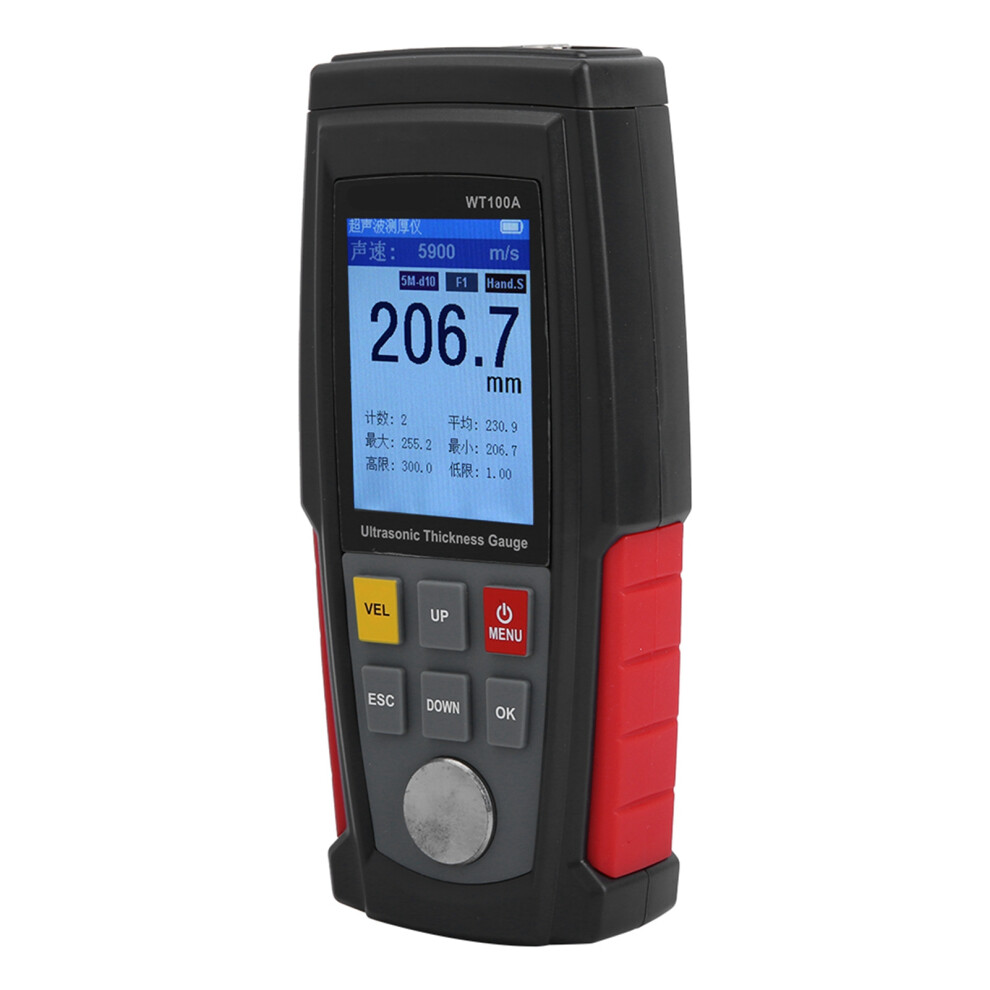

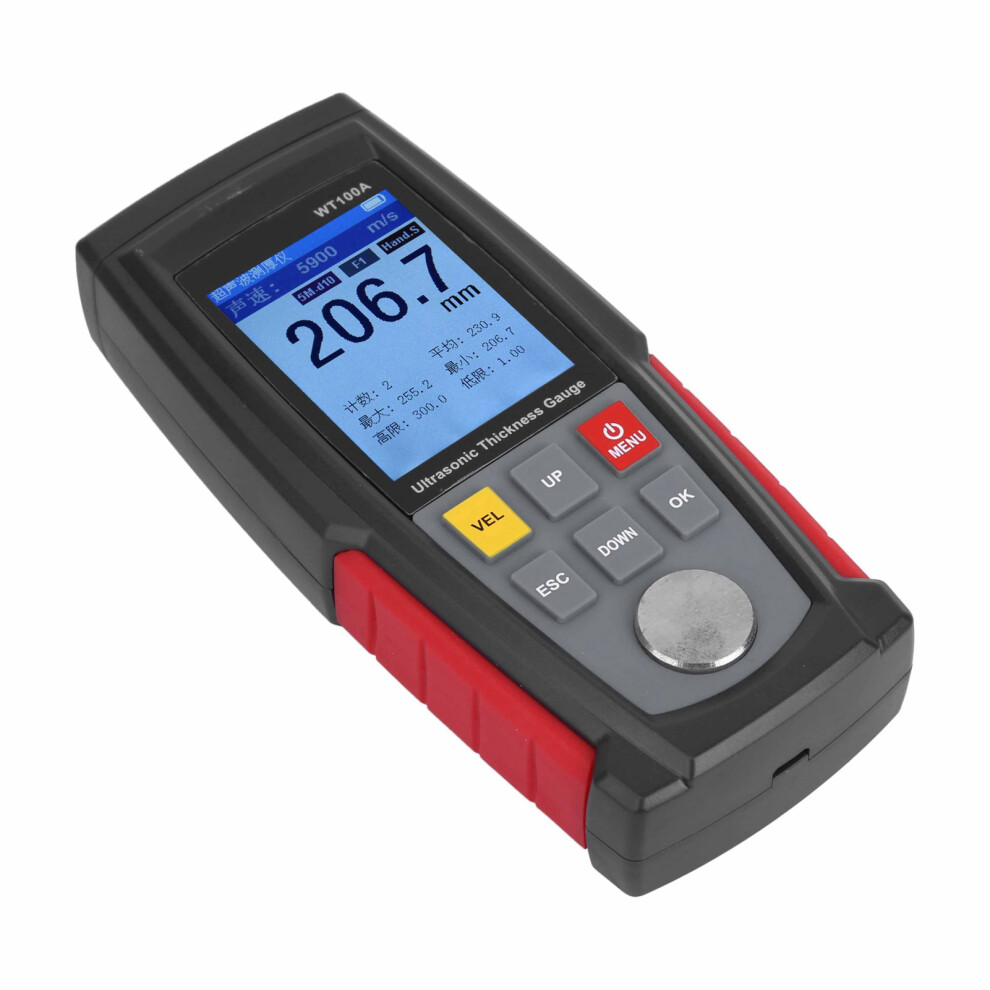

WT100A High Precision Digital Ultrasonic Thickness Gauge Meter Tester USB Charging

WT100A High Precision Digital Ultrasonic Thickness Gauge Meter Tester USB Charging Description

WT100A High Precision Digital Ultrasonic Thickness Gauge Meter Tester USB Charging

Features:

It is transmitted at a constant speed and can distinguish waves reflected from the back side for this instrument.

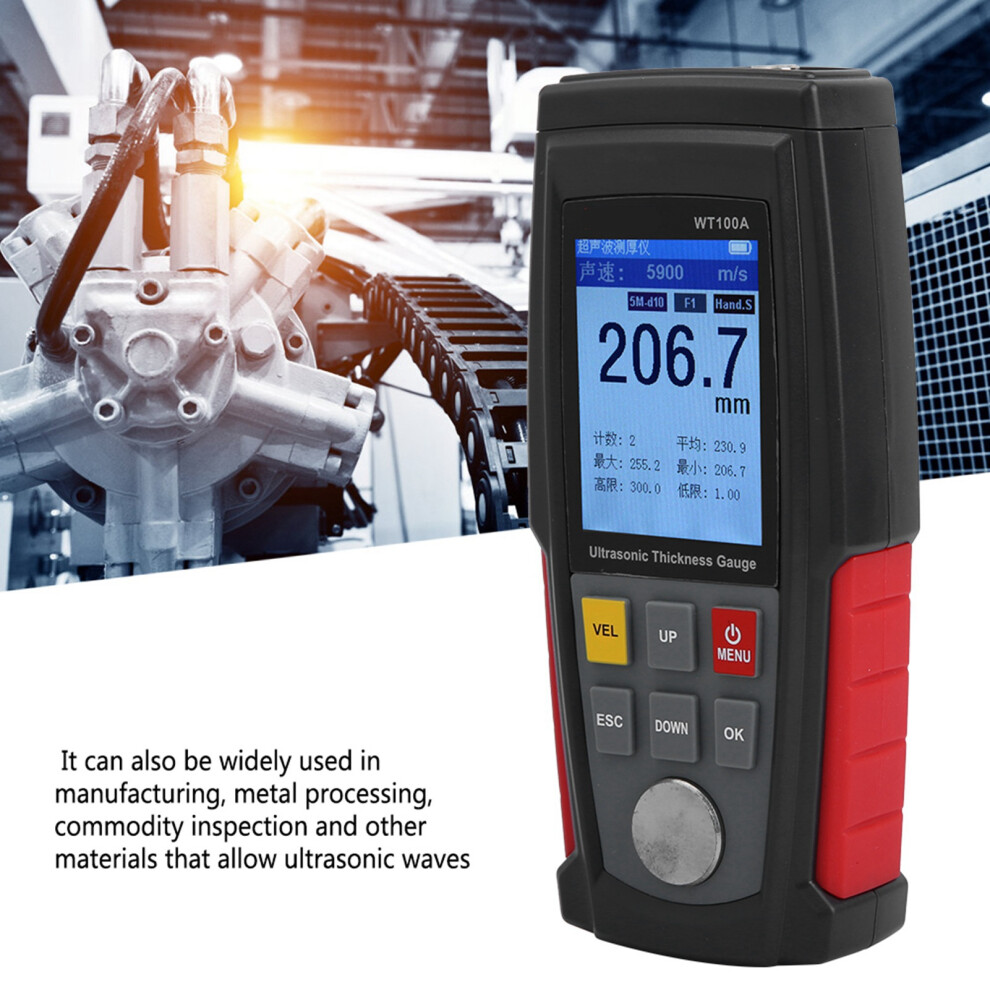

It can also be widely used in manufacturing, metal processing, commodity inspection and other materials that allow ultrasonic waves.


Wide application: The ultrasonic thickness gauge is suitable for the material that conduct and reflect constant sonic velocity, such as metal, plastic, ceramic, glass, etc.

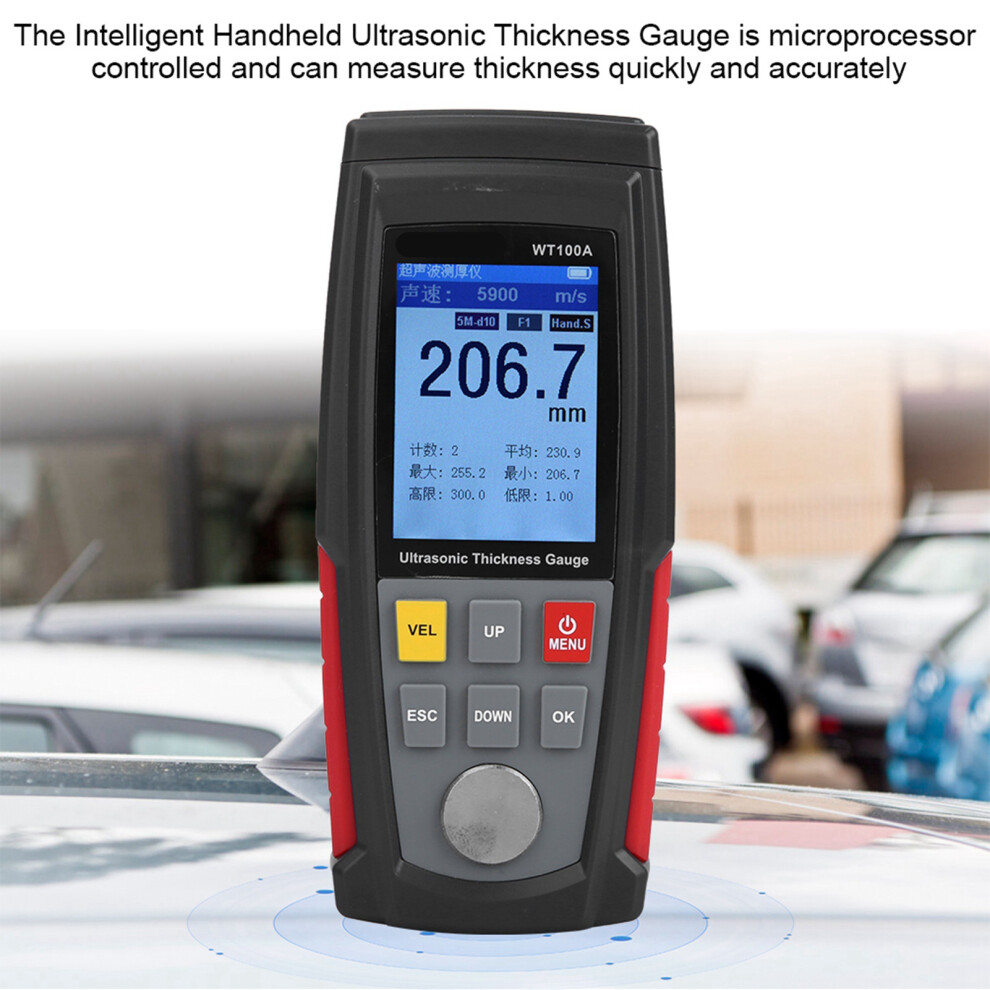

The Intelligent Handheld Ultrasonic Thickness Gauge is microprocessor controlled and can measure thickness quickly and accurately and with sound velocity of various materials without ultrasonic measurement damage.


This tool is capable of accurately measuring parts in different materials or industrial production, as well as monitoring pressure vessels for pipes and production equipment, as well as the extent to which various parts are corroded.


Specifications:
Condition:










WT100A




WT130A






Measuring range




1.00 -225.0mm




1.00 -300.0mm






Data storage




500




1500






Probe selection




X




V






Operation


frequency




5MHz




5MHz/2.5MHz






Measurement error




(0.5%H+0.05)mm






Lower limit of pipe measurement




020x3mm (steel)






Adjustment range of sound speed




1000-9999m/s






Temperature range of operation




0 -40C






Battery




3 Ni-MH rechargeable batteries of 1.2V






USB charging




5V 1A

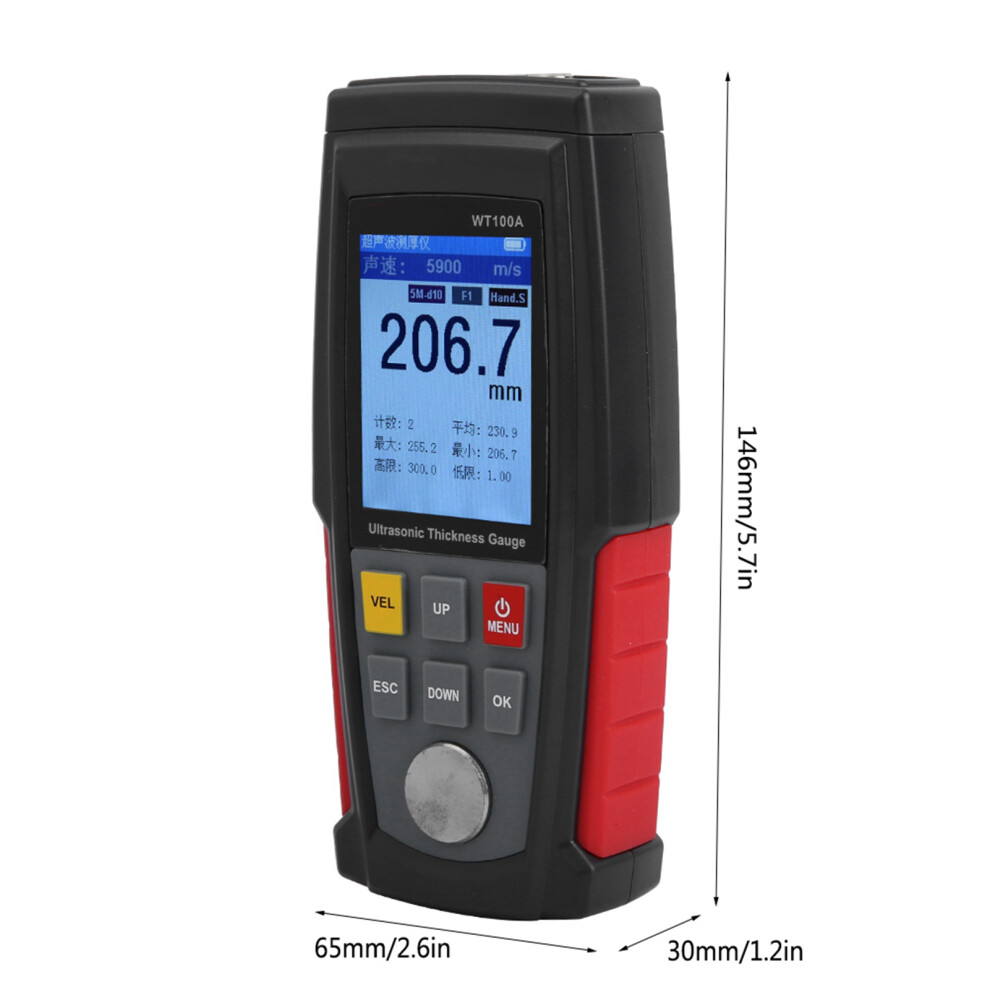

Dimensions




65*146*30mm/2.6*5.7*1.2in






Weight




130g/4.6oz






Probe




Measurement parameters




Measurement parameters






5Md10




1.0-225.0mm




1.0-300.0mm






5Md6




X




1.0-50.0mm






2. 5M




X




1.2-300.0mm






High temperature




X




1.2-300.0mm






Package List:
1*Ultrasonic Thickness Gauge

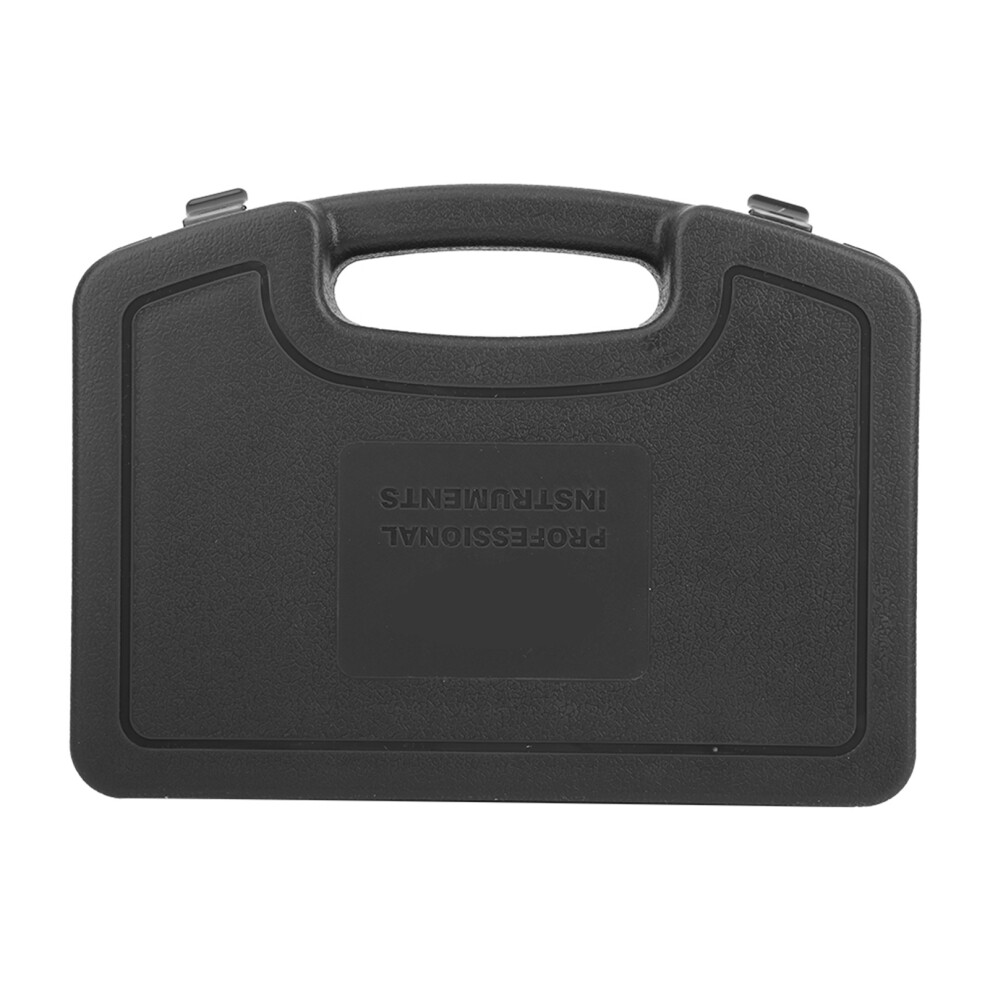

1*Plastic Box
1*Instruction Manual
3*Lithium Battery
2*Probe
1*USB Data Cable
