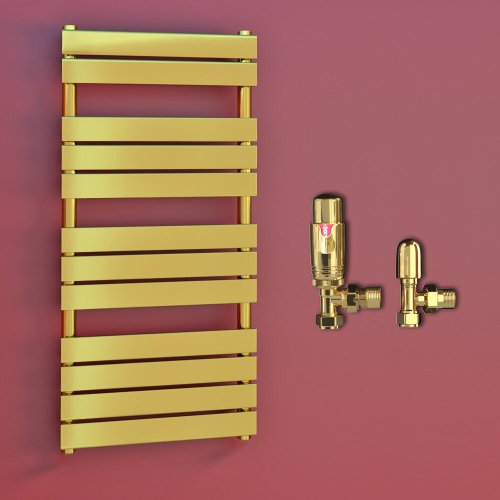

(500 x 1200 mm (h), TRV Angled Valves) Gold Panel Towel Rail Radiator

(500 x 1200 mm (h), TRV Angled Valves) Gold Panel Towel Rail Radiator Description

Technical information:

500 x 800:

• Pipe Centres: 450 mm,
• Wall To Pipe Centres: 70-85mm
• Wall Distance: 85-100mm
• BTU/h (DELTA 50): 1,096
• Watt: 321
• Panel layout: 2 + 3 + 3 = 8

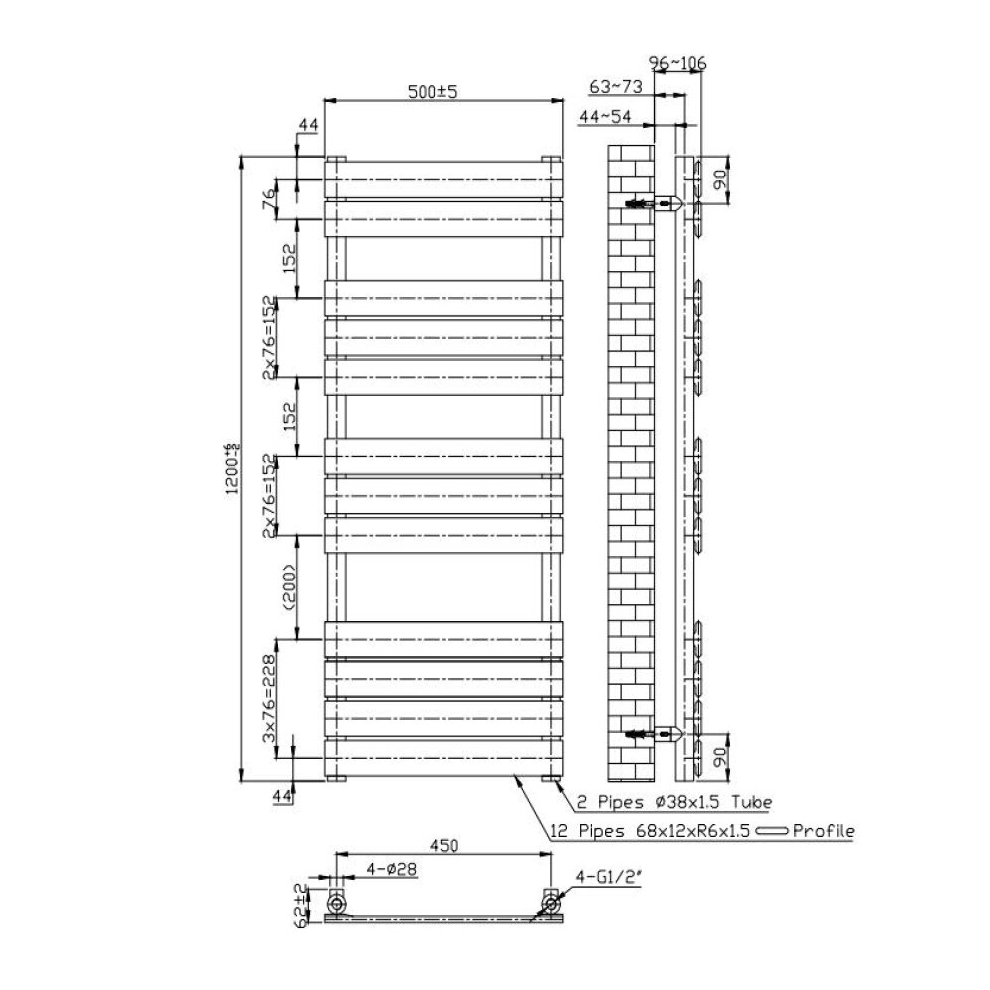

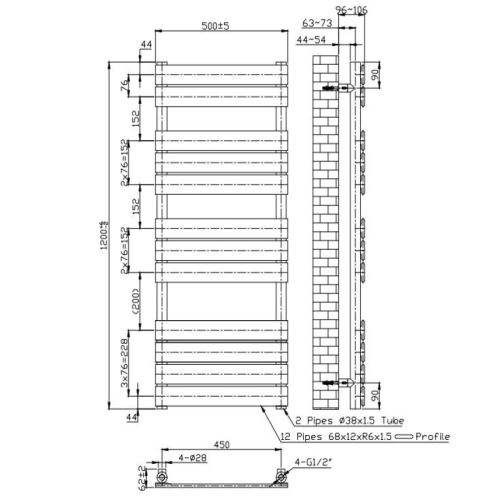

500 x 1200:

• Pipe Centres: 450 mm,
• Wall To Pipe Centres: 70-85mm
• Wall Distance: 85-100mm
• BTU/h (DELTA 50): 1,644
• Watt: 482
• Panel layout: 2 + 3 + 3 + 4 = 12

500 x 1400:

• Pipe Centres: 450 mm,
• Wall To Pipe Centres: 70-85mm
• Wall Distance: 85-100mm
• BTU/h (DELTA 50): 1,711
• Watt: 501
• Panel layout: 2 + 3 + 3 + 4 = 12

What's In The Box With The Radiator

• 4 x Wall Brackets
• 1 x Blanking Plug
• 1 x Bleeding Valves

Usage: Central Heating, but it can be converted to electric or dual fuel at a later date with the right additions

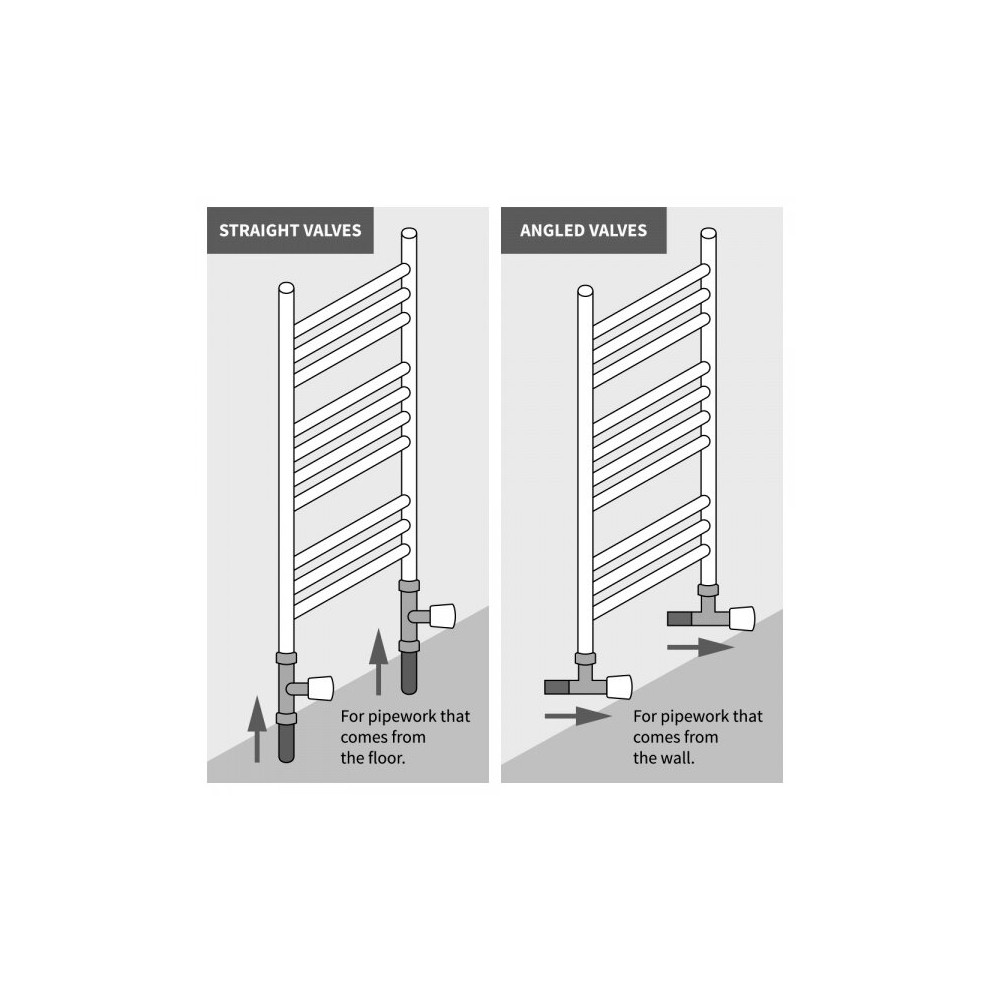

Which Valves do I need?

Choosing your radiator valves can be a little confusing here is a guide for you to find the correct valves for your radiator:

Pipe work is coming out of the floor and the radiator has side connections you will need a set of Angled valves.

Pipe work is coming out of the floor and the radiator has underneath connections you will need a set of Straight valves

Pipe work is coming out of the wall and the radiator has side connections you will need a set of either Angled valves or Corner valves.

Pipe work is coming out of the wall and the radiator has underneath connections you will need a set of either Angled valves or Corner valves.
