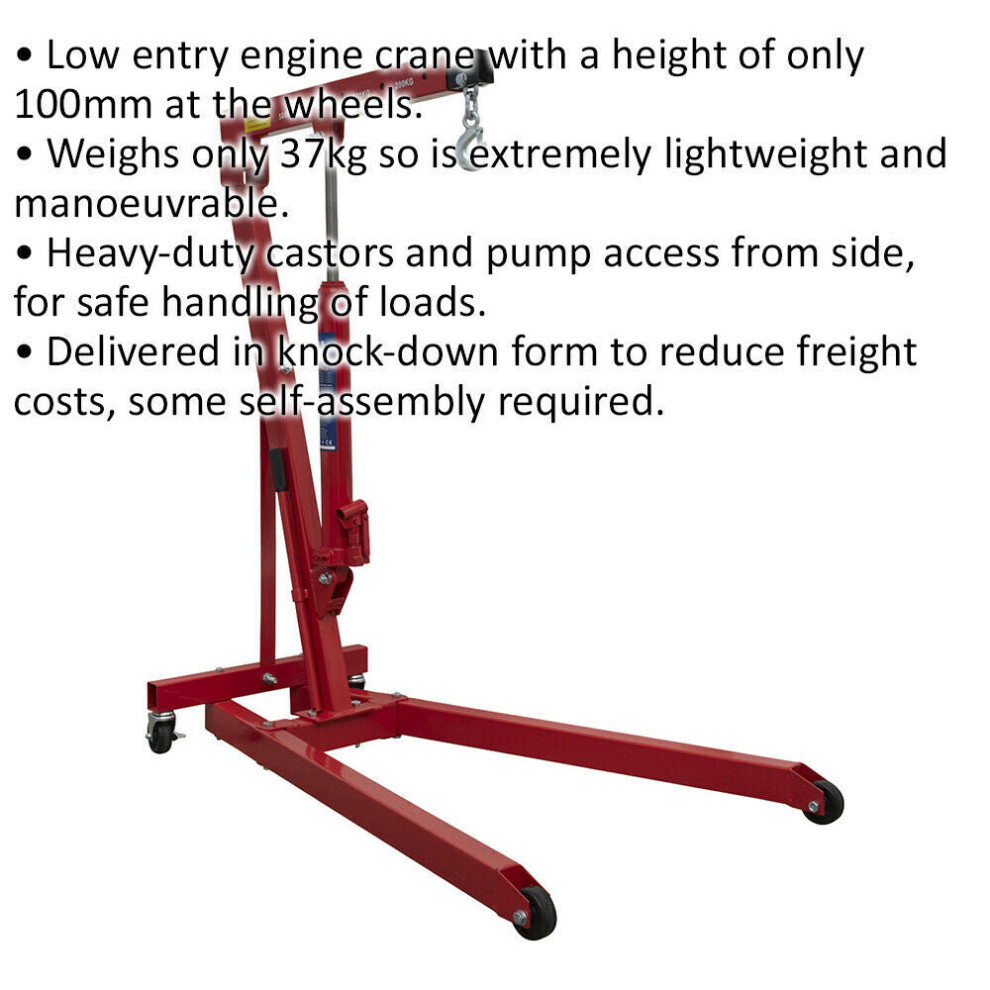

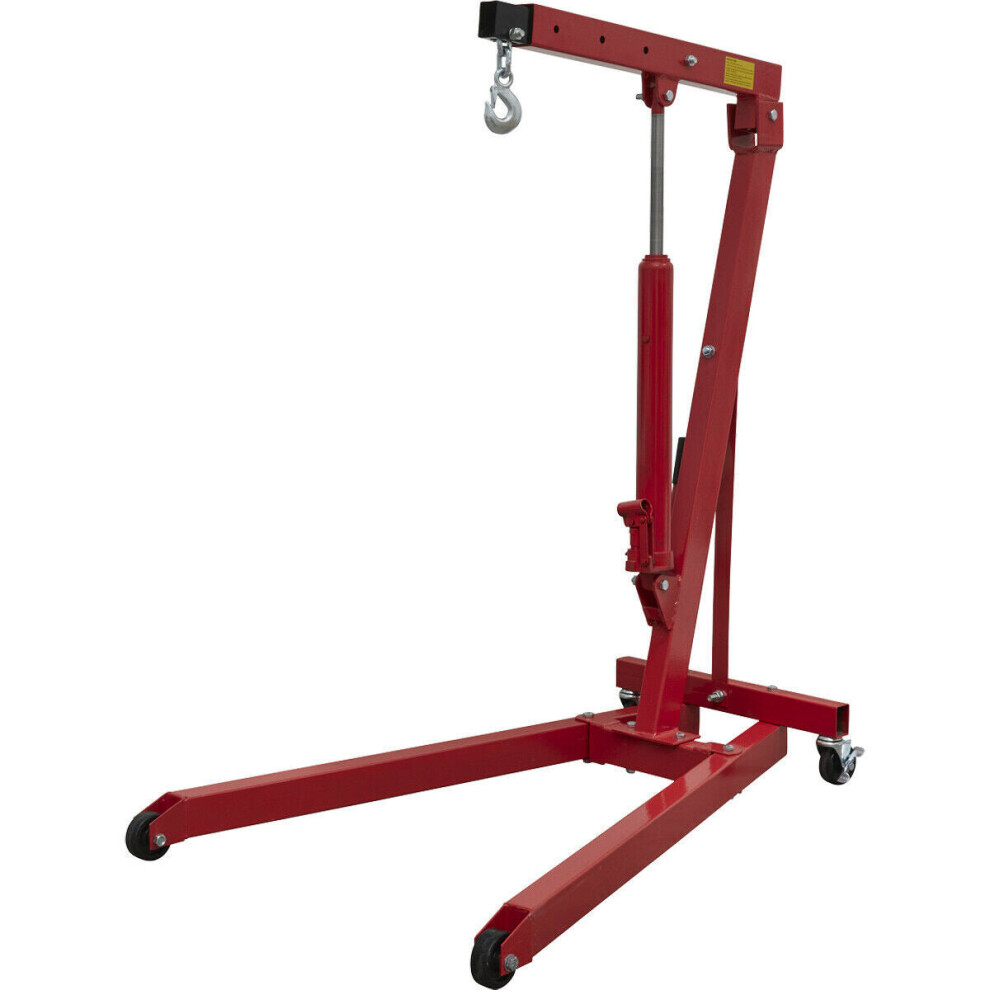

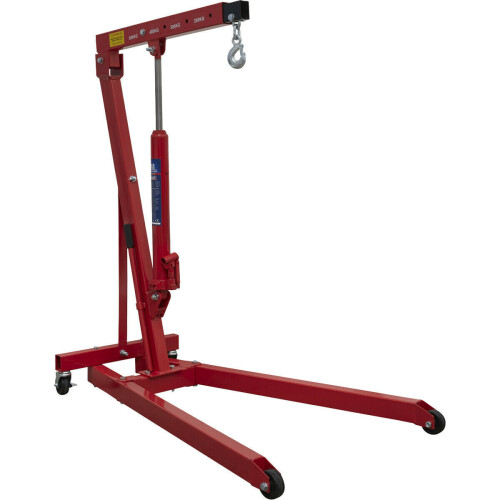

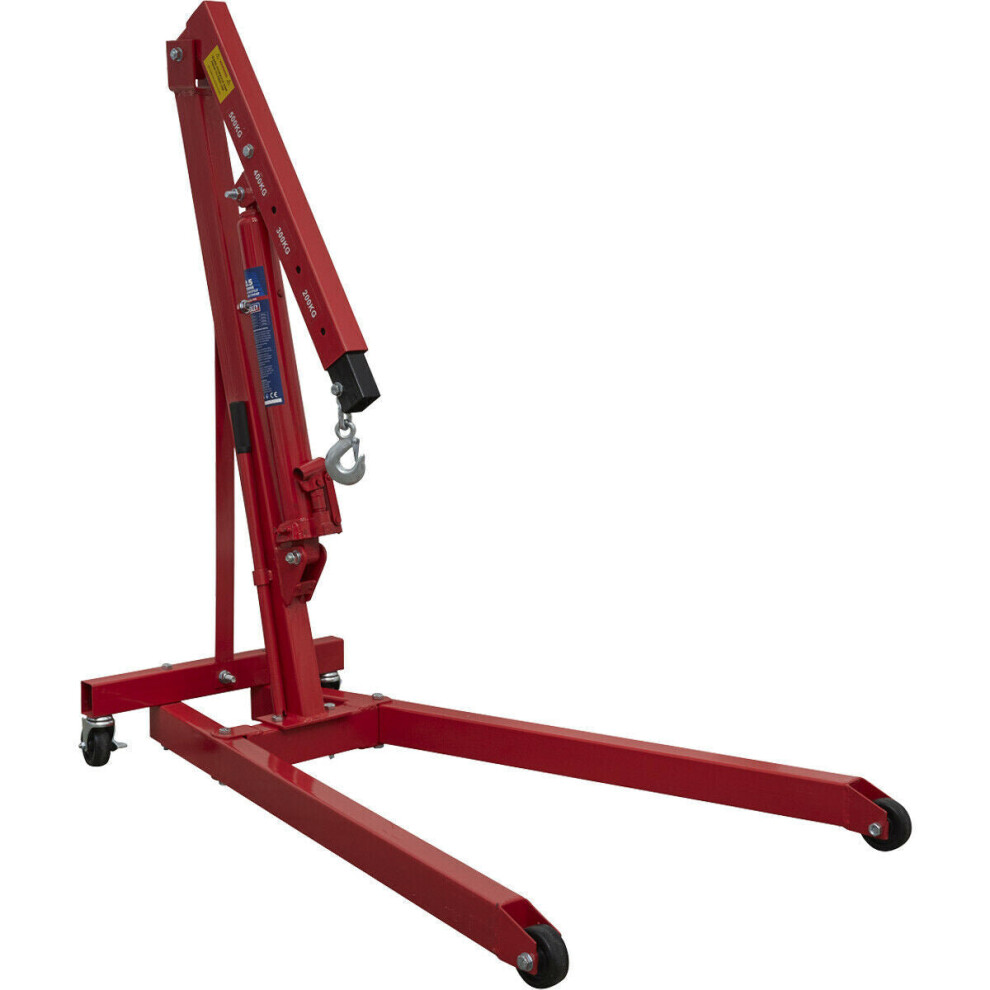

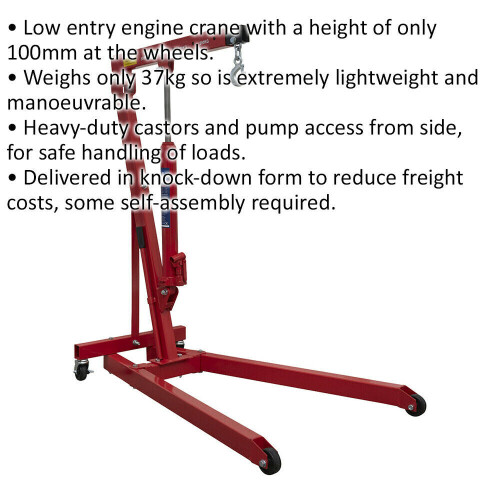

500kg Low Profile Engine Crane - Heavy Duty Castors - Lightweight Crane

500kg Low Profile Engine Crane - Heavy Duty Castors - Lightweight Crane Description

500kg Low Profile Engine Crane - Heavy Duty Castors - Lightweight Crane

Overview:

Low entry engine crane with a height of only 100mm at the wheels. Weighs only 37kg so is extremely lightweight and manoeuvrable. Heavy-duty castors and pump as from side, for safe handling of loads. Delivered in knock-down form to reduce freight costs, some self-assembly required.

Features:

• Low entry engine crane with a height of only 100mm at the wheels.
• Weighs only 37kg so is extremely lightweight and manoeuvrable.
• Heavy-duty castors and pump as from side, for safe handling of loads.
• Delivered in knock-down form to reduce freight costs, some self-assembly required.

Specification:

• Height Jib Down - 1330mm
• Height of Frame - 100mm
• Length of Jib Position 1 - 750mm
• Length of Jib Position 2 - 860mm
• Length of Jib Position 3 - 980mm
• Length of Jib Position 4 - 1100mm
• Length - 1210mm
• Lifting Capacity in Position 1 - 500kg
• Lifting Capacity in Position 2 - 400kg
• Lifting Capacity in Position 3 - 300kg
• Lifting Capacity in Position 4 - 200kg
• Max. Lift Ht at Jib Position 1 - 1950mm
• Max. Lift Ht at Jib Position 2 - 2050mm
• Max. Lift Ht at Jib Position 3 - 2150mm
• Max. Lift Ht at Jib Position 4 - 2250mm
• Net Weight - 37kg
• Rear Width - 550mm
• Width Front Frame - 700mm
• Width Inside Front Frame - 800mm
