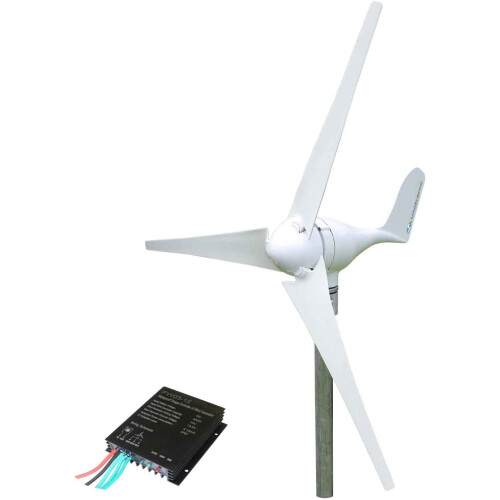

500W 24V Wind Turbine kit with charge controller
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 3rd - Mon 5th Oct
Sold by: Low Energy Supermarket Ltd
Returns: 30 days
180-day payment protection
You might also like
Summary
- Blade Material - Nylon Fibre
- Weight - 15Kg
- Design Life - 20 Years
- Blade Diameter - 1.8M (6ft)
- Voltage Output - 24V DC
500W 24V Wind Turbine kit with charge controller Description
Small wind turbines are an excellent source of power generation when they are positioned in a suitable location such exposed coastal or rural areas. Wind turbines should be positioned in clean wind which is strong and laminar, which means it flows in smooth streamlines and is not disrupted by nearby obstacles.
All of our wind turbines use an ISO 9001 manufacturer (Factory quality management) & comply with ISO14001 (Environmental Management)
- Off Grid cabins
- Boats - complementing existing solar generation to provide night power
- Telecommunications
- Signage
- Safety equipment
- Monitoring stations
- Suitable for saltwater marine environment
Product Specification - 500W Model
- Rated Power - 500 Watts at 12m/s (27mph)
- Maximum power - 530 Watts at 13.5m/s (30mph)
- Start-up wind speed - 2.5 m/s (5.5mph), see power curve graph
- Survival Wind Speed - 50 m/s (112mph)
- Voltage Output - 24V DC
- Blade Diameter - 1.8M (6ft)
- Number of Blades - 3
- Weight - 15Kg
- Overspeed Protection - Electronic Stalling to slow rotation
- Blade Material - Nylon Fibre
- Body Material - diecast aluminium alloy, powder coated for weather & corrosion protection
- Turbine generator type - brushless low friction 3-phase permanent magnet AC synchronous
- Mounting - Simple clamp mounting onto a 60mm external diameter steel pole
- Operating temperature -40 to 80 degrees Centigrade
- Design Life - 20 Years
- Manufacturers Warranty - 2 Years
- Certifications - CE, TUV, ISO
Specifications -
- WW05-24, (for 500w, 24V turbines and 24V battery bank), rated input current 25A
- Wind turbine manual brake - Press the button for 5 seconds to unload completely, and then recover by hand
- Rectifier mode - Uncontrolled rectifier
- LED Status Monitoring - Battery voltage, Brake status
- Lightning protection - Yes
- Conversion efficiency - ≥95%
- Static loss - <0.5W
- Environment temperature - -20℃~+40℃
- Cooling mode - Natural Cooling
- Cover protection - IP53
- Product dimension - W*H*D - 105x120x49mm
- Weight - 0.8Kg
- Can be integrated with other solar controller to create a hybrid wind & solar power system
- Battery reverse polarity protection, but reverse polarity on connection should still be avoided.
- LED indicator light gives braking status. Always on=turbine is in manual brake status, blinking=turbine is in auto braking status due to over current or over voltage; LED off - turbine running as normal.
- Digital LED Display shows 0=battery <11v (12v system) or <22V (24V system); 2=battery is at rated voltage; 5=battery is full charged
Details
| OPC | PBG7NTT |
|---|---|
| Brand | |
| Codes | 0708747940831 (EAN) |
Detailed Product Information
| Colour | White |
|---|---|
| Weight | 15kg |
| Colour | White |
| Weight | 15kg |
| Colour | White |
| Weight | 15kg |
