50W DC12V Electric Vibration Motor with Speed Cont

50W DC12V Electric Vibration Motor with Speed Cont Description

The 50W DC12V brushless high-speed motor, with a maximum speed of 4000rpm, high-performance bearing, and high-precision rotor endow this product with strong power, which can work normally even under heavy loads and meet commercial purposes.

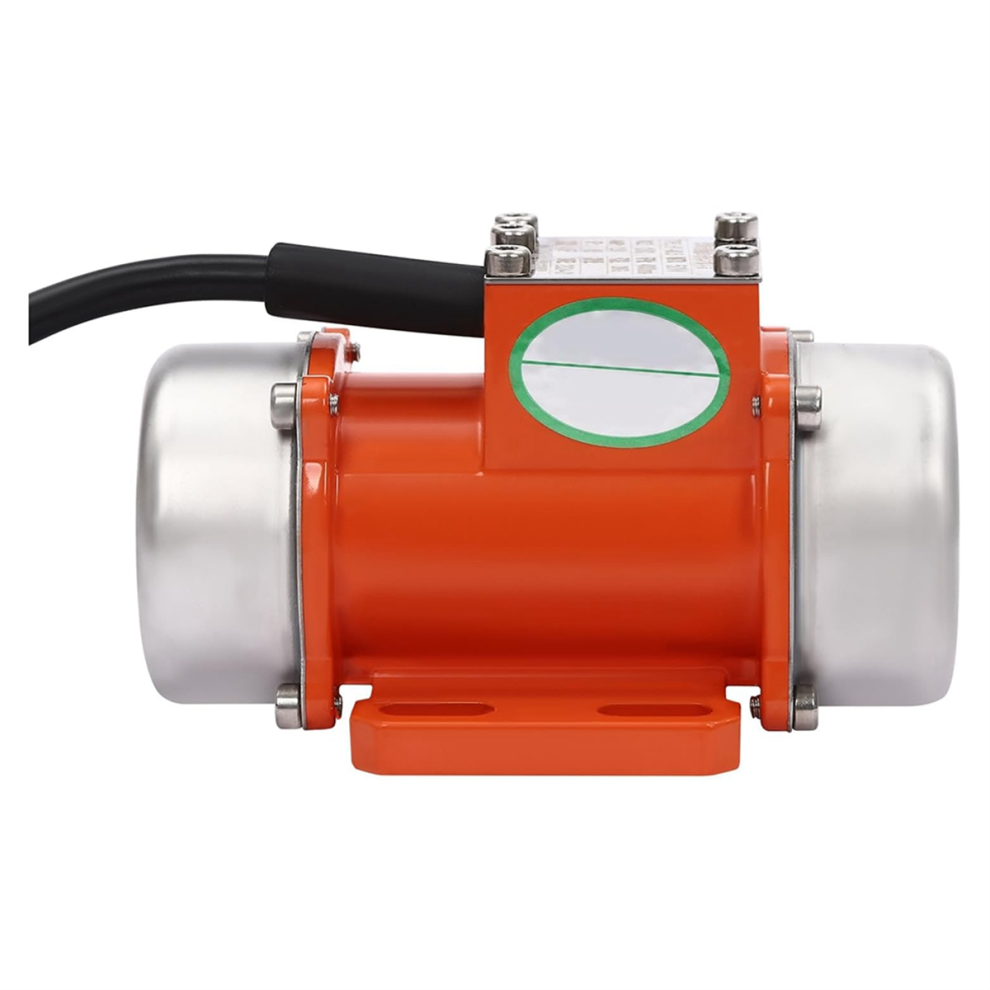

The DC motor is made of high-quality aluminum alloy and 304 stainless steel, using molding technology, with high strength, wear resistance, excellent insulation properties, and long service life. The watertight sealing O-ring, 304 stainless steel protective cap, and one-piece sealing structure provide excellent sealing performance for this product to withstand harsh environments.

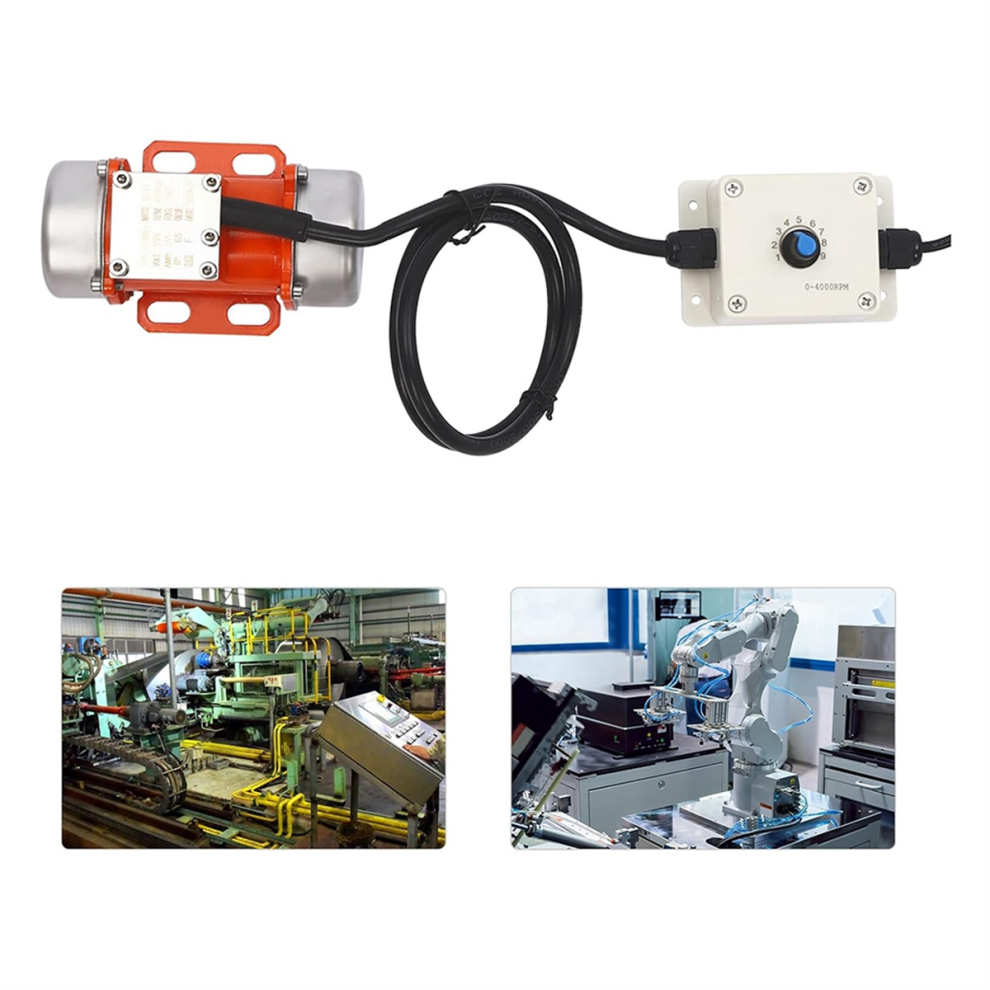

By turning the knob on the speed controller, you can select 9 speeds with a range of 0-4000rpm to meet your vibration needs.
IP65 protection, Class F insulation, premium bearing that can withstand temperatures up to 356 , and a large-channel cooling system are designed to your safety in use and extend its service life.

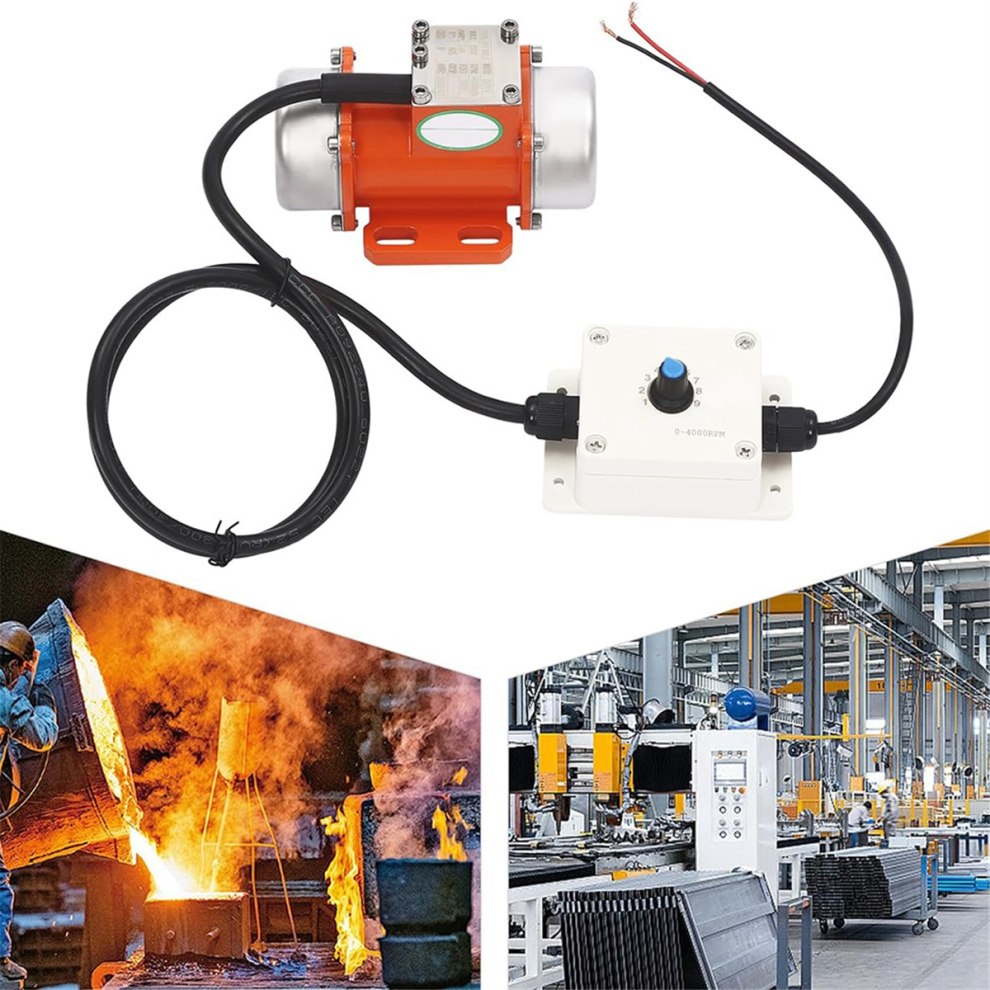

This small vibration motor can be widely used in mining, metallurgy, coal, electric power, construction, casting, food, grain machinery, and other fields. It can be used in large steel rolling equipment, large precision machine tools, mining winches, trams, shopping malls massage equipment, micro-vibration screens, 5D cinema game chairs, and so on.

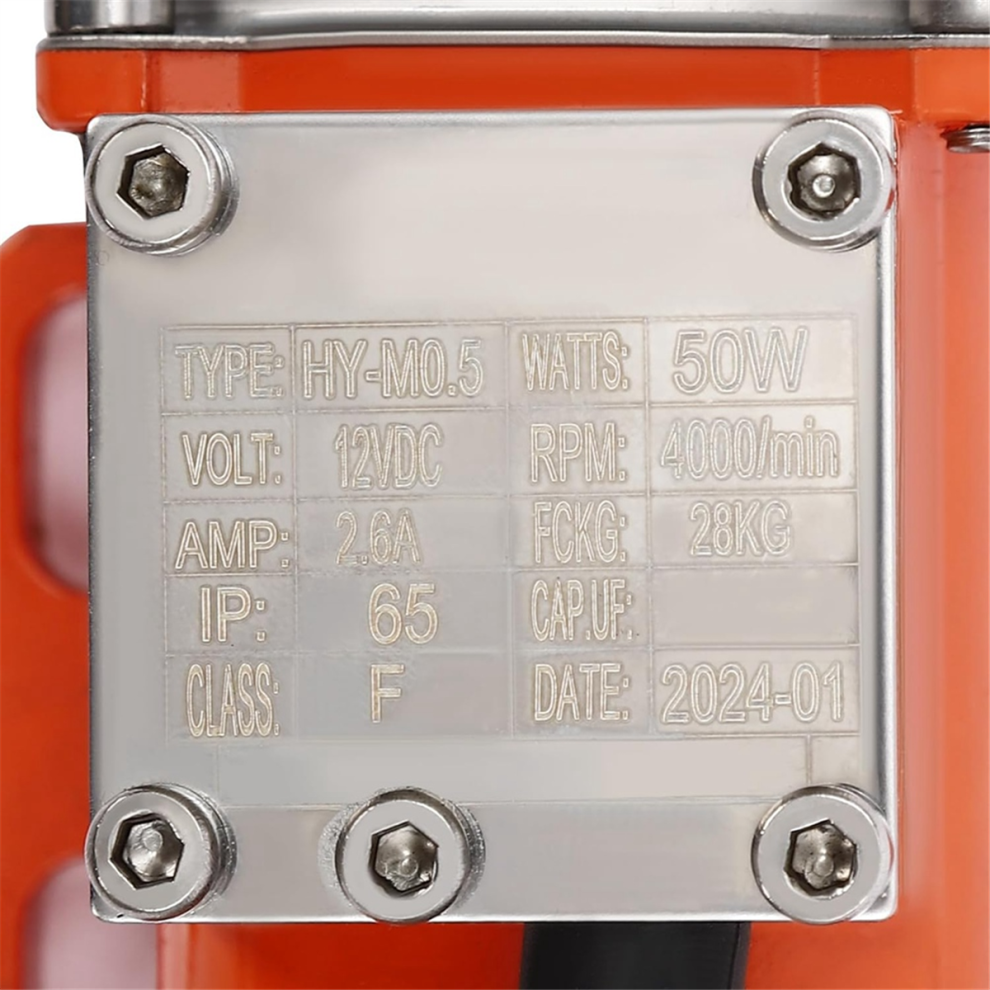

Model:-M0.5
Treatment: Molding
Motor Type:Brushless Pure Copper Motor
Assembly Required:Yes
Current:2.6 A
Noise:60dB
Protection Grade:IP65
Class:F
Speed Gears:9
FCKG:28kg/61.73 lbs
Speed Range:0-4000rpm
Maximum Speed:4000rpm
Maximum Temperature Resistance of Bearing:180/356
Operating Temperature:-20-50/-4-122
Pre-drilled Holes: Pre-drilled holes in the motor and speed controller base help you quickly secure them with tools such as screws (not included), allowing for more stable operation.
Round Corners: It can better care for your skin and enhance the aesthetics of the product.
Notes:
1. Before use, please fix the motor with screws (not included) to avoid safety accidents, and remember to regularly check the tightness of the installation screws and dust on the of the vibrating motor.
2. To the normal installation and use of the motor, please confirm the motor model and installation size before purchasing.
3. Please note that the temperature rise of the motor increases gradually at elevations 0.62 miles above sea level.
Power Voltage:50W DC12V
Colour:As Shown
Material:Aluminum, stainless steel, copper
Size:11.94x7.6x7cm/4.7x2.99x2.76 in

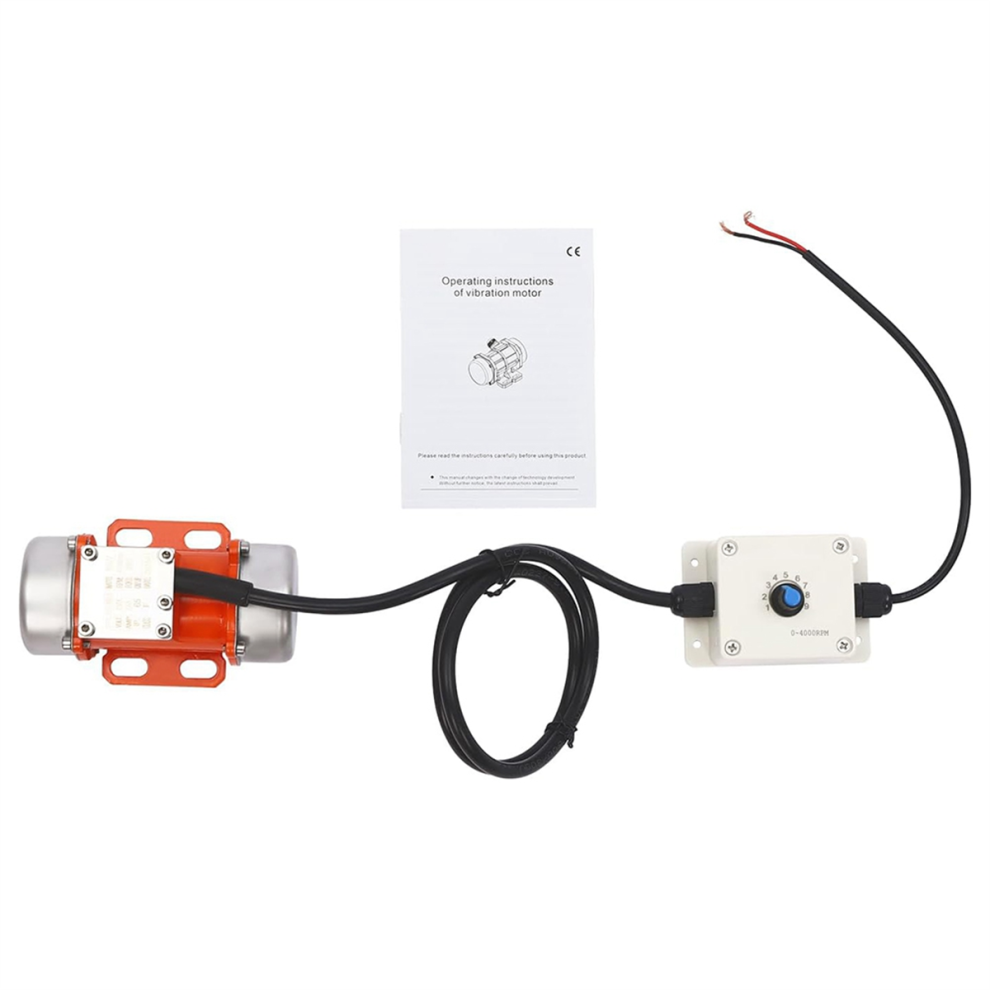

Package Contents:
1 * concrete vibrating tool

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
