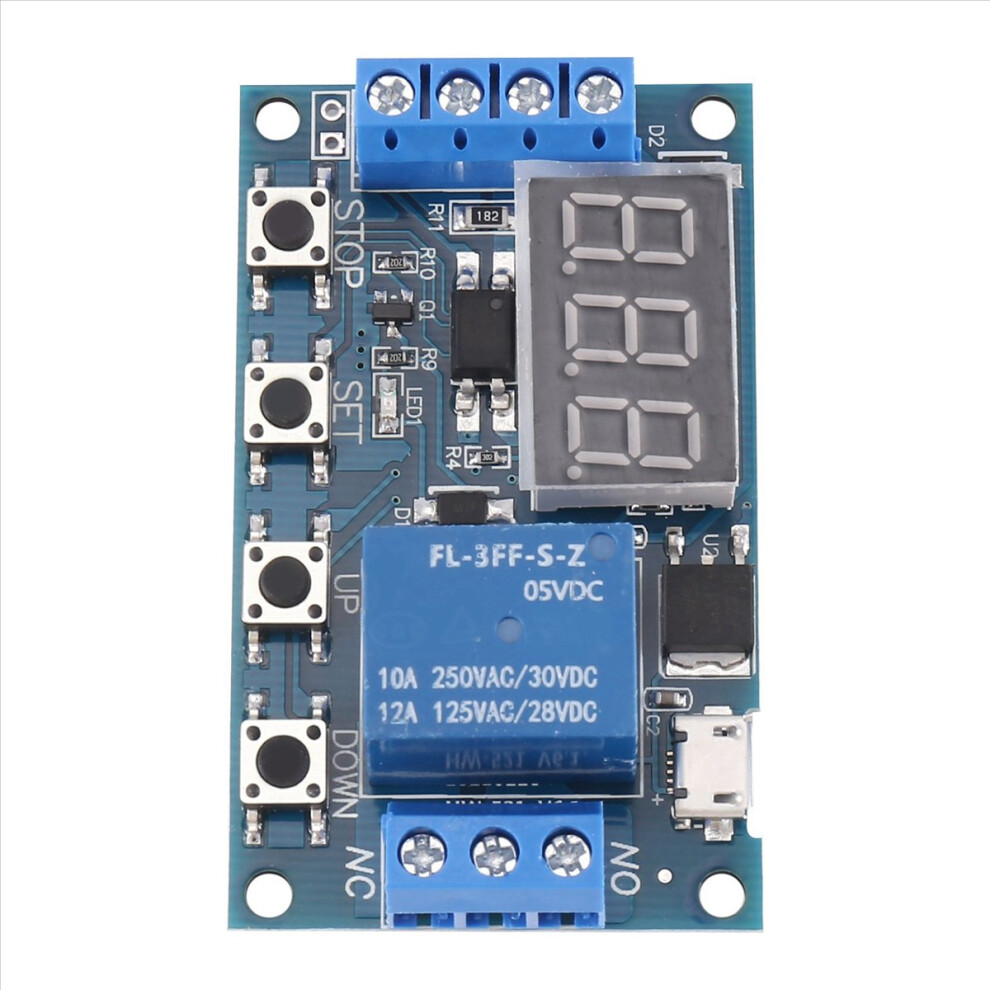

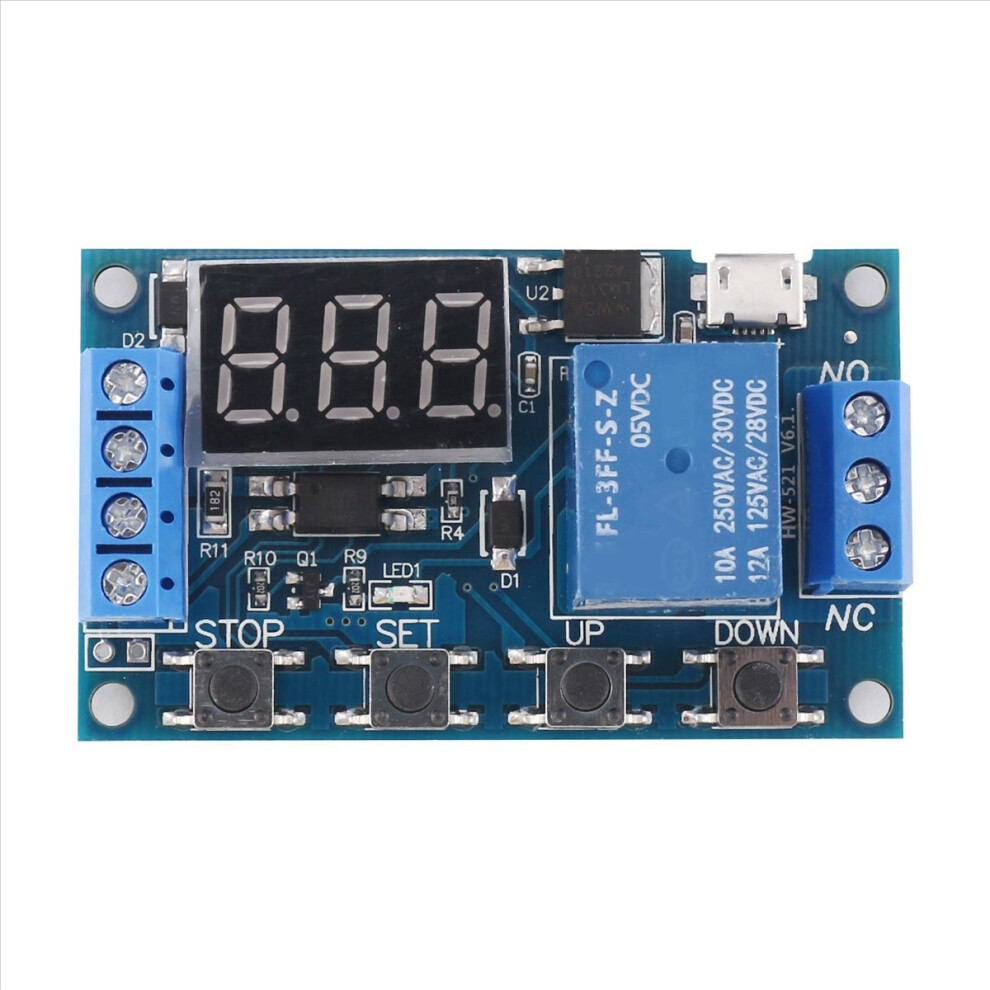

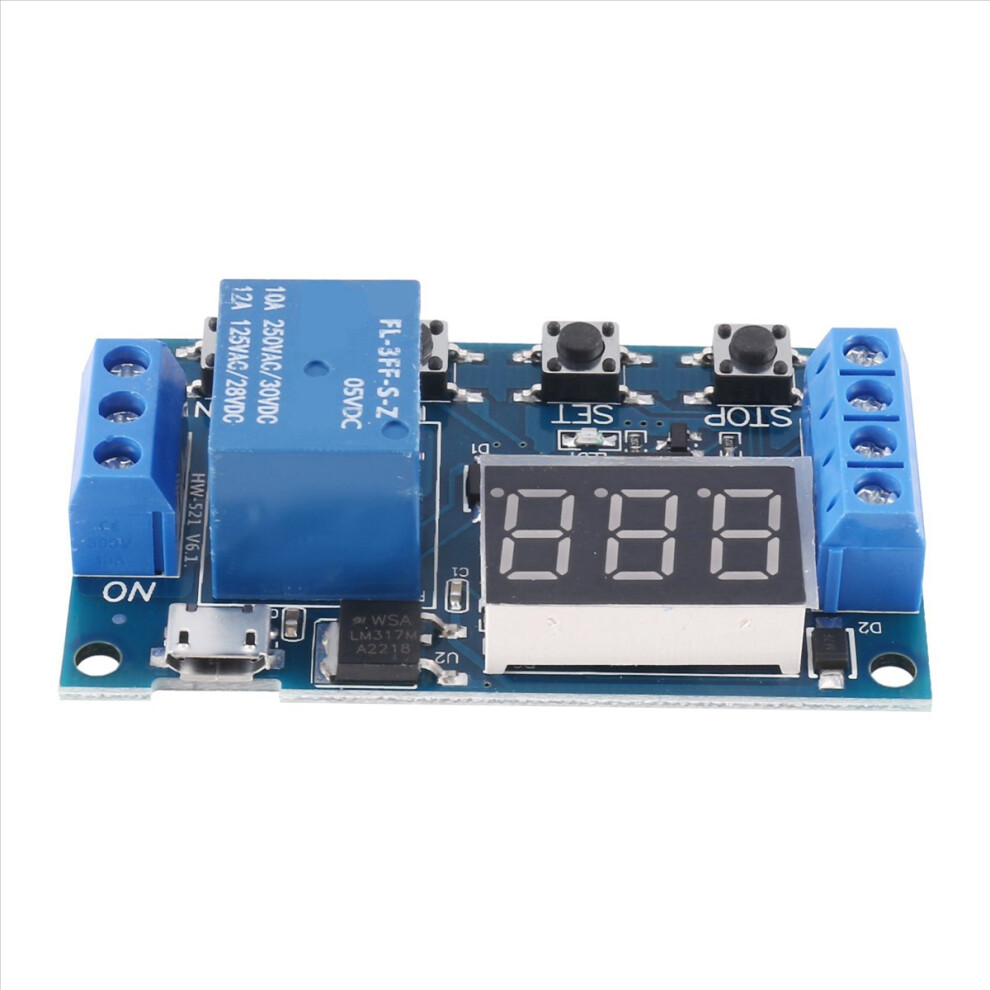

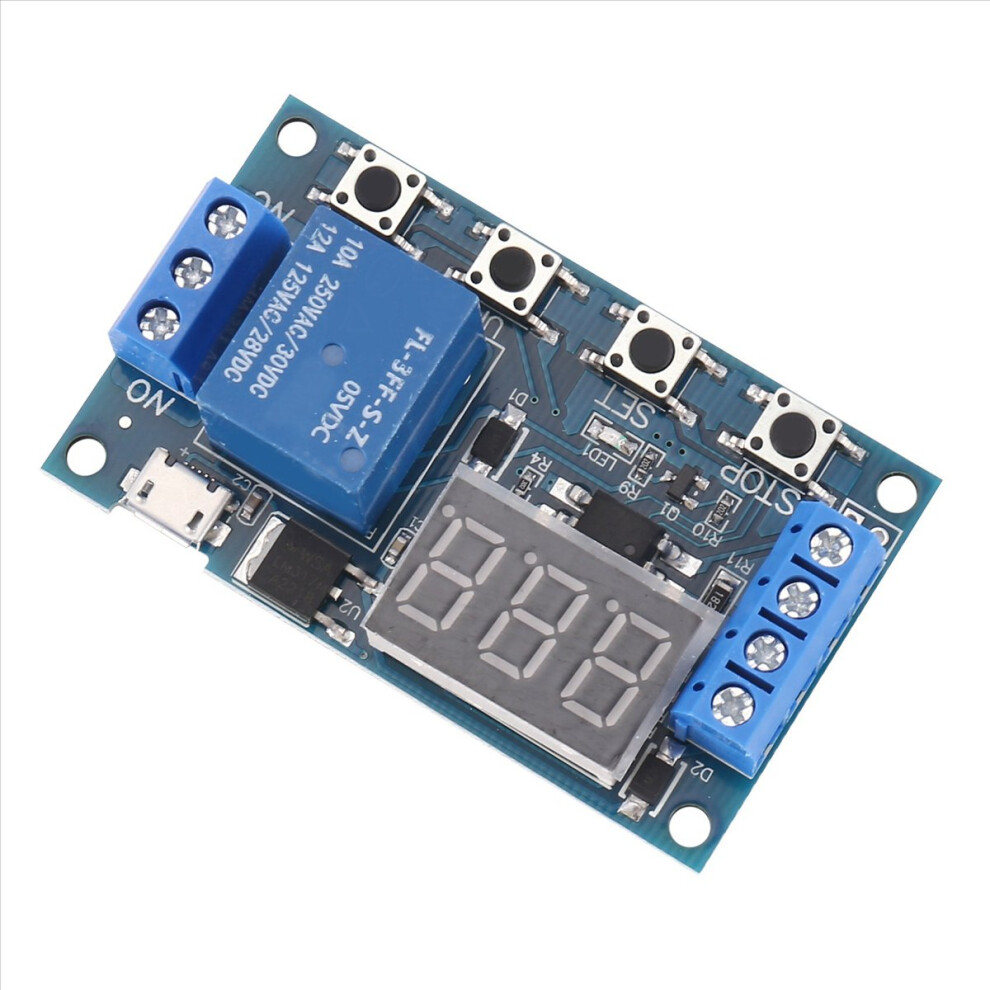

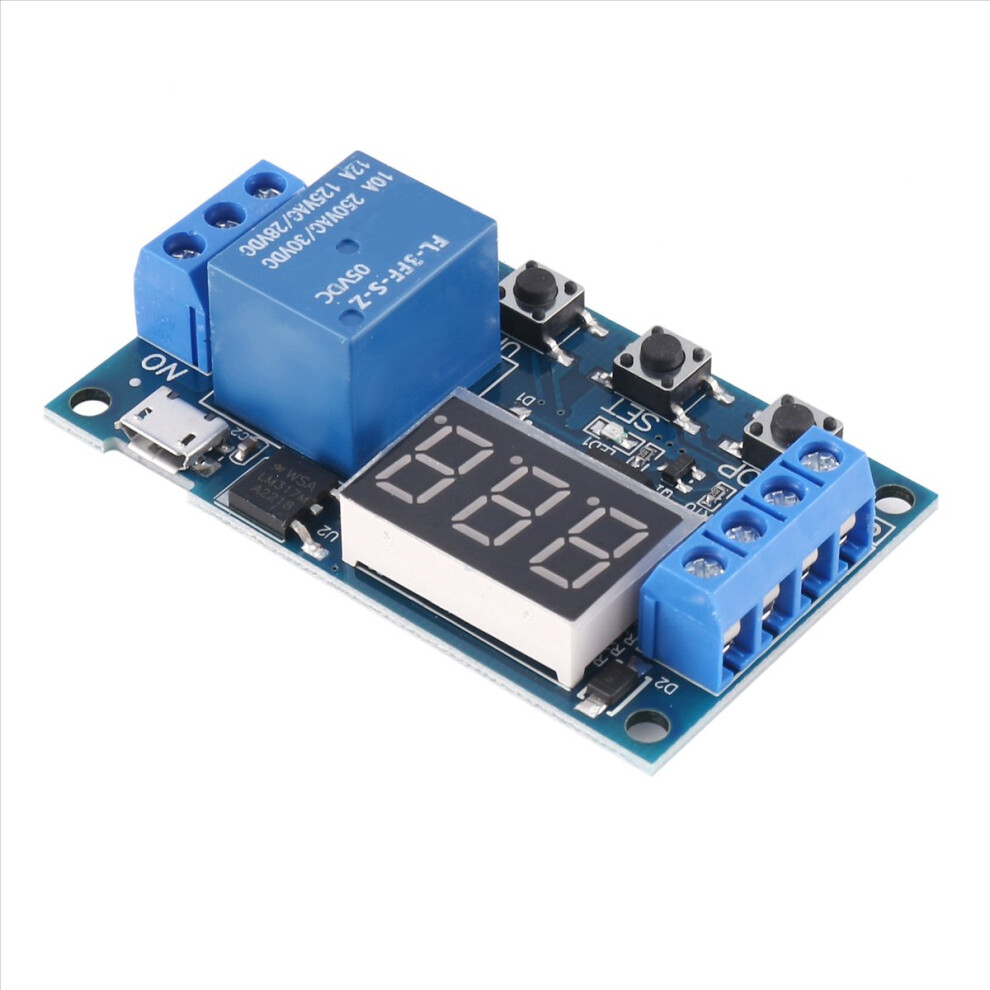

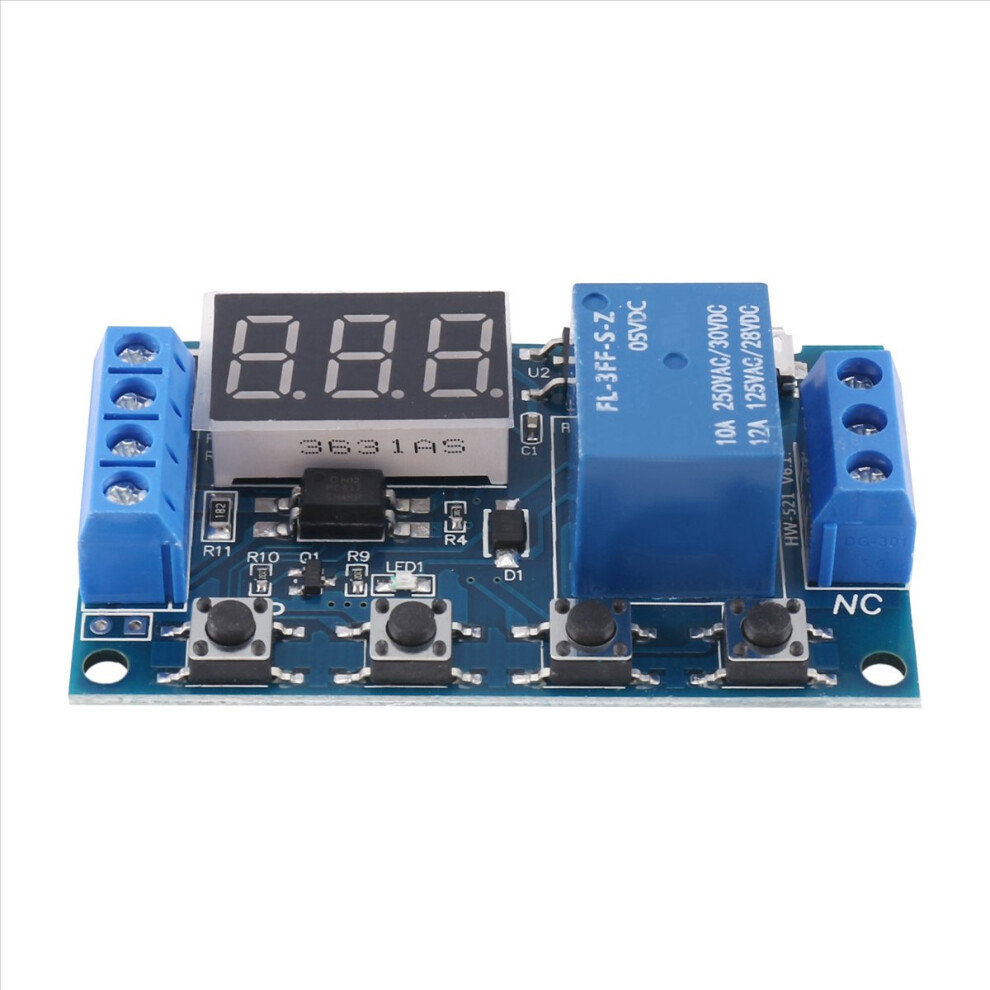

-521 Digital Time Delay 1 Way Relay Trigger Cycle Timer

-521 Digital Time Delay 1 Way Relay Trigger Cycle Timer Description

Wide voltage power supply (6 ~ 30V) supports micro-USB 5.0V power supply, easy to use;
The interface is clear and simple, powerful, easy to understand, meet almost all your needs;
There is a key stop function (STOP key), with reverse polarity protection, reverse polarity does not burn;
Increase the sleep mode, it enables, without any operation within 5 minutes, turn off the monitor automatically; any key to wake up;
You can set a different OP, , parameters, which are of each other, were saved;

All setup parameters are saved automatically power down.
Operating voltage: 6--30V support micro-USB 5.0V power supply
The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming capability of the system (also self-shorting common ground)
Output capability: You can control the DC or AC within 30v 5A within 220v5A
Quiescent Current: 20mA Operating Current: 50mA
Timing range: 0.1 seconds -999 minutes continuously adjustable;
with optocoupler isolation, enhanced anti-jamming capability, industrial grade circuit boards, set the parameters after power failure memory forever.
Special Note: The relay outputs are passive contact, uncharged output to control a line-off role.
Colour:blue
Material: ABS
Size:10 x 6 x 3cm

Package Contents:

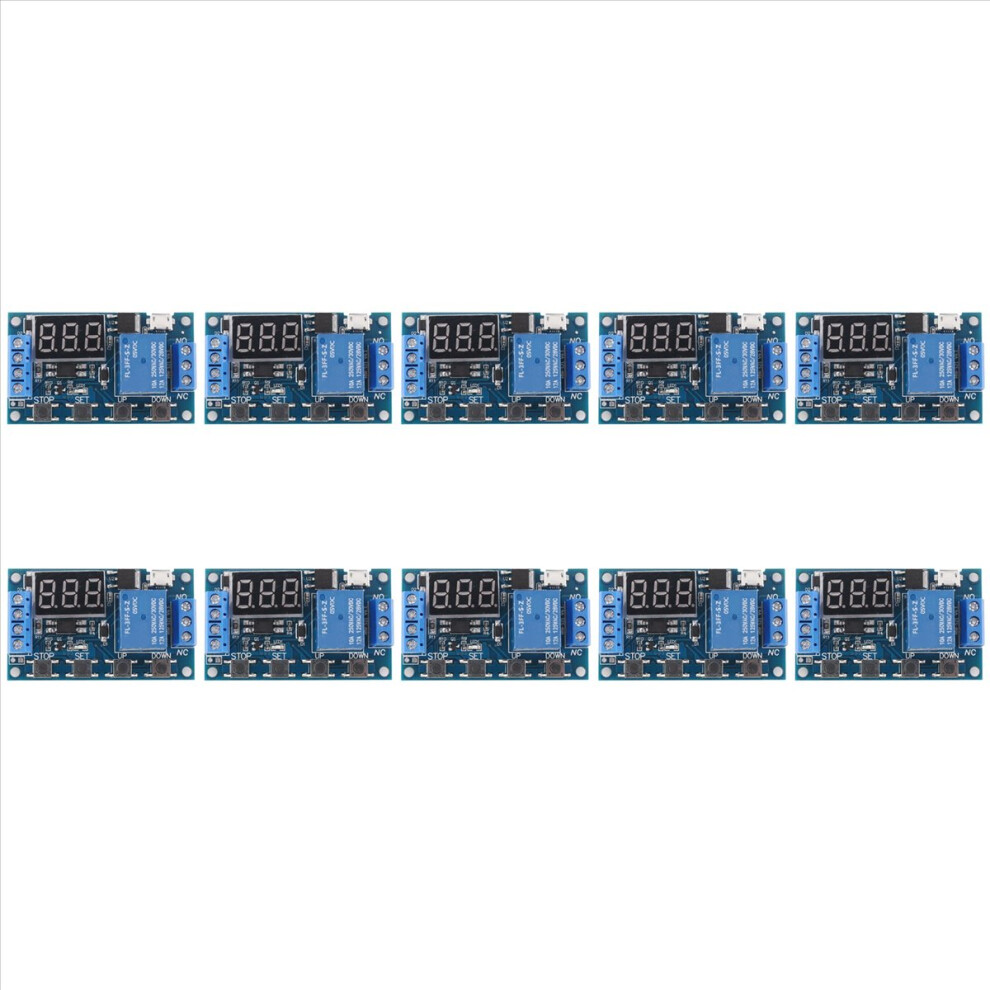

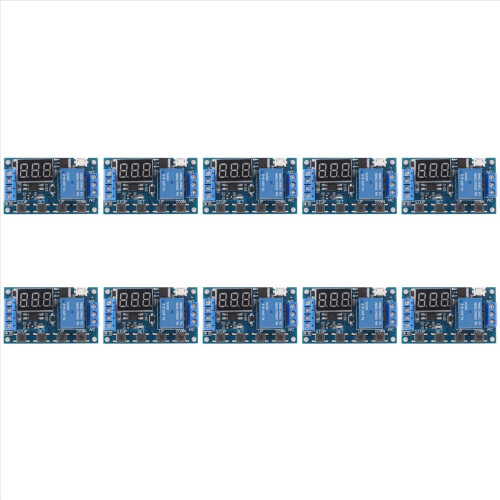

10 x Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
