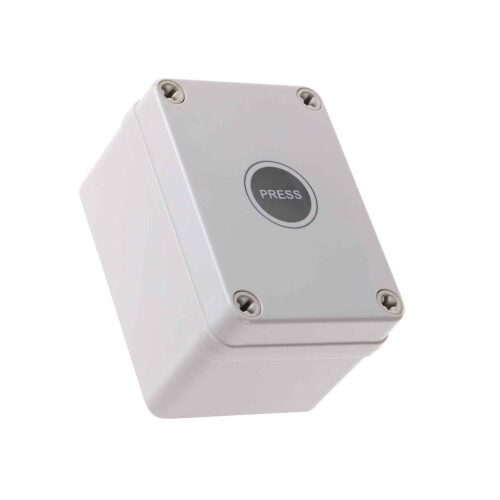

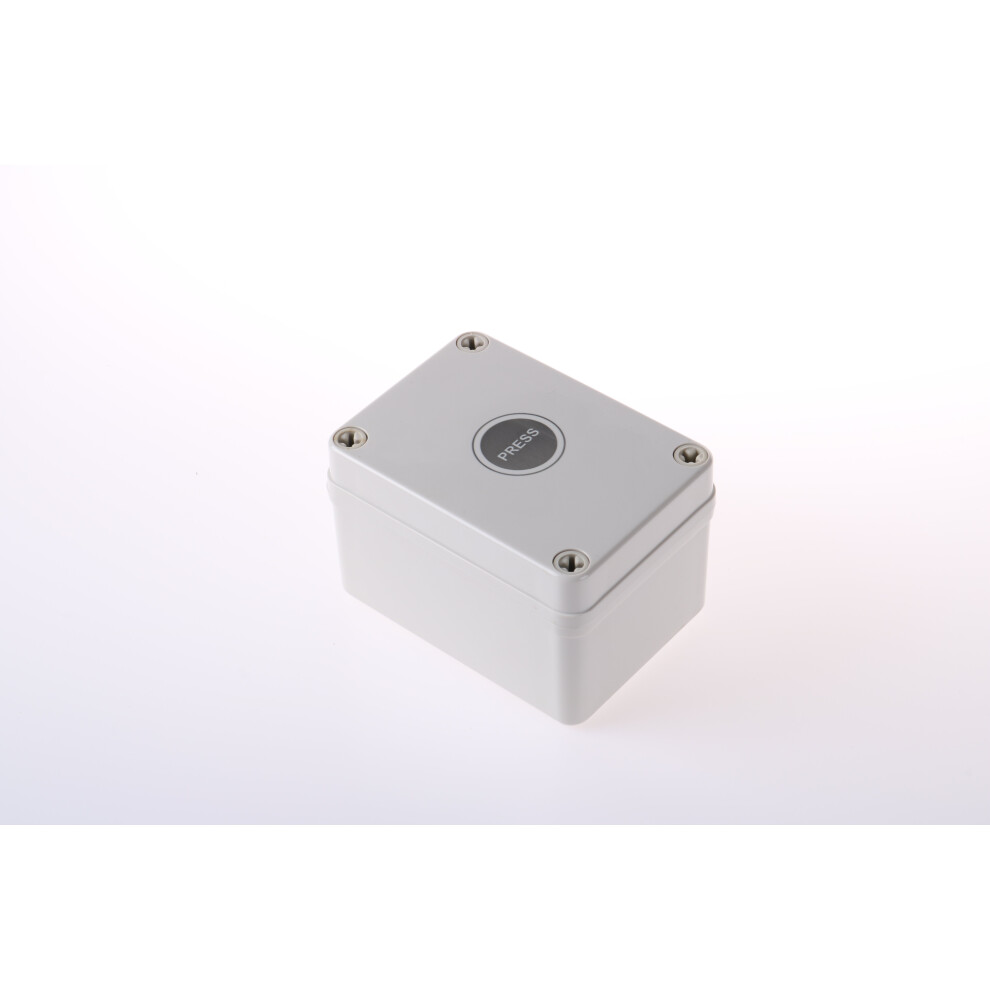

Weatherproof Outdoor Timer Delay Lag Switch 16A IP66
Brand Lowenergie
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
£20.09
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Wed 1st - Thu 2nd Jul
Sold by: Low Energy Supermarket Ltd
Returns: 30 days
180-day payment protection
Most Popular in Timer Plugs
Description & Details
Summary
- This high-quality electronic weatherproof time lag switch is made out of high-quality ABS material
- Easy to use – once installed simply set the time lag switch to the desired time interval which can be anywhere between 2 seconds and 2 hours.
- The timer can be triggered by applying a live connection to the “trigger” terminal. This can be done using a momentary switch for example, in lighting applications; or an unswitched link for applications such as extractor fan over-run.
- Load Specification: – Incandescent lighting loads – 16A maximum – Fluorescent lighting loads – 6A maximum – Compact fluorescent/low energy lighting loads – 3A maximum – Low voltage lighting loads – 3A maximum (Note: a maximum of 6 Fluorescent light Fittings is recommended with a total power factor correction capacitance not exceeding 40µf.) Fans and ventilation equipment – 3A maximum
- IP Rating: IP66 rated, weatherproof switch, ideal for outdoor use
Weatherproof Outdoor Timer Delay Lag Switch 16A IP66 Description
This high-quality electronic weatherproof time lag switch is made out of high-quality ABS material
Easy to use – once installed simply set the time lag switch to the desired time interval which can be anywhere between 2 seconds and 2 hours.
The timer can be triggered by applying a live connection to the “trigger” terminal. This can be done using a momentary switch for example, in lighting applications; or an unswitched link for applications such as extractor fan over-run.
Technical Specification:
- Adjustable time function from 2 seconds to 2 hours
- Multiple accurate time settings using DIP switches and rotary adjuster
- IP Rating: IP66 rated, weatherproof switch, ideal for outdoor use
- Multi-Point Switching: For switching the load from multiple locations simply connect two or more units in parallel. Note: All switches must share the same power supply.
- Load Specification: – Incandescent lighting loads – 16A maximum – Fluorescent lighting loads – 6A maximum – Compact fluorescent/low energy lighting loads – 3A maximum – Low voltage lighting loads – 3A maximum (Note: a maximum of 6 Fluorescent light Fittings is recommended with a total power factor correction capacitance not exceeding 40µf.) Fans and ventilation equipment – 3A maximum
Details
| OPC | P88PGCJ |
|---|---|
| Brand | |
| Codes | 0757350735907 (EAN) |
Detailed Product Information
| Material | ABS |
|---|---|
| Weight | 300g |
