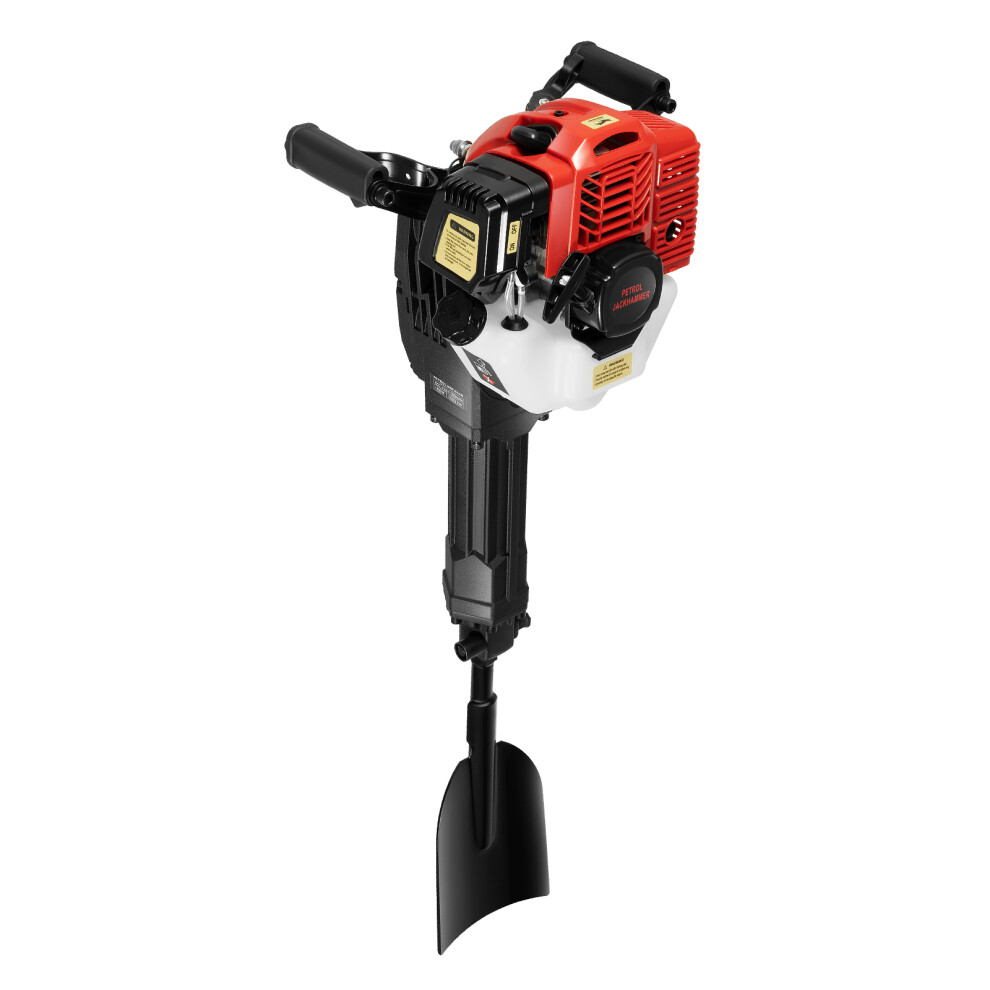

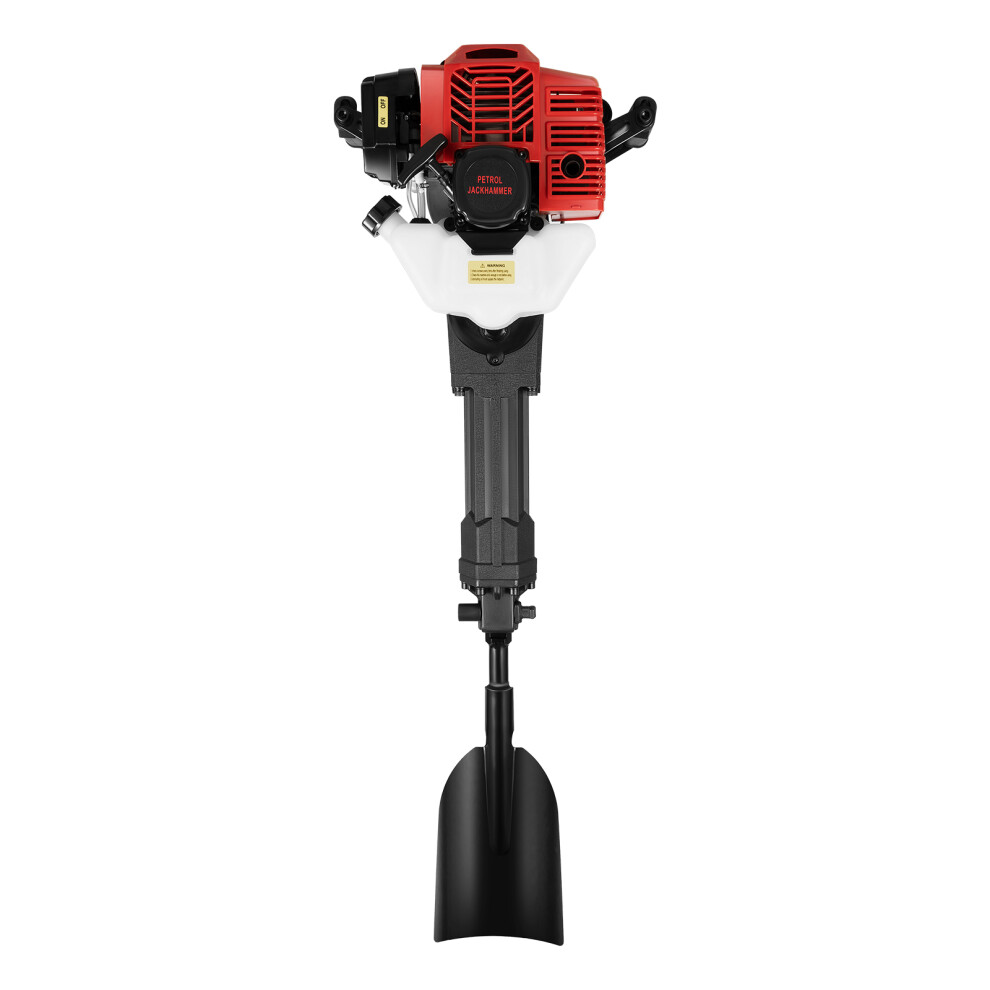

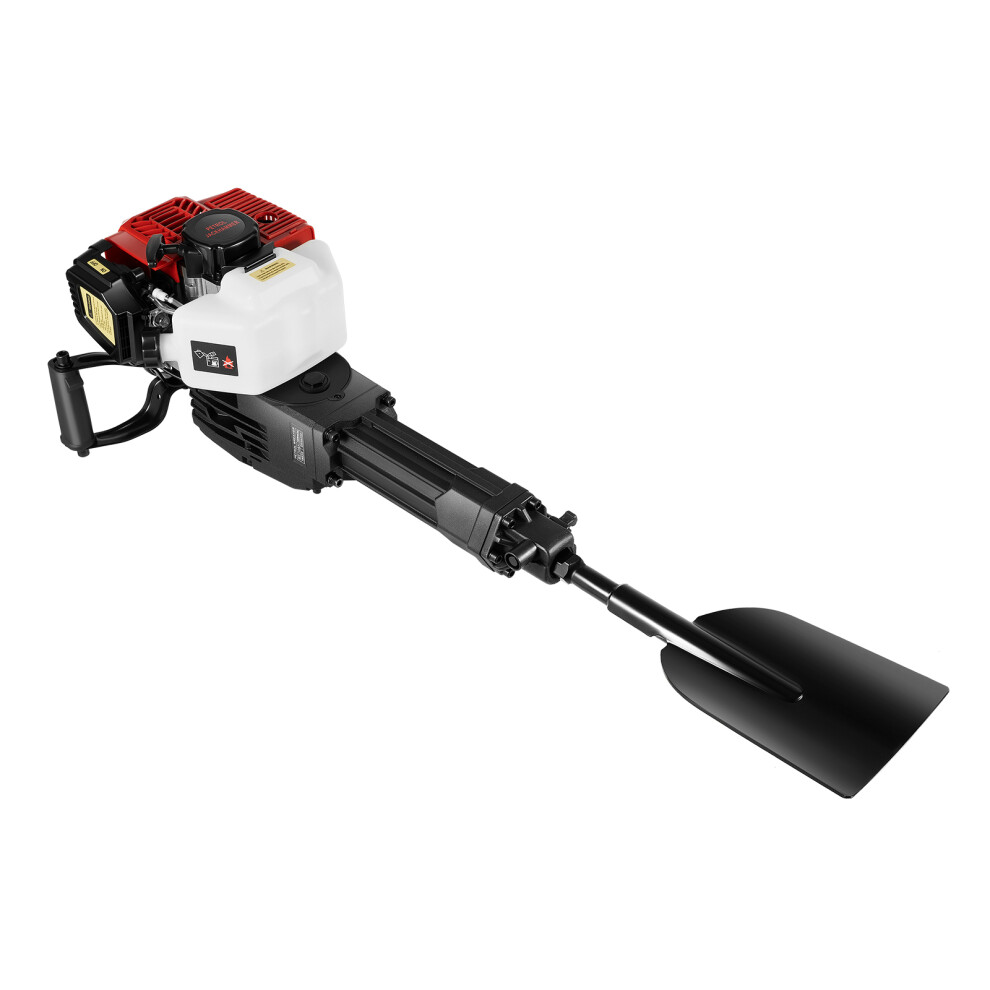

52cc Tree Digger Machine 2-Stroke Gas Powered Portable Excavator

52cc Tree Digger Machine 2-Stroke Gas Powered Portable Excavator Description

Application

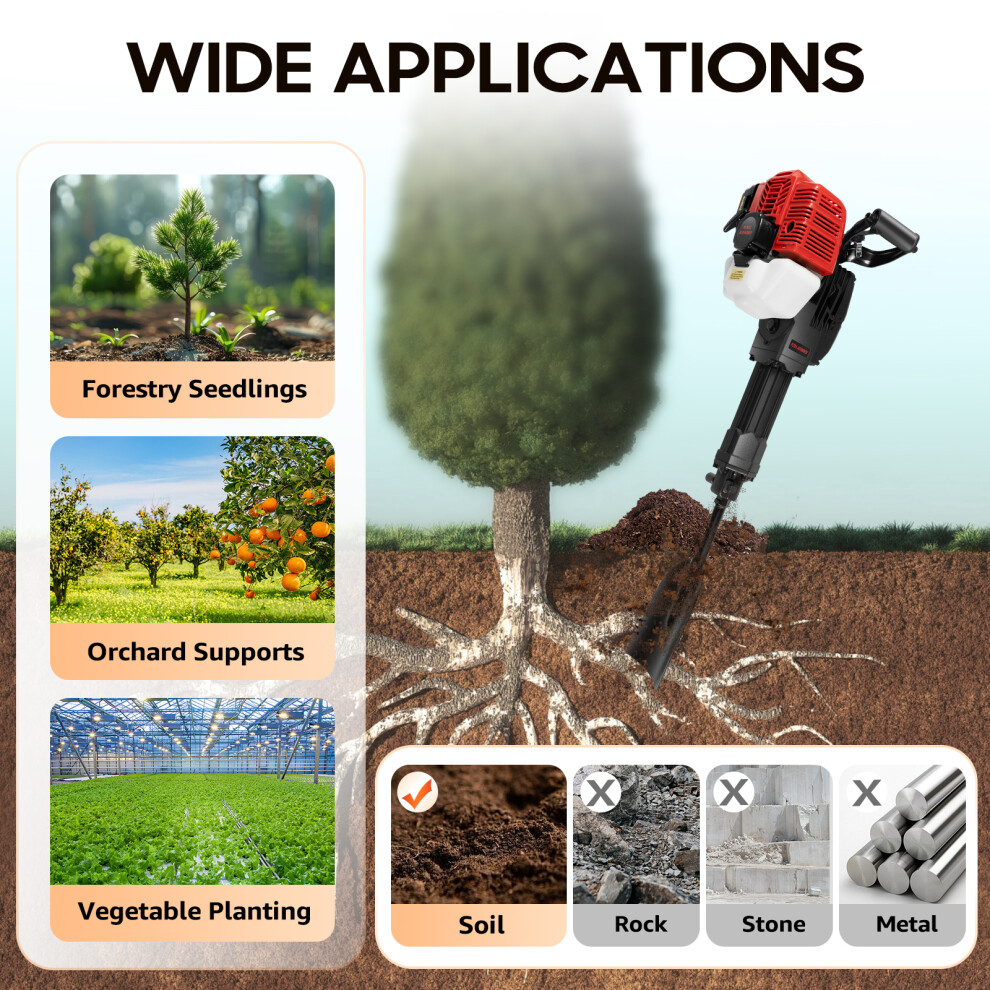

It is great for garden and lawn applications in soil cultivation, tree ball lifting, planting bedding, bulbs, seedlings or fertilizing shrubs, water aeration, weed control & root removal. It is suitable for forestry seedlings, vineyard supports, vegetable planting, etc.

Specifications

Color: Black, Red

Material: Steel, PP

Number of Blows: 1500/min

Fuel Tank Capacity: 1.1L/0.3gal

Emission: 52cc

Mixing Ratio: 25:1 (Gasoline, 2-Stroke Engine Oil)

Engine Type: Single Cylinder, Air-cooled, 2-stroke

Maximum Power and Speed: 1900W/6500rpm

Maximum Torque and Speed: 3.5n.m/5000rpm

Fuel Consumption Rate: 0.6L/h (0.15gal/h)

Impact Capacity: 20-55J

Noise: About 105dB

Net Weight: 18.6kg/41.01lbs

Engine Size: 44*34mm/1.73*1.34inch

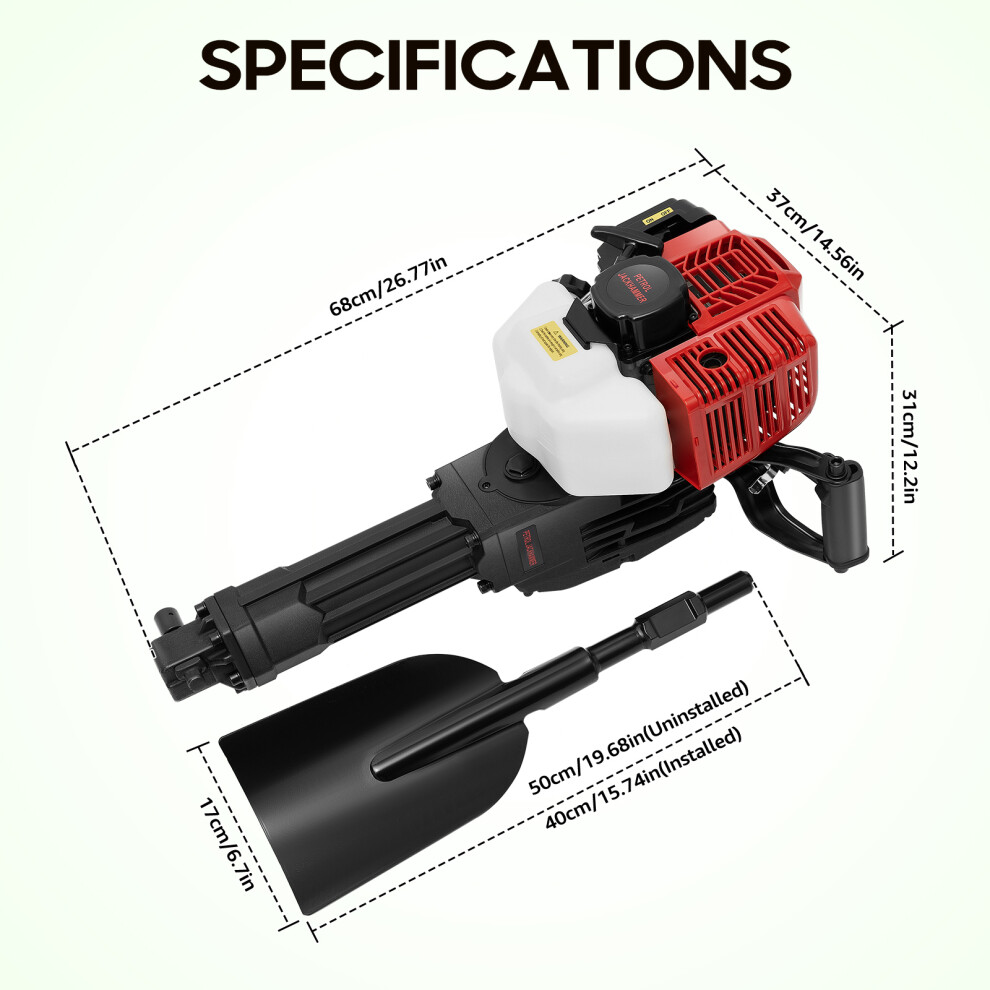

Shovel Size (L*W): 35*16cm/13.78*6.3inch

Machine Body Size (L*H): 38*67.5cm/14.96*26.57inch

Shovel Installation

1. Put in the shovel.

2. Pull out the latch outwards.

3. Rotate the detent latch to lock the shovel head.

4. After installation, check whether it is installed in place.

How to Start

1. Press the oil bubble to supply oil to the oil tank.

2. Close the damper.

3. Pull the starting handle: pull it 3-5 times. When you hear the ignition sound of the machine, push the air valve back. If you do not push it back, the machine will not start.

4. Open the damper: pull the starting handle 1-3 times again to start the machine, and then it can be used normally.

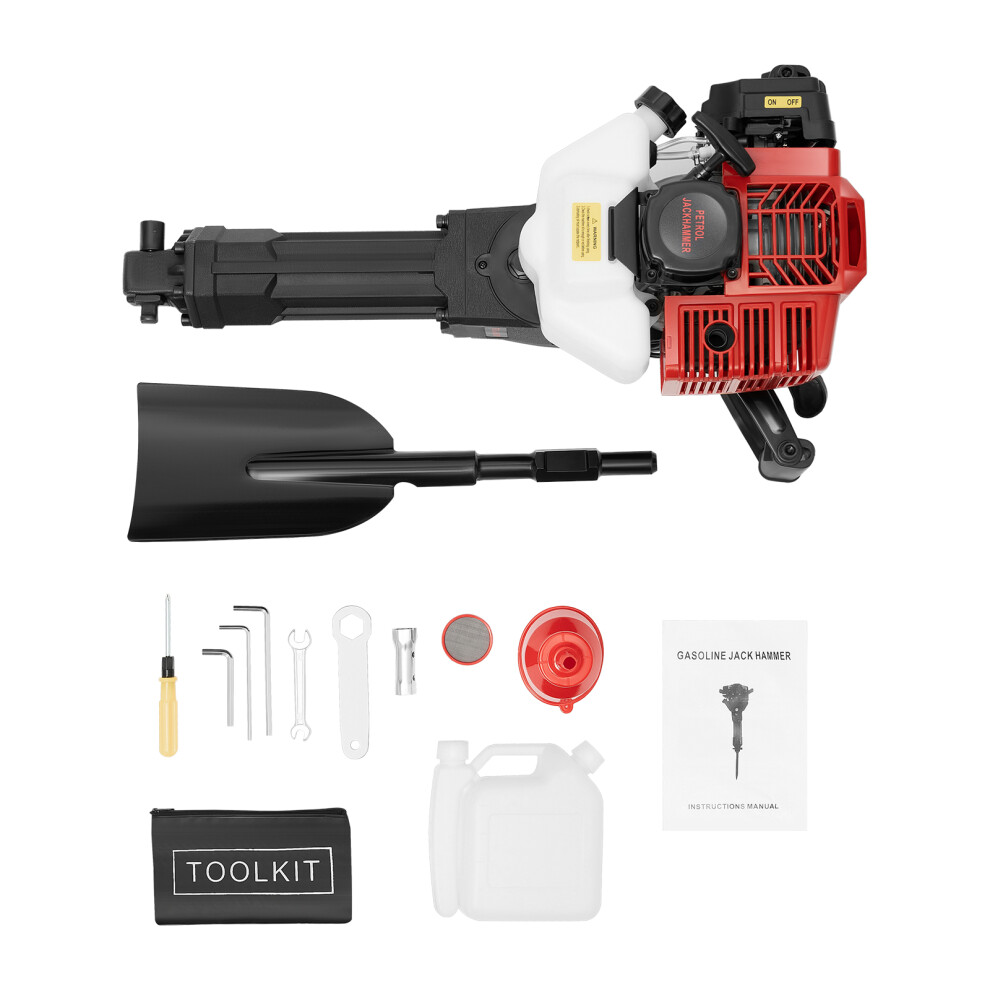

Package Included

1* Machine Body

1* Shovel

1* Funnel

1* Filter

1* Proportioning Oil Tank

1* English Manual

Other Accessories

Notes

1. Please put your safety first, and always operate the machine according to the instructions in the user manual. We recommend wearing appropriate hand and eye protection (not included).

2. This product is only used for soil applications, not for rock, stone, or metal surfaces/debris.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Key Features

Highly Functional: Its wide shovel can not only excavate the roots of trees through soil balls but also effectively cut off redundant roots, which is convenient for you to transplant trees.

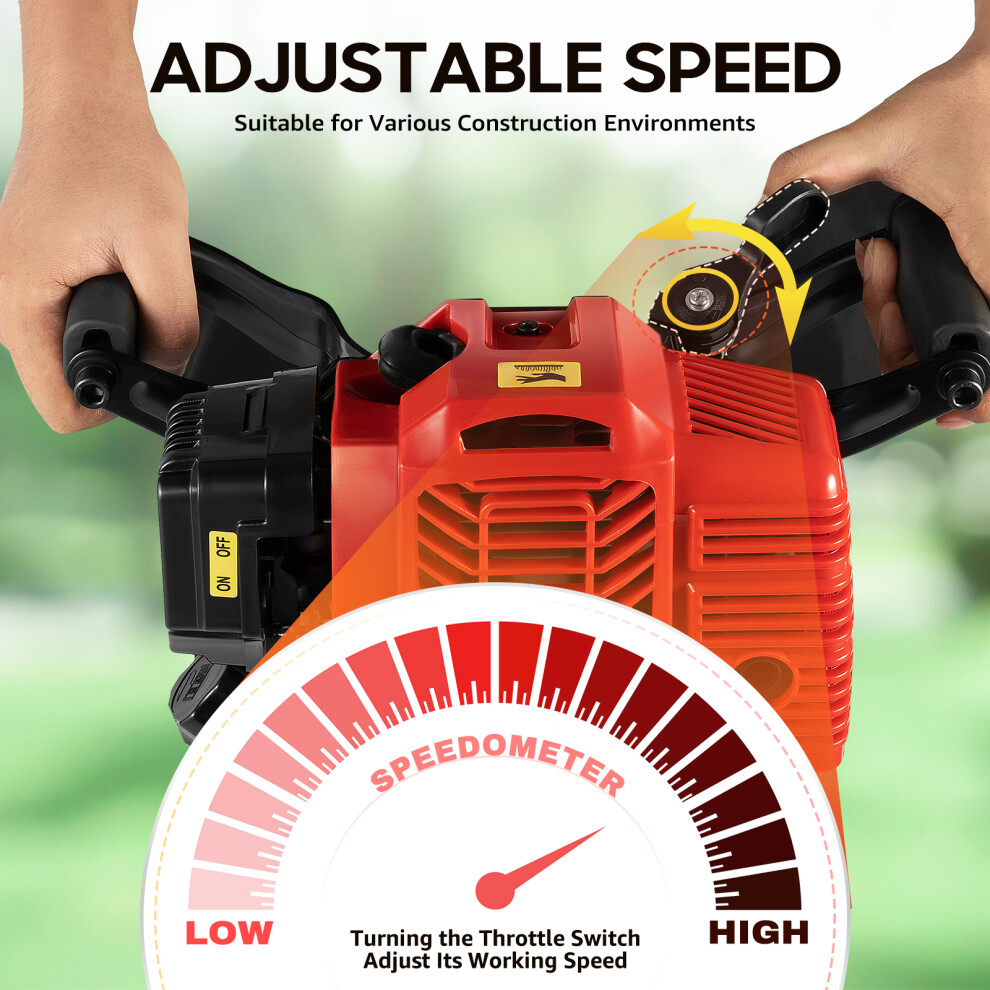

Hassle-free Use: It adopts the hand-pull start, and the throttle switch and flameout switch allow for convenient use. And low failure rate ensures worry-free use.

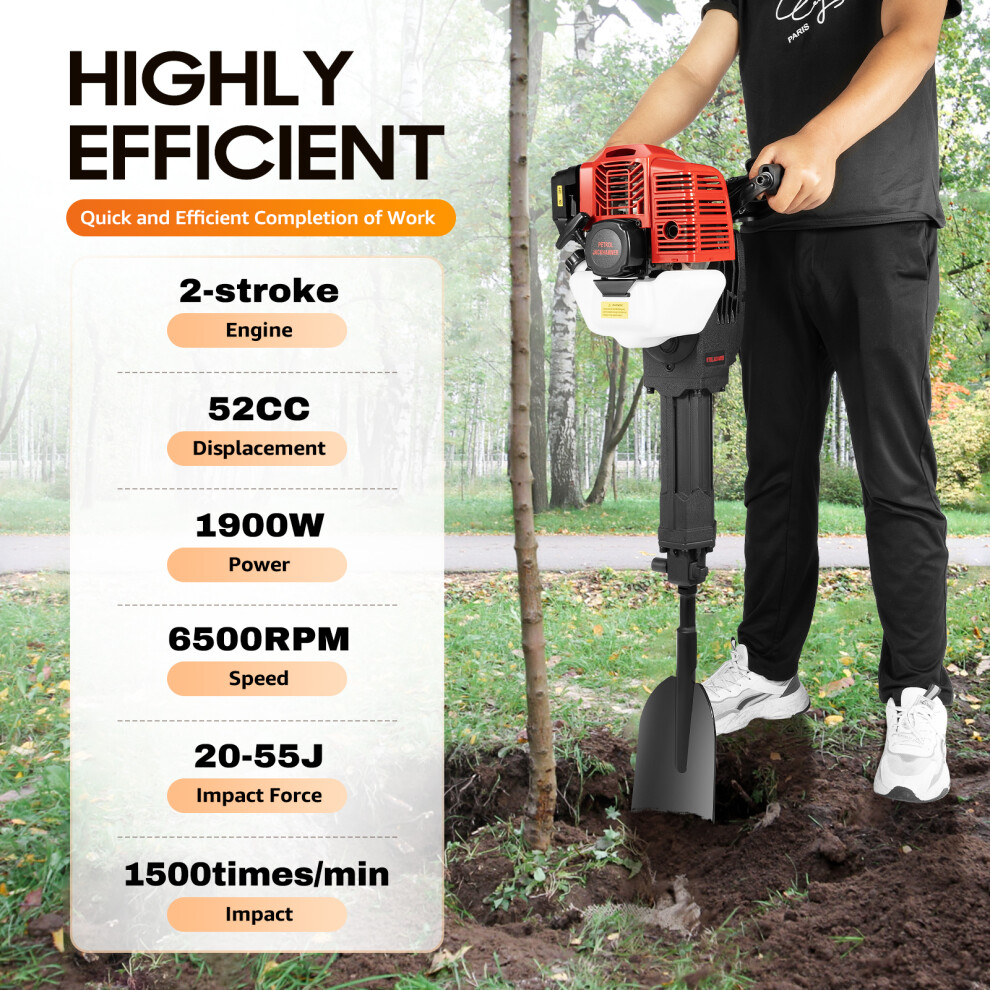

High Efficiency: With a 2-stroke engine, high power (1900W), and large torque (3.5n.m), its speed can reach 6500 rpm while the number of impacts can reach 1500 times per minute with high impact capacity (20-55J), making your excavation work easier.

Selected Materials: The high-quality steel can resist wear, corrosion, and heat. And the premium PP material is odorless and can resist shock, deformation, and break, ensuring an extended service life.

Money-saving: It can fully burn gasoline during operation, consuming less fuel ( 0.15gal/h), bringing you a better affordable user experience.

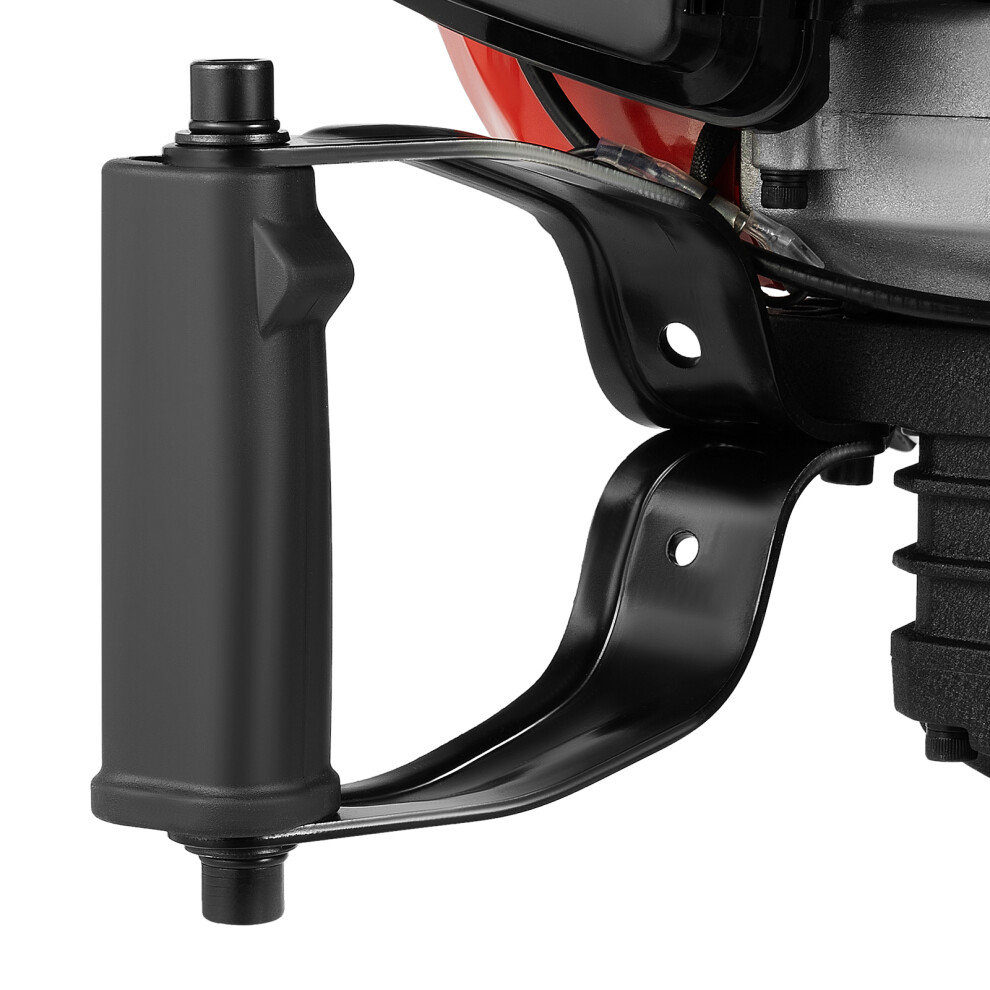

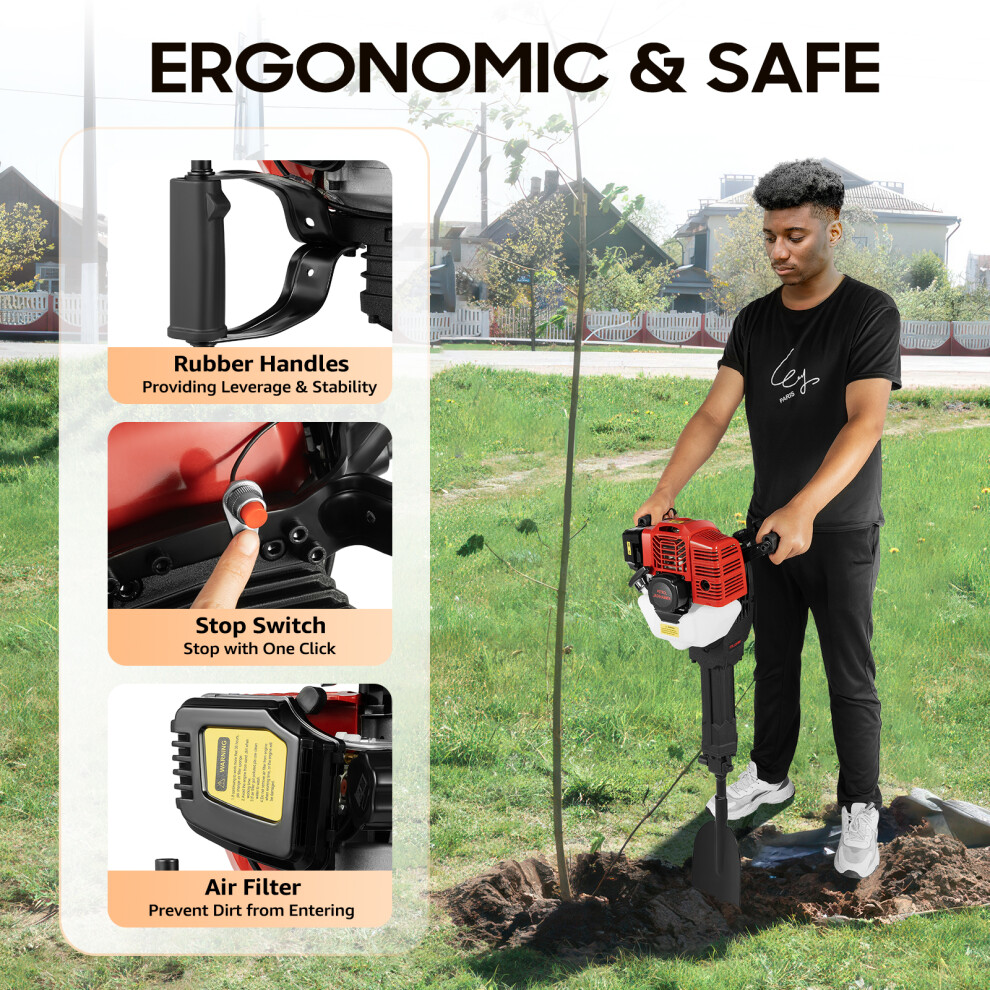

Ergonomic Design: The ergonomic handle allows for comfortable use, so you can hold it for a long time without hand soreness. And the anti-slip texture on the handle can play a good non-slip effect.

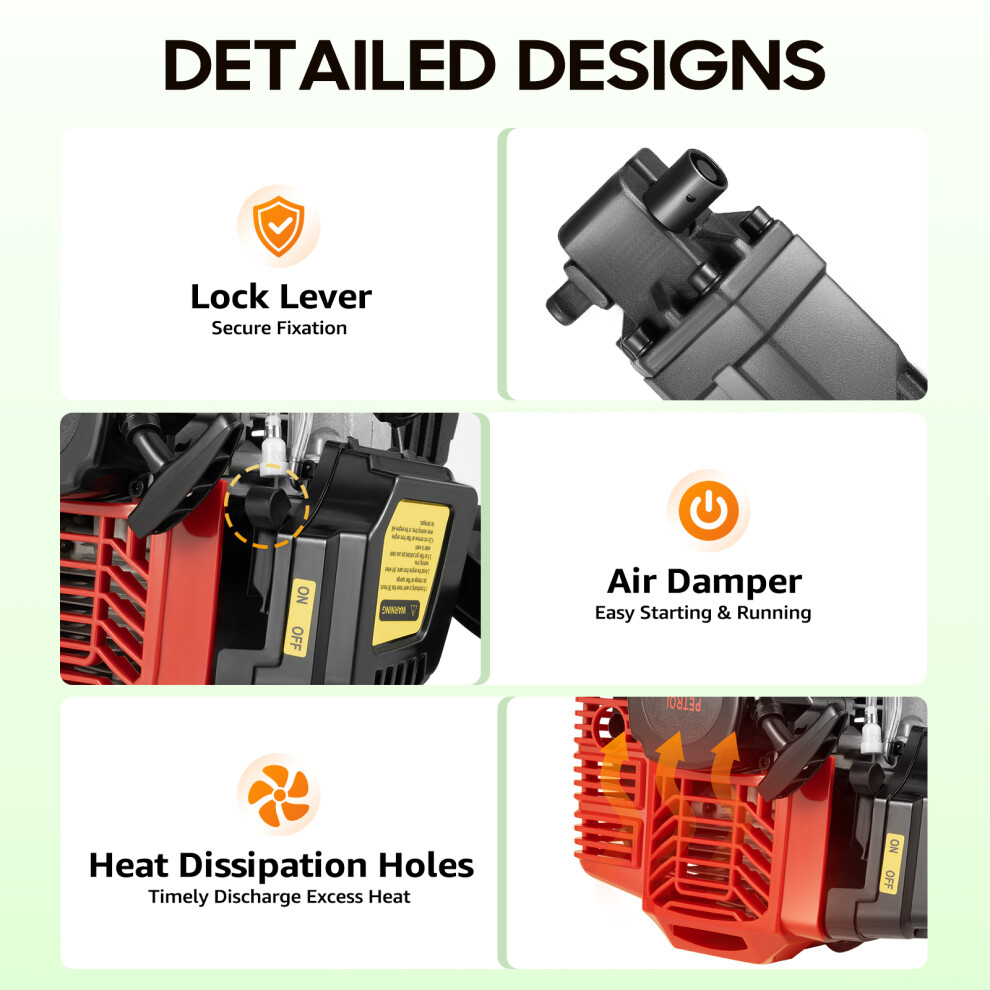

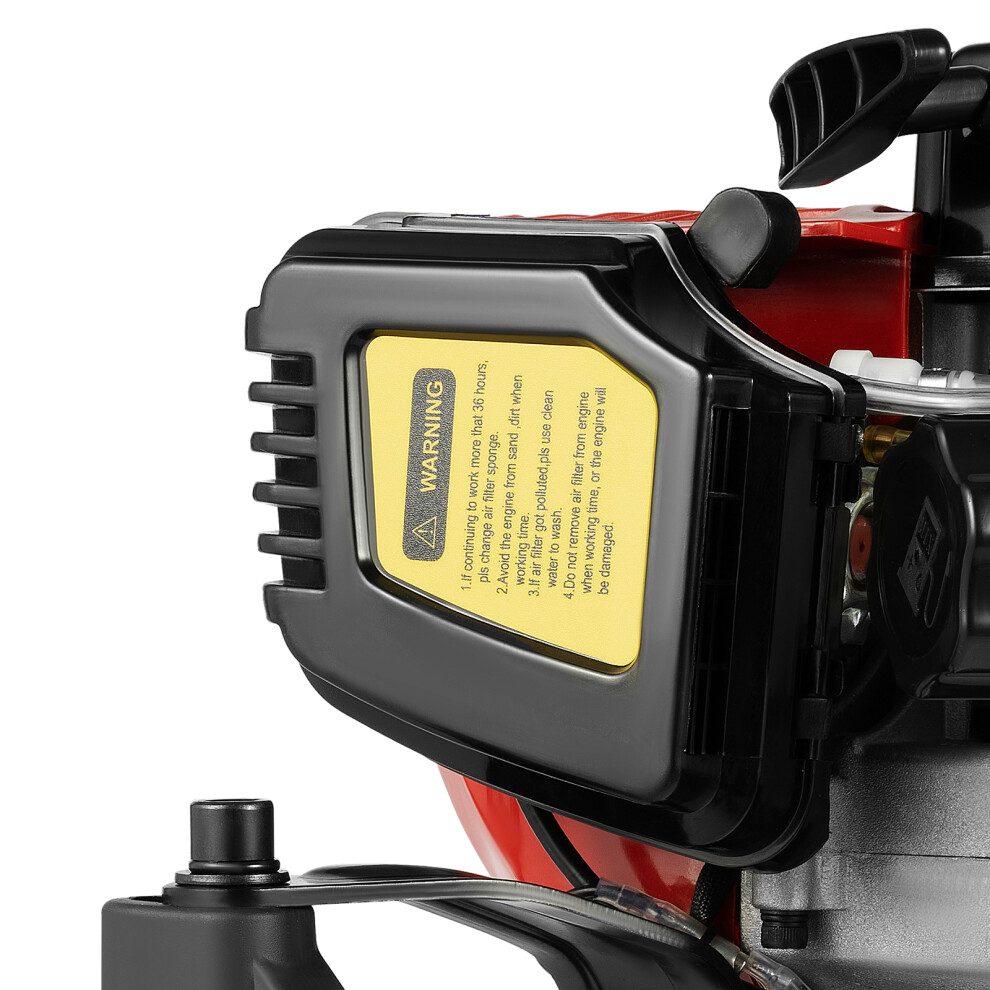

Excellent Heat Dissipation: With a built-in cooling fan and dense heat dissipation holes, it can dissipate heat in time to extend the service life of the product.

Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

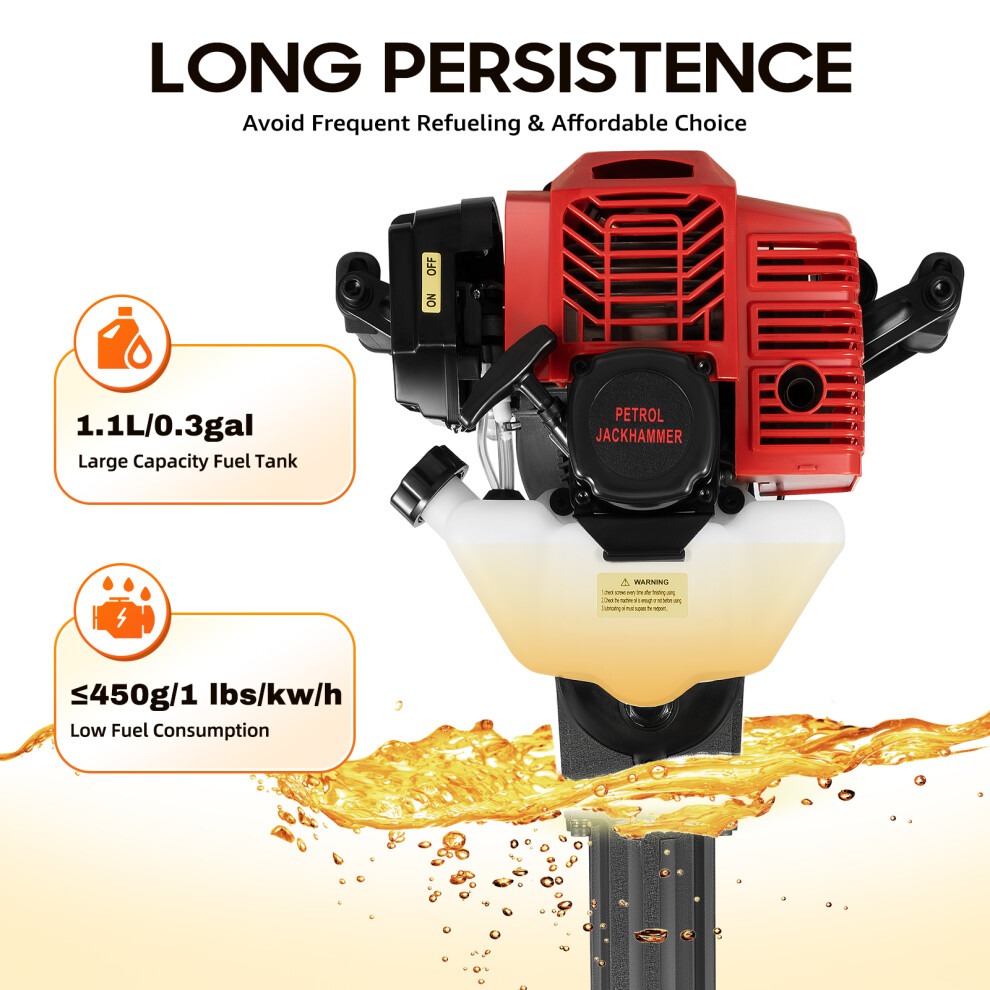

Large Fuel Tank: The large capacity (0.3gal) can prevent frequent refueling. And the clear design makes it convenient to observe the remaining fuel volume and add it in time.

Screw Fixing: This product is fixed with round screws, making it have higher sturdiness and stability.

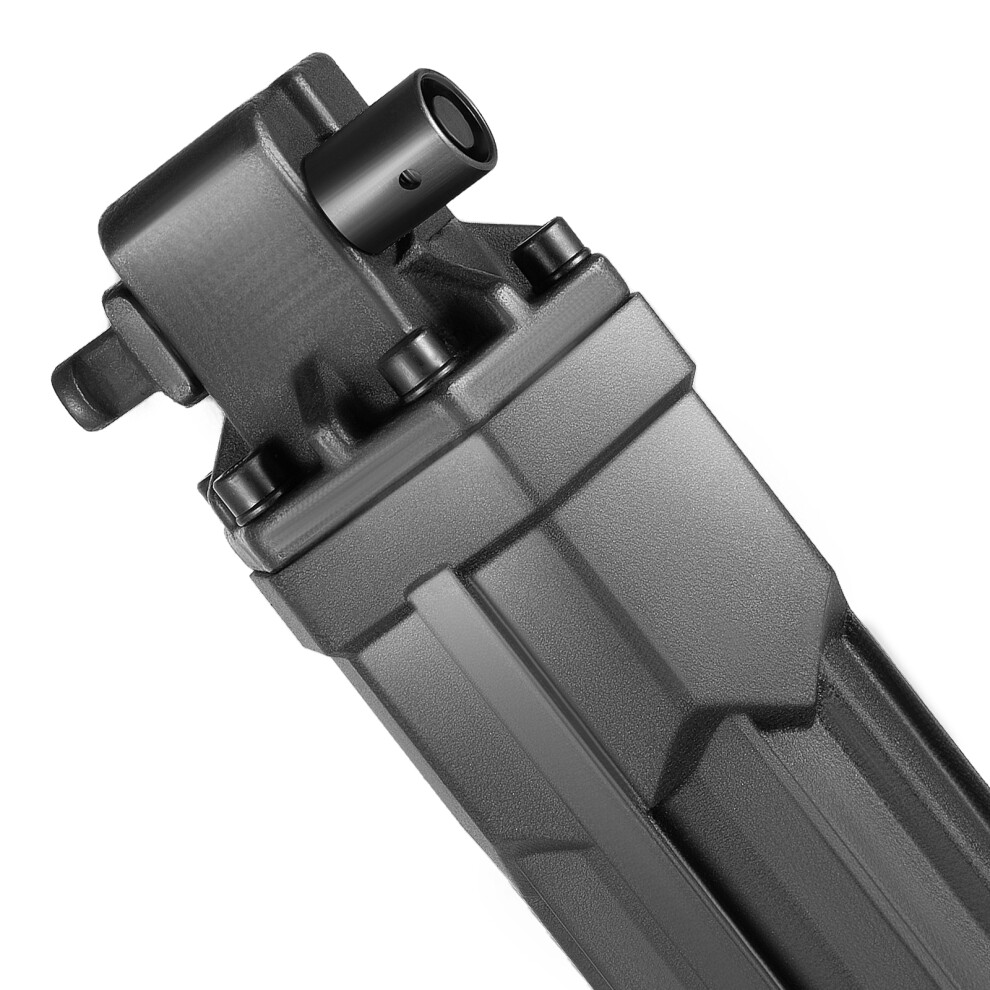

Fine Steel Collet: With a bolt, it can firmly fix the shovel and prevent it from falling.

Practical Filter: It can be placed in the funnel to filter impurities in gasoline so that the machine can obtain purer fuel to improve power.
