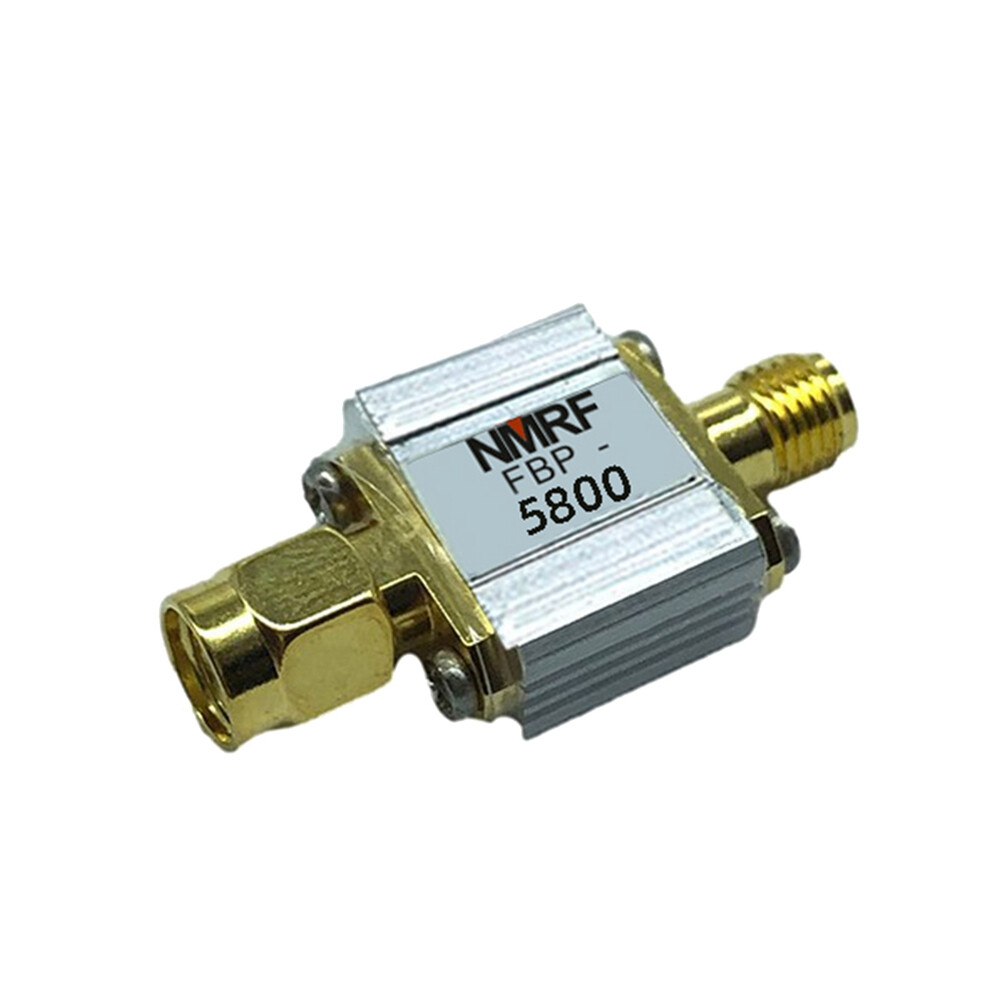

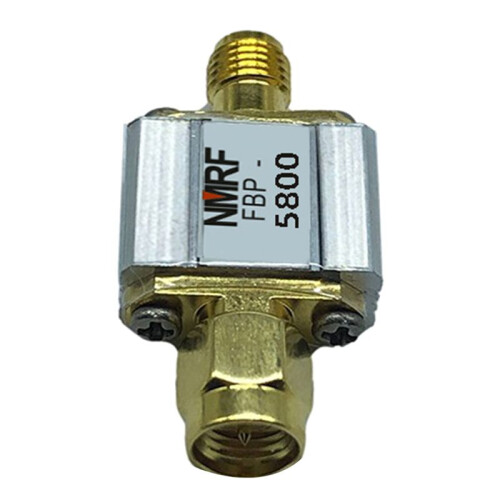

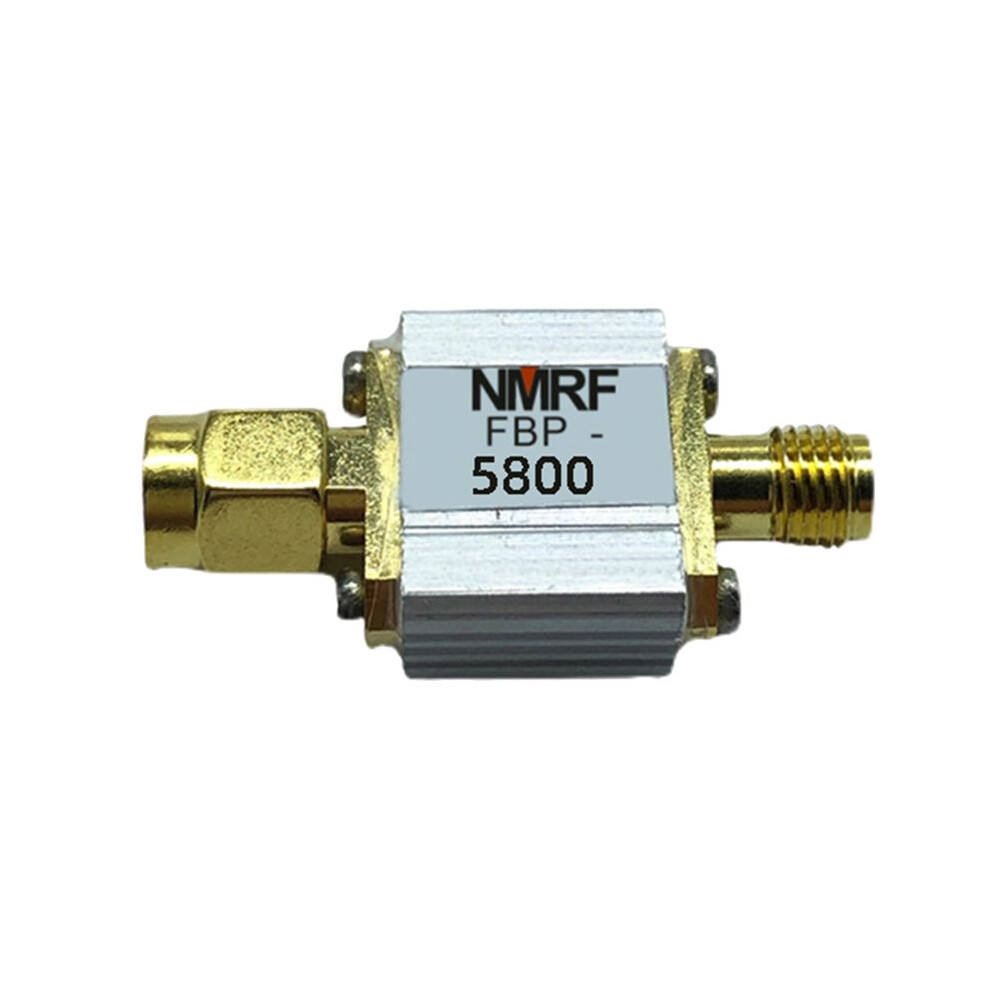

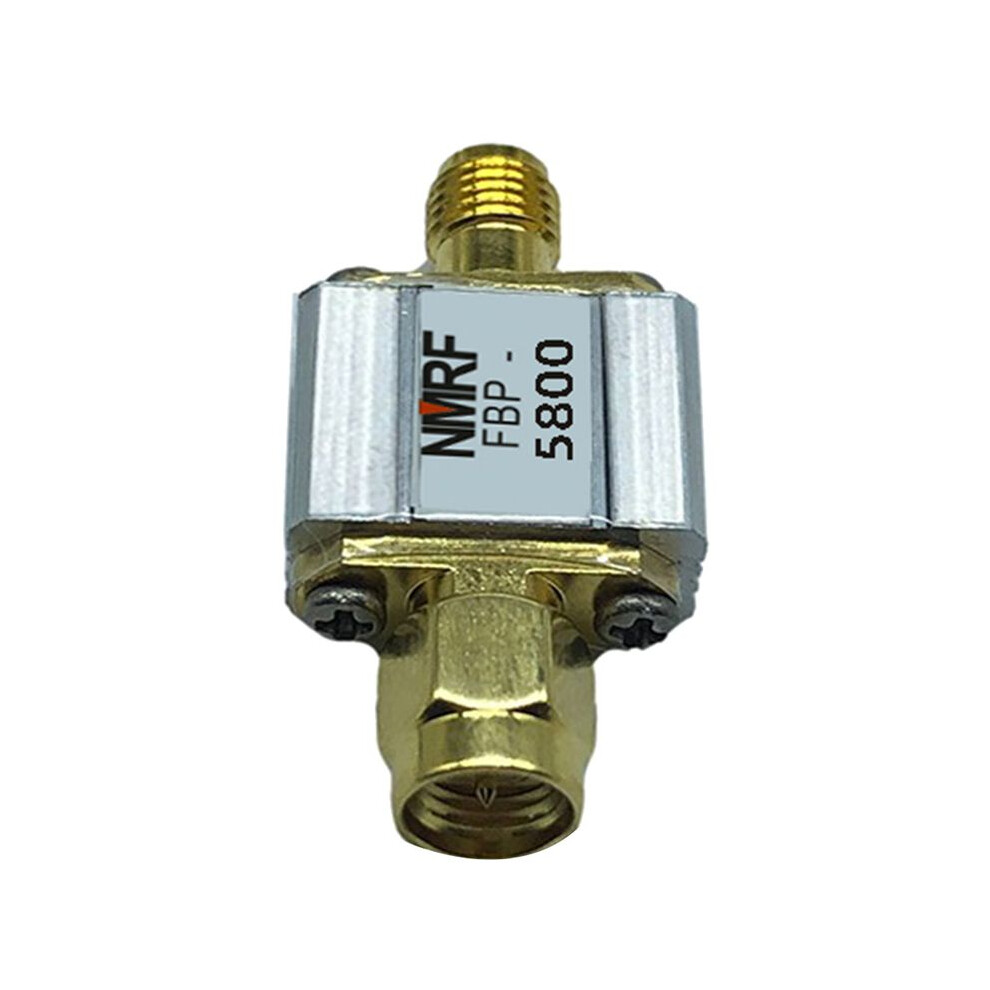

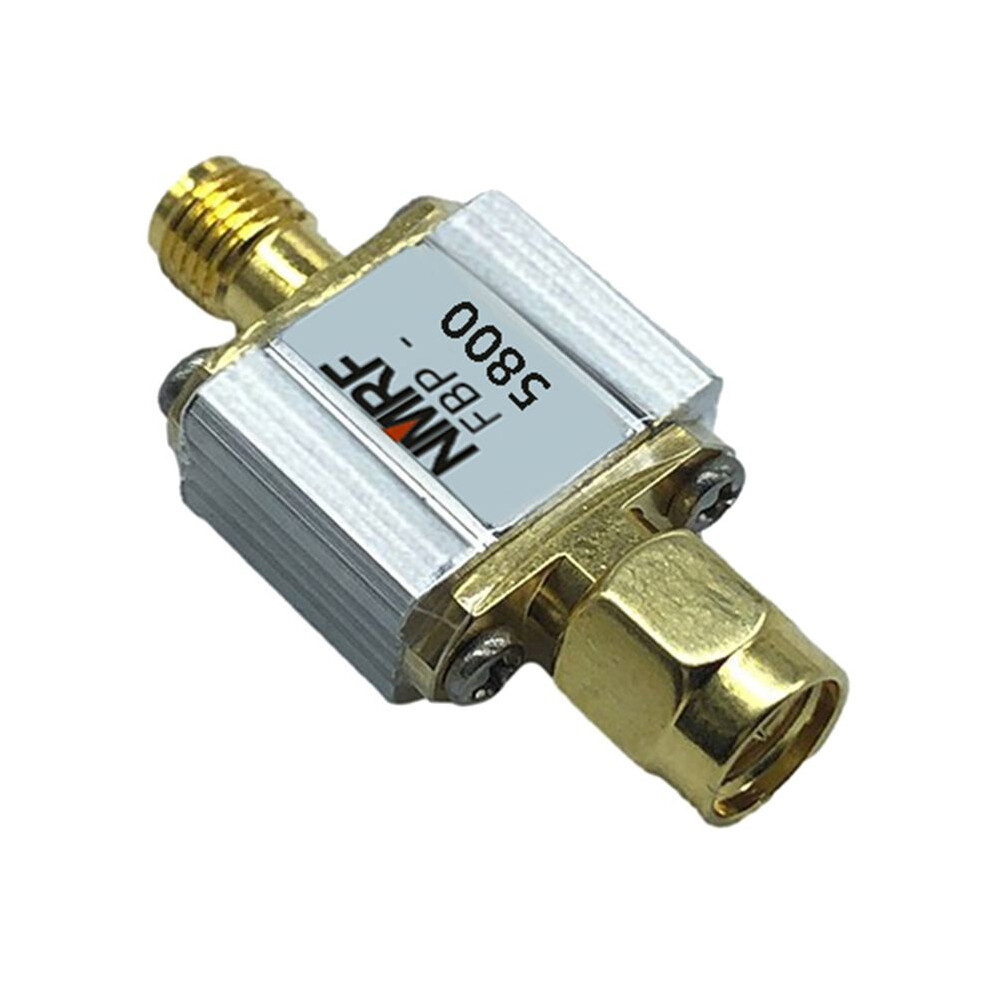

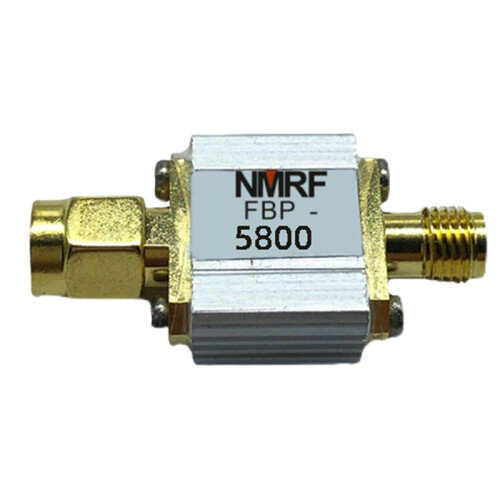

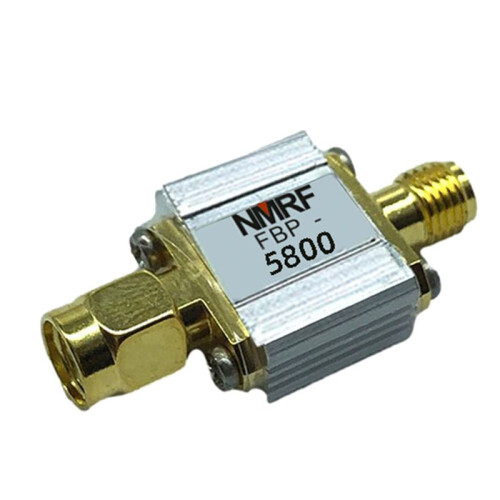

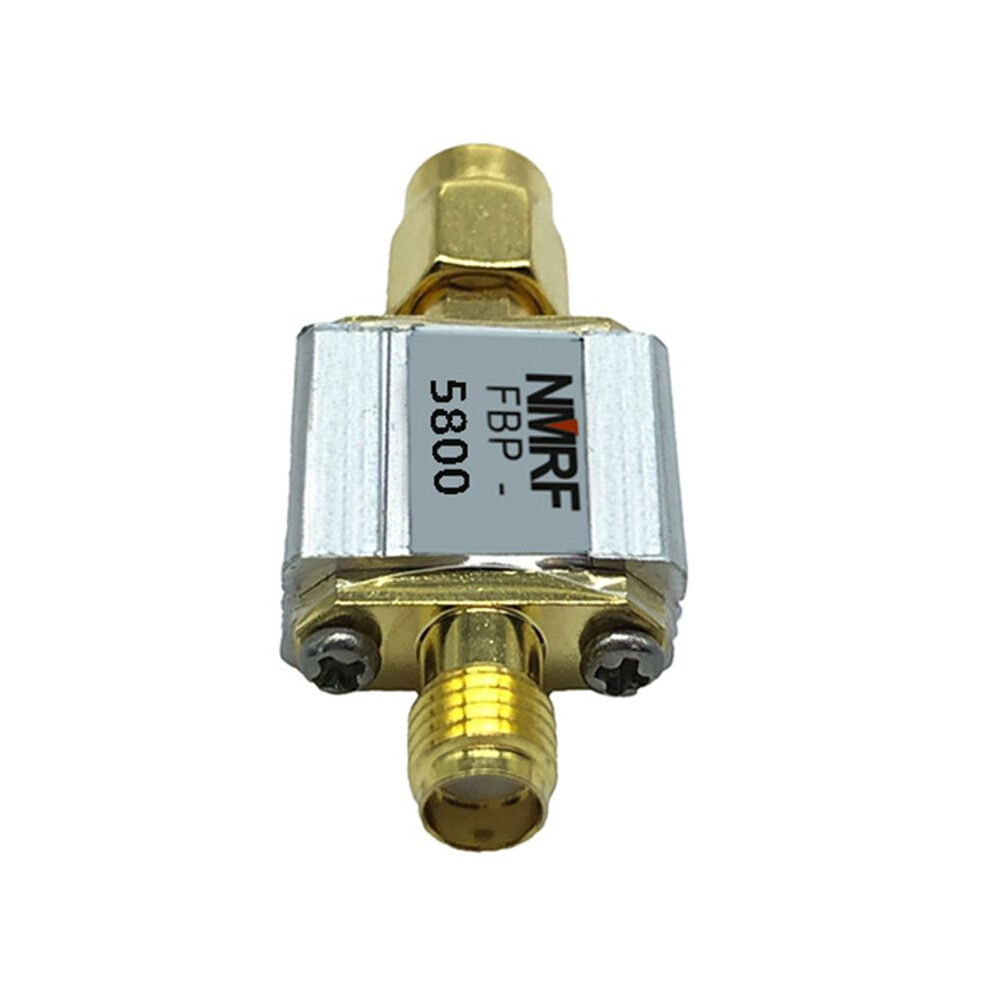

5.8G Wireless Communication System Dedicated Bandpass Filter 5800 SMA Interface

5.8G Wireless Communication System Dedicated Bandpass Filter 5800 SMA Interface Description

The center frequency of this filter is 5750MHz, and the 3 dB bandwidth is about 600MHz.
It is a multilayer thin-film circuit structure with non- cut-off characteristics.
Anti-interference and performance optimization for 5.8G WiMAX, WiFi and other wireless system receiving equipment can effectively filter out out-of-band signals, reduce noise, and increase dynamic range.

Model: FBP-5800
Impedance: 50 Ohms
Center frequency: 5750 MHz
3 dB passband: 5450 to 6100 MHz
Insertion Loss: Less than 2.5 dB @5100 ~ 6050 MHz
Maximum Carrying Power: 5 W (37 dBm)

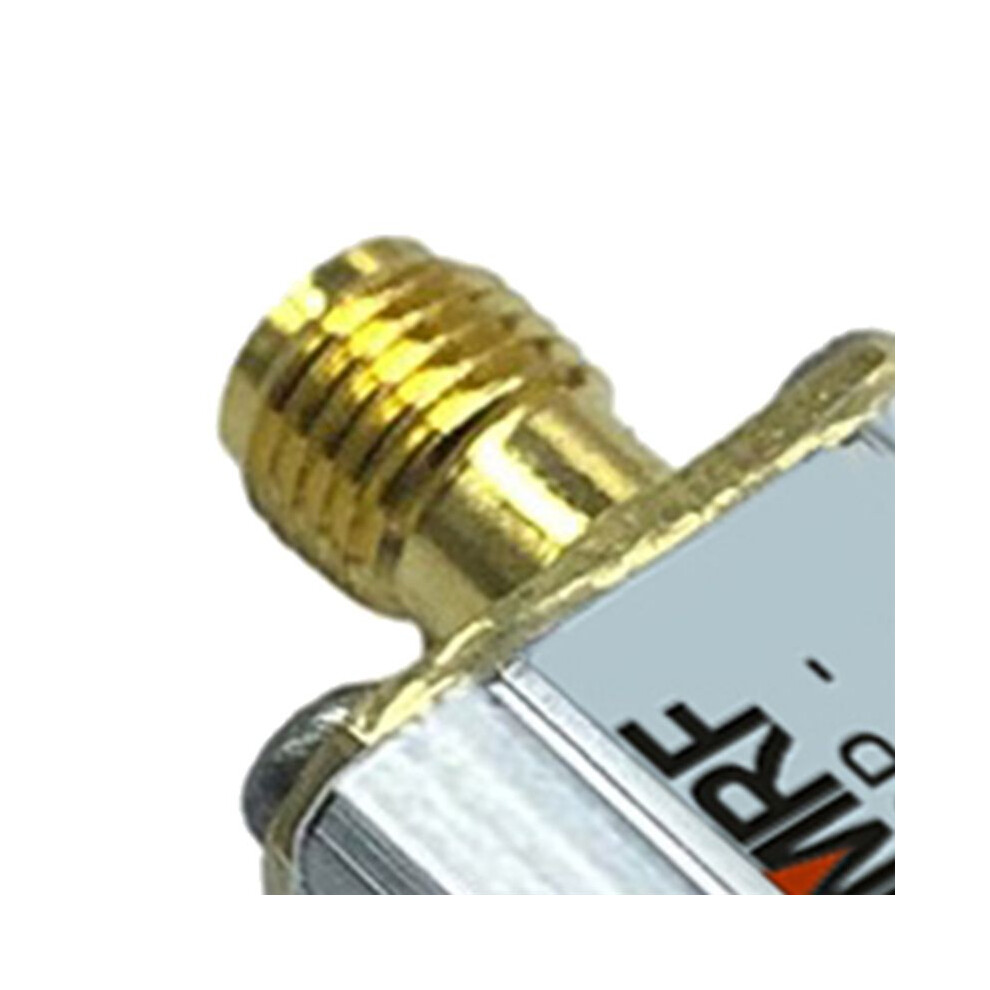

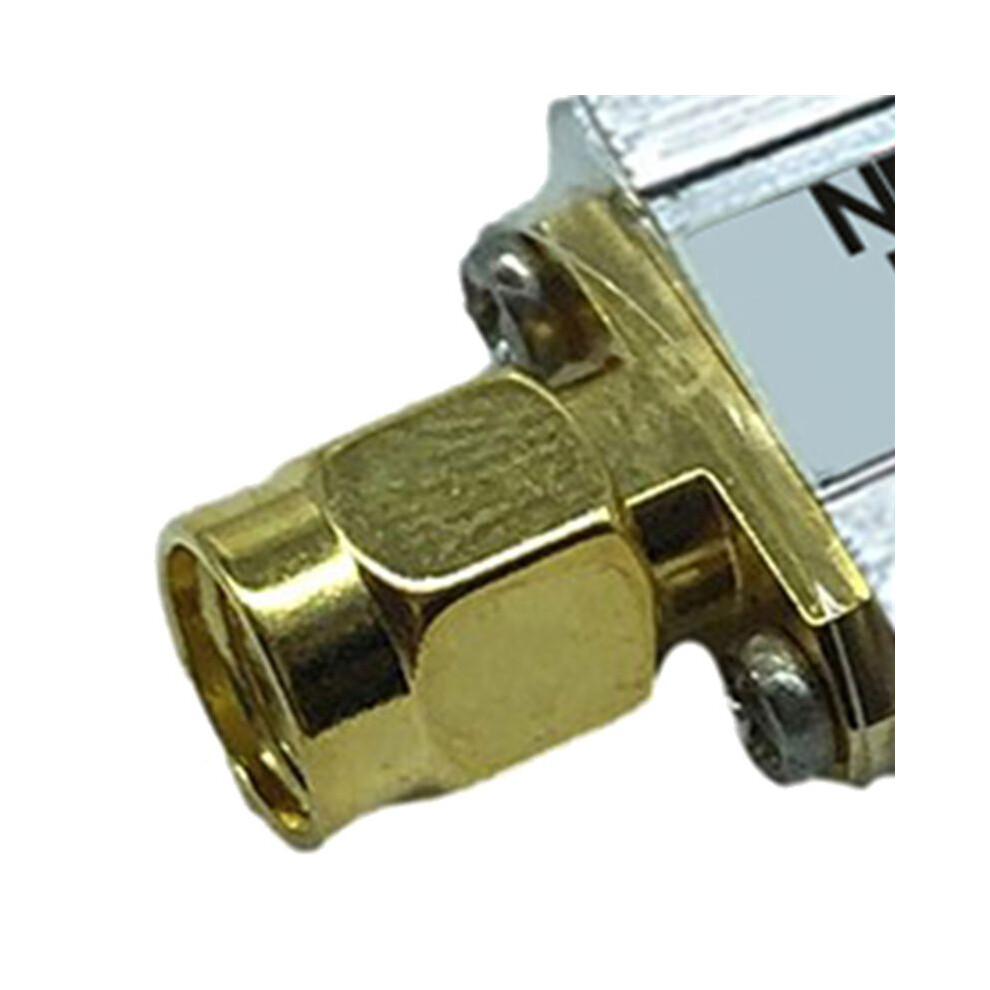

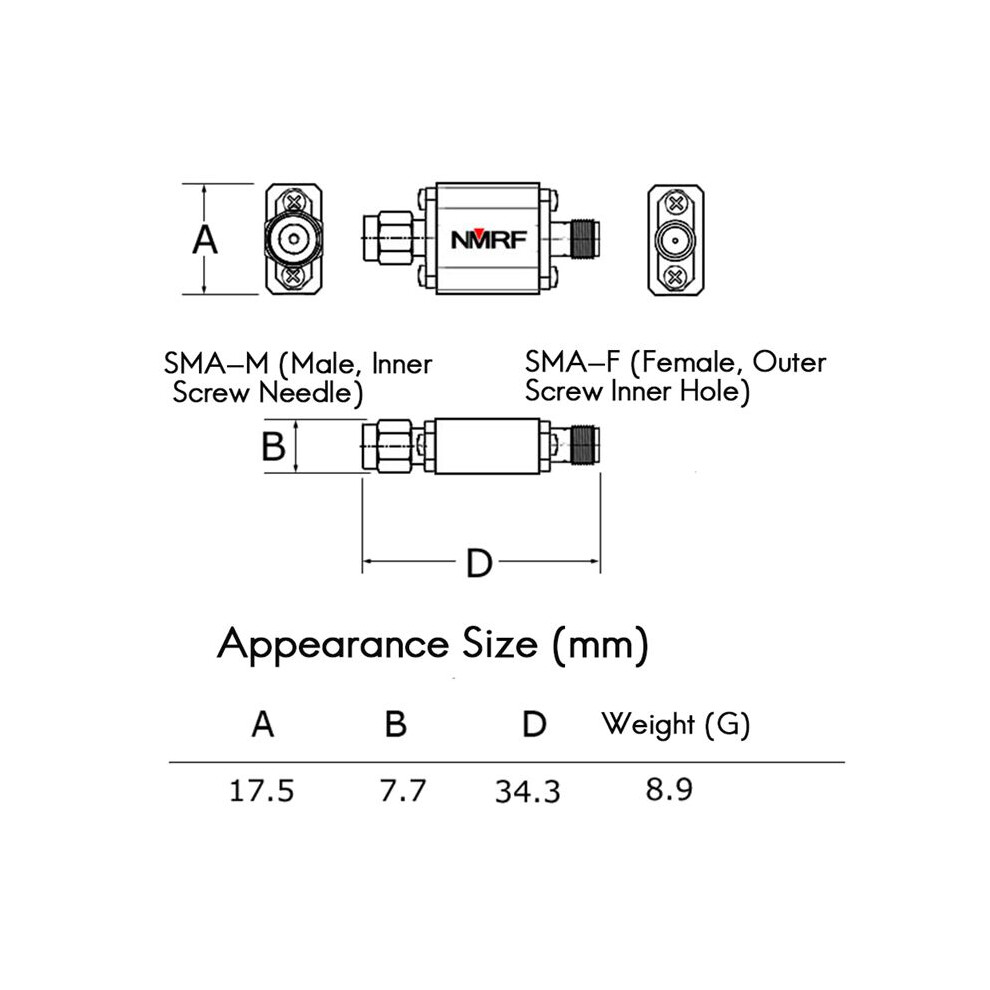

Interface: SMA-M, SMA-F ( characteristics are symmetrical at both ends, non-directional)
color:As shown
Material:Metal

Package Contents:
1 x FBP-5800 Band Pass Filter

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
