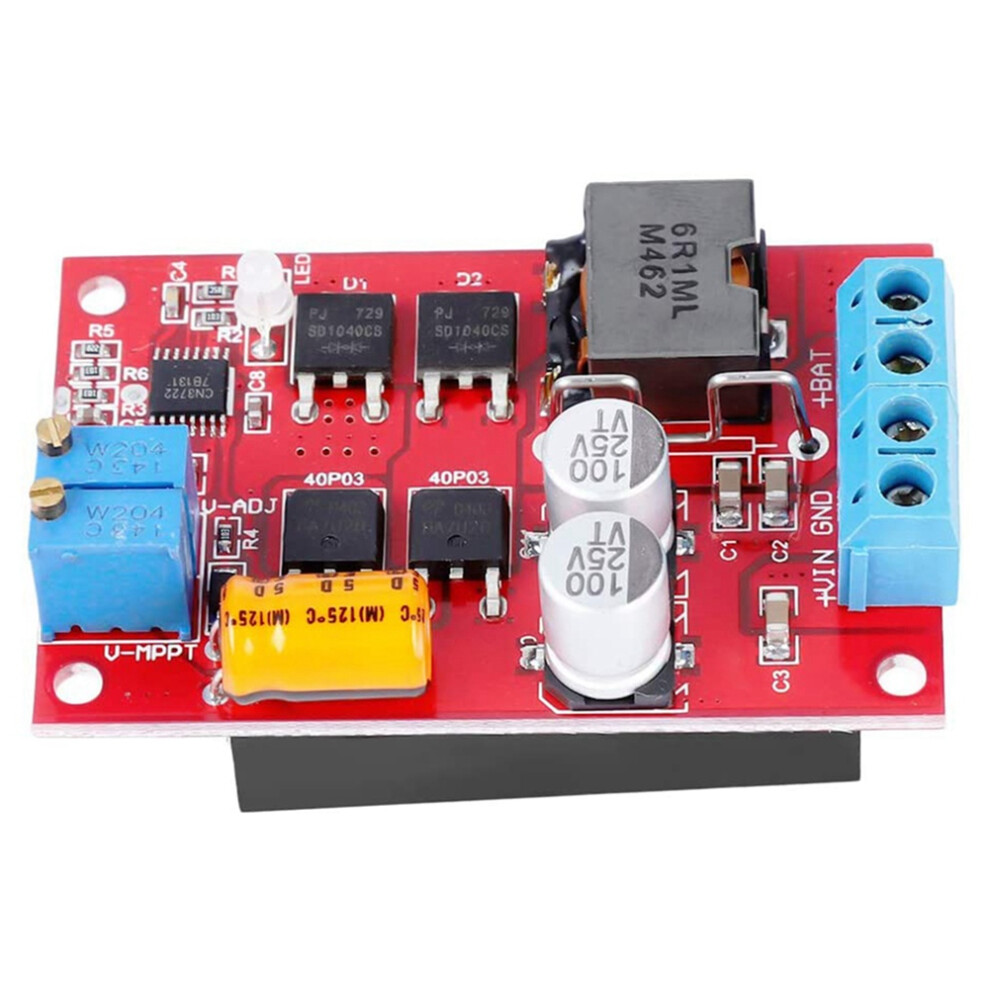

5A MPPT Solar Panel Regulator Controller Solar Charge Controller Battery Charging Module 9V 12V 18V 24V 300KHz PWM
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
£8.61
£13.68
37% off!
+£1.50 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.50) | Tue 7th - Mon 13th Jul
Returns: 30 days
180-day payment protection
Most Popular in Household Battery & Charger Sets
Description & Details
Summary
- Charge indicator: Yes. Fast charging red light long bright red and blue lights flash alternately charged. Full automatic stop.MPPT function: a. MPPT maximum power point automatic tracking, to maximize the full use of solar charging
- mppt voltage: adjustable, MPPT solar modules in different voltage is different, even mppt voltage can not tune mppt solar controller, can be called mppt it? MPPT control technology using charge sheet charging efficiency ratio control scheme in general or a DC-DC step-down power MCU + PWM lift about 30%. Make full use of solar energy, and low-power operation. Reduce power loss! MPPT function can effectively prevent the solar panels so that the charging voltage is the battery slow slow death.
- Low pressure: 1V (as is the step-down voltage regulator, the input voltage is at least higher than the output 1V)
- Low power consumption: Yes! Ultra-low pressure designed to achieve low power consumption and high efficiency, professional adaptation of solar panels
- Charging: automatic intelligent three-stage charging mode. Self-tracking solar power charge current automatically adjust the size.
5A MPPT Solar Panel Regulator Controller Solar Charge Controller Battery Charging Module 9V 12V 18V 24V 300KHz PWM Description
Charge indicator: Yes. Fast charging red light long bright red and lights flash alternately charged. Full automatic stop.MPPT function: a. MPPT maximum power point automatic tracking, to maximize the full use of solar charging
mppt voltage: adjustable, MPPT solar modules in different voltage is different, even mppt voltage can not tune mppt solar controller, can be called mppt it? MPPT control technology using charge sheet charging efficiency ratio control scheme in general or a - step-down power MCU + PWM lift about 30%. Make full use of solar , and low-power operation. Reduce power loss! MPPT function can effectively prevent the solar panels so that the charging voltage is the battery slow slow death.
Low pressure: 1V (as is the step-down voltage regulator, the input voltage is at least higher than the output 1V)
Low power consumption: Yes! Ultra-low pressure designed to achieve low power consumption and high efficiency, professional adaptation of solar panels
Charging: automatic intelligent three-stage charging mode. Self-tracking solar power charge current automatically adjust the size.
parameters:
The modular nature: a real MPPT solar maximum power point tracking, automatic intelligent charge management, low power consumption
Input voltage: 8-28V input voltage. (Prohibition AC input)
Output voltage: 5-26V stepless transmission For lower output voltage, please contact the owner.
6V battery can be charged either 12 or 8.4V, 12.6V, 16.8V lithium battery
7.2V, 10.8V, 14.4V lithium iron phosphate battery
2-4 string lithium batteries, lithium iron phosphate charge management board
Operating temperature: Industrial grade (-40 to +85)
Load regulation: 1%
Voltage regulation: 0.5%
Conversion efficiency: Max: 93% : 95% for different lighting conditions vary.
No-load current: 3MA even weak morning sunlight can ea
Details
| OPC | PQNMJR8 |
|---|---|
| Codes | 6032169472880 (EAN) |
| Links | 12v Household Batteries |
| 9v Household Batteries |
Product Data
| Height | 3cm |
|---|---|
| Width | 4cm |
| Length | 6cm |
| Weight | 0.0405kg |
| Colour | Red |
| Material | plastic |
