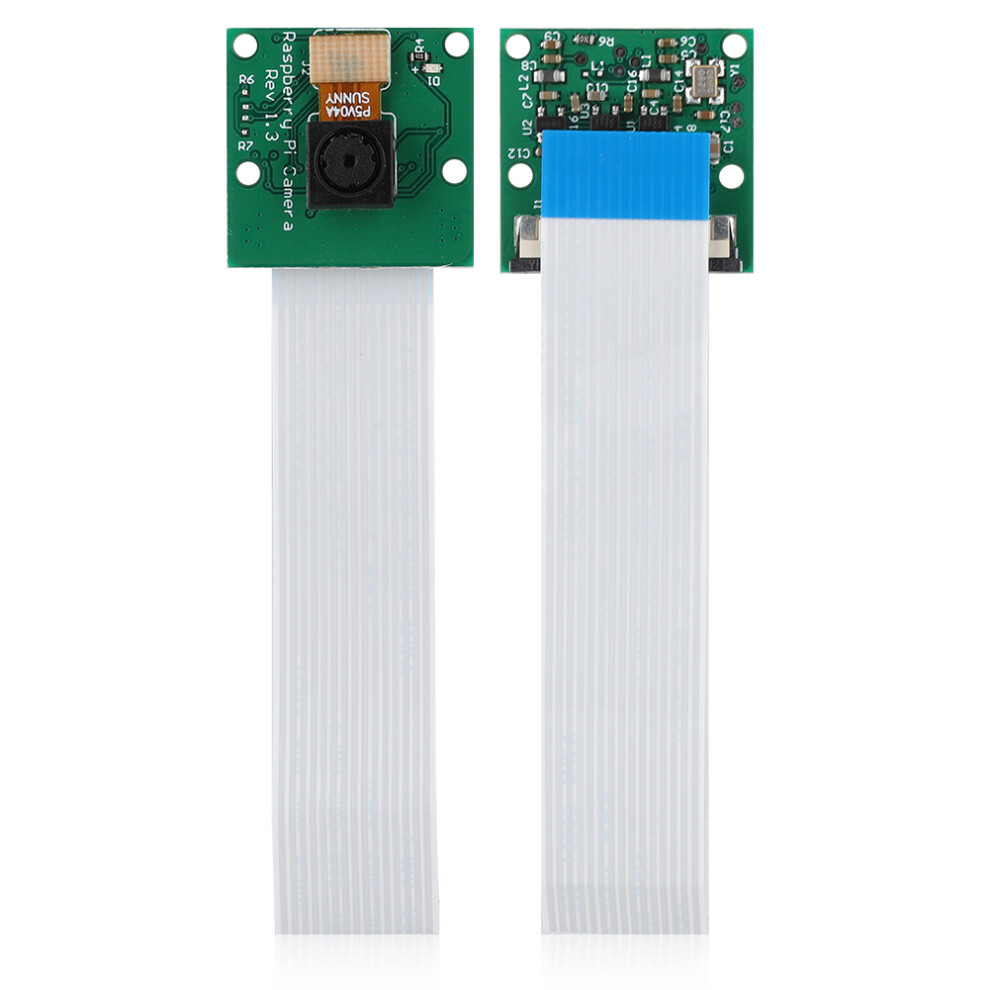

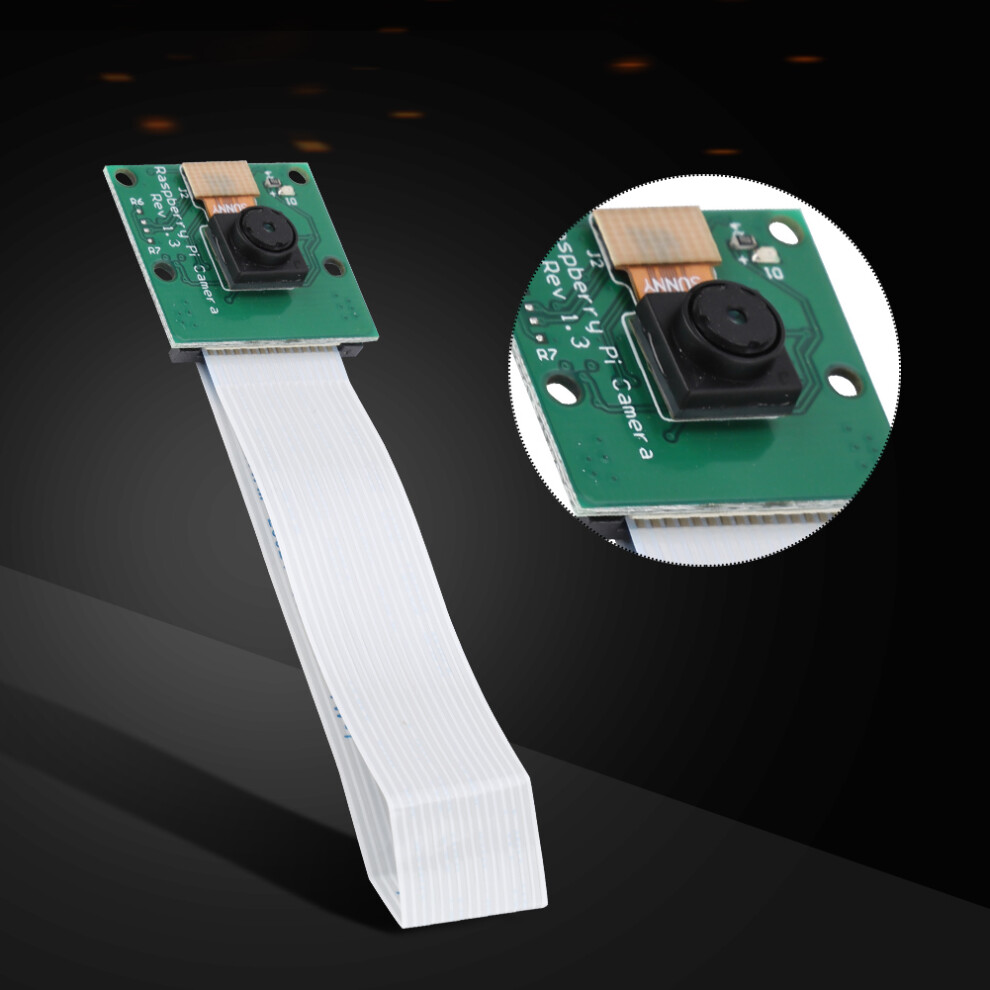

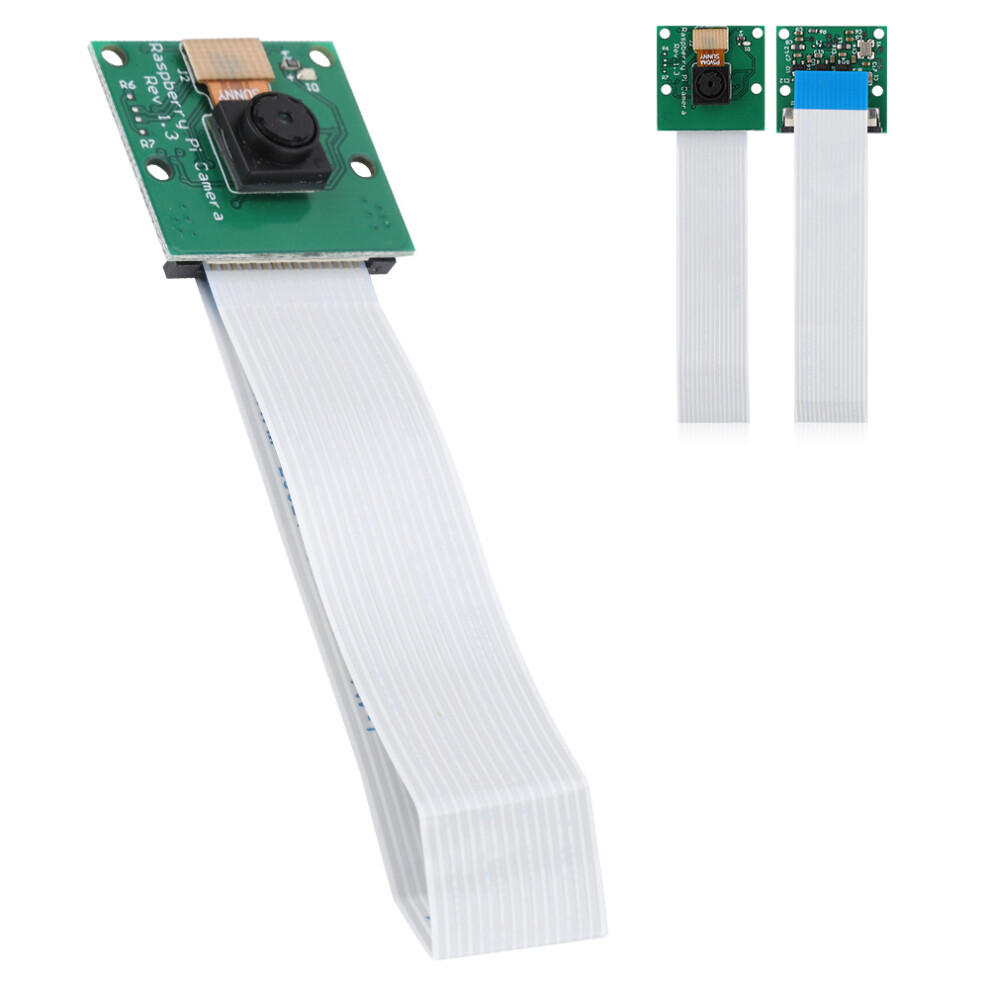

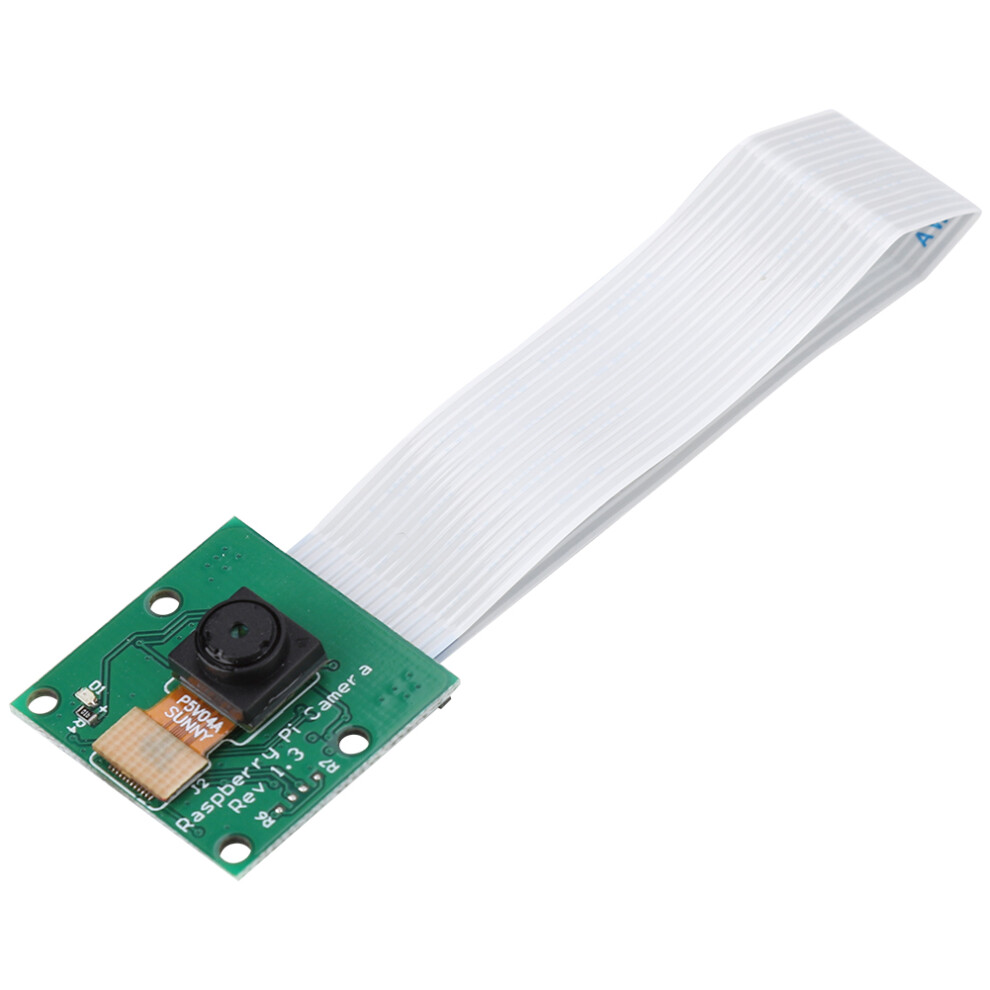

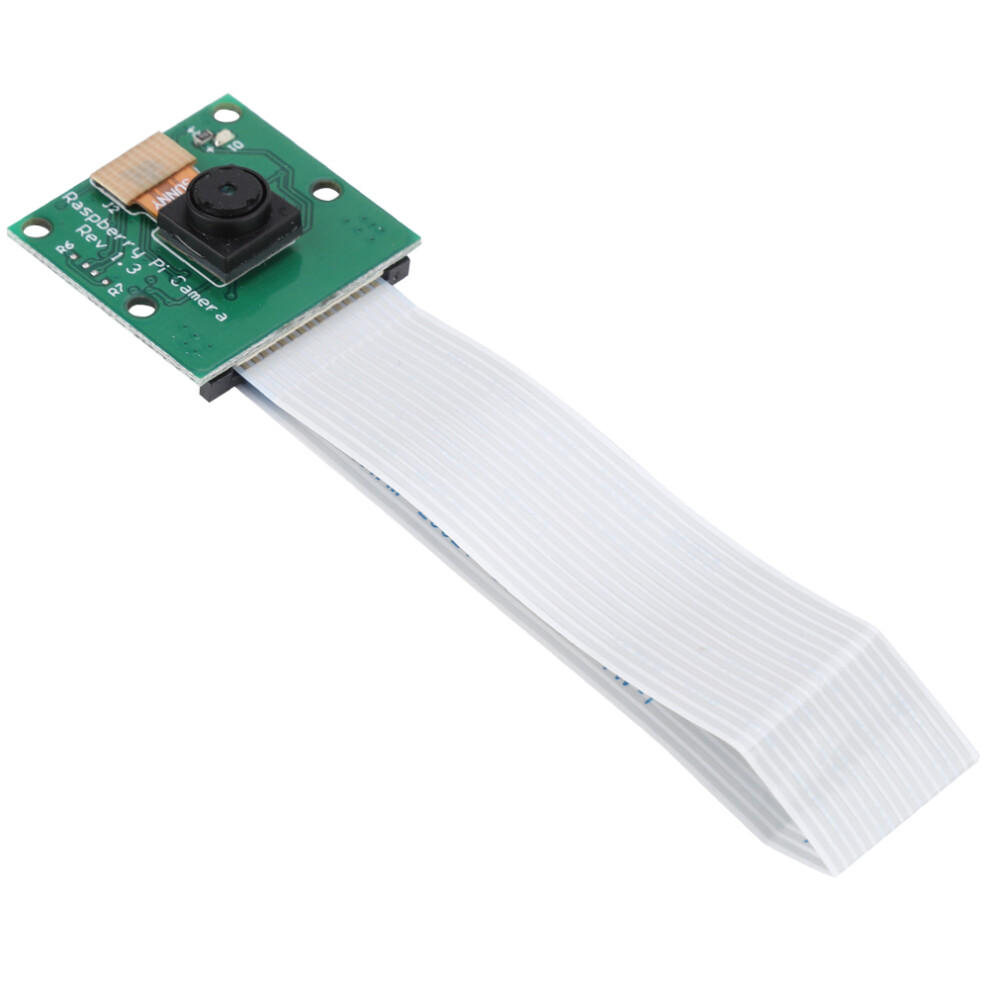

5MP CSI Camera Module for Raspberry Pi 3/2B – 640x480, 25 FOV, Compact

5MP CSI Camera Module for Raspberry Pi 3/2B – 640x480, 25 FOV, Compact Description

5 Megapixel CSI Interface Camera Standard Camera for Raspberry Pi 3 2b Raspberry Pi Camera
Features:

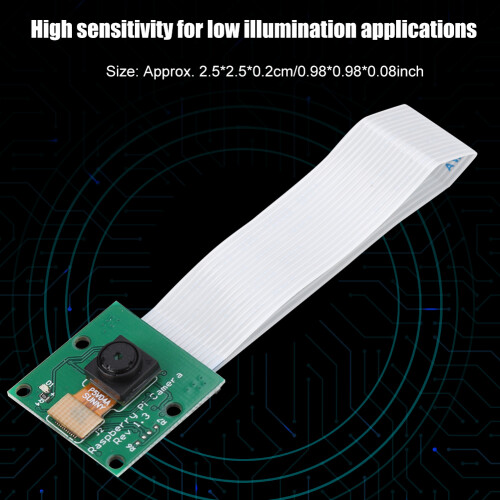

1. High sensitivity for low illumination applications.

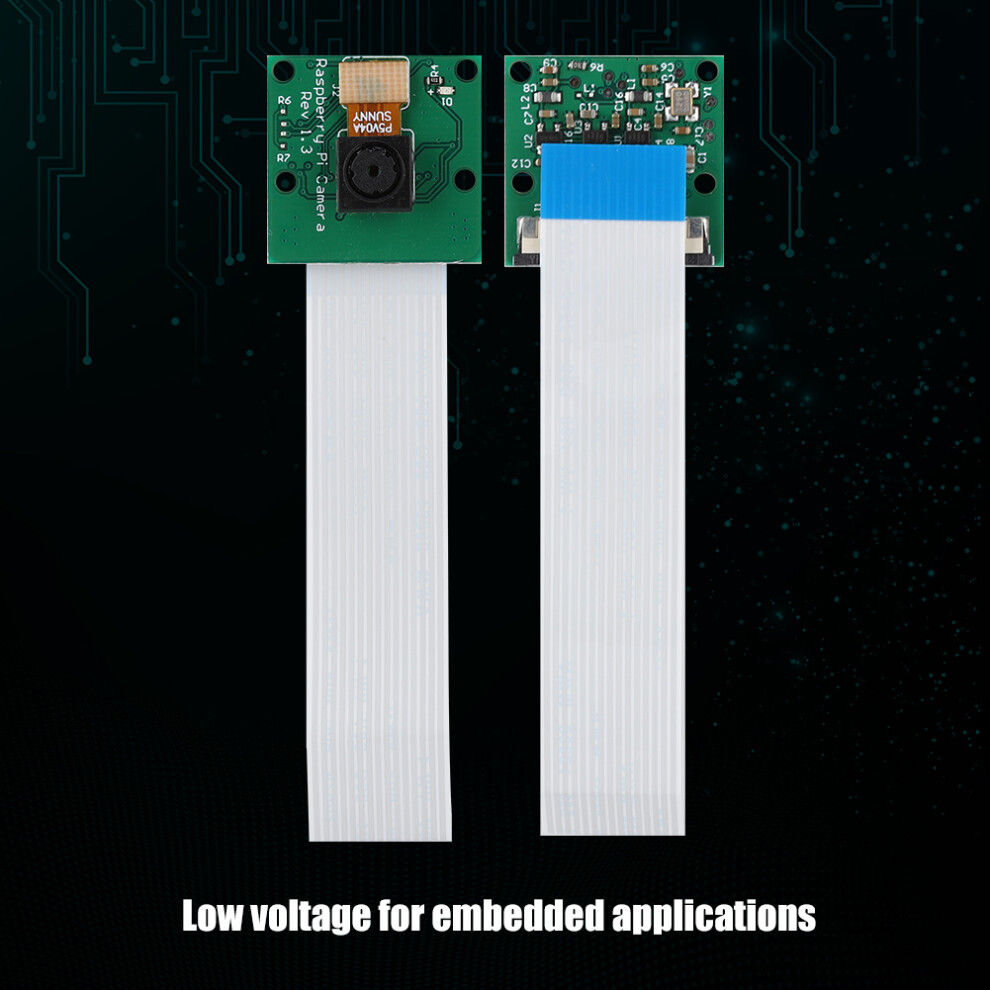

2. Low voltage for embedded applications.

3. Standard SCCB interface, compatible with I2C interface.

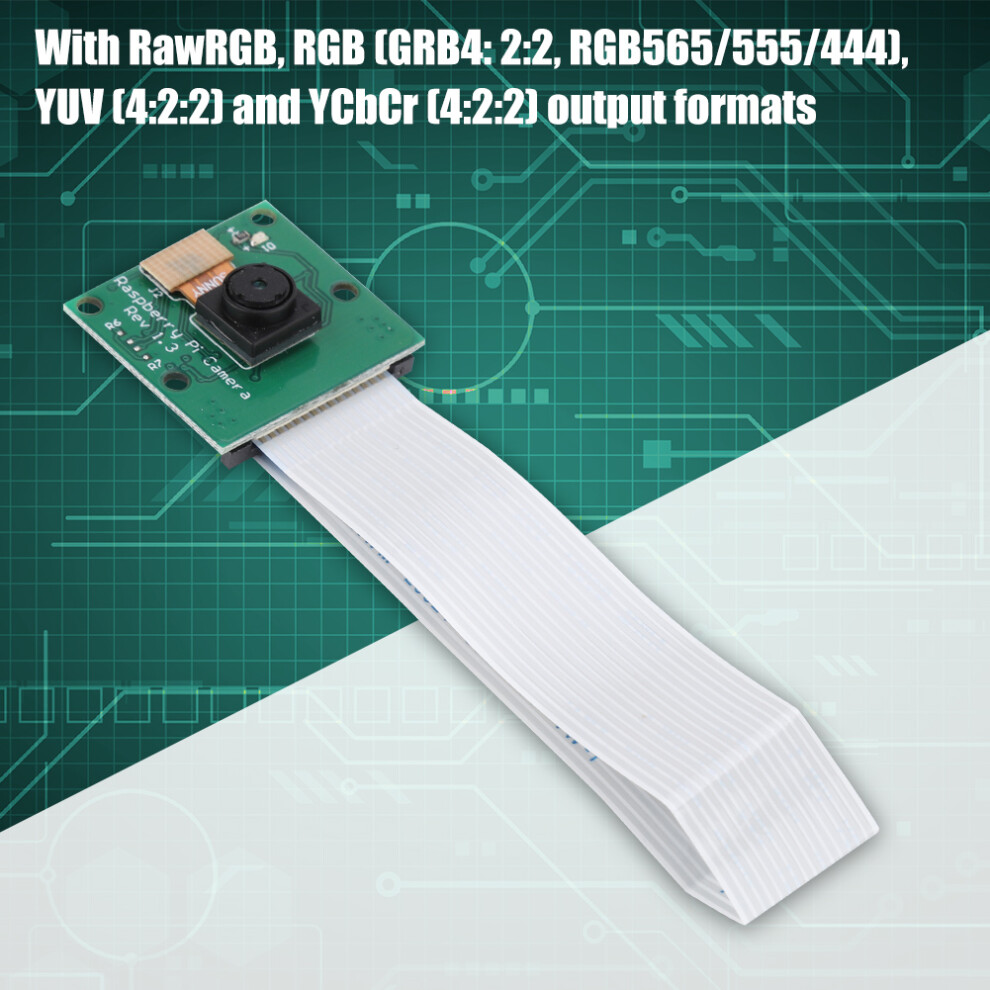

4. With RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats.

5. Support VGA, CIF, and various sizes from CIF to 40x30.

6. Adopt VarioPixel subsampling method.

7. Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI.

8. Saturation automatic adjustment (UV adjustment).

9. Edge enhancement automatically adjusts BLOOM.

10. ISP has the function of eliminating noise and dead pixels.

11. Support image scaling. Lens loss compensation.

12. 50/60Hz automatic detection. Automatic noise reduction.


Specifications:

Photosensitive array: 640X480

IO voltage: 2.5V to 3.0V (internal LDO supplies 1.8V to the core)

Power consumption: 60mW/15fpsVGAYUV

Sleep: <20μA

Temperature operation: -30to 70

Stable operation: 0to 50

Output format (8-bit): YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data

Optical size: 1/6"

Field of view: 25

Maximum conversion rate: 30fps VGA

Sensitivity: 1.3V/(Lux-sec)

Noise ratio: 46 dB

Dynamic range: 52dB letter

Browse mode:  line-by-line

Electronic exposure: 1 line to 510 lines

Pixel area: 3.6μm x 3.6μm

Dark current: 12 mV/s at 60

Size: Approx. 2.5*2.5*0.2cm/0.98*0.98*0.08inch


Package List:

1 * Module
