5pcs M18 Bluetooth Audio Receiver Module Lossless Car Speaker Headphone Amplifier Board Wireless Refit

5pcs M18 Bluetooth Audio Receiver Module Lossless Car Speaker Headphone Amplifier Board Wireless Refit Description

Specification:
Bluetooth version: bluetooch V4.2
Support Bluetooth protocol: HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2.
Format support: Support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo two-channel output.
Operating Voltage: 5V/3.7V-4.2V.
Broadcast status not connected: 5.5MA.
Connection working status: 20MA.
Deep sleeping: 3UA.
Transmission distance: 20 meters (empty or low interference environment).
Operating temperature: -40C to +85C.
Sensitivity: -87dbm.

Introduction:

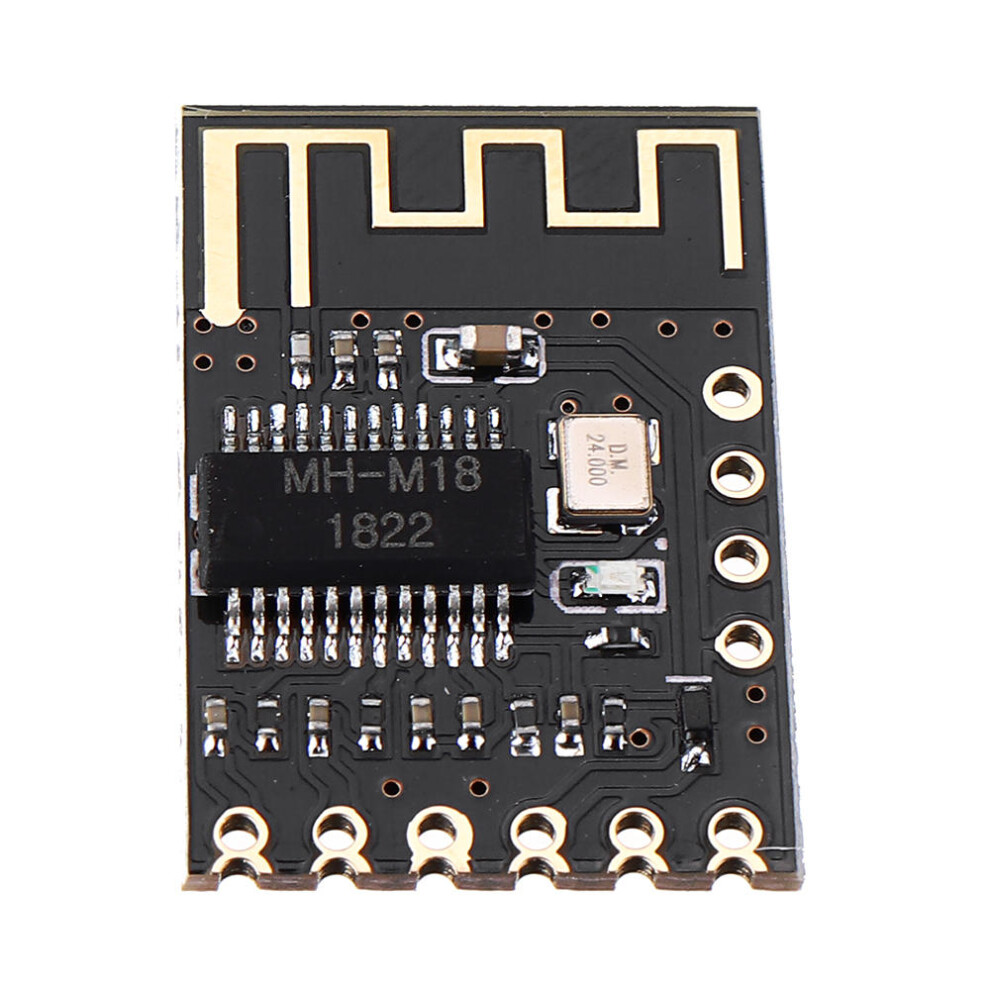

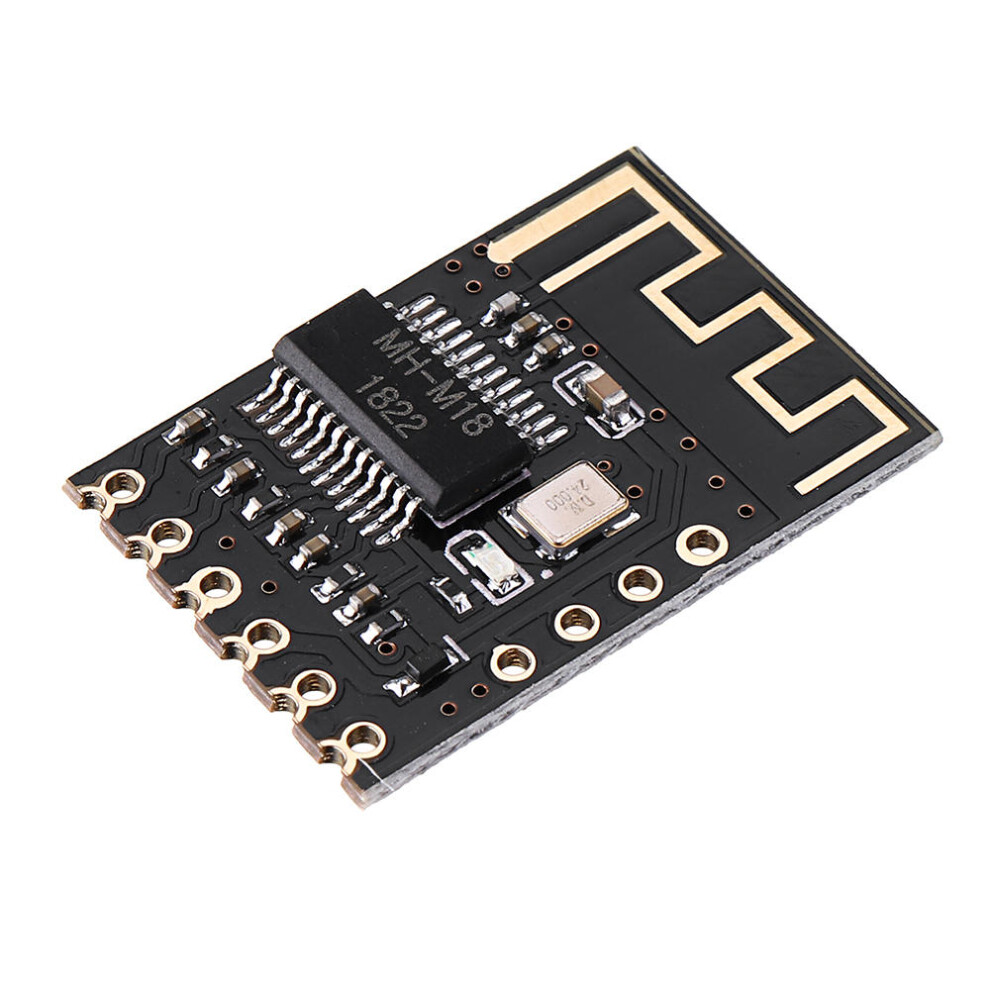

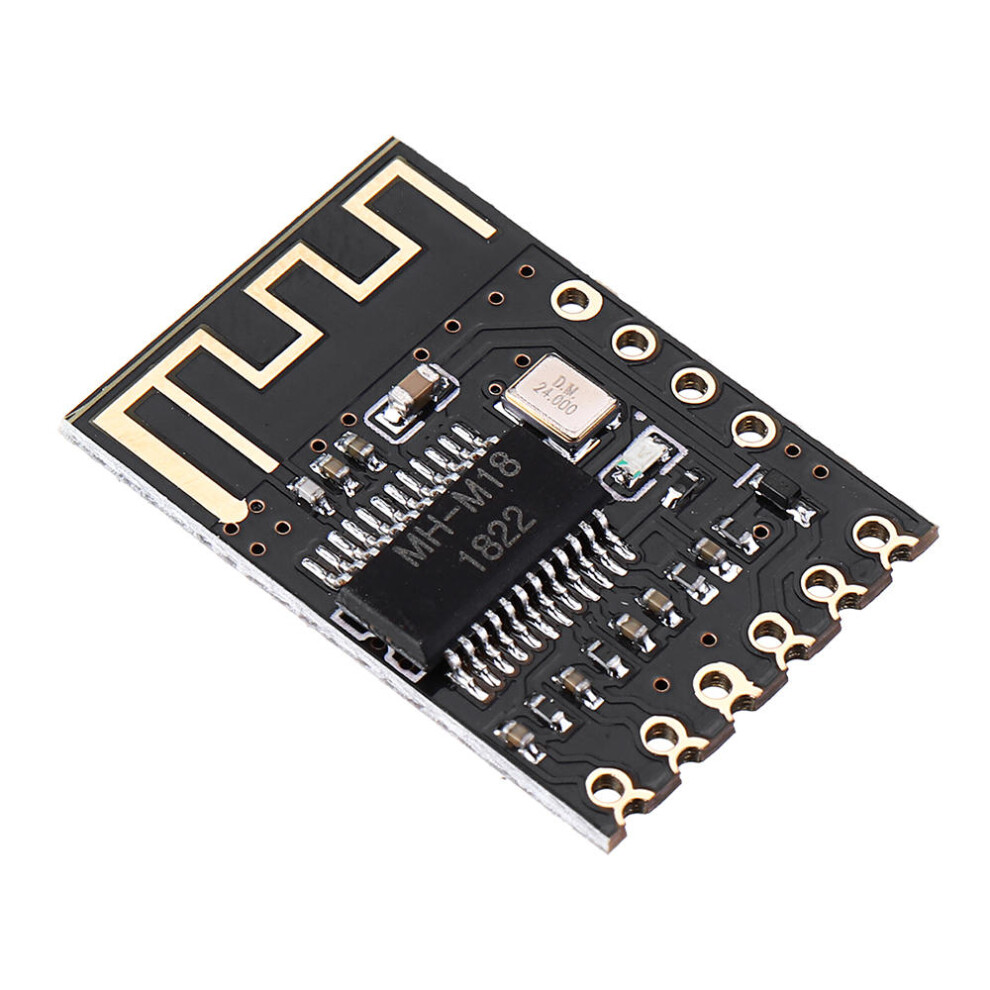

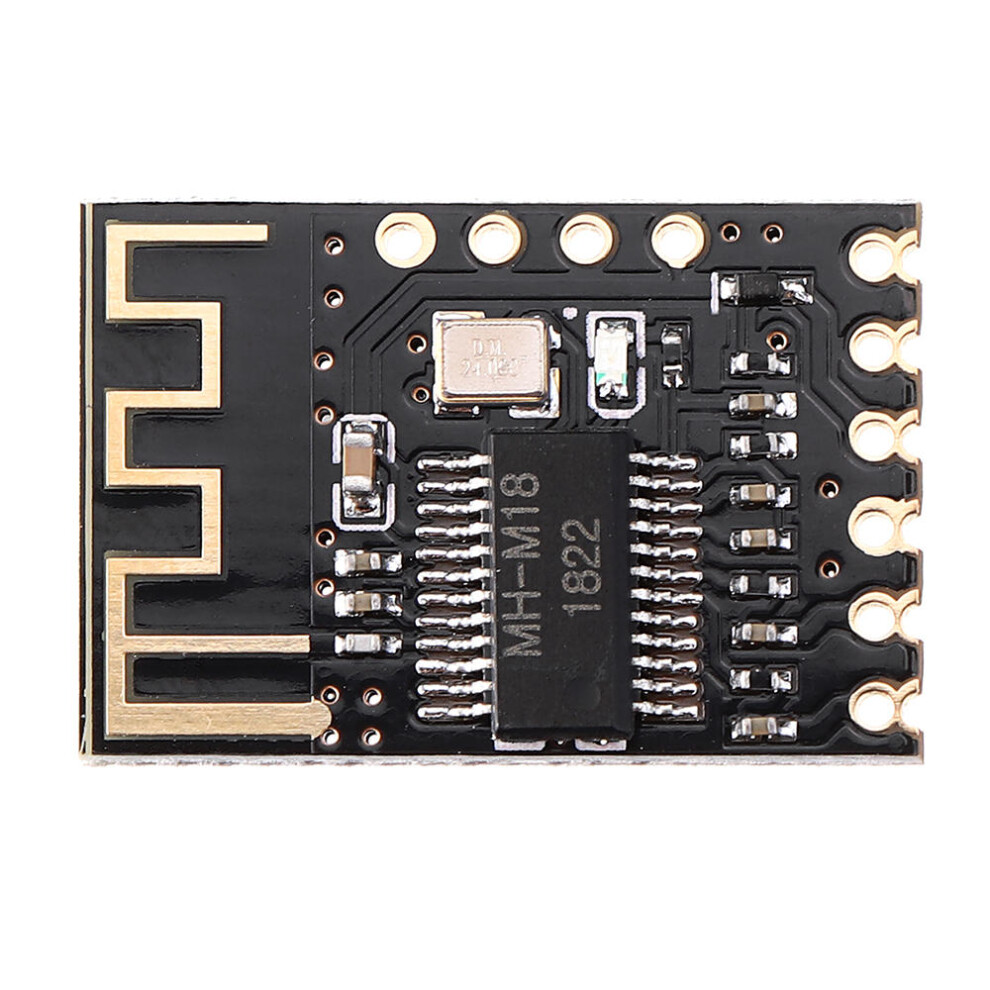

This product MH-M18 is a low-power Bluetooth design solution, supporting the latest Bluetooth 4.2 transmission, two-channel stereo lossless playback, Bluetooth connection after the module is connected to Bluetooth, very convenient. In an open environment, the Bluetooth connection distance can be up to 20 meters.
Widely used in a variety of Bluetooth audio reception, a variety of audio DIY modification.

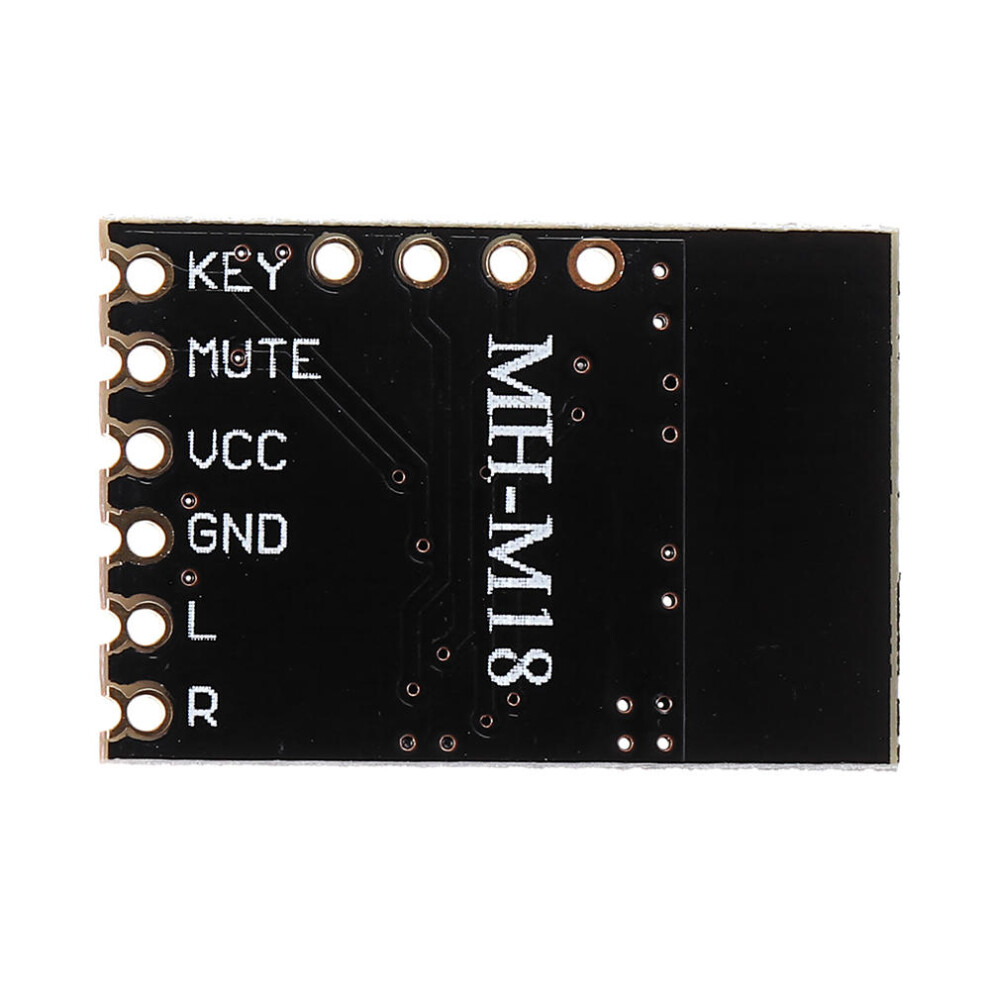

Description:
KEY: Button control terminal (4 button functions, additional resistors such as wiring diagram).
MUTE: Mute control terminal (output high level 3.3V when muting, output low level during playback).
VCC: Positive power supply 5V (lithium battery 3.7V power supply requires short circuit diode).
GND: Power negative / audio signal ground.
L: Left channel output.
R: Right channel output.

Function Description:
Bluetooth V4.2 version, supports Bluetooth automatic connection technology, supports WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.
After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18/MH-M28/MH-M38, and can play music after connecting Bluetooth.

Package includes:
5 x M18 Module
