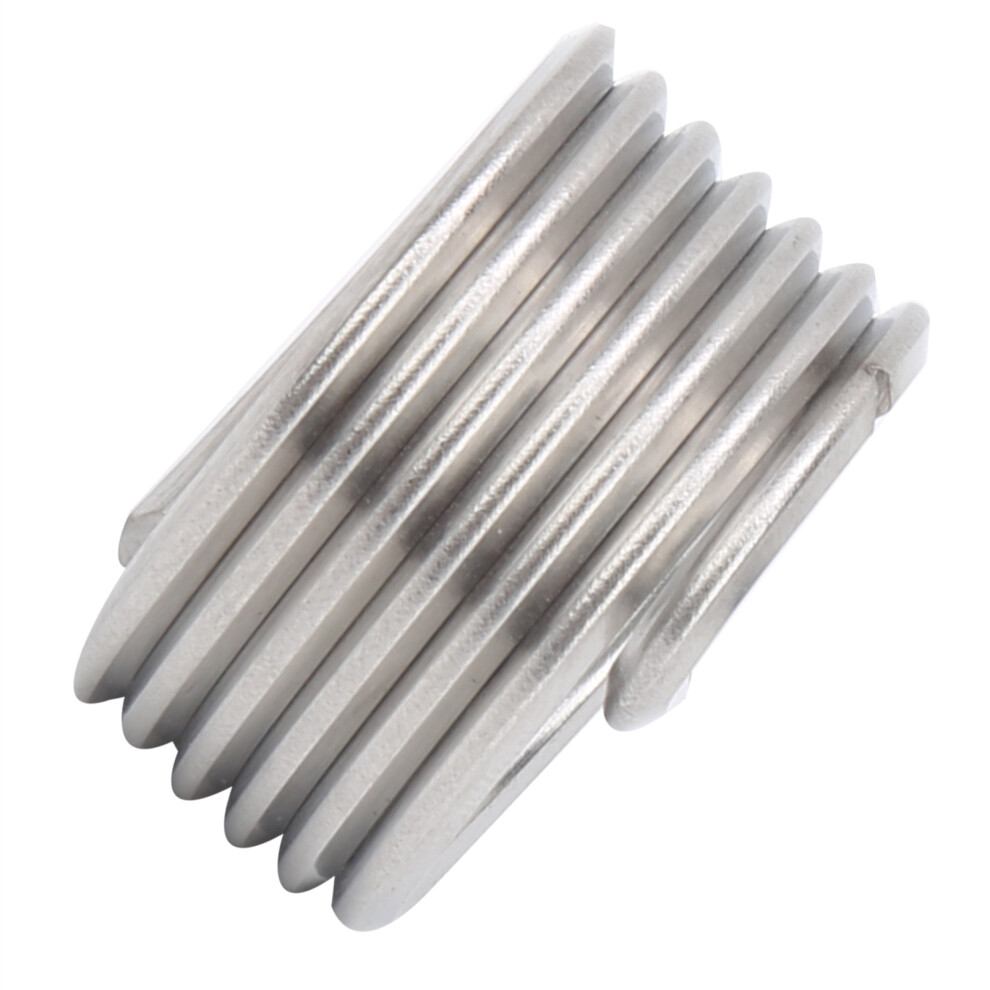

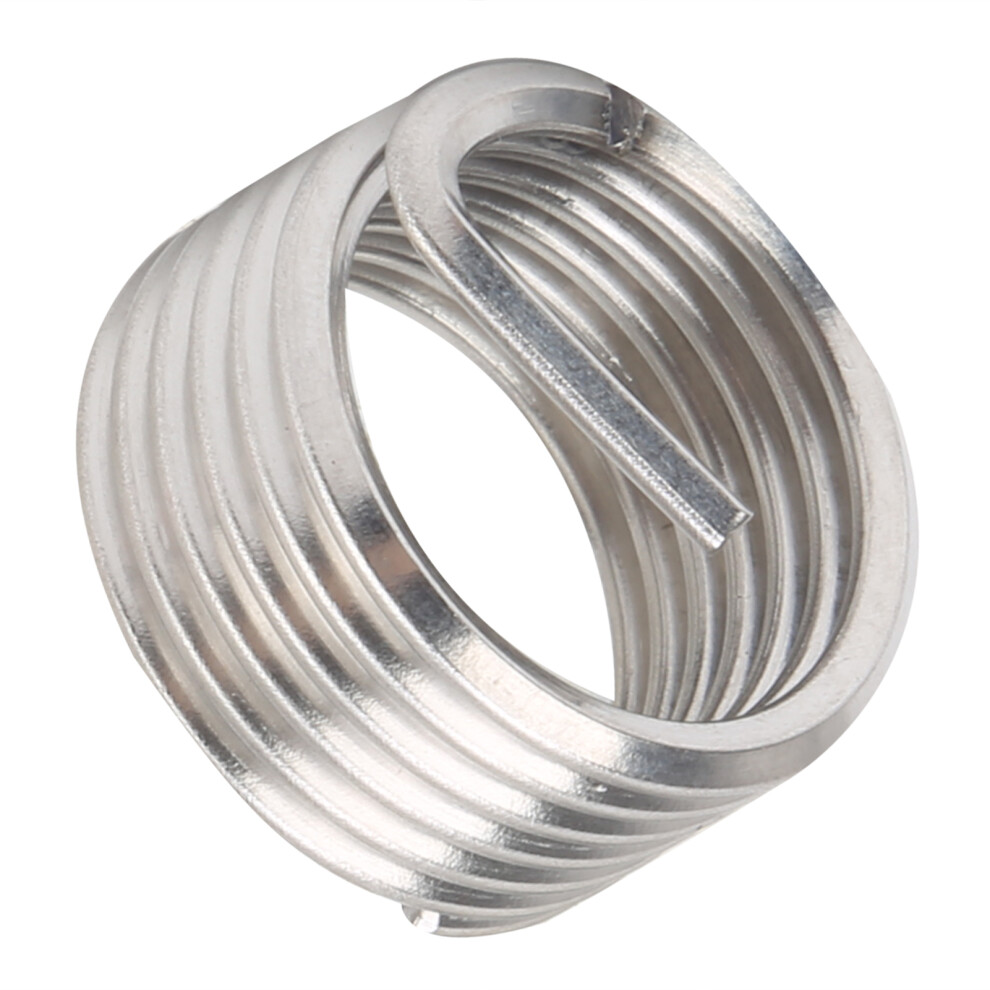

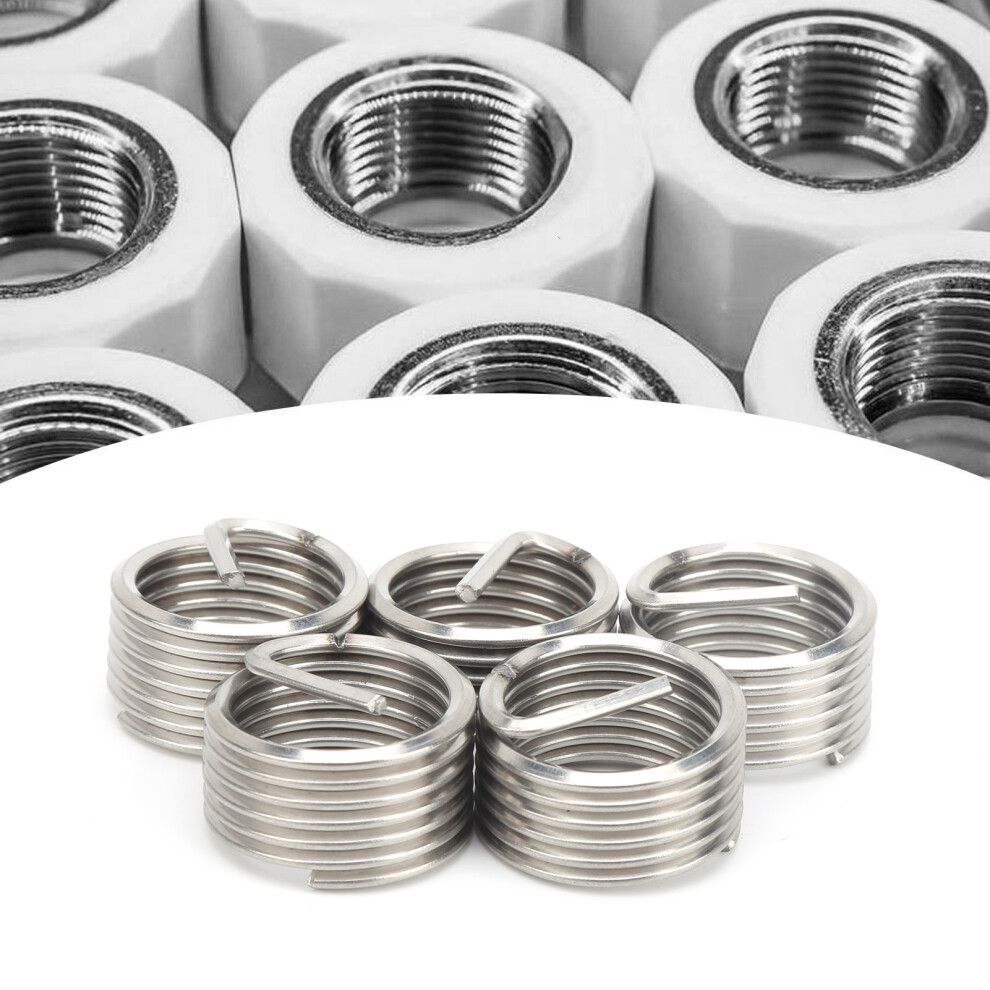

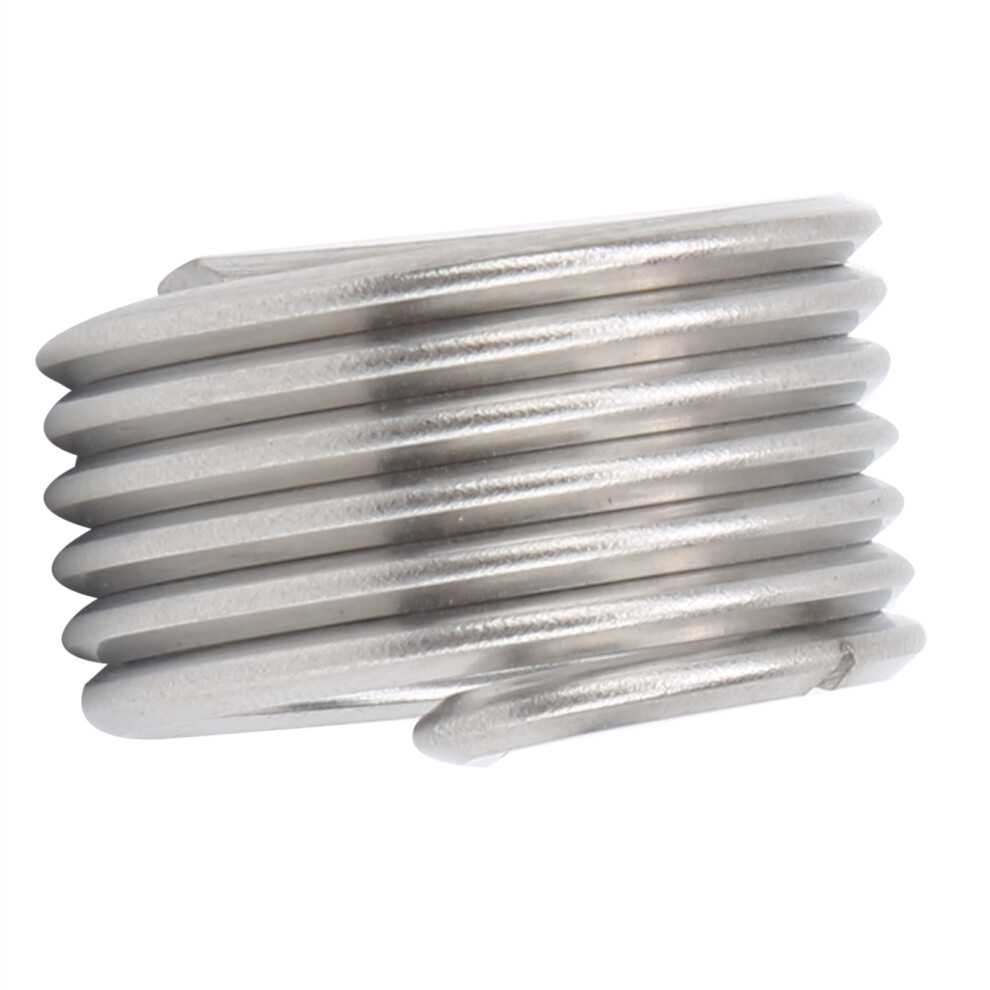

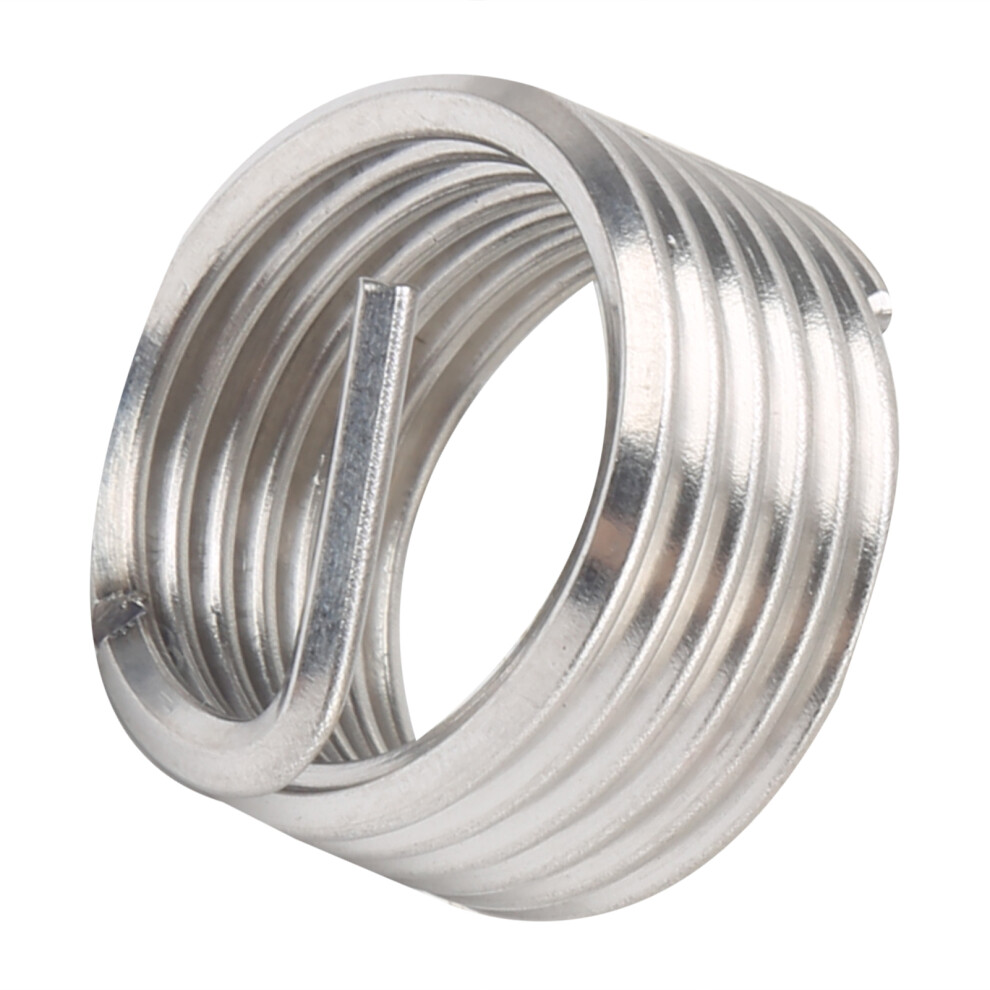

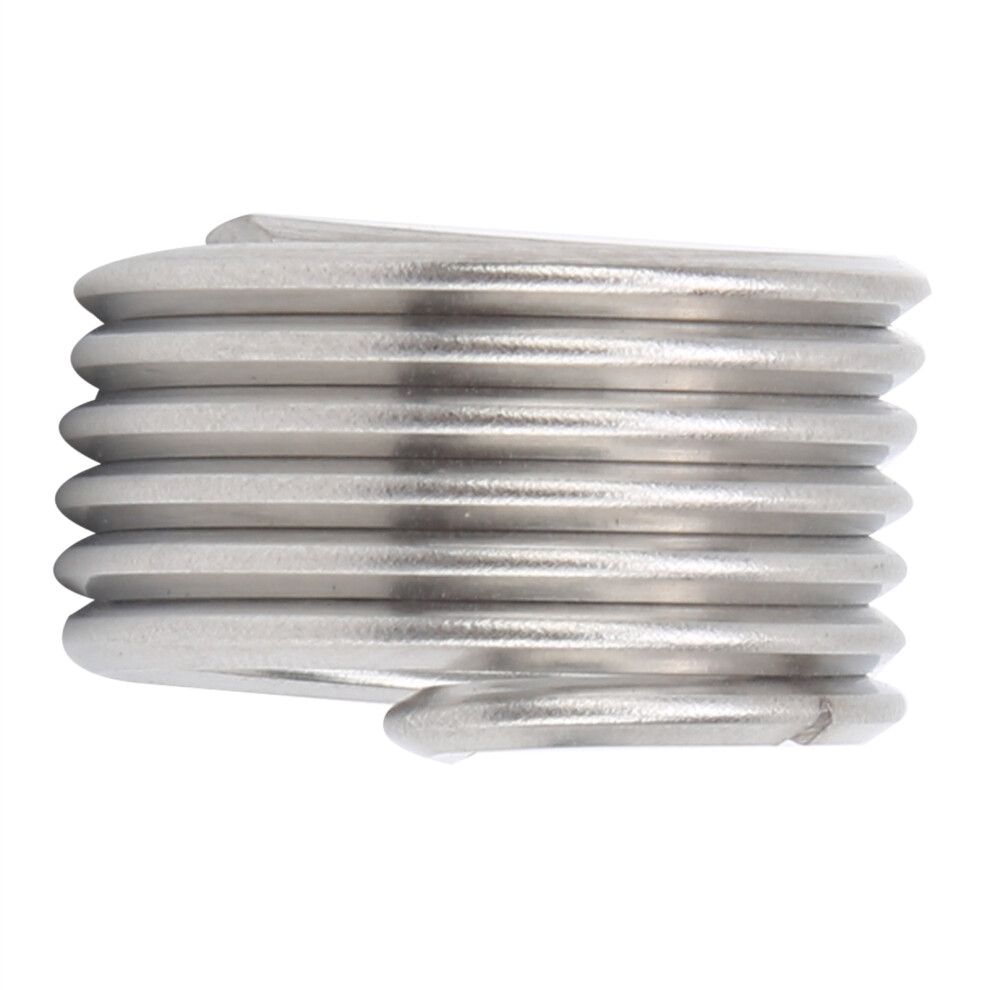

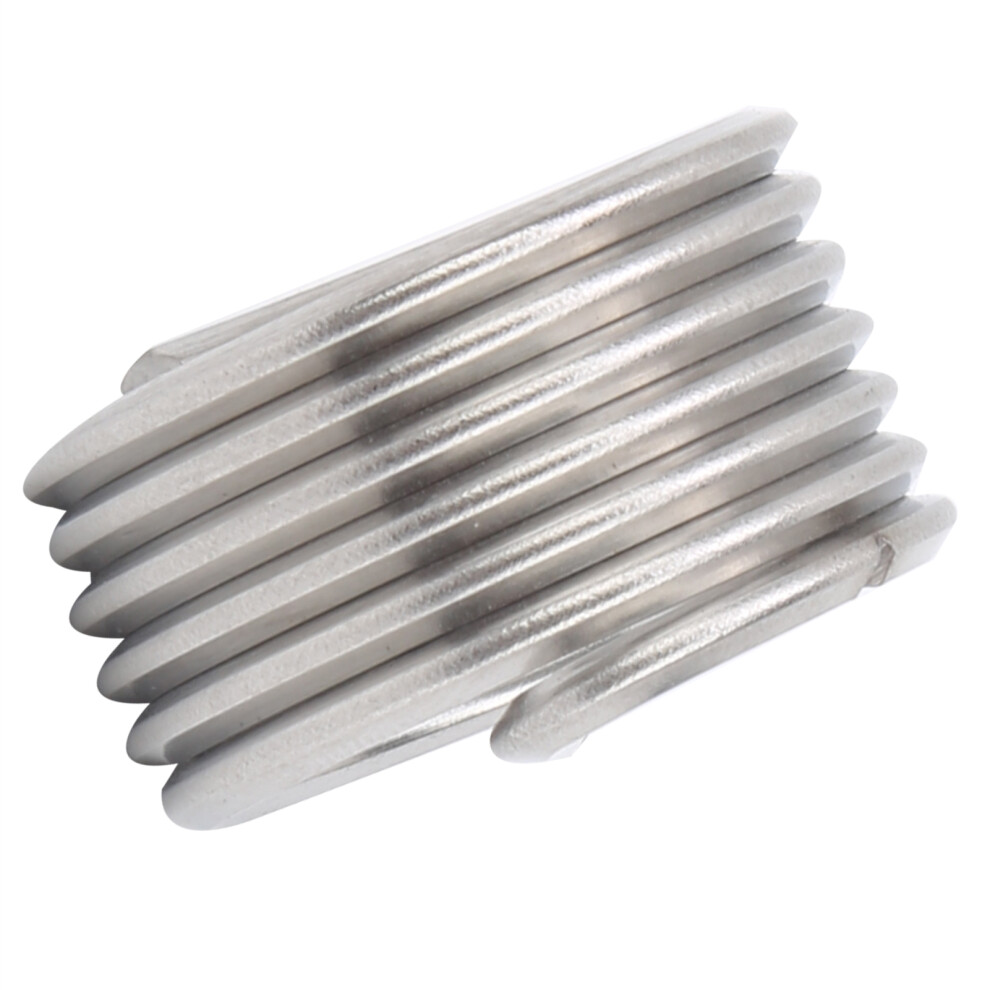

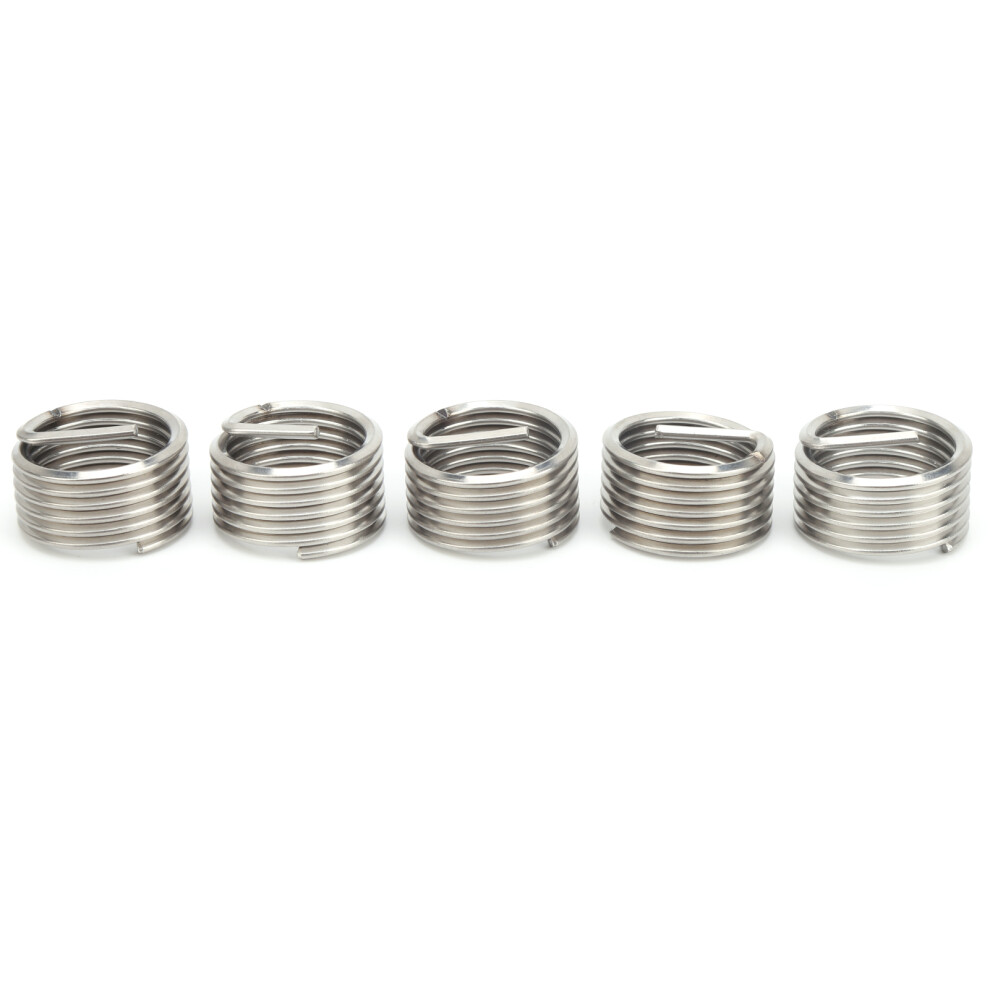

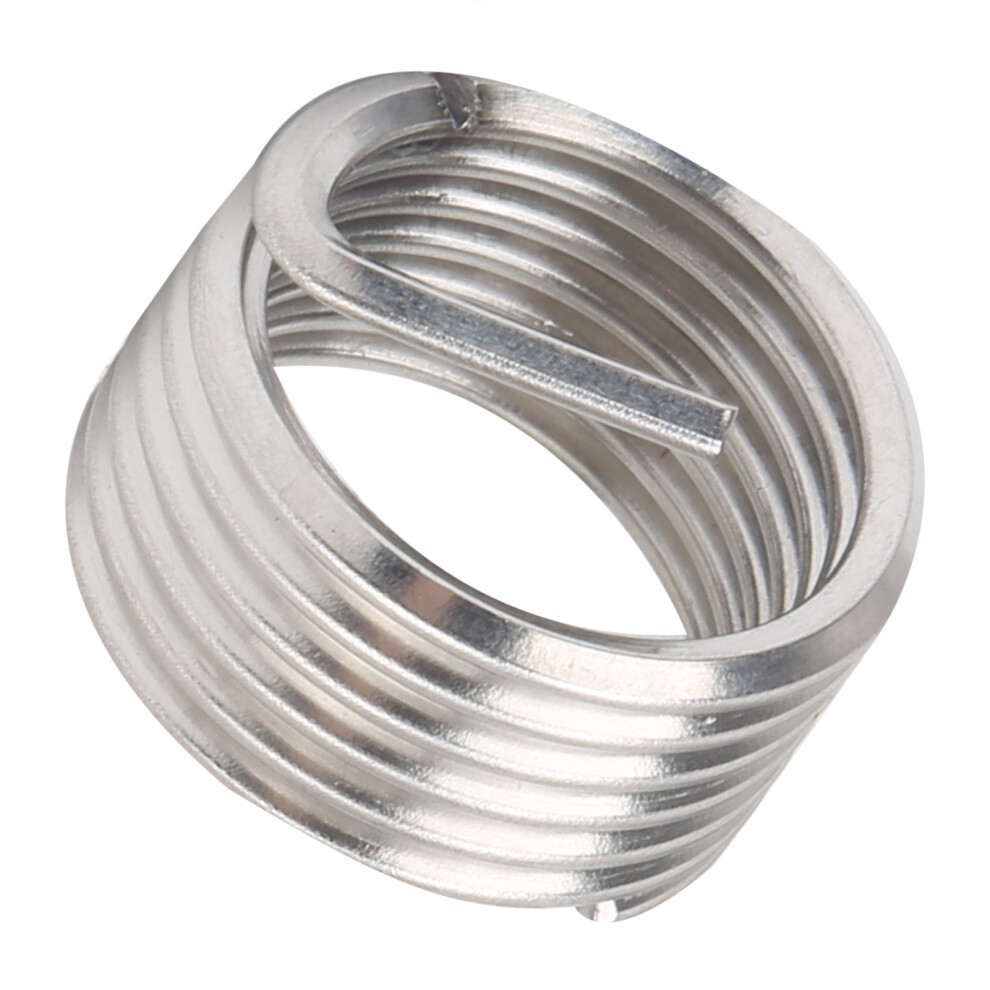

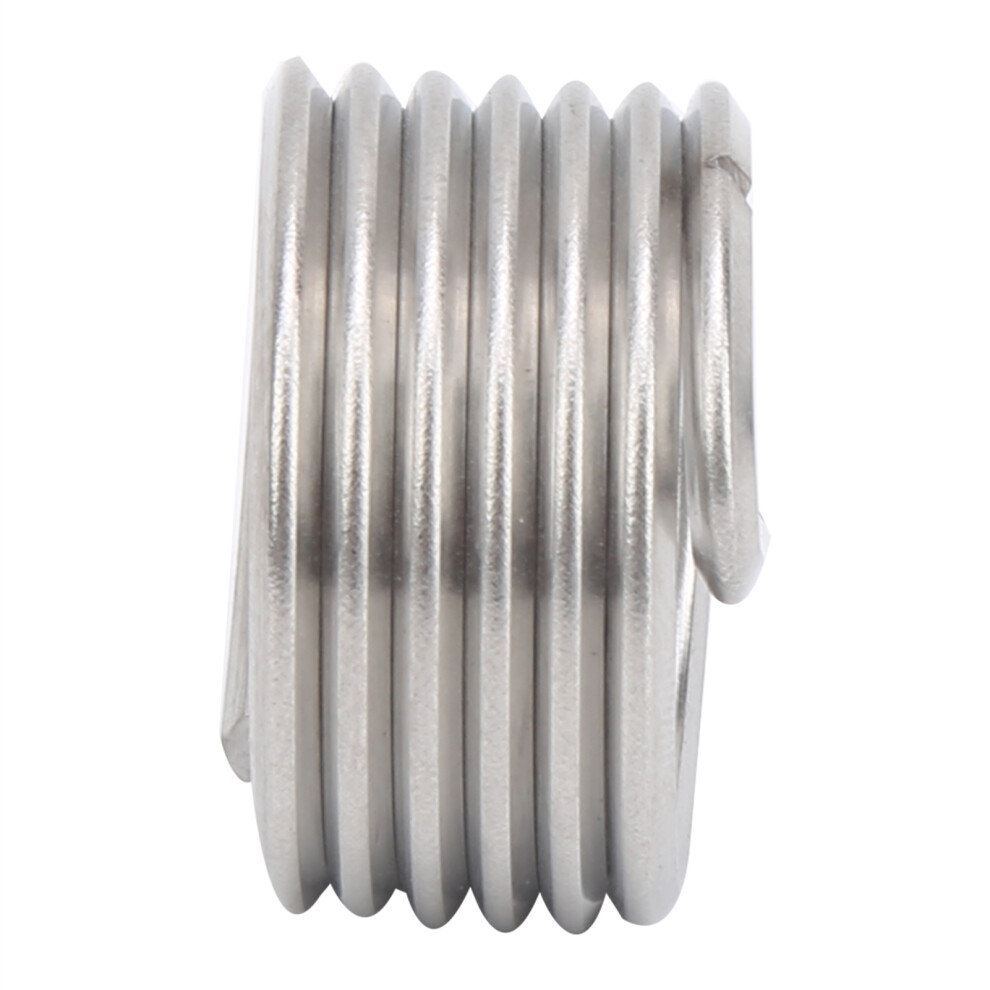

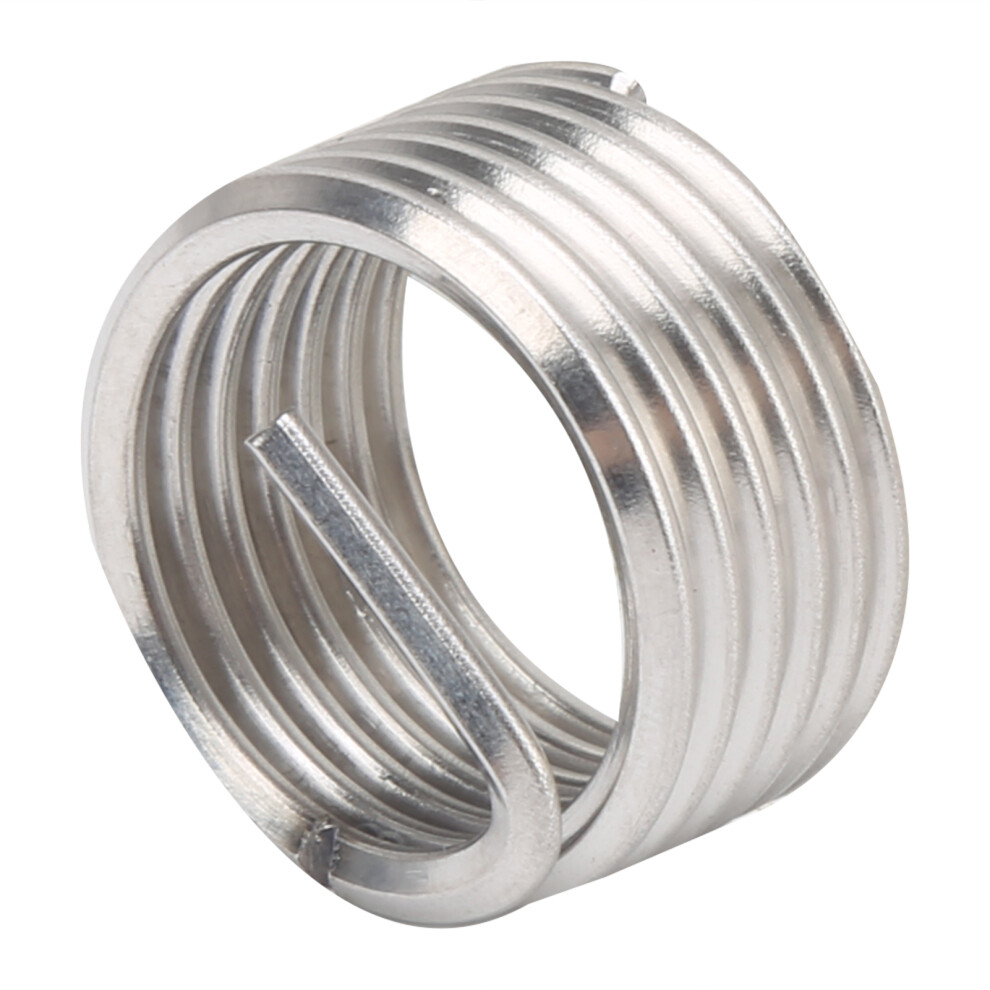

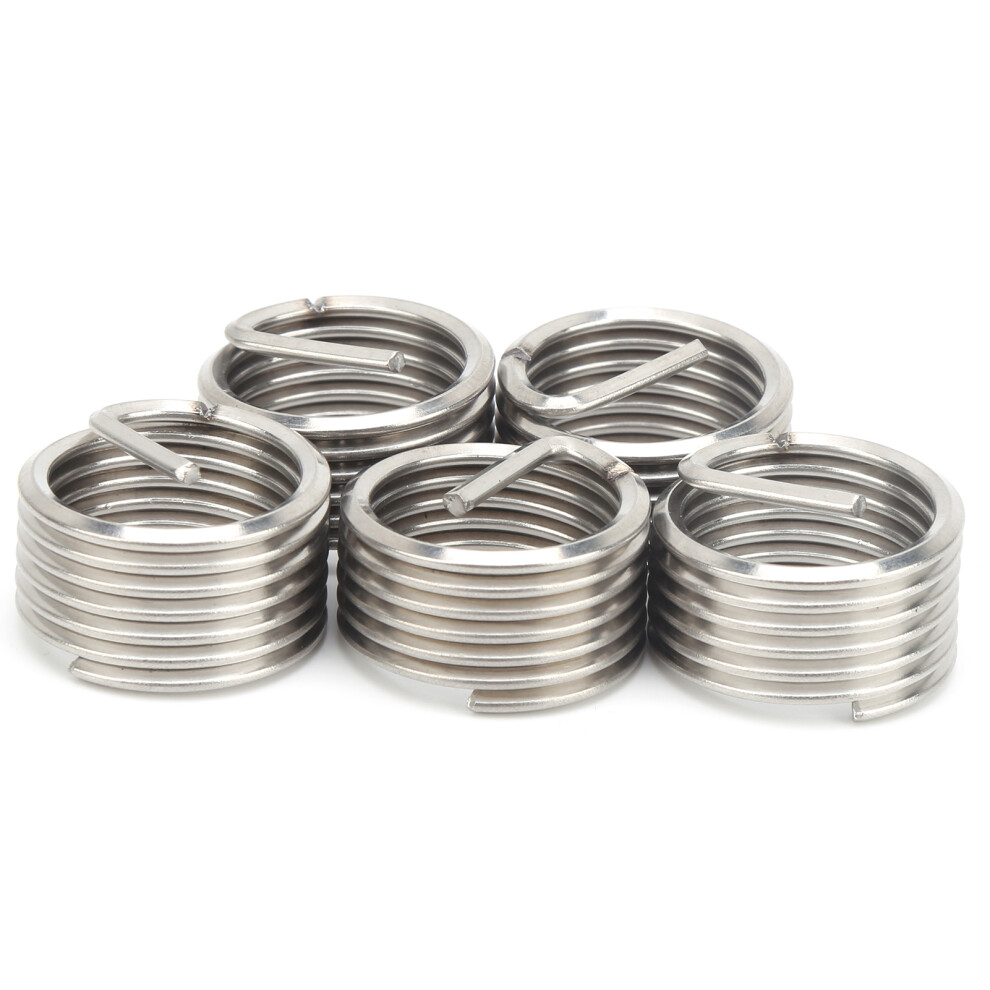

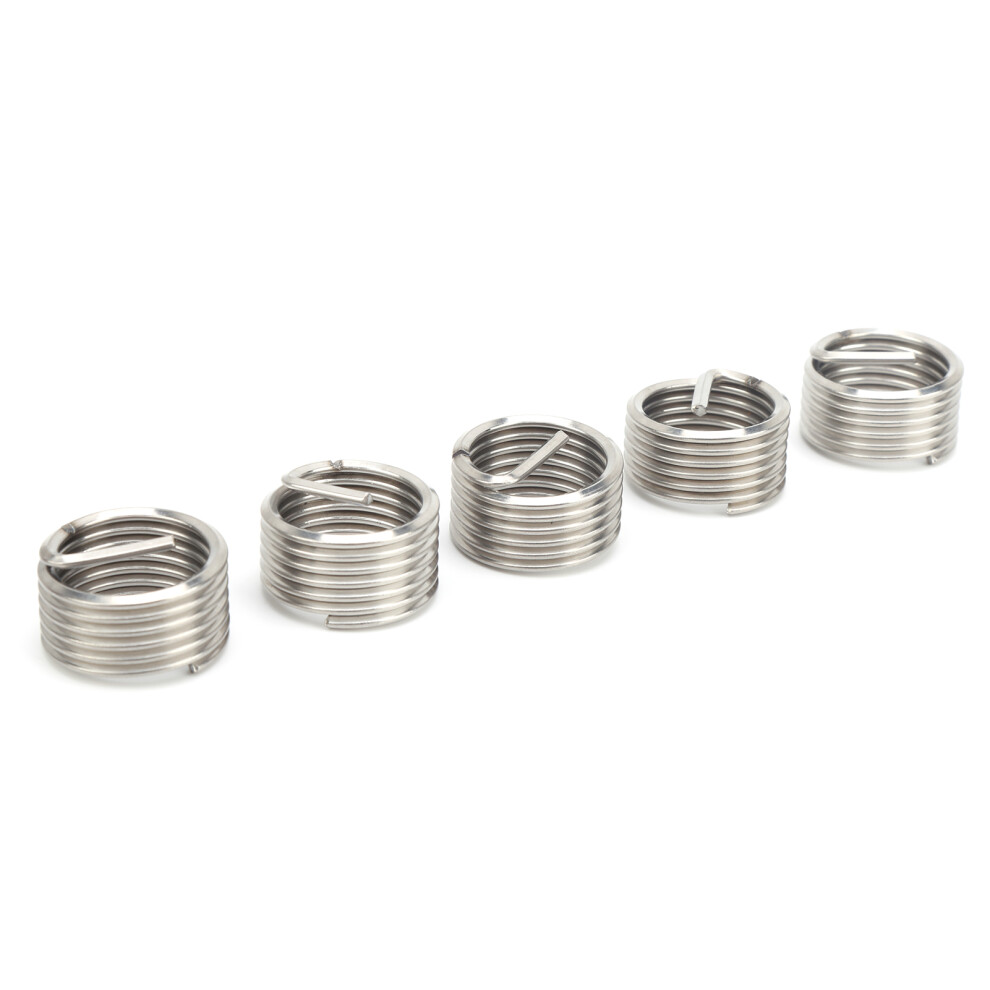

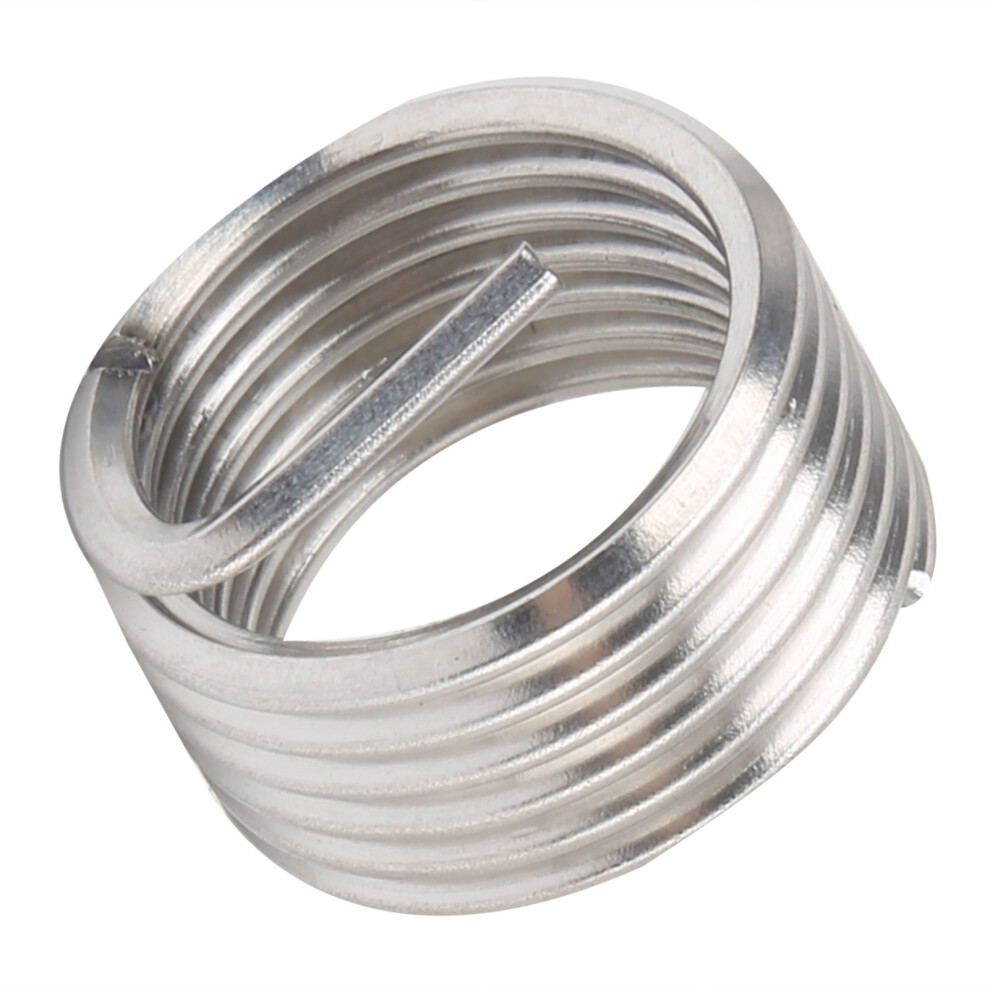

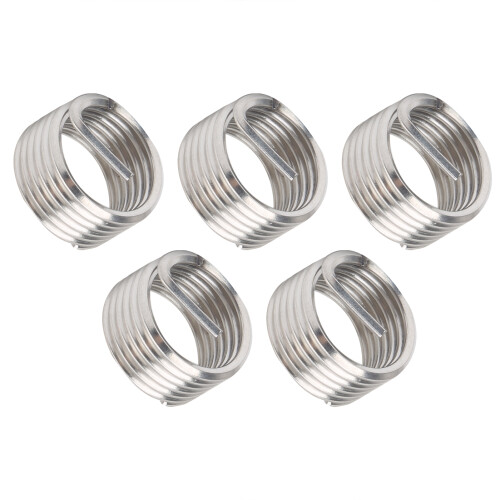

5Pcs M22x2.5 SUS304 Wire Thread Inserts for Thread Repair

5Pcs M22x2.5 SUS304 Wire Thread Inserts for Thread Repair Description

5Pcs Wire Thread Insert Threaded Bushing Socket Screw Hole Repair Protection Tool M22x2.5x1D
Item Type: Wire Thread Insert
Material: SUS304
Model: M22 x 2.5 x 1D
Purpose: For threaded connection
Thread: M22 x 2.5
Outside Diameter Before Installation: Approx. 26.2-26.8mm / 1-1.1in
Length After Installation: Approx. 22mm / 0.87in
Number of Turns Before Installation: Approx. 6.9
Drill Bit Diameter: Approx. 22.6mm / 0.89in
Thread Protective Socket Model Specification Description: For Example: M3 x 0.5 x 1.5D means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5 x 3=4.5mm) , the length here refers to the length after installation.
Wire thread inserts are also called threaded sheaths, stainless steel threaded sockets, wire sockets, and braces. They are a new type of female threaded fasteners made of high-strength, high-accuracy diamond-shaped cross-section steel wires; Application to low-strength engineering materials such as aluminum alloy, zinc alloy, copper, plastic, etc., can significantly improve thread strength and wear resistance.
