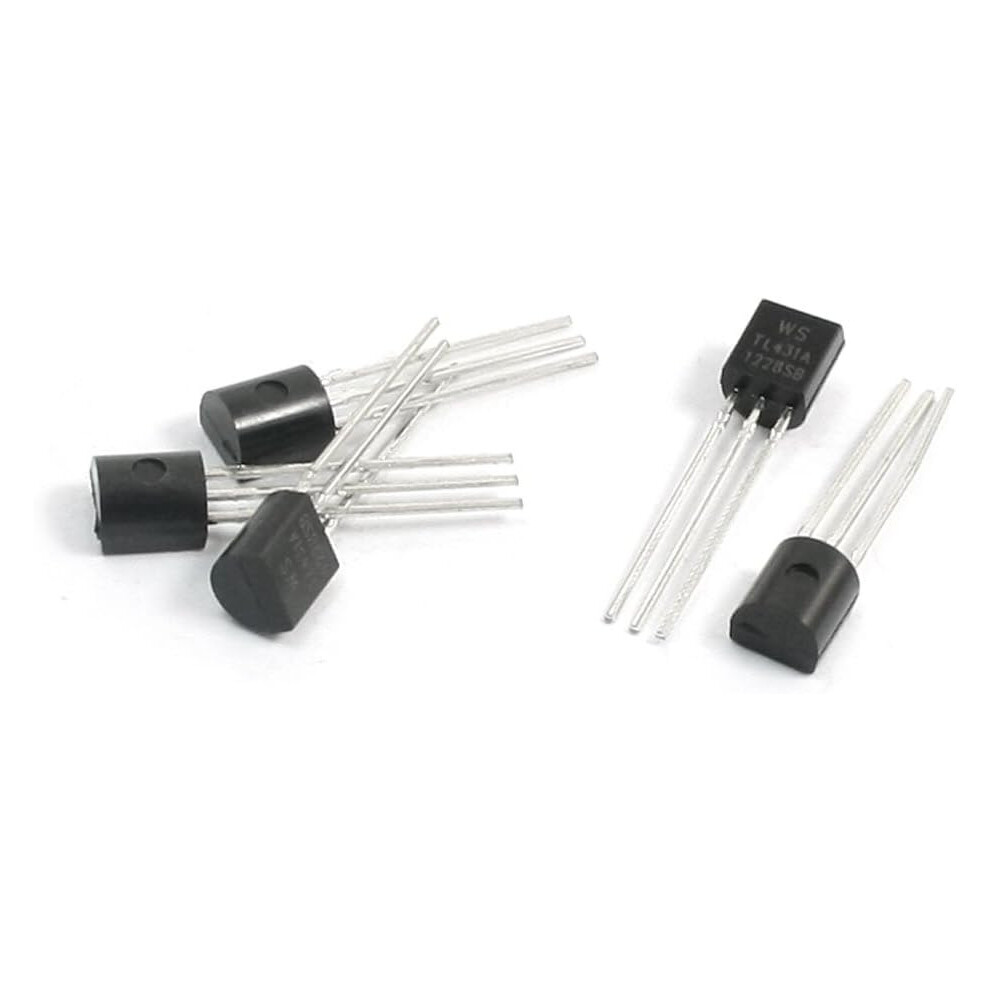

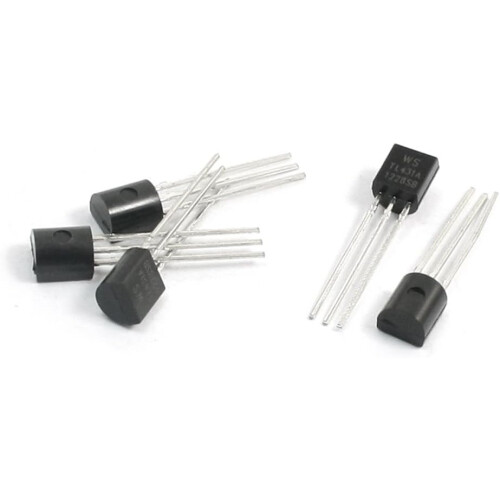

5Pcs TL431A TO-92 Type Adjustable Precision Shunt Regulator 2.5-36V

5Pcs TL431A TO-92 Type Adjustable Precision Shunt Regulator 2.5-36V Description

Key Features

• Product Name Adjustable Precision Shunt Regulator;Model TL431A;Packaging Type TO-92
• Output Voltage 2.5-36V;Sink Current 1mA-100mA;Output Impedance 0.2 Ohm
• Working Temperature -40-125 C;Pin Number 3Pins;Pin Length 14mm/ 0.55"
• Overall Size(Each) 18 x 4 x 3mm/ 0.71" x 0.16" x 0.12" (L*W*T);Material Metal, Plastic;Color Black, Silver Tone
• Weight 2g;Package Content 5PcsxAdjustable Precision Shunt Regulator

Product Description

The TL431 is three-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive, commercial, and temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors. This devices have a typical output impedance of 0.2 ohm. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies.

Specifications Item Weight0.01 ounces Product Dimensions5.31 x 3.94 x 0.59 inches
