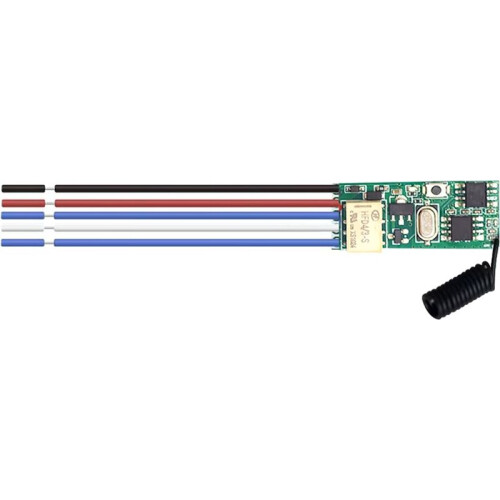

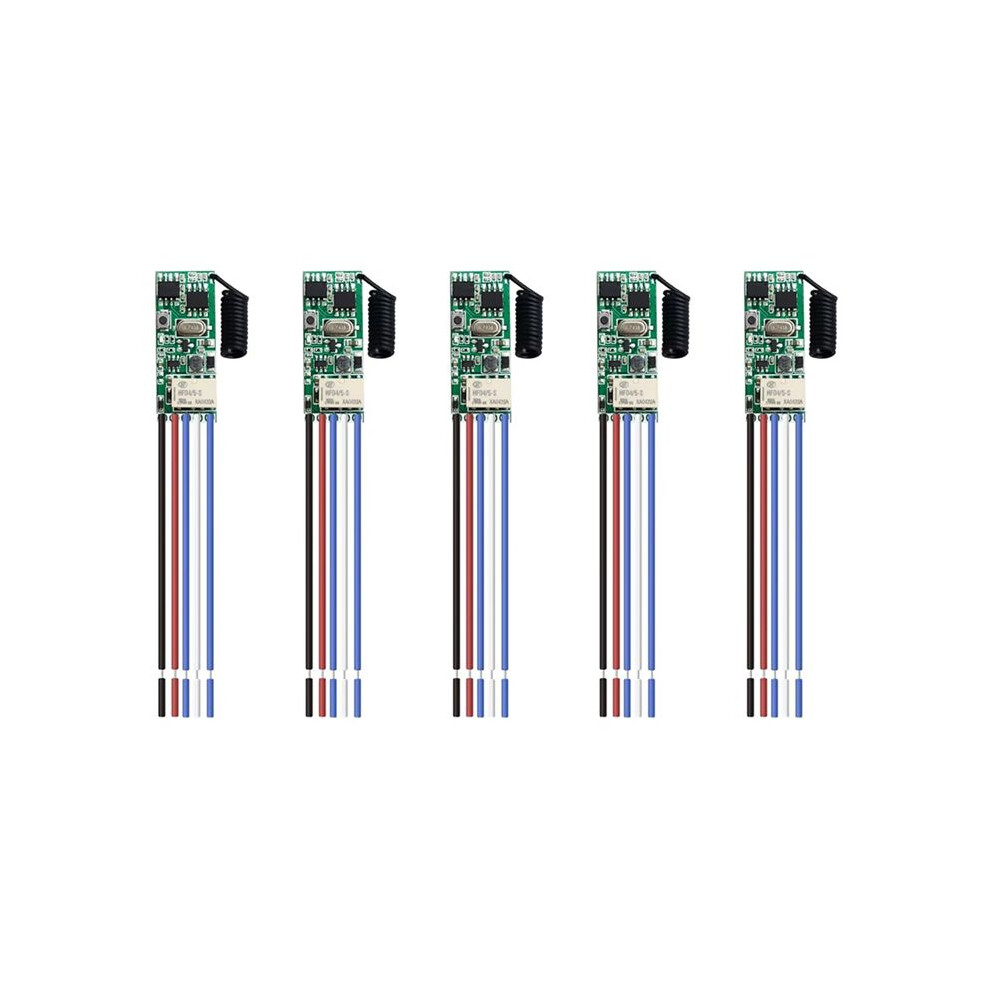

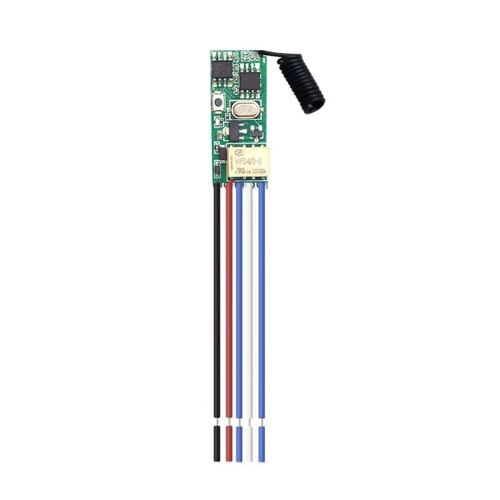

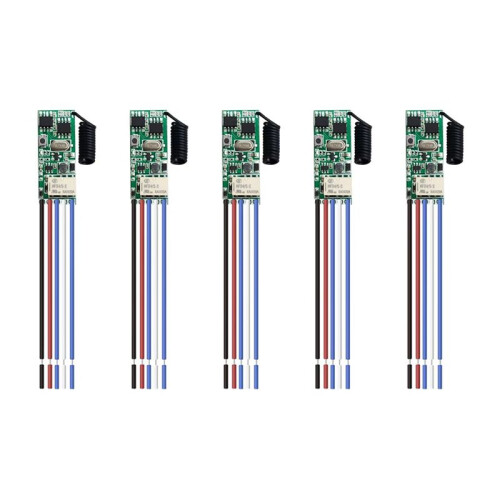

5pcs Universal Wireless Remote Control 1 CH Relay Receiver LED Light Controller DIY Kit 9V 12V 24V 433.92MHz

5pcs Universal Wireless Remote Control 1 CH Relay Receiver LED Light Controller DIY Kit 9V 12V 24V 433.92MHz Description

Application environment: Remote control ,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system,

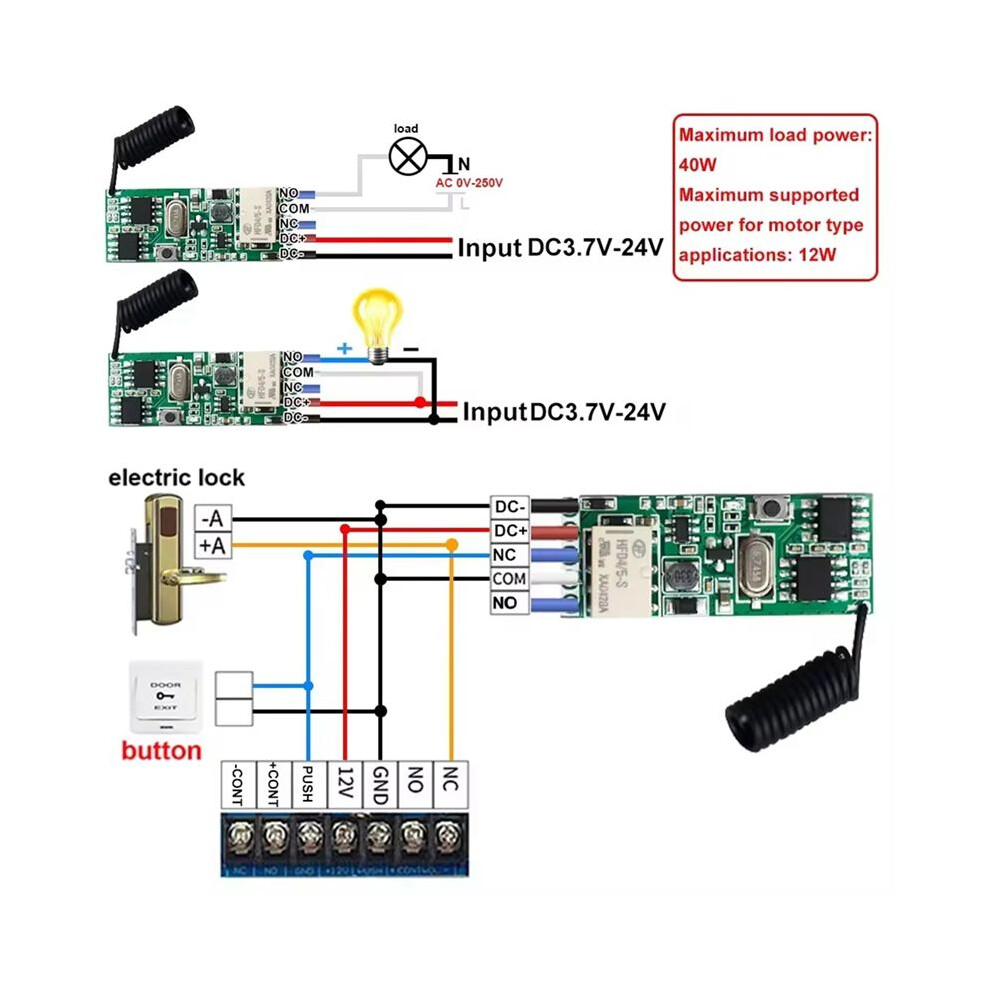

remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3. Maximum load power:40W. Maximum supportedpower for motor type applications: 12W.

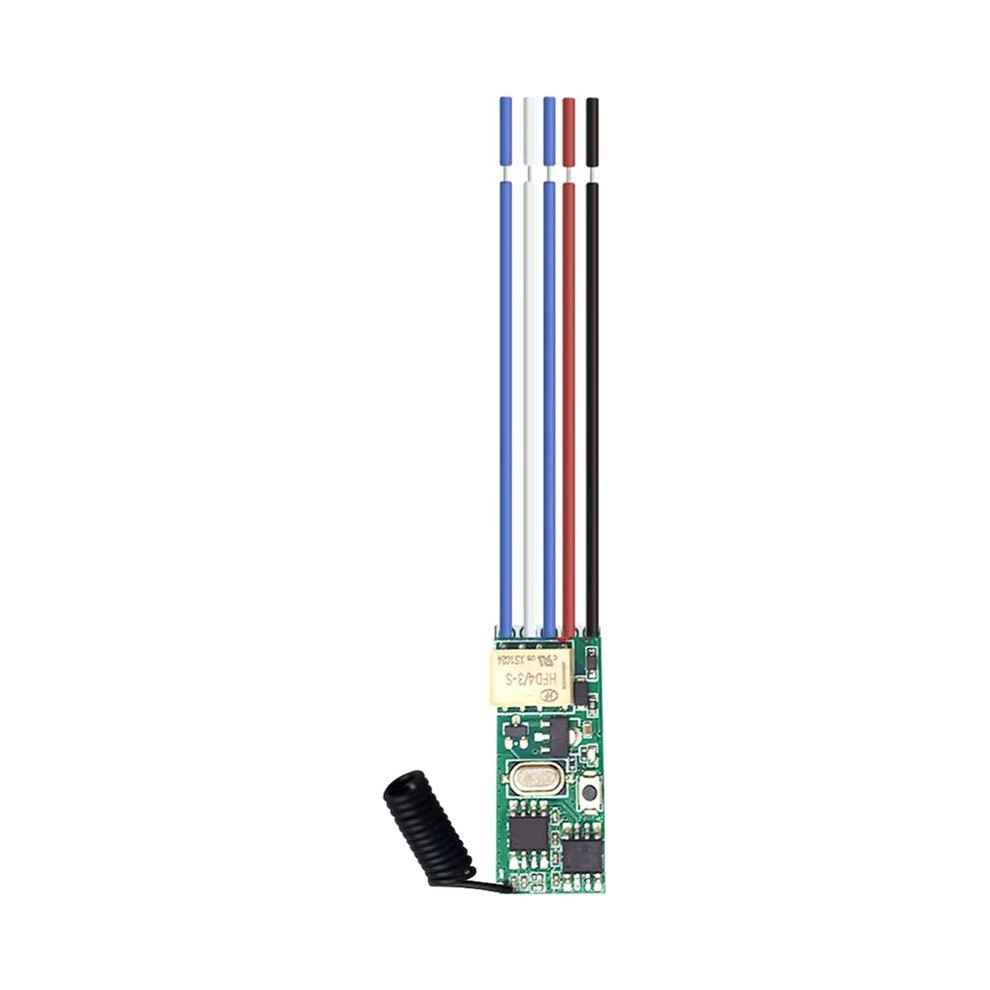

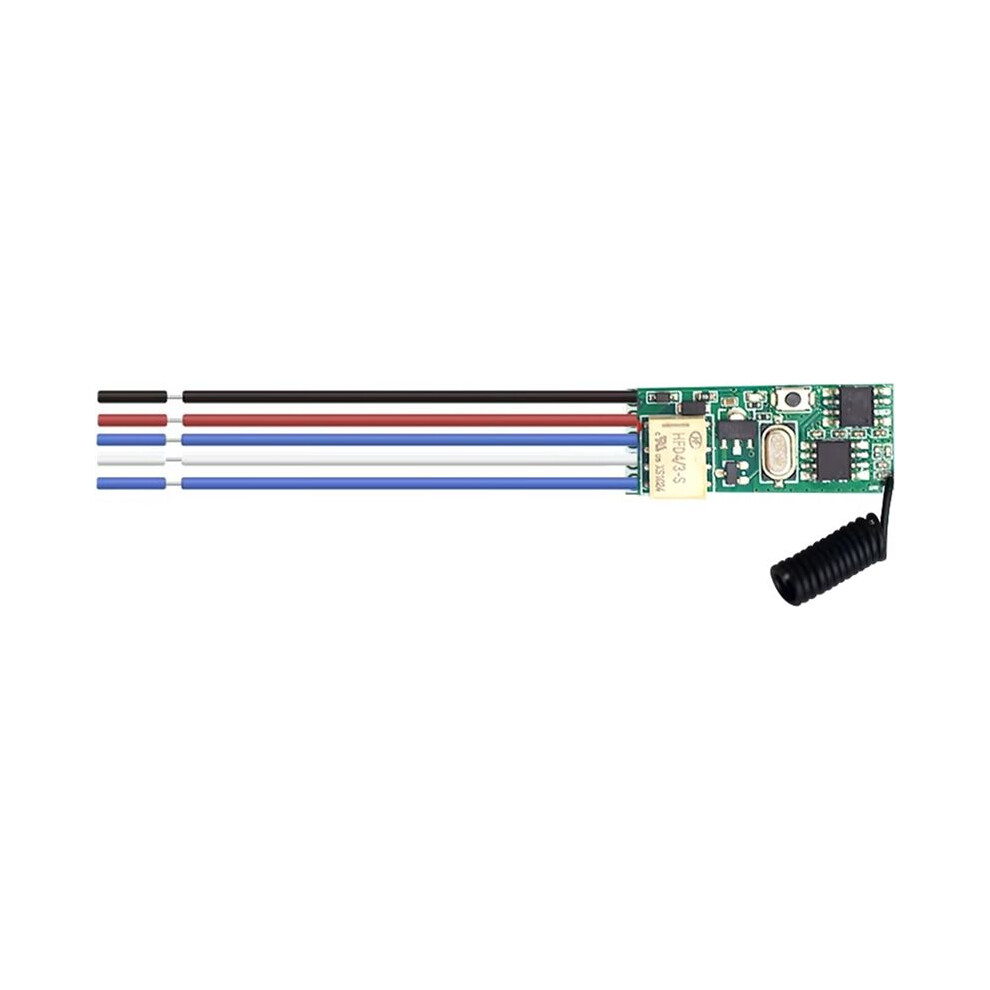

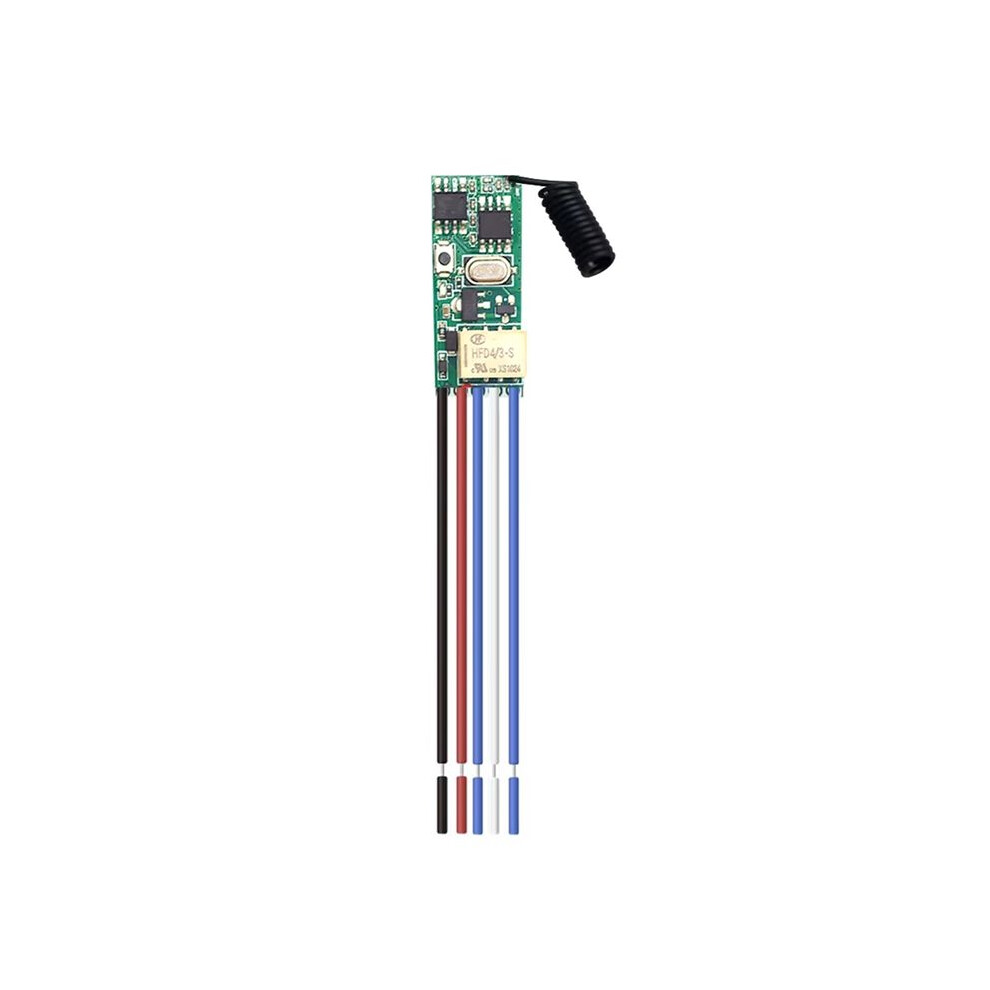

Specifications Of The Receiver: Model Number:KR8001MINI-4. Working Voltage: 3.7V-24V. Maximum Load: 2A. Static Current: 3.6mA-7mA. Working Frequency: 433MHz. Reception Sensitivity: -107dBm. Modulation Mode:ASK (superheterodyne). Number Of Stored Remote Controls: 10. Working Mode: Momentary, Toggle, Latching Mode. Learning Style: Learning Button. Working Temperature: -40 degrees 80 degrees. Appearance Size: 26mm x 13mm x 1mm (length x width x high).

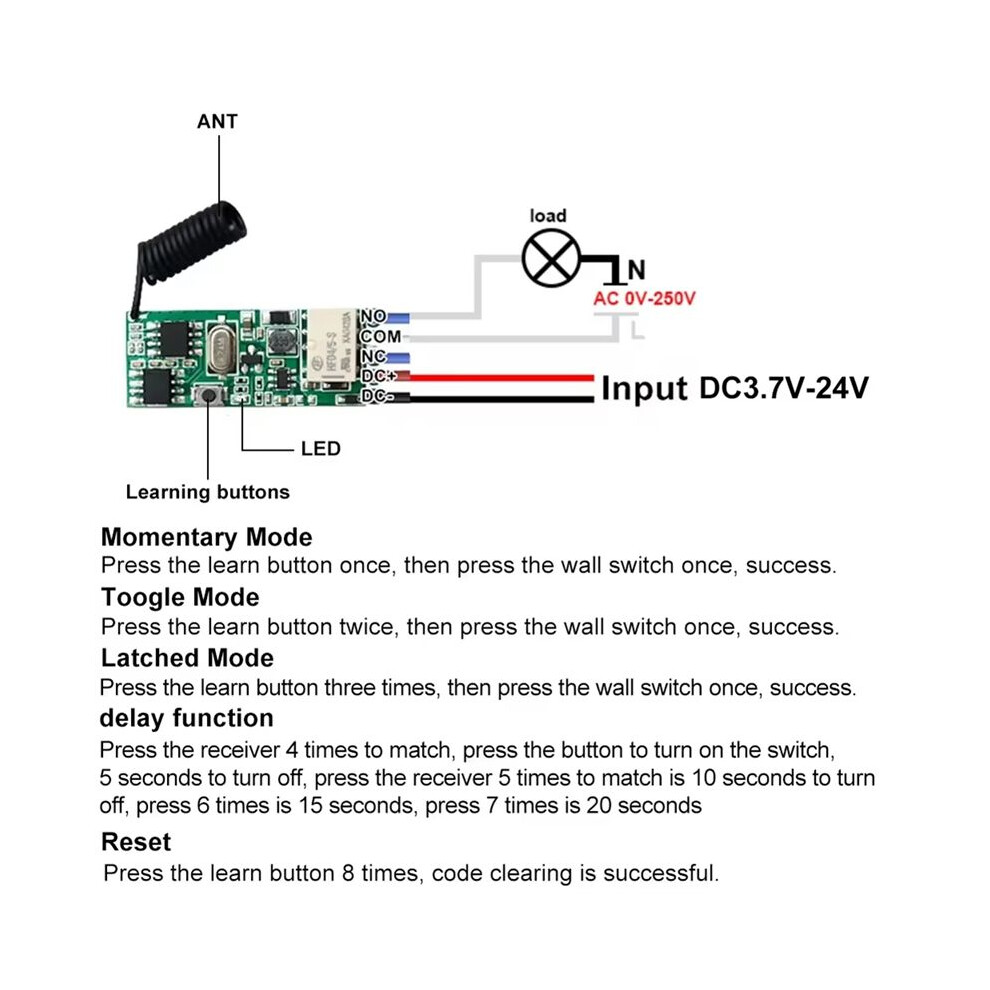

Learning the Code:( Latching). Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first learning is for , the second learning for OFF. For example: Button A = , Button B = OFF. Press the learning key the receiver triple , it comes into latching mode .
Wait for a moment, the LED indicator the receiver board will flash then come off. Press the remote button A. LED flash for 5 times. Press the remote button B. LED flash for 5 times. After 3 seconds, the LED indicator will be again, learning successfully.

A = , B = OFF.
Learning the Code: (Toggle)
Press the learning key the receiver twice , it comes into toggle setting mode.
Wait for a moment, the LED will be off , it comes into
