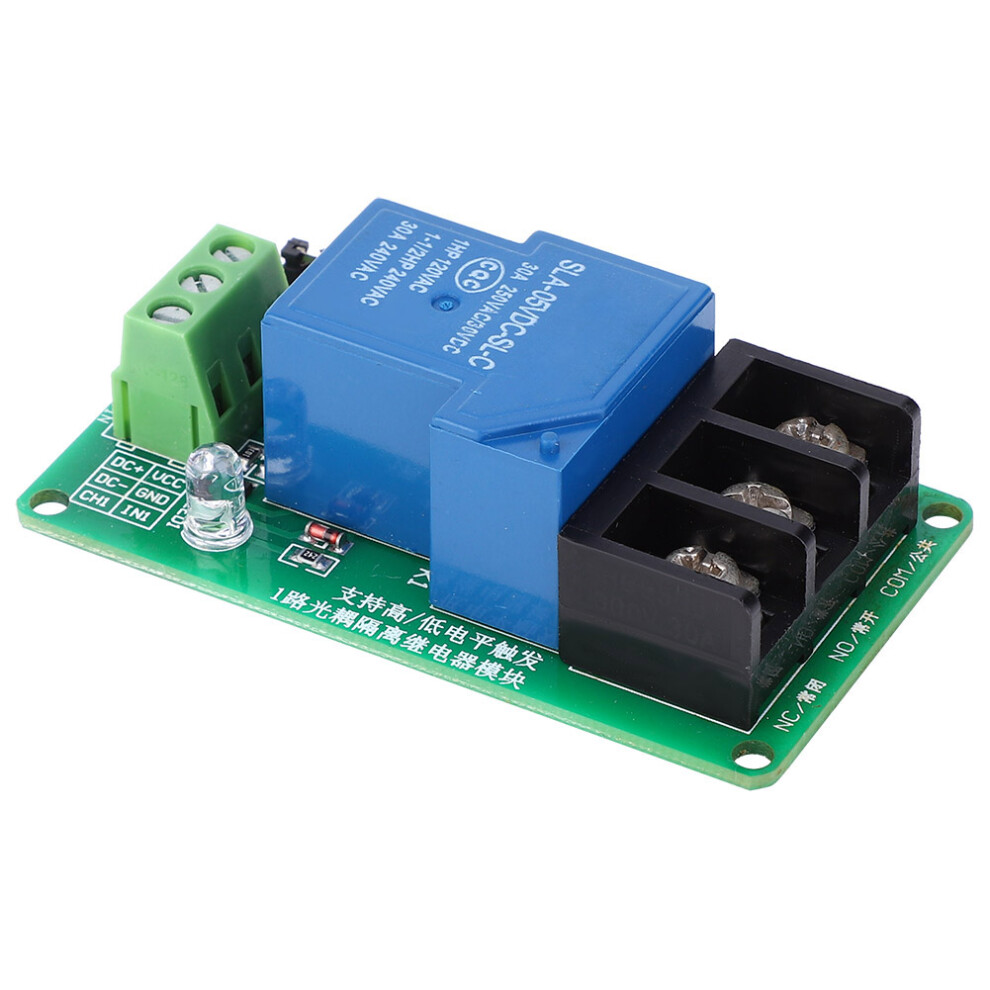

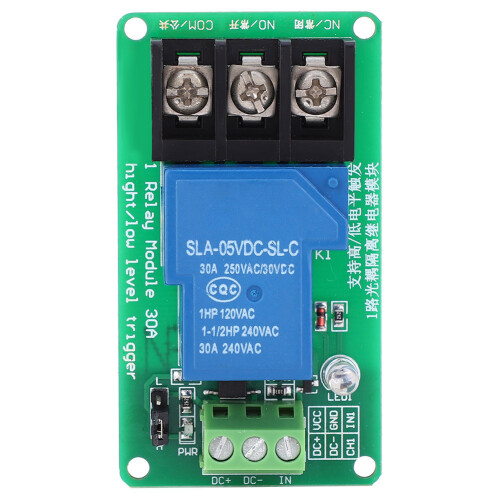

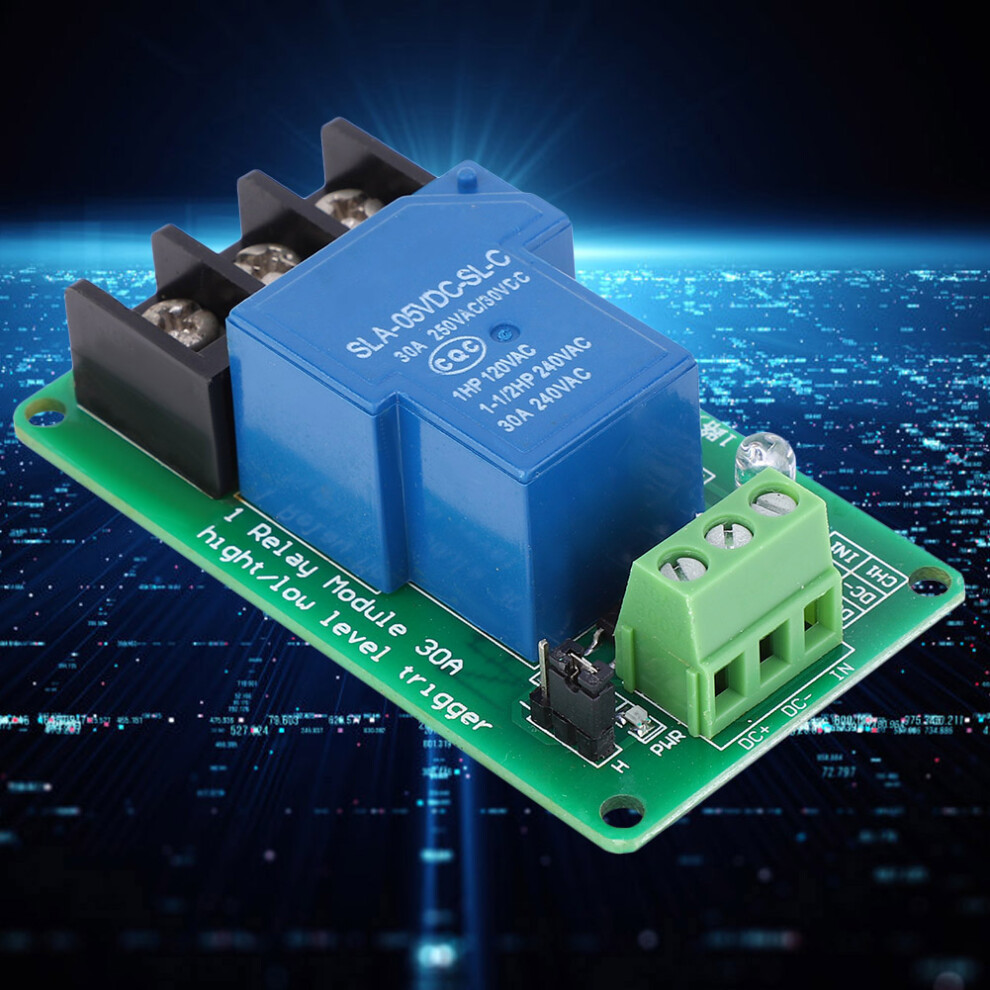

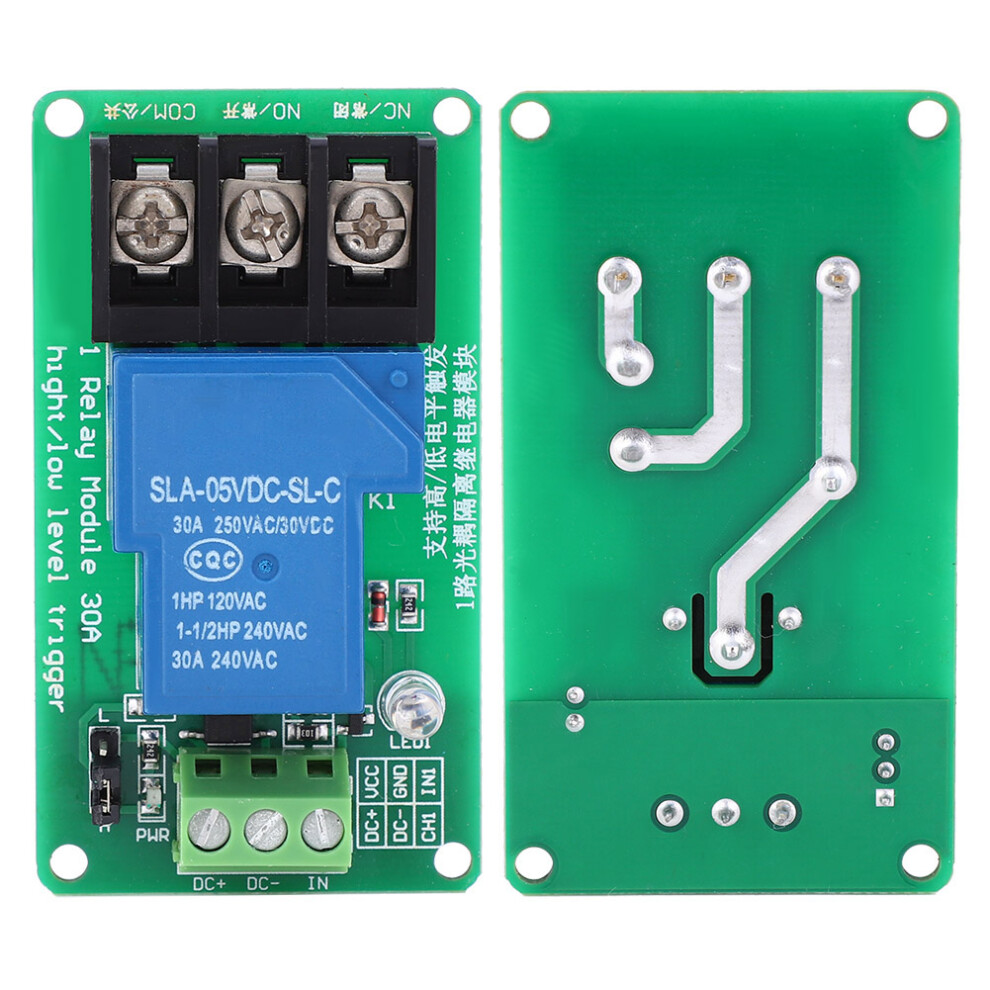

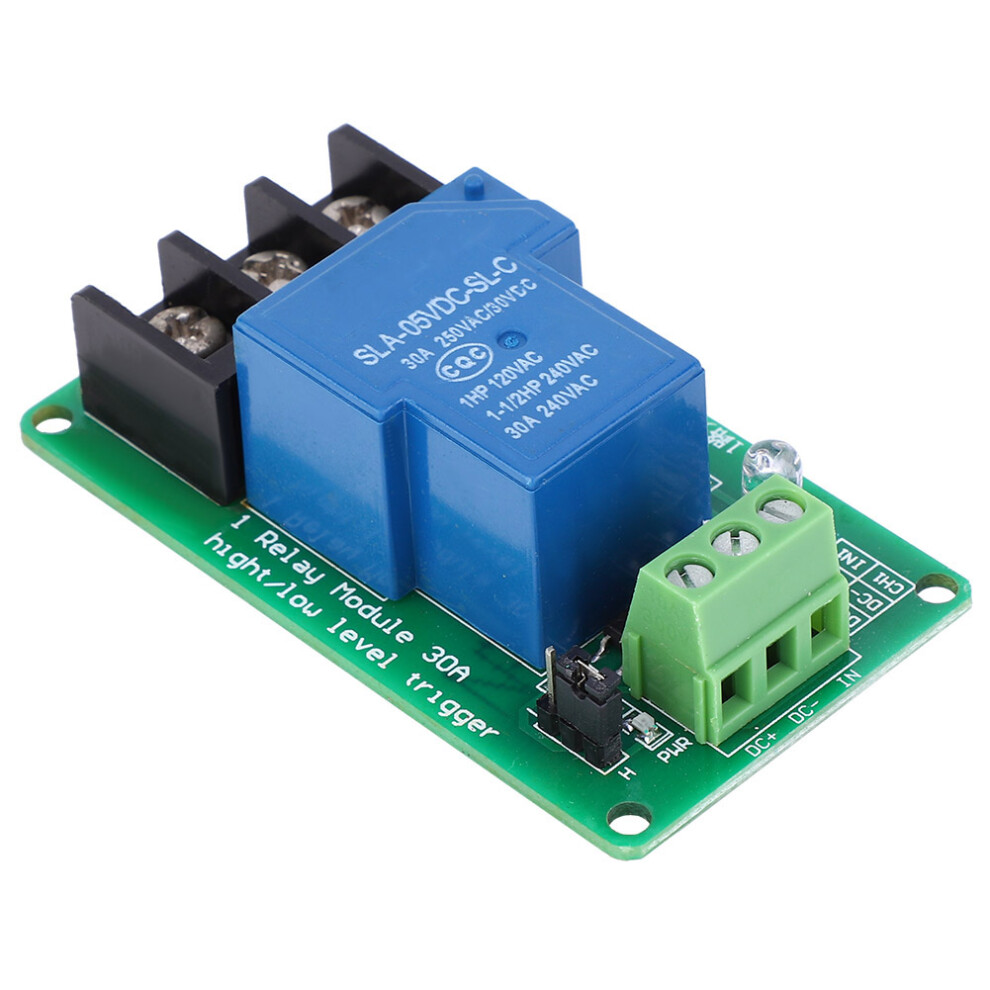

(5V) 1 Channel Relay Module with Optocoupler 30A 12V High/Low Trigger
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£7.07
£13.46
47% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 14th - Sat 18th Jul
Returns: 30 days
180-day payment protection
Most Popular in Photography Remote Triggers
Description & Details
Summary
- Relay Module 1 Channel with Optocoupler Isolation Support High and Low Level Trigger Switch 30A12V
(5V) 1 Channel Relay Module with Optocoupler 30A 12V High/Low Trigger Description
1、The module uses high-quality 30A relay, the maximum load of the normally open interface: AC / 30A, DC 30V / 30A 2、Adopt SMD optocoupler isolation, strong driving ability, stable performance, the trigger current is 5mA 3、The module working voltage is 5V, 12V, available for choice 4、The module can be set to high or low level trigger by jumper 5、User-friendly interface design, all interfaces can be directly led out through terminal blocks, which is very convenient
Item Type: Relay Module
Relay version
Quiescent Current
Maximum current
Trigger current
5V
5mA
190mA
2-4mA
12V
5mA
80mA
2-4mA
Module Interface Description:
4. High / low level trigger mode selection, as shown in the figure, when the jumper is connected to the L terminal, the IN terminal is a low level trigger, and when it is connected to the H terminal, the high level trigger
5. Normally closed end (NC): normally closed end of relay
6. Common terminal (COM): relay common terminal
7. Normally open (NO): relay normally open
1 x Relay Module
Details
| OPC | PMCHYY9 |
|---|---|
| Codes | 610830924874 (UPC) |
