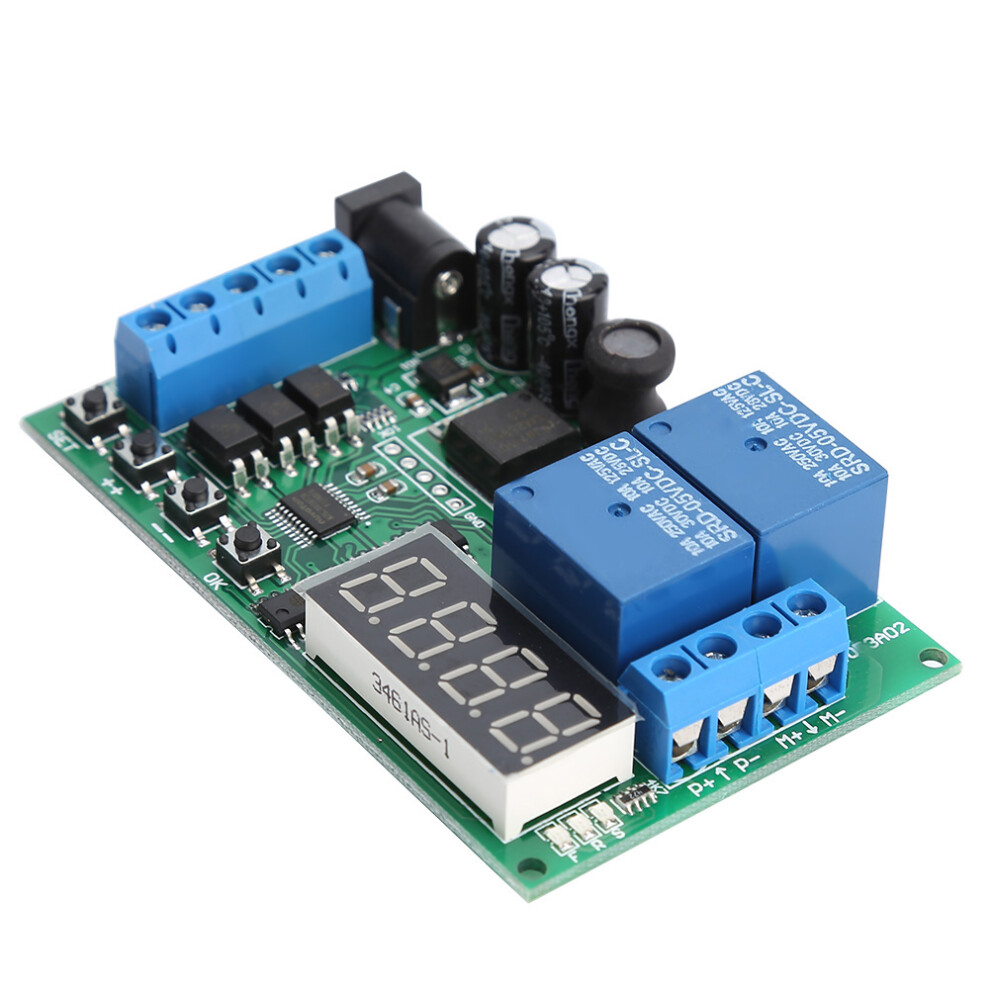

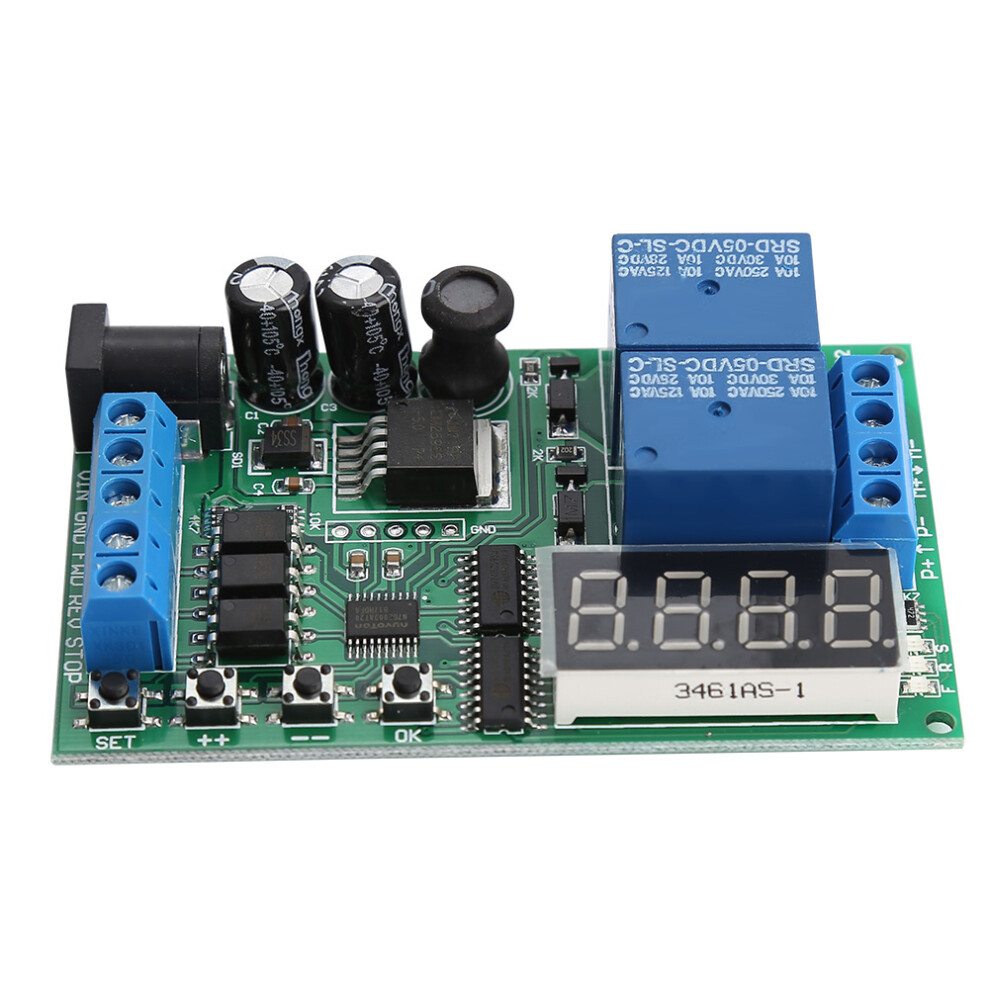

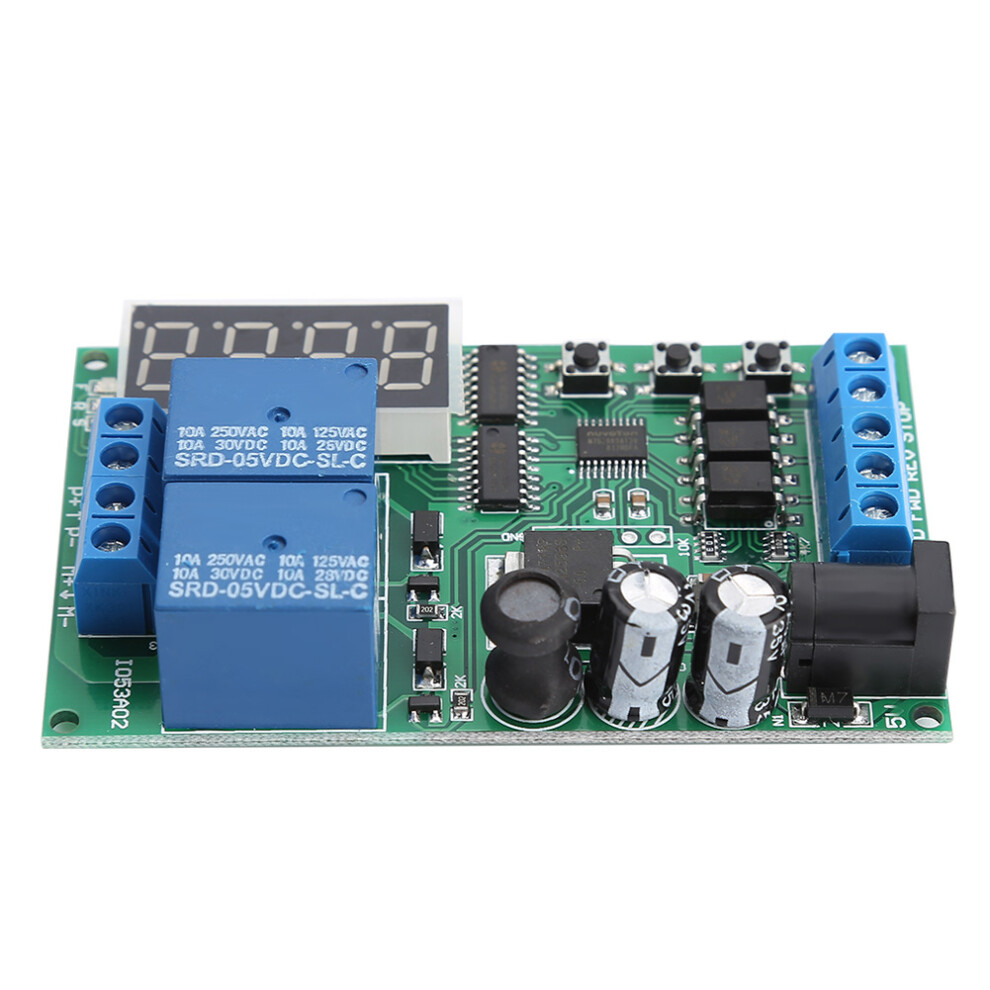

5V-24V Motor Forward/Reverse Controller Delay Relay
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£10.52
£20.04
48% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 1st - Sat 5th Sep
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- 5V - 24V Motor Forward / Reverse Controller Timing Delay Time Cycles Relay
5V-24V Motor Forward/Reverse Controller Delay Relay Description
1、Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V 2、Working current: (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA. 3、There are three input control port: forward control(FWD), reverse control(REV), and stop control(STOP). 4、Two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode 5、Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes.
Features:
Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V
Working current: (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA.
There are three input control port: forward control(FWD), reverse control(REV), and stop control(STOP).
Two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode
Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes.
Cycle times: no cycle, 2-99 cycles, always cycle.
Three indicators: forward indicator(F LED), reverse indicator(R LED), stop indicator(S LED).
Relay load current, recommended less than 5A.
This is a multi-function DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.

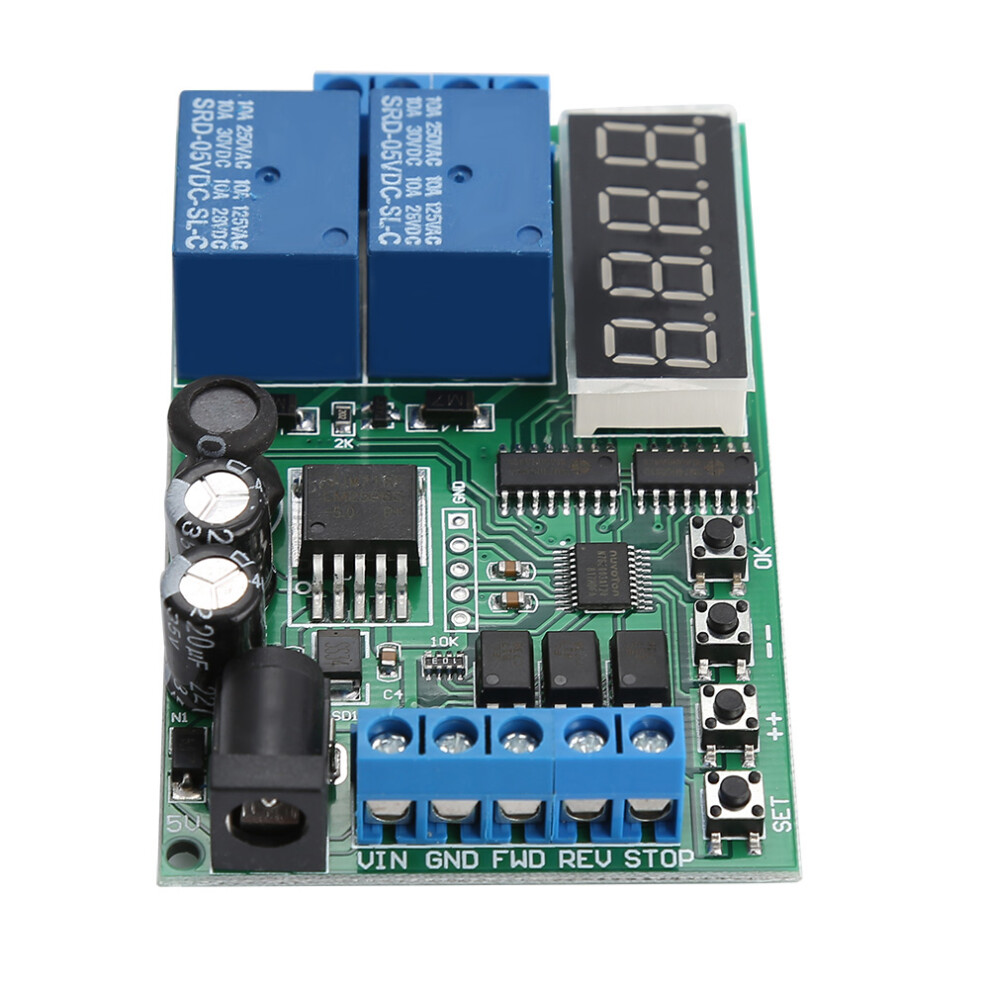

Port:
DC 5.5MM female : Power supply 1, DC 5V power supply.
VIN: Power 2 positive, DC 6.5-25V power supply
GND: Power supply 2 negative
FWD: Forward input control (partial Function-Mode is invalid)
REV: Reverse input control (partial Function-Mode is invalid)
STOP : Stop input control (partial Function-Mode is invalid)
M+: Motor positive
M-: Motor negative
P+: Positive terminal for motor power supply
P-: negative terminal for motor power supply
Specification:
Power supply: DC 6.5-25V, DC 5V
Working current: 83mA
Standby current: 41mA
Relay load current:
Details
| OPC | PMCKXVW |
|---|---|
| Codes | 610830949860 (UPC) |
