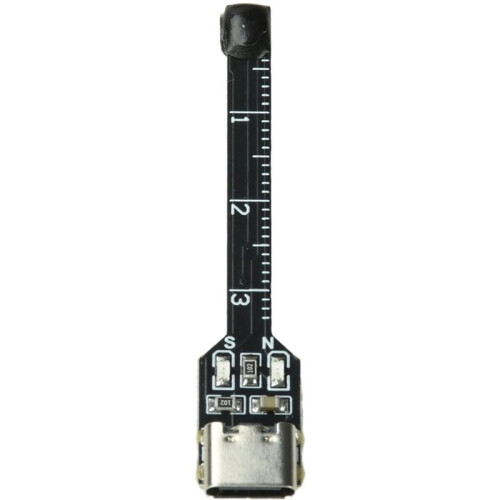

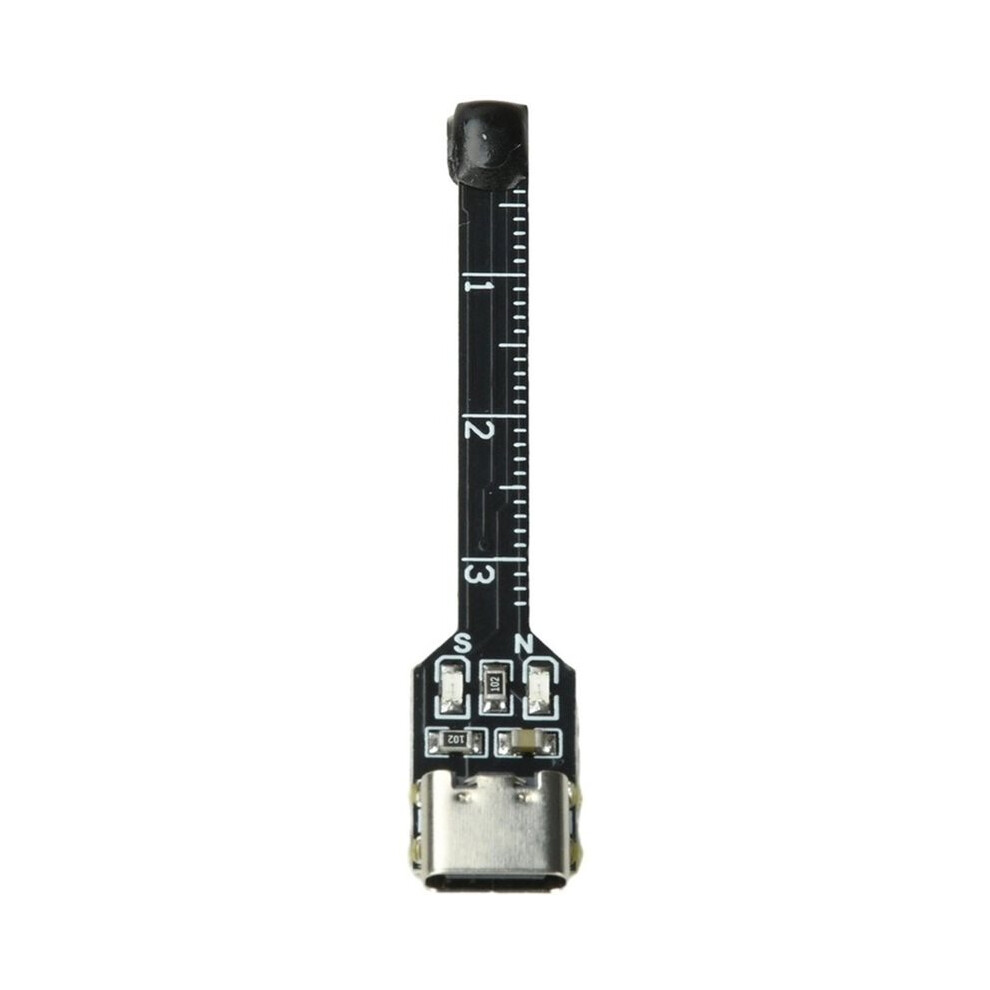

5V 5mT Magnetic Pole Detector Tester Hall Sensor Module Red Green LED Display N S Pole Identifier Magnetic Test Tool

5V 5mT Magnetic Pole Detector Tester Hall Sensor Module Red Green LED Display N S Pole Identifier Magnetic Test Tool Description

1. Using Hall modules to accurately distinguish magnetic poles, easily identifying north and south poles.
2. High sensitivity, sensitivity of 5mT, detectable by weak magnetic fields.
3. The body is compact and portable, carrying it around without any burden.
4. Supports 5V power supply, can be powered by a mobile phone charging cable.
5. The green light displays N poles and the red light displays S poles, making it clear and easy to understand.

Product Parameters:
Product Name: Magnetic Pole Detection Module
Interface: Type C
Power supply method: 5V power supply (do not use fast charging adapter)
Detection sensitivity: 5mT
Indication method: Green light indicates N pole, red light indicates S pole
Core function: Accurately distinguish N and S pole magnetic fields
Operation requirement: The detection surface should be perpendicular to the detected magnetic field

Usage:
Plug in the data cable, the detection surface is perpendicular to the detected magnetic field, and the green light indicates the N pole; The red light indicates the S pole.

Application Scenarios
1. Motor and magnet pole detection and calibration
2. Electronic teaching and scientific and technological innovation experimental training
3. Industrial magnetic material quality inspection and sorting testing
4. Electronic DIY and equipment maintenance and debugging
5. Precise weak magnetic field environment detection
6. Portable outdoor -site inspection operation
Color: Black
Material: PCB

Package Contents:
1 X Detection Module
