5X 12V 1CH 433MHz Universal Wireless Remote Control RF Relay Receiver 433 MHz Transmitter Button Module DIY

5X 12V 1CH 433MHz Universal Wireless Remote Control RF Relay Receiver 433 MHz Transmitter Button Module DIY Description

Support Multiple Working Mode: Momentary, Toggle, Latching and Delay Mode.
Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262).
Support storing the quantity of remote control: 25Pcs (NOTE: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs , the initial remote control will be lost).
RF Working Mode: Superheterodyne Reception(Modulation Mode: ASK).
Perfect suitable for remote control of roller shutter door, garage door and other telecommand equipments

Model: KR1201A
Product Type: Single Channel Remote Control
RF Working Mode: Superheterodyne Reception
Modulation Mode: ASK
Working Mode: Momentary, Toggle, Latching and Delay Mode.
Input Voltage: 10 ~ 14V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: Greater than 97dbm
Remote Control Range: Greater than 100m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Decoding Mode:MCU Software Decoding.
Working Mode:Momentary, Toggle, Interlocked Mode Latching delay (5s ,10s ,15s )
Wiring Diagram 1:
+V : 12V + (Input).
- V: 12V - (Input).
NO: Normal Open(Output).
COM:Common(Output).
color: as the picture
Material: plastic

Package Contents:

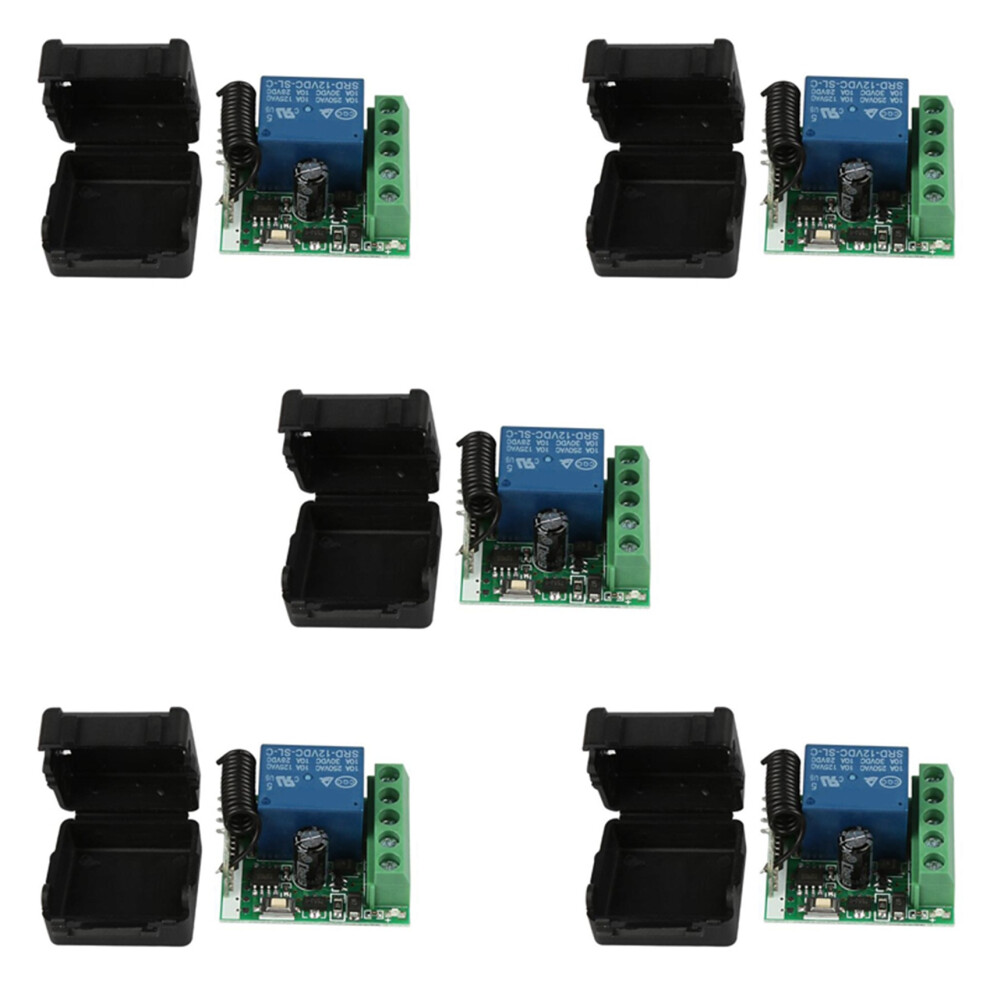

5 x KR1201A Single Channel Remote Control
5 x Shell
