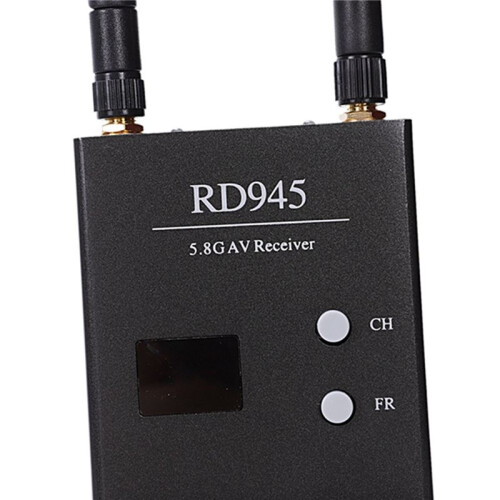

5X FPV 5.8 GHz 48CH RD945 Diversity Receiver with A/V and Power Cables

5X FPV 5.8 GHz 48CH RD945 Diversity Receiver with A/V and Power Cables Description

UUUSTORE has forged a reputation of quality and reliability and has been tested and developed by FPV pilots for FPV pilots.

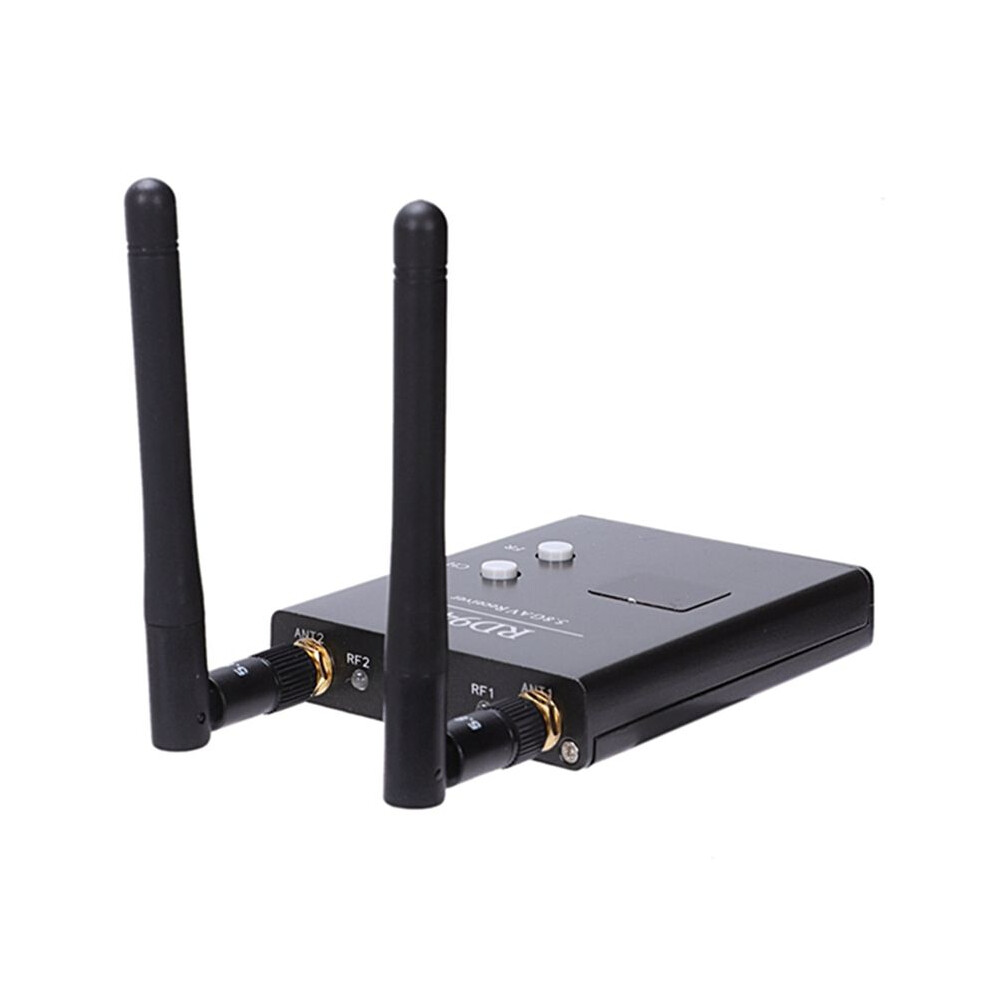

The RD945 Diversity Receiver is nice and small in size for easy integration into your ground station, but in quality and features. There are two independent AV outputs for both audio and video. So you can use a monitor and a set of goggles or maybe a DVR to record your flight, great for when your significant other asks where you were for the last 4 hours!
Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with JST. It just doesn't get any simpler than this.
Color: Black
Material: plastic

Features: 48 channels: Cover A, B, C, D,H and L bands
Diversity receivers

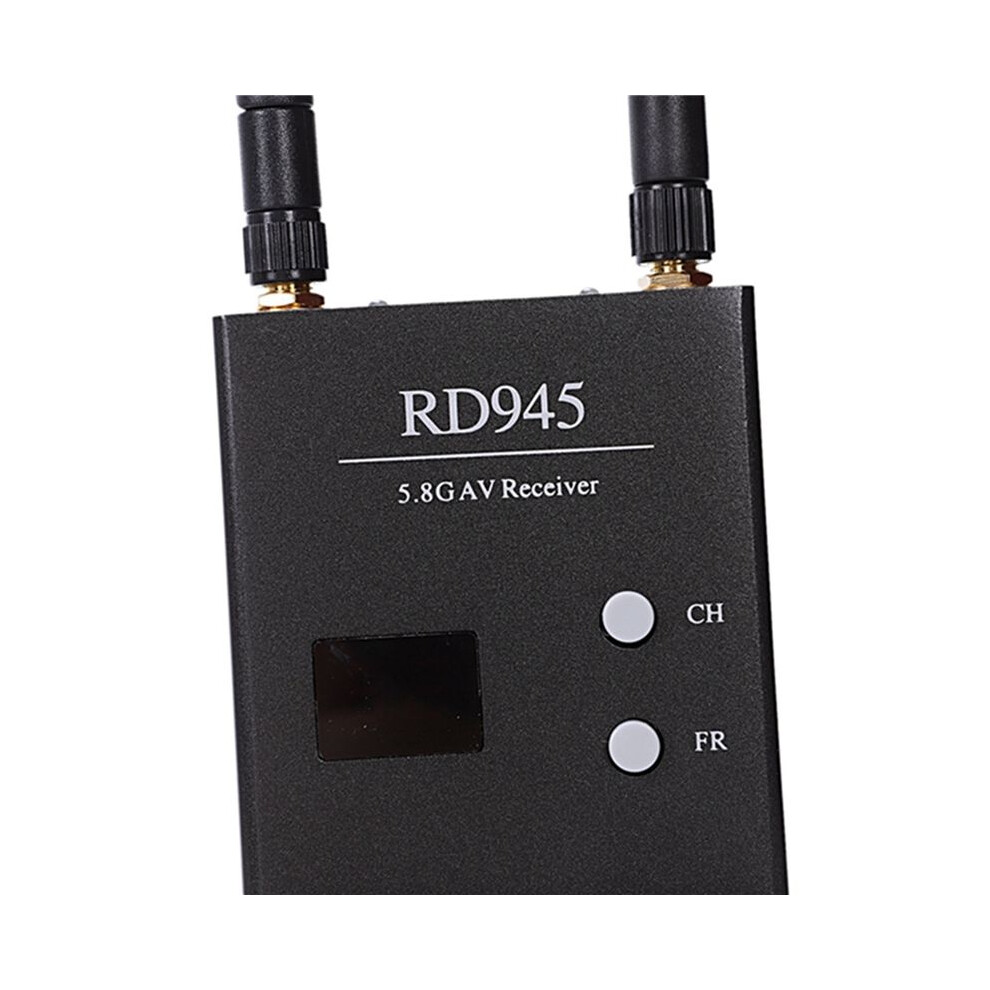

Two switching buttons for the band and channel

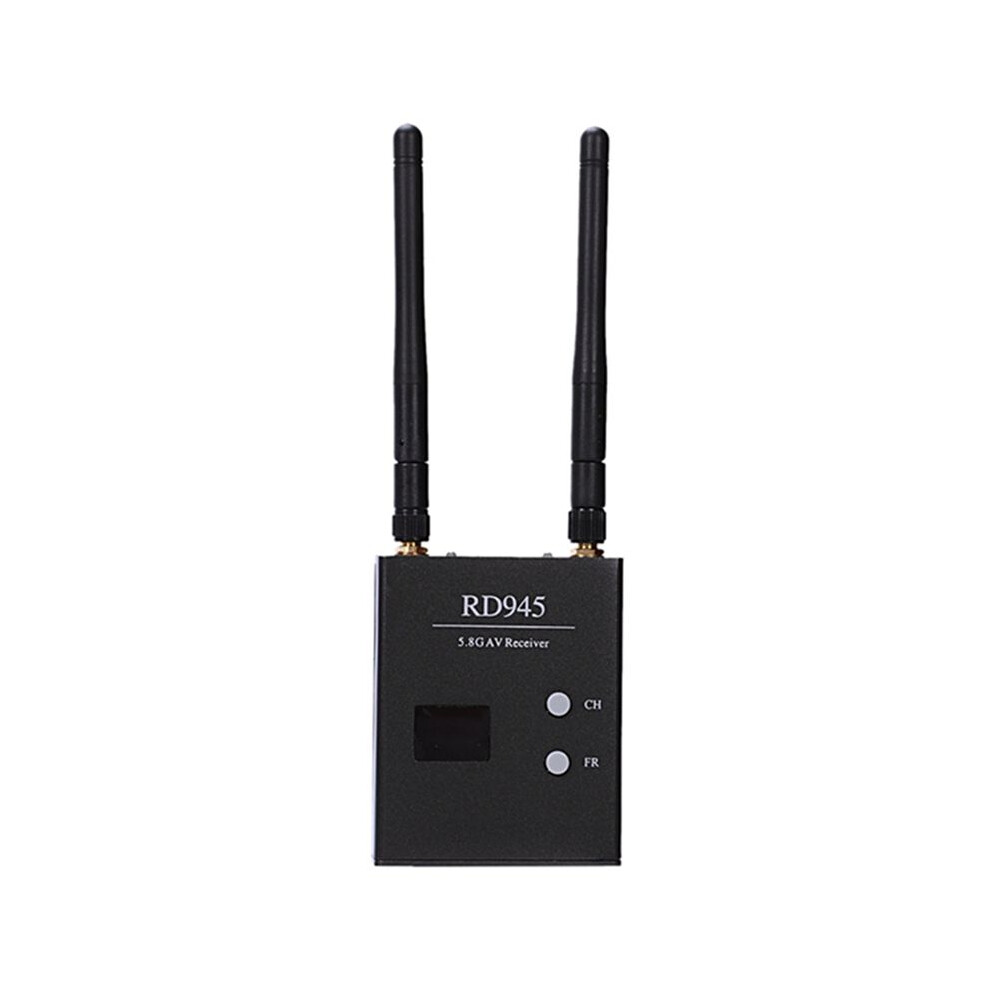

Two digit display for the band and channel
Power off memory for last channel and band

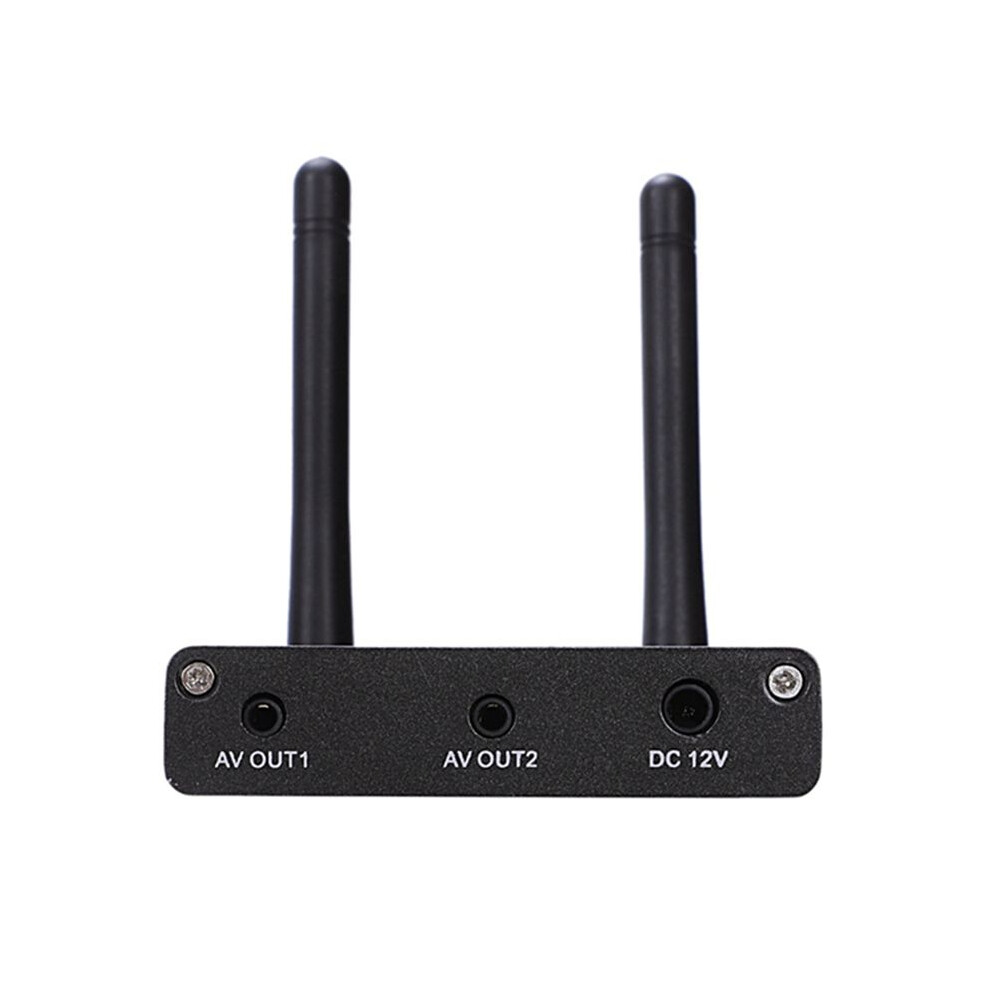

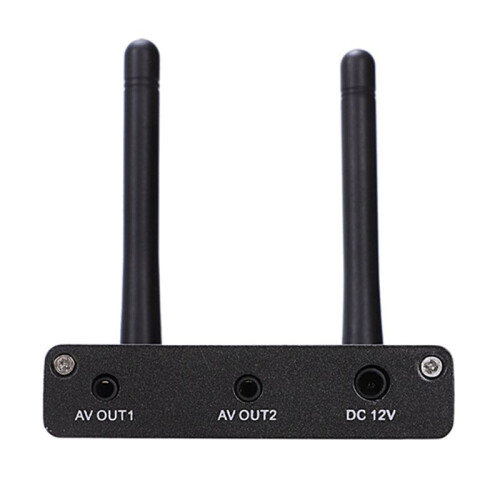

Dual independent video and audio signal outputs
Specs:
Video format supported: NTSC/PAL/CECAM
Antenna connections: RP-SMA jack
Power input: 7~24V
Working current: 280mA max
Rx sensitivity -90dBm
Video impedance: 75Ω
Dimension: 80x 65 x15mm
Frequency range:
FR1: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
FR2: 5733 meter 5752M 5771M 5790M 5809M 5828M 5847M 5866M
FR3: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
FR4: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
FR5: 5658M 5695M 5732M 5769M 5806M 5843 meter 5880M 5917M
FR6: 5362M 5399M 5436M 5473 meter 5510M 5547M 5584M 5621M

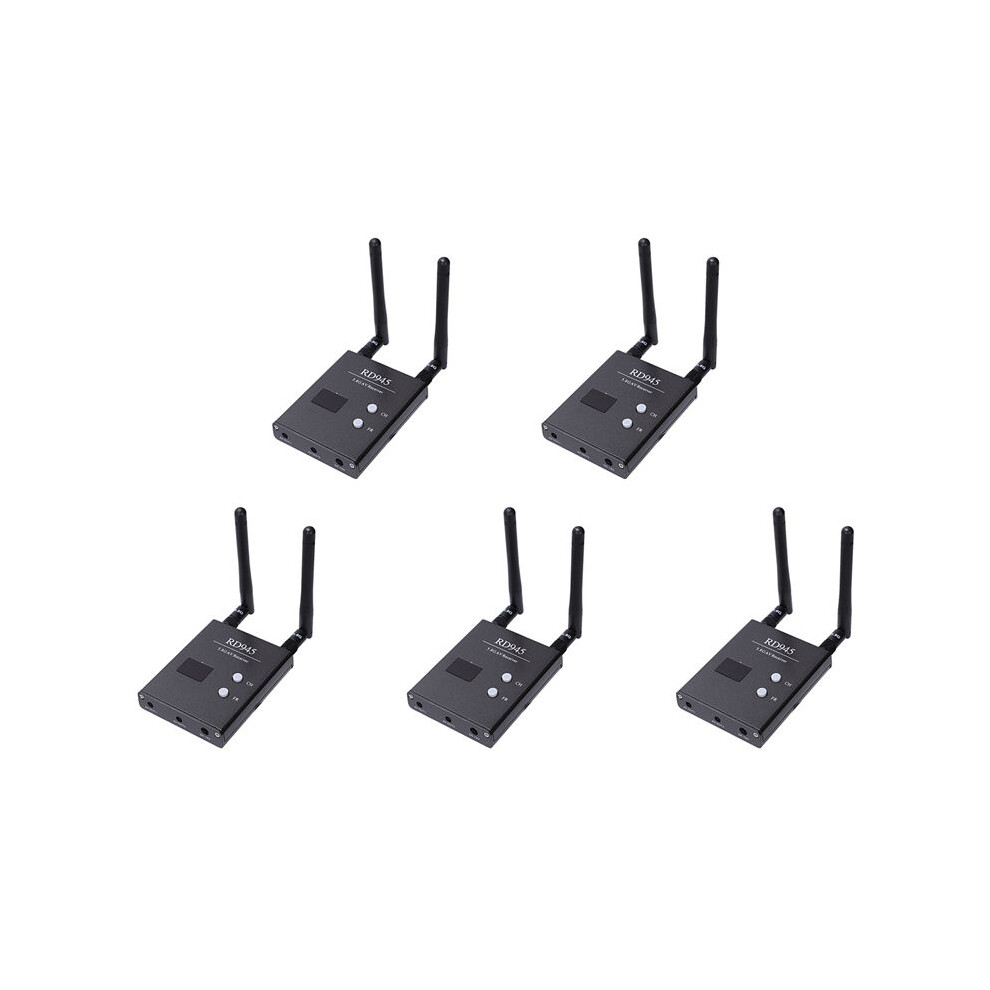

Package Contents:

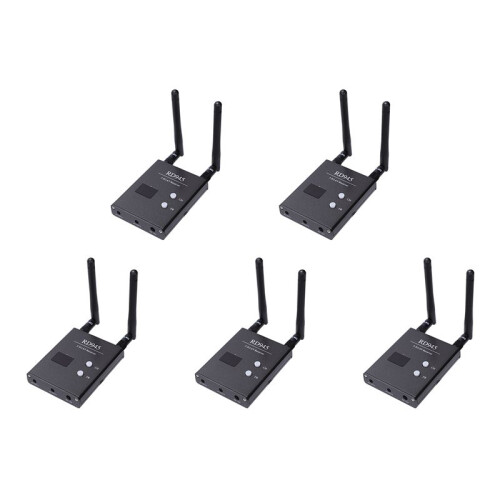

5 x RD945 Diversity receiver
5 x Power and A/V cables

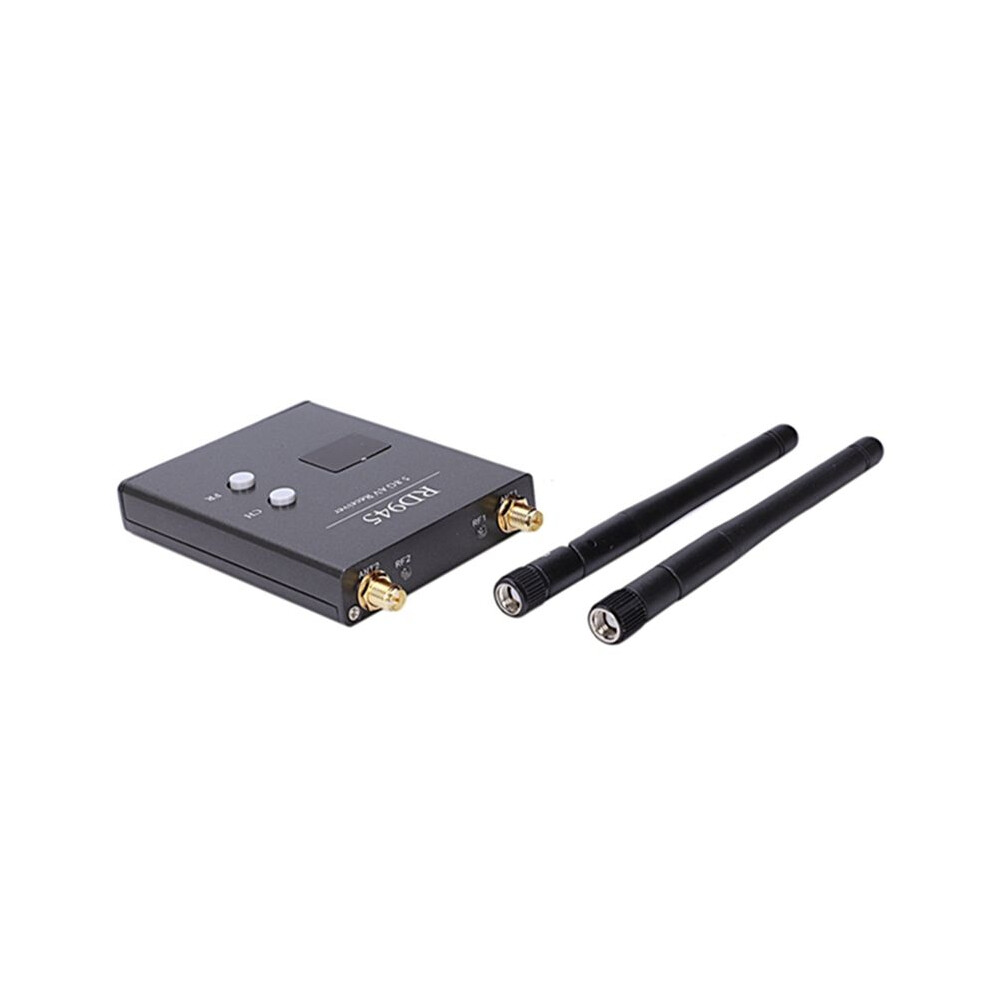

5 x 2 dipole antennas
