Summary

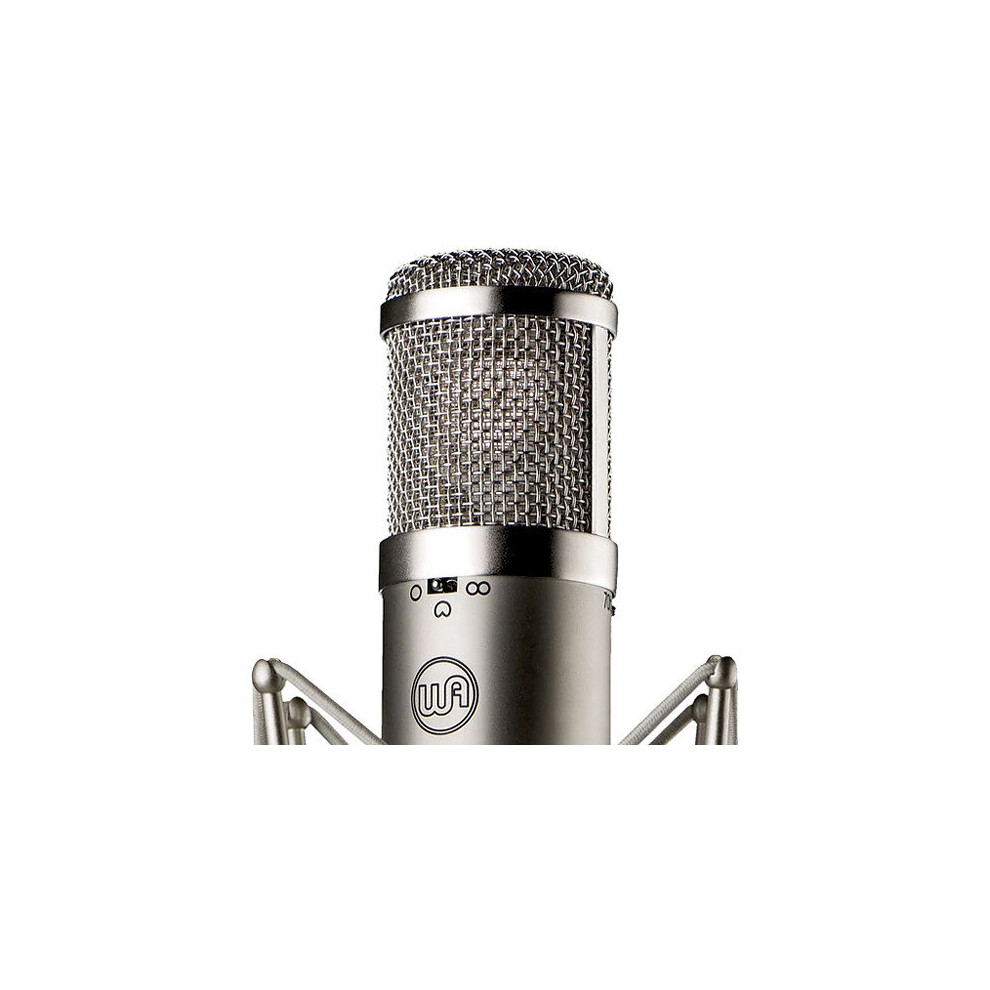

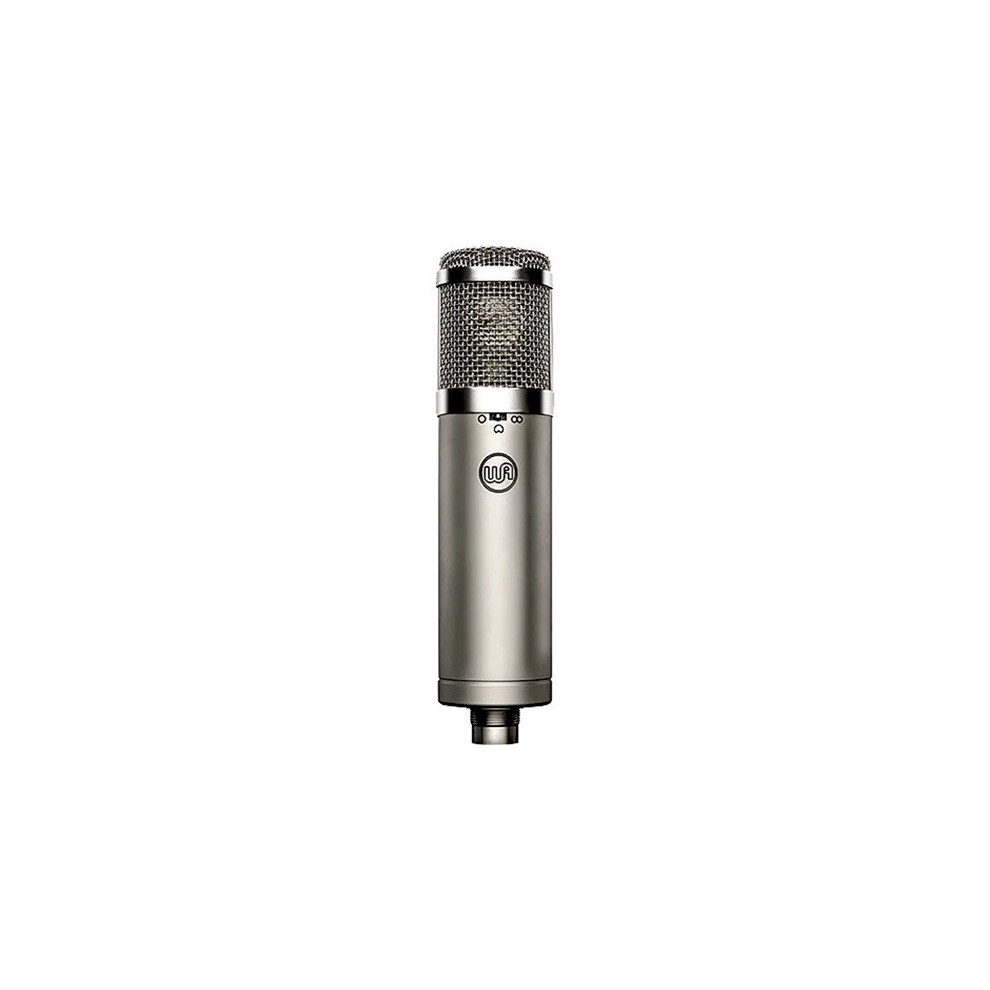

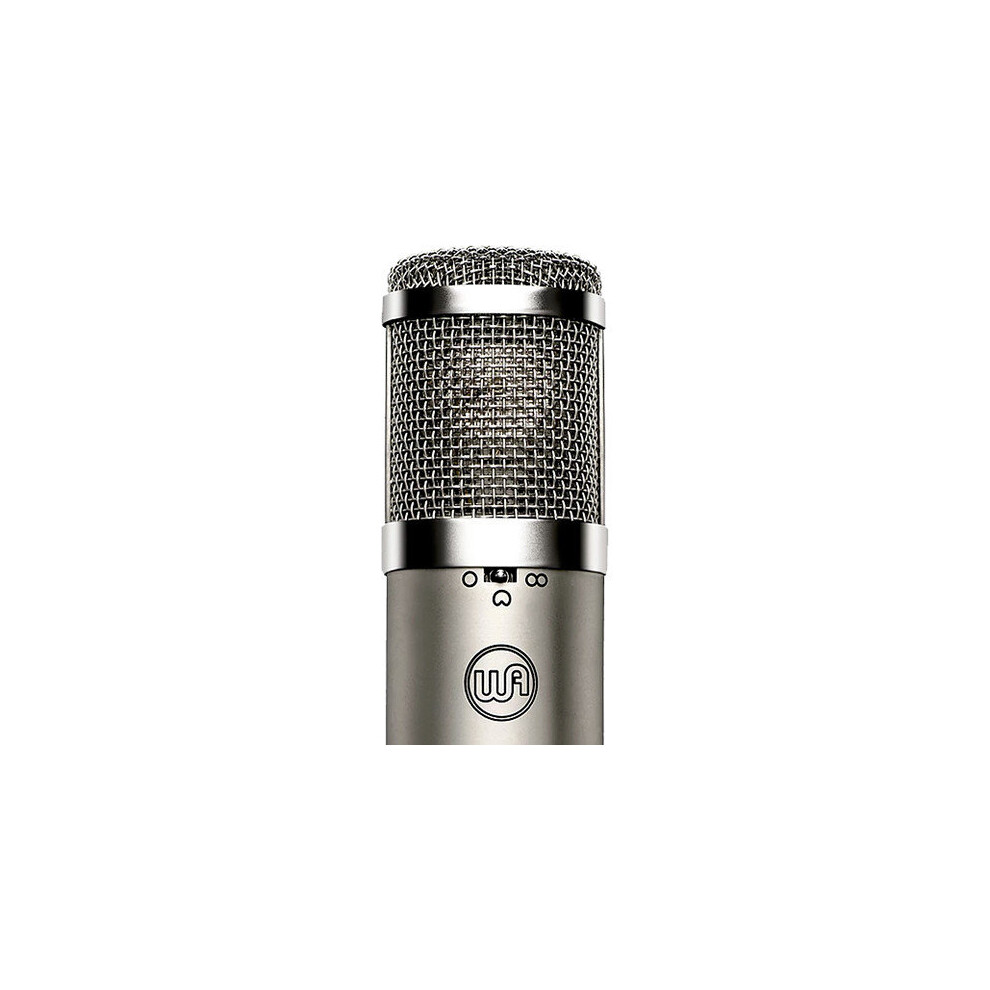

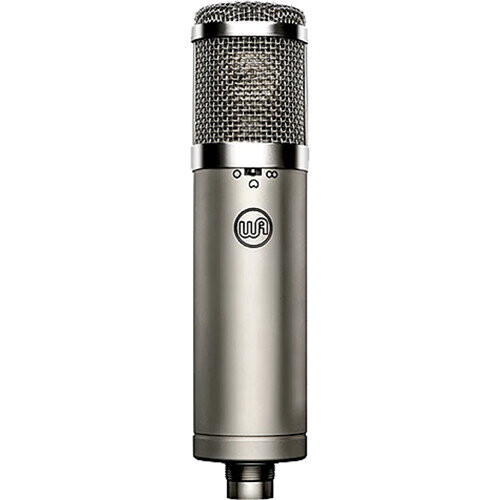

The Warm Audio WA-47jr is a large-diaphragm FET condenser microphone designed to provide the tonal characteristics of classic solid-state U47 microphones for vocalists, musicians, and recording engineers in home, project, and commercial recording studios. Thanks to three polar patterns—cardioid, omnidirectional, figure-8—selectable from a switch on the front of the body, its versatility allows it to excel at anything from dry, close-up vocals to ambient room sounds. A -10 dB pad switch raises the maximum SPL from 147 dB to a high of 157 dB, enabling safe use when miking kick drums and cranked guitar and bass amps. Excessive low frequencies from proximity effect are easily reduced via the high-pass filter, which rolls off lows below 70 Hz.

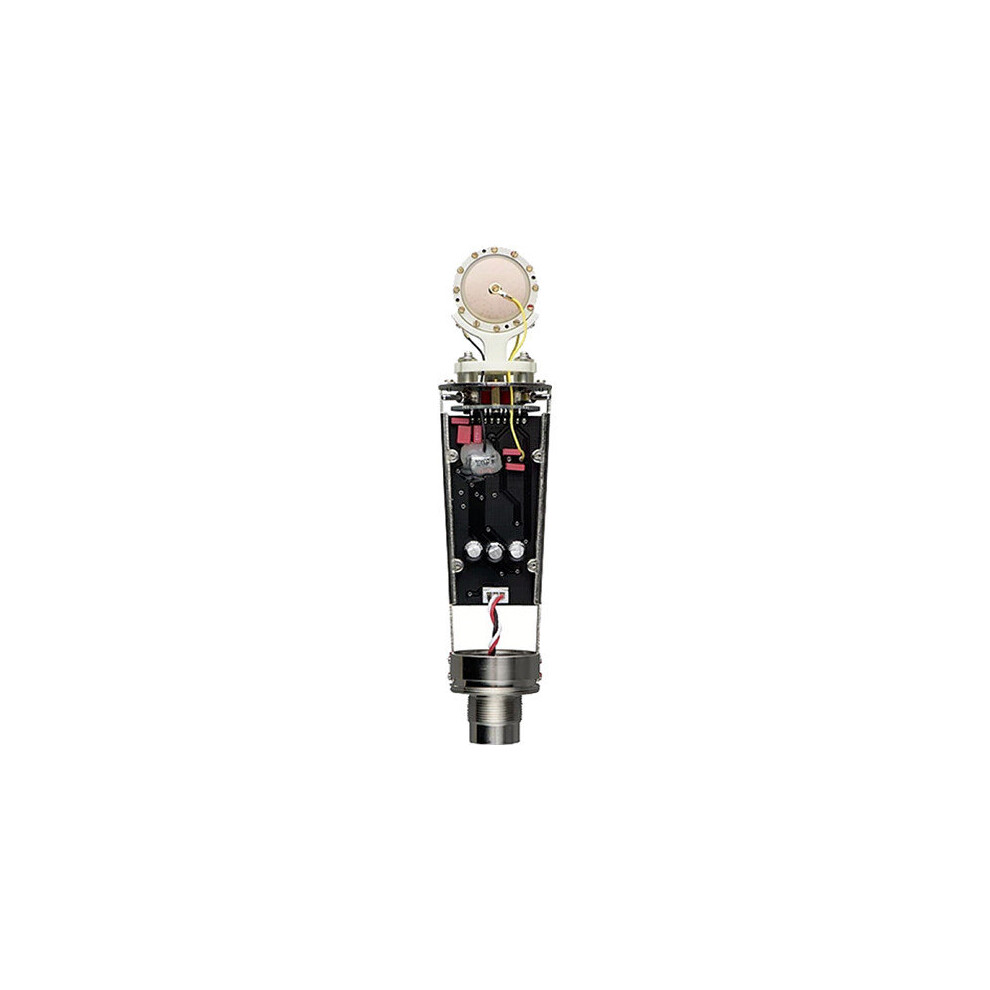

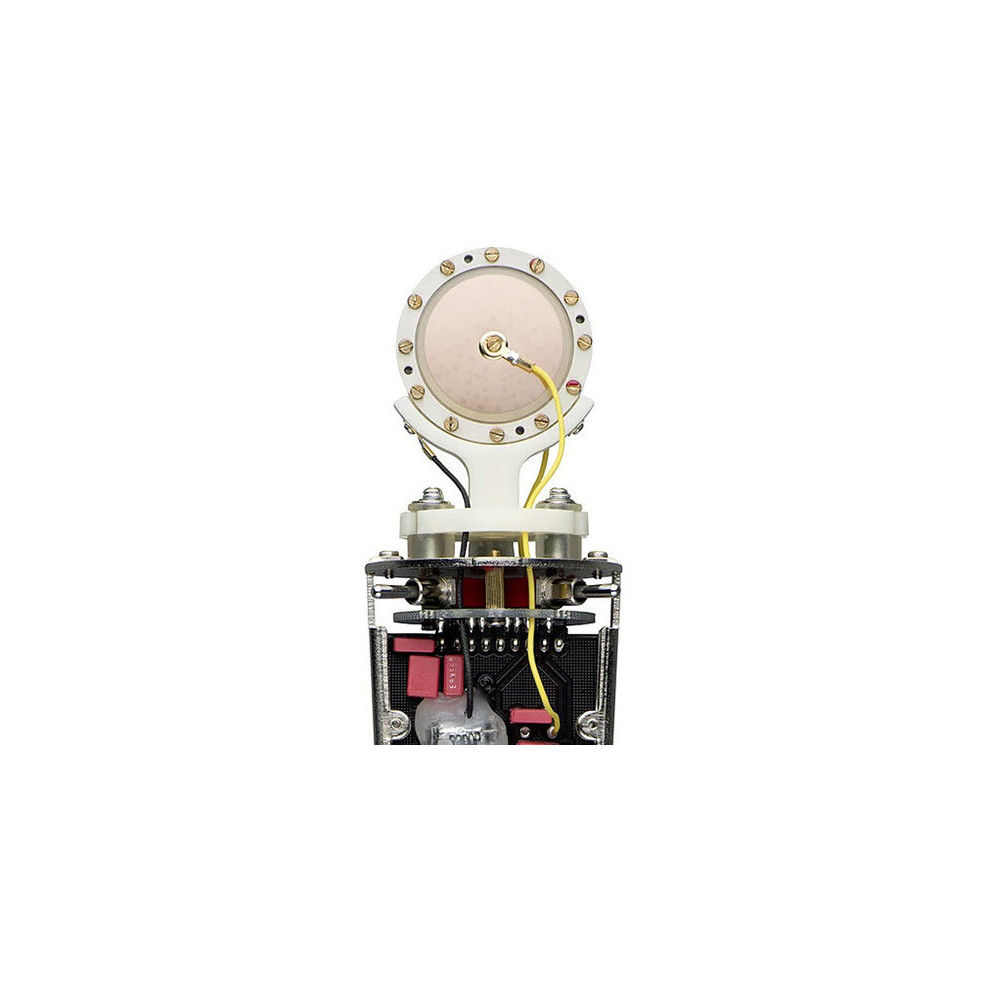

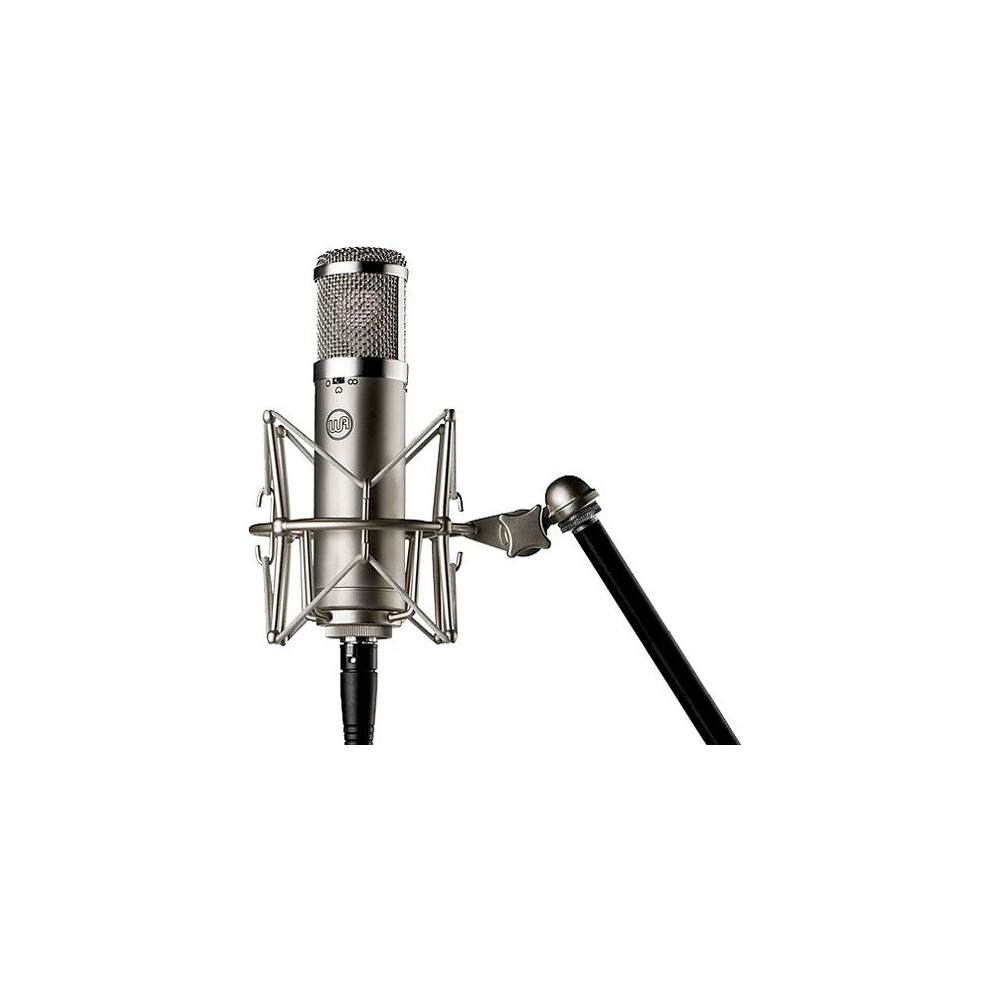

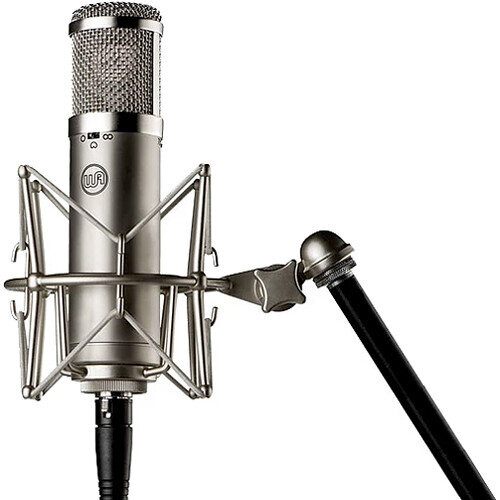

The K47-style capsule reproduction features dual gold-sputtered, 6-micron Mylar diaphragms with a single backplate. The fully discrete signal path includes Toshiba FETs, WIMA film capacitors, and Panasonic electrolytic capacitors to deliver the clean tone associated with transformerless microphones. With a gold-plated XLR 3-pin connector and operability via 48V phantom power, it is compatible with most mixing consoles and mic preamps.The WA-47jr ships with a storage pouch, hardmount, and a shockmount, which reduces rumble and decouples it from problematic vibrations.IN THE BOX:
Details
| OPC | P5TFCPV |
|---|---|
| Brand | Warm Audio |
| Codes | 0713541493124 (EAN) |
| MPN | WA-47JR |
Product Data
Microphone
| Sound Field | Mono |
|---|---|
| Operating Principle | Pressure Gradient |
| Capsule | Condenser |
| Polar Pattern | Cardioid, Figure-8, Omnidirectional |
| Pattern Selection | Switched |
| Circuitry | Tube |
| Pad | -10 dB |
| High-Pass Filter | 70 Hz |
Performance
| Frequency Range | 20 Hz to 20 kHz |
|---|---|
| Maximum SPL | 147 dB SPL |
| Impedance | 100 Ohms |
| Load Impedance | 1 Kilohms |
| Sensitivity | 10 mV/Pa |
| Dynamic Range | 138 dB A-Weighted |
| Signal-to-Noise Ratio | 85 dB A-Weighted |
| Equivalent Noise Level | 9 dB A-Weighted |
Connectivity
| Output Connectors | 1 x XLR 3-Pin |
|---|
Power
| Operating Voltage | 48 V |
|---|
Physical
| Dimensions | ø: 2.05 x L: 8.27" / ø: 52 x L: 210mm |
|---|---|
| Weight | 1.1lb / 0.5kg |
Packaging Info
| Package Weight | 3.83 lb |
|---|---|
| Box Dimensions (LxWxH) | 11.15 x 10 x 6.2" |
