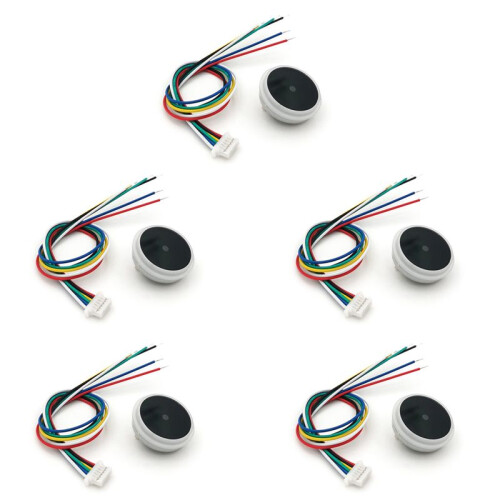

5X GM861S UART/USB Interface 1D/2D Bar Code QR Code Barcode Reader Module White Green LED
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.50) | Fri 17th - Thu 23rd Jul
Sold by: YPDblue
Returns: 30 days
180-day payment protection
Most Popular in Barcode Readers & Accessories
Summary
- GM861S
- Reading Distance:5-30cm
- Contrast x :Greater than 25%
- Scan Angle x x :Roll:360°Pitch:65°Yaw:65°
- Viewing Angle:67°(Horizontal)53°(Vertical)
5X GM861S UART/USB Interface 1D/2D Bar Code QR Code Barcode Reader Module White Green LED Description
GM861S
Reading Distance:5-30cm
Contrast x :Greater than 25%
Scan Angle x x :Roll:360Pitch:65Yaw:65
Viewing Angle:67(Horizontal)53(Vertical)
Parameter
Performance
Sensor
CMOS
Scan Mode
640 x 480
Indicator Light
Green lightas read successfully
Read Code Type
1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5,
Matrix2of5, Code 39,Code11, MSI-Plessey,
GS1 Composite,GS1-Databar (RSS)
2D: QRCode, DataMatrix, PDF417
Accuracy of reading x :10mil
Mechanical/electrical Parameters:
Parameter:Performance
Interface:TTL-232/USB
Size(mm):Diameter 20.9mm Height 6.2mm
Weight:10g
Prompting mode:LED Indicator
OperatingVoltage:3.3V
Operation Current:70mA(Max)
Standby Current:6mA(Typical)
Startup :250mS (Typical)
material: metal
Color as shown
Package Contents:
5 x Scan code module
Details
| OPC | PTJ5BVY |
|---|---|
| Codes | 6033325047492 (EAN) |
Product Data
| Height | 5cm |
|---|---|
| Width | 9cm |
| Length | 12cm |
| Weight | 0.03kg |
| Colour | As Shown |
| Material | Metal |
