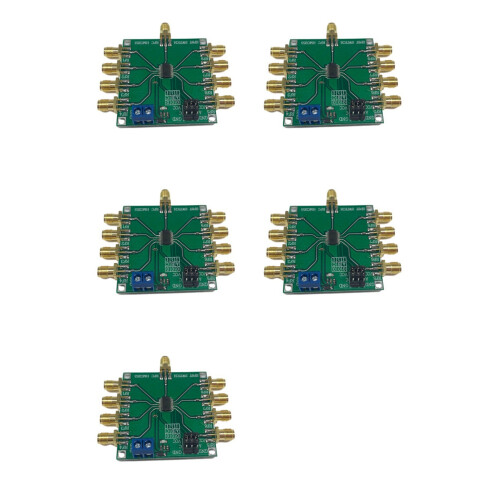

5X HMC253 -2.5 GHz Multifunction RF Single Pole Eight Throw Rf Channel Select Antenna Module
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.50) | Sat 25th - Fri 31st Jul
Returns: 30 days
180-day payment protection
Most Popular in Radio Antennas
Summary
- 1. The HMC253AQS24E Is A Low-Cost Non-Reflective Sp6t Switch In A 24-Pin Qsop Package With Wideband Operation From Dc To 2.5 Ghz.
- 2. The Switch Offers Single Positive Bias And True Ttl/Cmos Compatibility.
- 3. A 3:6 Decoder Is Integrated On The Switch, Requiring Only Three Control Lines And A Positive Bias To Select Each Path
- 4. The HMC253AQS24E SP8T Can Replace SP4T And SPDT Mmic Switches And Logic Drivers In Multiple Configurations.
- 5. RF Single-Pole Eight-Throw Switch Rf Switch Antenna Selection Channel Selection Module
5X HMC253 -2.5 GHz Multifunction RF Single Pole Eight Throw Rf Channel Select Antenna Module Description
1. The HMC253AQS24E Is A Low-Cost Non-Reflective Sp6t In A 24-Pin Qsop Package With Wideband Operation From To 2.5 Ghz.
2. The Offers Single Positive Bias And True Ttl/Cmos Compatibility.
3. A 3:6 Decoder Is Integrated The , Requiring Only Three Control Lines And A Positive Bias To Select Each Path
4. The HMC253AQS24E SP8T Can Replace SP4T And SPDT Mmic Switches And Logic Drivers In Multiple Configurations.
5. RF Single-Pole Eight-Throw Rf Antenna Selection Channel Selection Module
Function
1. Low Insertion Loss (2 Ghz): 1.0 dB
2. Single Positive Power Supply: Vdd = +3V To +5V
3. Integrated 3:6 Ttl Decoder
Application
1. Base Station
2. Catv/Dbs
3. Mmds And Wlan
4. Test Equipment
Circuit Description
Power Supply Voltage: 3V-5V
Frequency: -3GHZ
PVB Size: 50x50mm
Colour:green
Material:PCB
Size: about 7 x 5cm
Package Contents:
5 x Antenna Module
Details
| OPC | PTHK6B2 |
|---|---|
| Codes | 6033968521557 (EAN) |
Product Data
| Height | 15cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.1175kg |
| Colour | Green |
| Material | PCB |
