5X Waveshare 1.3 Inch LCD Display for Raspberry Pi , IPS Screen Display Module, 65K RGB Colors, 240X240 Pixels

5X Waveshare 1.3 Inch LCD Display for Raspberry Pi , IPS Screen Display Module, 65K RGB Colors, 240X240 Pixels Description

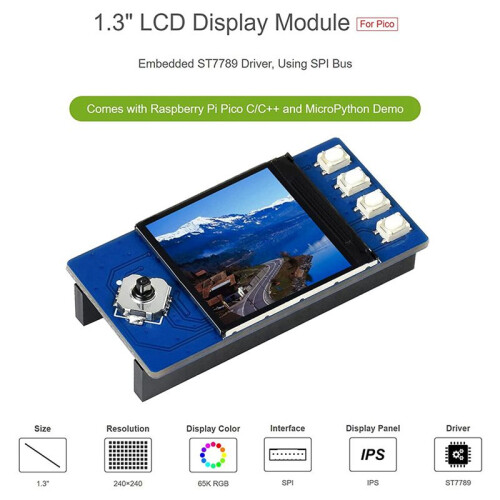

1.3inch LCD Display Module For Raspberry Pi Pico
Embedded ST7789 Driver, Using SPI Bus

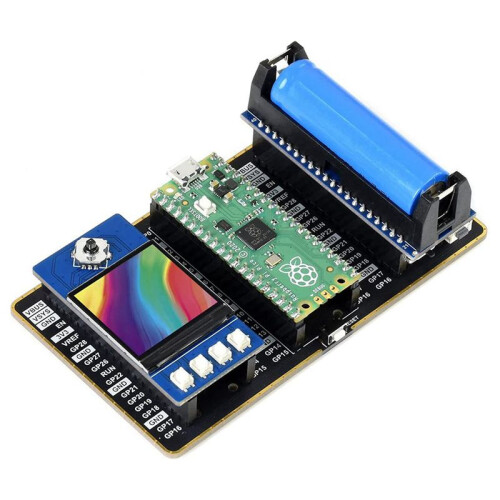

For Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
1x Joystick And 4x User Buttons For Easy Interacting

Operating voltage: 2.6~5.5V
Resolution: 240x240 pixels
Communication interface: 4-wire SPI
Display size: 23.40 x 23.40mm
Display panel: IPS
Pixel size: 0.0975 x 0.0975mm
Driver: ST7789
Dimensions: 52.00 x 26.50mm
LCD and the controller
The ST7789VW is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The
resolution of this LCD is 240(H)RGB x 240(V), it supports horizontal mode and vertical mode, and it doesn't use all the RAM of the controller.
This LCD accepts 8-bits/9-bits/16-bits/18-bits parallel interface, that are RGB444, RGB565, RGB666. The color format used in demo codes is RGB565.
This LCD uses a 4-line SPI interface for reducing GPIO and fast speed.LCD
Note: Raspberry Pi Pico is NOT included.
color:Blue
Material:PCB

Package Contents:

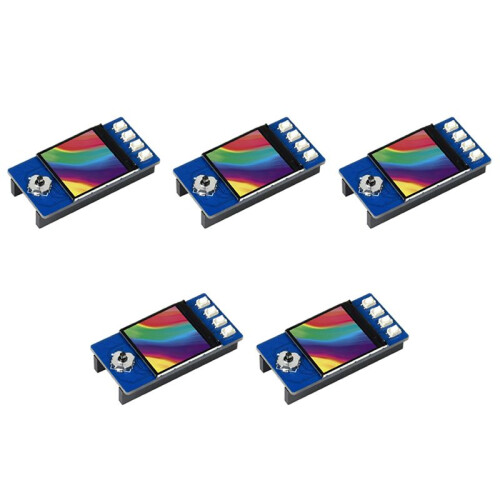

5 x Pico-LCD-1.3
